HDMI HDbitT Extender Amplifier Receiver on 300mt Double Lead Cable

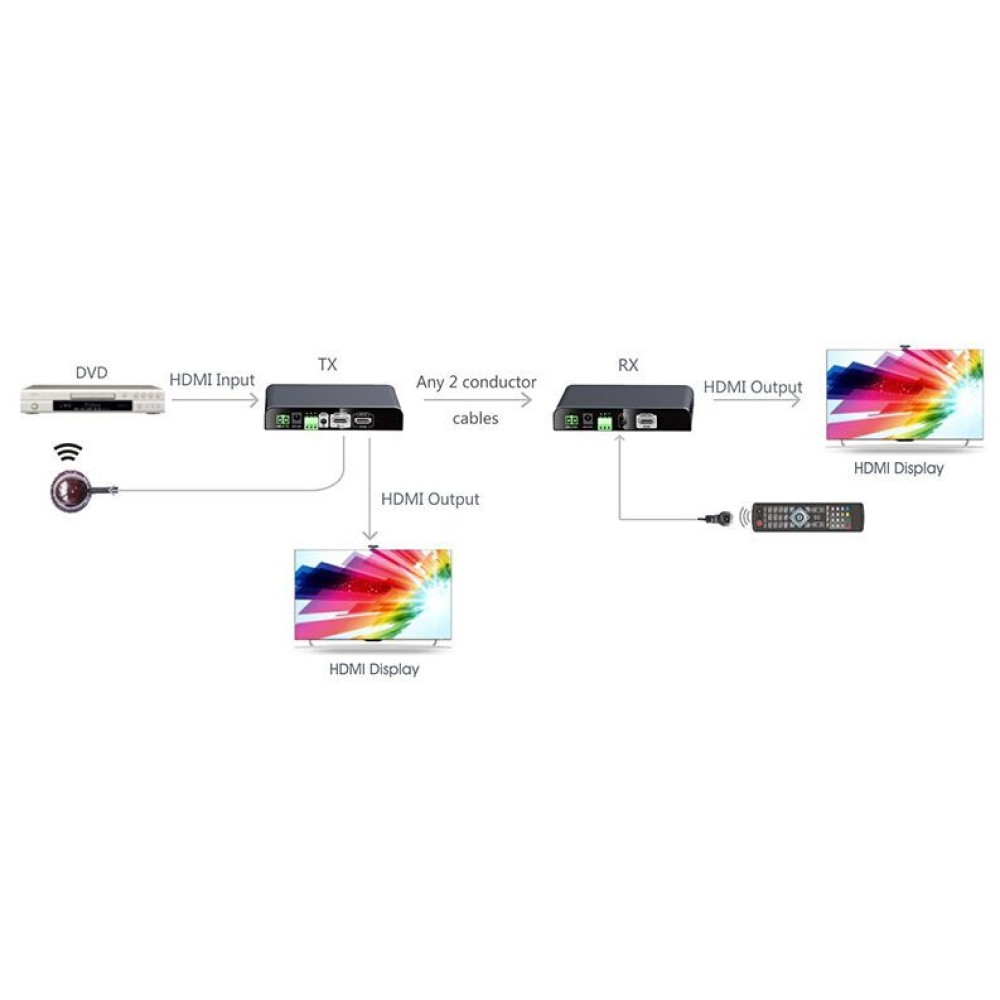

This Extender transmits and receives the HDMI HDbitT signal through two conductive cables, such as a network cable, electrical wires, coaxial cable, telephone cord, and so on. The product includes a transmitter unit and a receiver, the maximum transmission distance is 300 meters. Supports multicast: a transmitter unit can drive up to 4 receive units using 4 single wire pairs of over 300m each, or with a cascade connection between the receivers. It supports IR signal for remote control, PCM audio and is HDCP compatible 1.3. Thanks to its versatility it can be used both in the professional and domestic sectors.

Technical Specifications

• HDMI HDbitT extender kit with HDbitT protocol to extend transmission distances using two conductor cables, such as power cable, electrical wires, coaxial cable, telephone cord, and so on. Up to 300 meters

• Supports bidirectional infrared control for remote device control

• Supports Multicast connection from a transmitter to up to 4 receivers (even in cascade)

• Supports HDMI 1.3

• Supports HDCP 1.3

• Maximum supported video resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz

• Supports PCM audio

• DC 12V 2A power supply

• Consumption (Max): RX: 7W


Environmental Features

• Operating temperatures: 0 °C ~ 60 °C

• Storage temperature: -20 ~ 70 ℃


Dimensions, Weight, and Structure

• Width: 228 mm

• Depth: 126 mm

• Height: 25 mm

• Weight: 210g

• Black Colour


Certification

• EC

• ROHS

• WEEE


Package Contents

• 1x HDMI Extender Receiver

• 1x IR receiver cable

• 1x Power Supply 12V 2A

• 1x instruction manual
