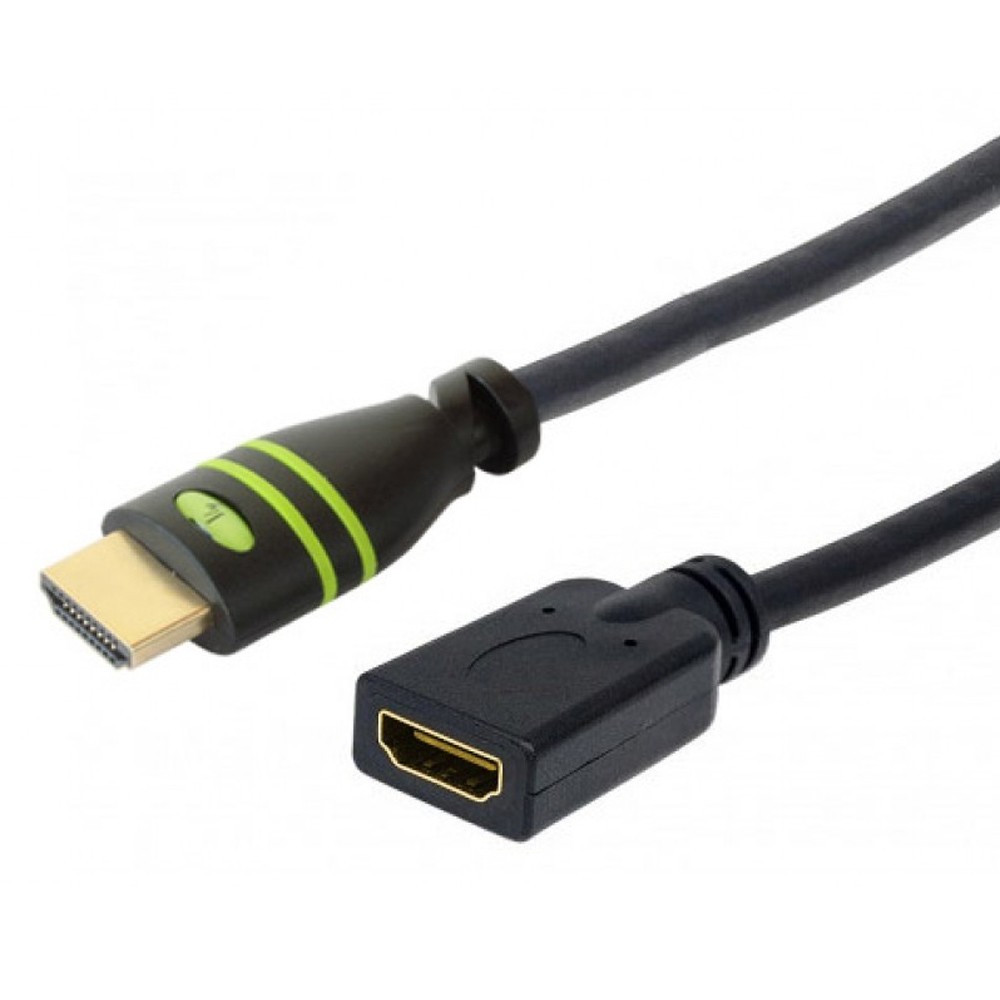

HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 7.5m
Code: ICOC HDMI2-4-EXT075    Barcode: 8051128106879

   Supplier Code: 106879

Available

HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 7.5m

Certificazioni: CE
Certificazioni: UL
Certificazioni: RoHS
Anni di Garanzia: 3
Tipo connettore B: HDMI-A
Connettori dorati: Yes
Risoluzione massima: 4K (2160p) 60fps
Altri Standard Supportati: 3D
Altri Standard Supportati: HDCP
Choose a different Option:

• HDMI 19-pin male to HDMI 19-pin female
• Ensures signal integrity between HDMI devices
• Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 60Hz video resolution and Deep Color
• Conforms to HDMI High Speed specifications with Ethernet
• Up to 10.2 Gbps at 340 MHz bandwidth
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Length: 7.5 m

    Description

    Details

    • HDMI 19-pin male to HDMI 19-pin female
    • Ensures signal integrity between HDMI devices
    • Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 60Hz video resolution and Deep Color
    • Conforms to HDMI High Speed ​​specifications with Ethernet
    • Up to 10.2 Gbps at 340 MHz bandwidth
    • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
    • Die-cast PVC connector cover

    Standards and certifications:
    • UL 20276
    • RoHS
    • EC

    General Information:
    • Bandwidth: 10.2 Gbps
    • 340 MHz
    • Compliant or superior to existing HDMI standards
    • Length: 7.5 m

    Contacts:
    • 1 x HDMI 19-pin male
    • 1 x HDMI 19-pin female
    • Gold contacts
    • PVC die-cast connector covers
    • Shielded, braided and aluminum foil
    • 30 AWG connectors

    Electrical Information:
    • Current index: 0.5 A DC
    • Voltage: 300 V DC
    • Insulation resistance: 10 MOhms
    • Conductive resistance: 2 Ohms

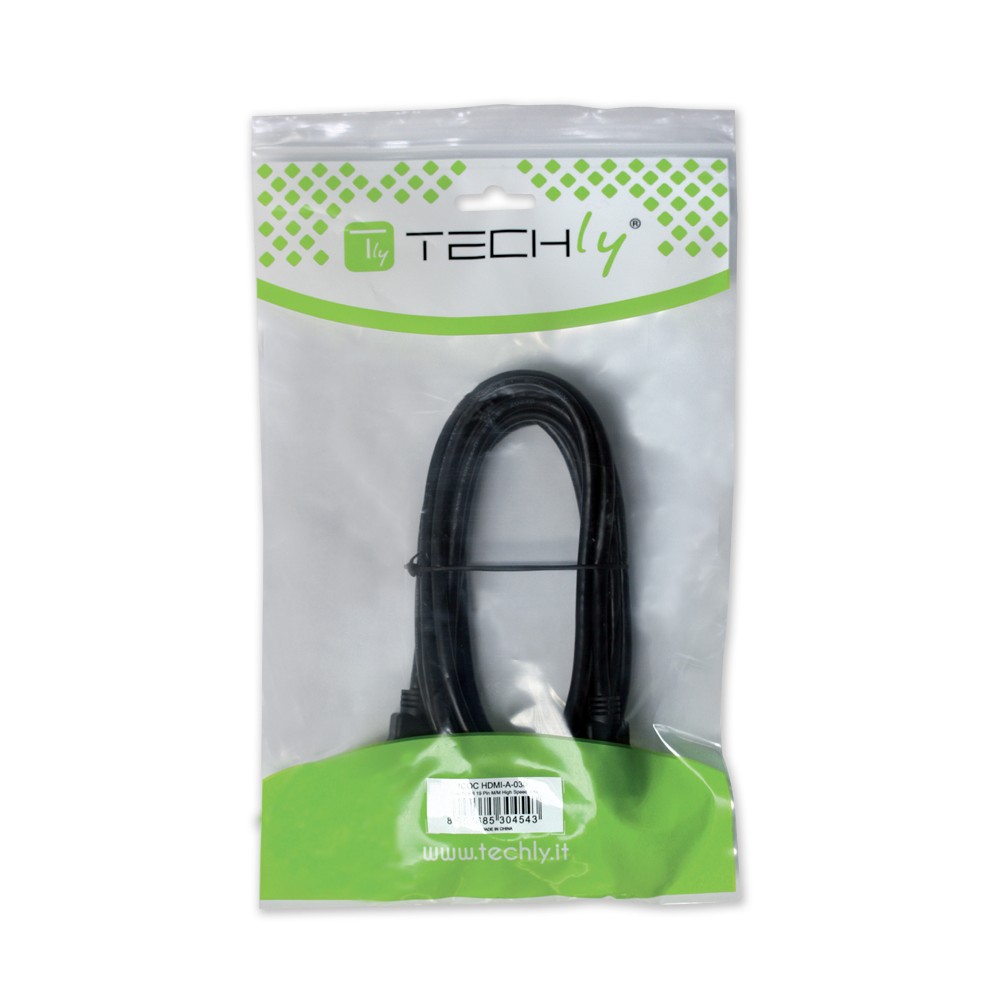

    Package Contents:
    • High Speed ​​HDMI extension cable with 7.5 m Ethernet M / F
    data sheet
    generale
    Brand
    Techly
    Barcode
    8051128106879
    Weight
    0.6260
    Certifications
    CE , UL, RoHS
    Years of Warranty
    3
    Codice Fornitore
    106879
    specifiche
    Typology
    HDMI High Speed con Ethernet
    Length
    7,5 m
    Connector A Type
    HDMI-A
    format A connector
    male
    Connector B Type
    HDMI-A
    format B connector
    male
    Headphone connectors
    Yes
    Cable shielding
    Doble
    Shielding type
    Braid and aluminum foil
    Cable size (AWG)
    28
    Color
    Black
    specifiche tecniche
    Cable rate
    340 MHz
    Maximum resolution
    4K (2160p) 60fps
    Maximum bandwidth per channel
    10 Gbit/s
    Color space support
    Deep Color
    Audio Standard Supportati
    Audio-Return Channel (ARC), Dolby Digital/Plus , Dolby TrueHD , DTS-HD Master Audio , DVD-Audio , SA-CD
    Other Standards Supported
    3D , HDCP , HEC (HDMI Ethernet Channel), Ultra HD 4K (2160i/p)
    Accessories
