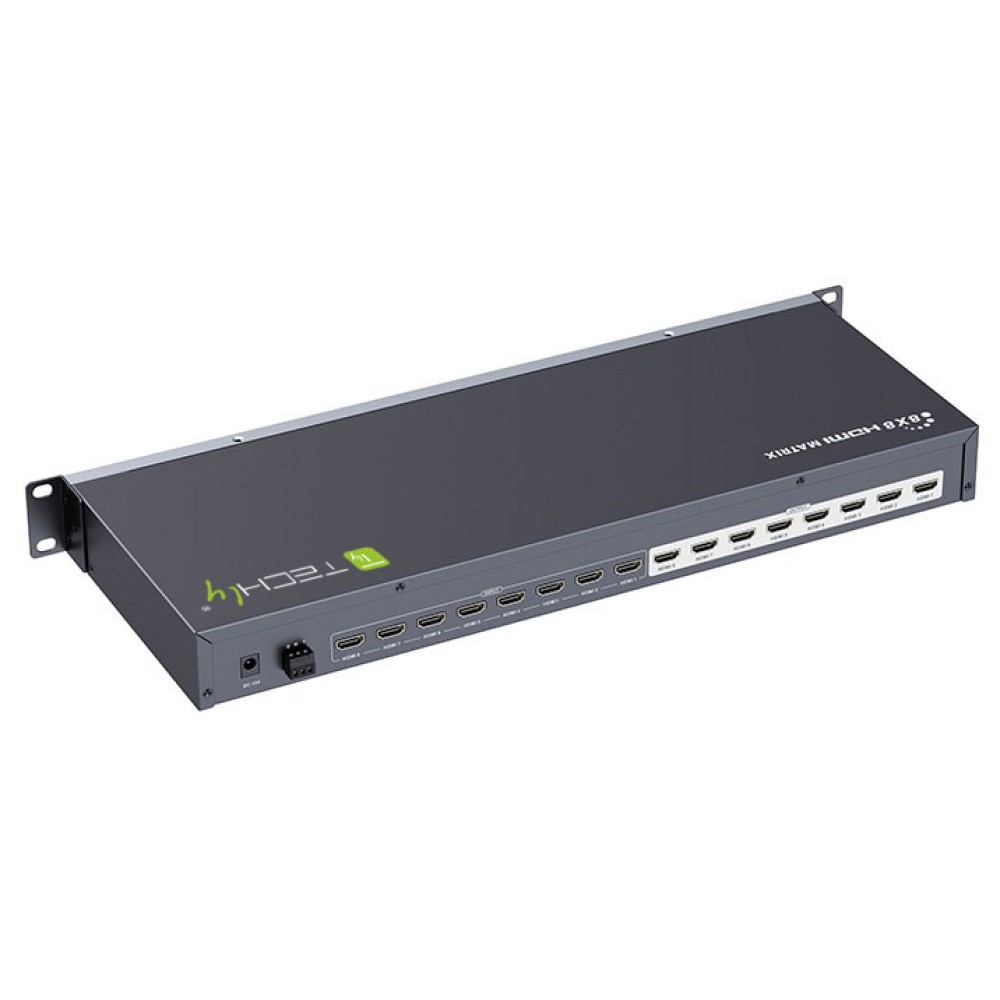

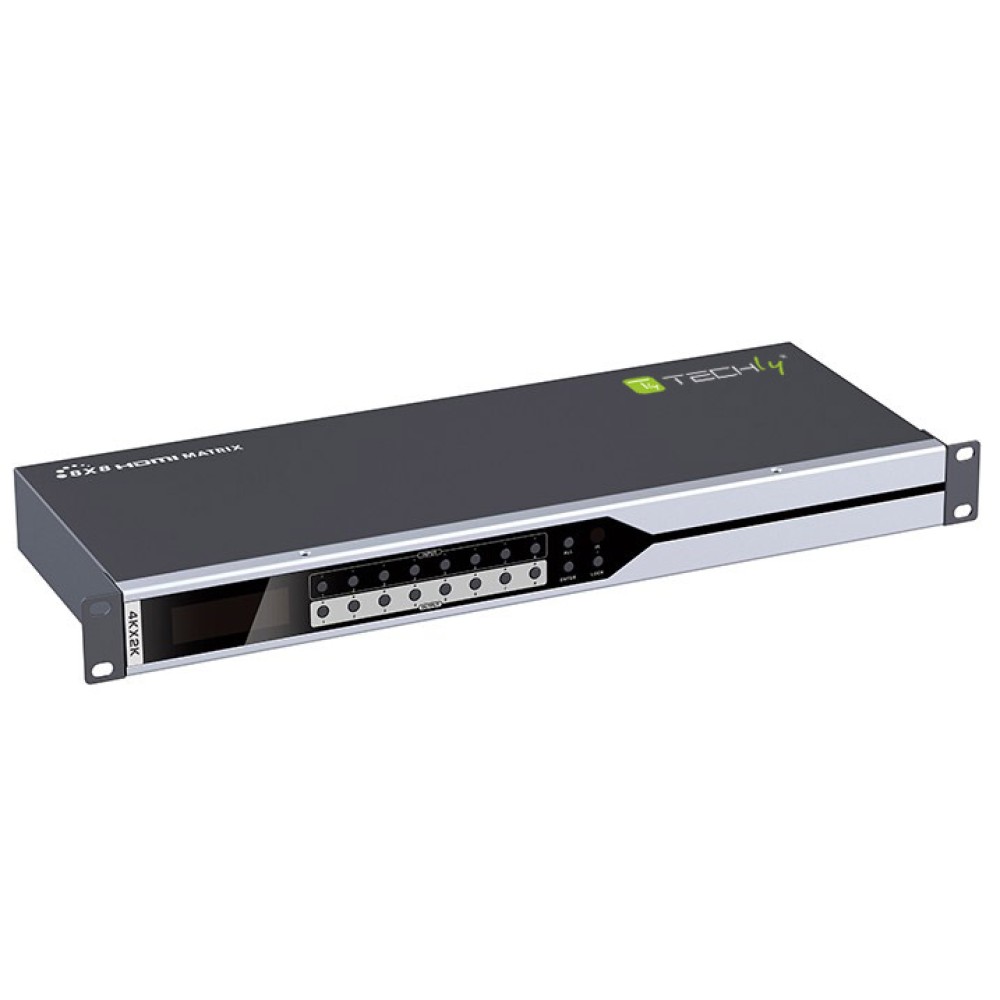

HDMI Switch Matrix 8x8

Cod: IDATA HDMI-MX818

Barcode: 8051128104417

Supplier Code: 104417

Weight: 2.949 Kg

Min. sale unit: 1 Pcs

Package pcs: 4 Pcs

Cod
IDATA HDMI-MX818
Barcode
8051128104417
Supplier Code
104417
Weight
2.949 Kg
Min. sale unit
1 Pcs
Package pcs
4 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: 480p
HDCP: 1.4
Compatibile 3D: Yes
  • 8x8 HDMI1.4 matrix switch
  • Supports 8 HDMI inputs and 8 HDMI outputs
  • Support resolution up to 4K × 2K @ 30Hz
  • Data transmission rate up to 10.2 Gbps
  • IR remote control support
  • Support for RS232 control
  • Support3D
  • Pure hardware design, plug and play
  • With control button for switching inputs / outputs
  • Dimensions: 482.45 x 179.60 x 44.40 mm
  • Black colour
Description
  • 8x8 matrix switch
  • Supports 8 inputs with HDMI signal and 8 outputs with HDMI signal
  • Support resolution up to 4K × 2K @ 30Hz
  • Data transmission rate up to 10.2 Gbps
  • IR remote control support
  • Support for RS232 control
  • Support3D
  • Pure hardware design, plug and play
  • Support button control for switching inputs / outputs
Features
  • HDMI signal HDMI1.4, compatible with HDCP1.4
  • HDMI 8 inputs
  • HDMI 8 outputs
  • Transmission speed 10.2 Gbps
  • Support resolution 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50
/ 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 4Kx2K @ 25 / 30Hz
  • Supports DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD audio format
  • YUV 4: 2: 2
  • Video signal 0.5 ~ 1.5 Vp-p (TM DS)
  • 5Vp-p DDC signal (TTL)
  • 340 MHZ video bandwidth
  • 19-pin HDMI A Type, female port
  • RS232 RS232 serial control
  • Working temperature 0 ° C ~ 60 °C
  • Working humidity 0 ~ 90% (without condensation)
  • DC12V / 3A power supply
  • Energy consumption 27 W (Max)
  • Black colour
Size
  • Width: 482.45 mm
  • Depth: 179.60 mm
  • Height: 44.40 mm
  • Weight 2.07 kg
Package Contents
  • 8x8 matrix switch
  • Power supply
  • User Guide
Data sheet
general
Brand Techly Np Barcode 8051128104417
Certifications CE , FCC , RoHS Color Grey
Codice Fornitore 104417
input
Connector A Type HDMI-A format A connector female
Number A Connector 8
output
Connector B Type HDMI-A format B connector female
Number B Connector 8
technical specifications
Typology Switch Max Video Resolution 1080i , 1080p, 480i, 480p , 576i, 576p, 720p , Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 1.4 HDCP 1.4
3D compatible Yes Supported audio standards Yes
Transmission Distance -
power supply
Power supply Requested (included) Consumo energetico Alimentatore DC12V / 3A
dimensions
Width 482,45 mm Height 44,40 mm
Depth 179,60 mm Weight 2.9490
The package includes • Switch matrix 8x8 • Alimentatore • Guida Utente
