HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-1
HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-1
HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-0
HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-1
HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-2
HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-3
+3
HDMI to Composite Video Adapter + USB - TECHLY - ICOC HDMI-RCAU-1
Techly

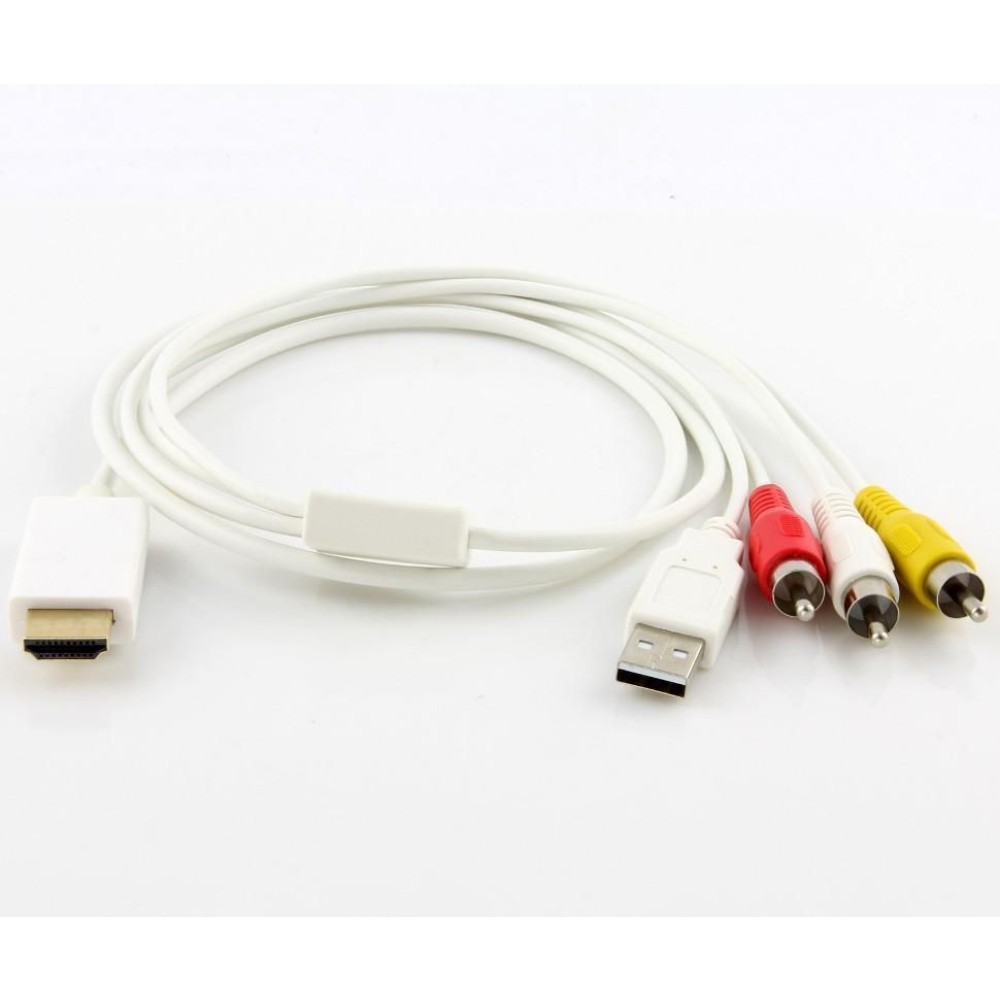

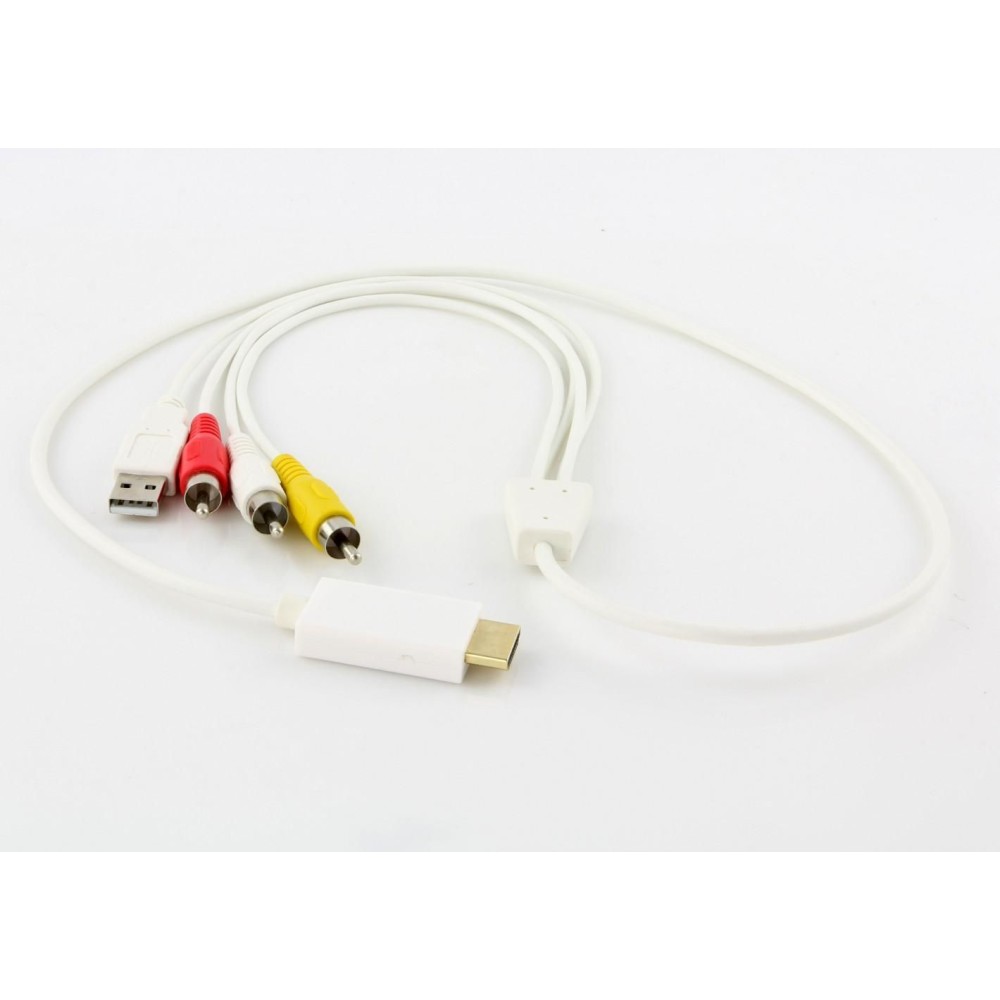

HDMI to Composite Video Adapter + USB

Cod: ICOC HDMI-RCAU

Barcode: 8057685301832

Supplier Code: 301832

Weight: 0.077 Kg

Min. sale unit: 1 Pcs

Package pcs: 80 Pcs

Cod
ICOC HDMI-RCAU
Barcode
8057685301832
Supplier Code
301832
Weight
0.077 Kg
Min. sale unit
1 Pcs
Package pcs
80 Pcs
Certificazioni: RoHS
Anni di Garanzia: 3
  • This adapter converts a digital signal into an HDMI signal analog composite video, S-Video and audio R / L; you can select the composite video or S-Video as output at different times
  • Allows users to enjoy picture and sound in high definition when watching movies or playing using traditional CVBS monitor or projector
Features
  • It 'easy to use, installs in seconds without the need for any configuration
  • Allows you to completely convert the HDMI input signal into a composite video signal and audio R / L output
  • Supports analog composite video output up to 480P / 480i / 576i.
  • Supports uncompressed audio R / The entrance / exit signal:
  • Video input signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Connection Input: HDMI A female (19pin)
  • Connection output: RCA x 3
  • Format Video Input HDMI: 480i / 576i / 480p
  • RCA Video Output Format: 480i / 576i / 480p
  • Format Audio output: 2 channels LPCMFrequenza of operation:
  • Vertical Frequency Range: 50 / 60HzCaratteristiche physical:
  • Length: 1 m
  • Weight (net): 61gCaratteristiche environmental:
  • Operating Temperature: 0? to +70?
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage Temperature: -10? to +80?
  • Storage Humidity: 5% to 95% RH (non-condensing) Power supply:
  • Powered via USB
  • Current consumption (max): 0.75W
Package Contents
  • Adapter HDMI to Composite Video + USB
  • Instruction Manual
  • Color: White
  • Length: 1 meter
Description
  • This adapter converts a digital signal into an HDMI signal analog composite video, S-Video and audio R / L; you can select the composite video or S-Video as output at different times
  • Allows users to enjoy picture and sound in high definition when watching movies or playing using traditional CVBS monitor or projector
Features
  • It 'easy to use, installs in seconds without the need for any configuration
  • Allows you to completely convert the HDMI input signal into a composite video signal and audio R / L output
  • Supports analog composite video output up to 480P / 480i / 576i.
  • Supports uncompressed audio R / The entrance / exit signal:
  • Video input signal: 0.5-1.0 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Connection Input: HDMI A female (19pin)
  • Connection output: RCA x 3
  • Format Video Input HDMI: 480i / 576i / 480p
  • RCA Video Output Format: 480i / 576i / 480p
  • Format Audio output: 2 channels LPCMFrequenza of operation:
  • Vertical Frequency Range: 50 / 60HzCaratteristiche physical:
  • Length: 1 m
  • Weight (net): 61gCaratteristiche environmental:
  • Operating Temperature: 0? to +70?
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage Temperature: -10? to +80?
  • Storage Humidity: 5% to 95% RH (non-condensing) Power supply:
  • Powered via USB
  • Current consumption (max): 0.75W
Package Contents
  • Adapter HDMI to Composite Video + USB
  • Instruction Manual
  • Color: White
  • Length: 1 meter
Data sheet
general
Brand TECHLY Barcode 8057685301832
Weight 0.0770 Certifications RoHS
Years of Warranty 3 Codice Fornitore 301832
specifications
Typology HDMI High Speed Length 1 m
Connector A Type HDMI-A format A connector female
Connector B Type Multiconnection format B connector male
Headphone connectors No Color White
technical specifications
Other Standards Supported SDTV (480i/p)
