• This product is no longer available. You can find similar products in the Audio Video Extender category.
HDMI Wireless kit Full HD via HDbitT up to 200m
Press release & video?
Code: IDATA HDMI-WL80    Barcode: 8051128100594

   Supplier Code: 100594

NO LONGER AVAILABLE

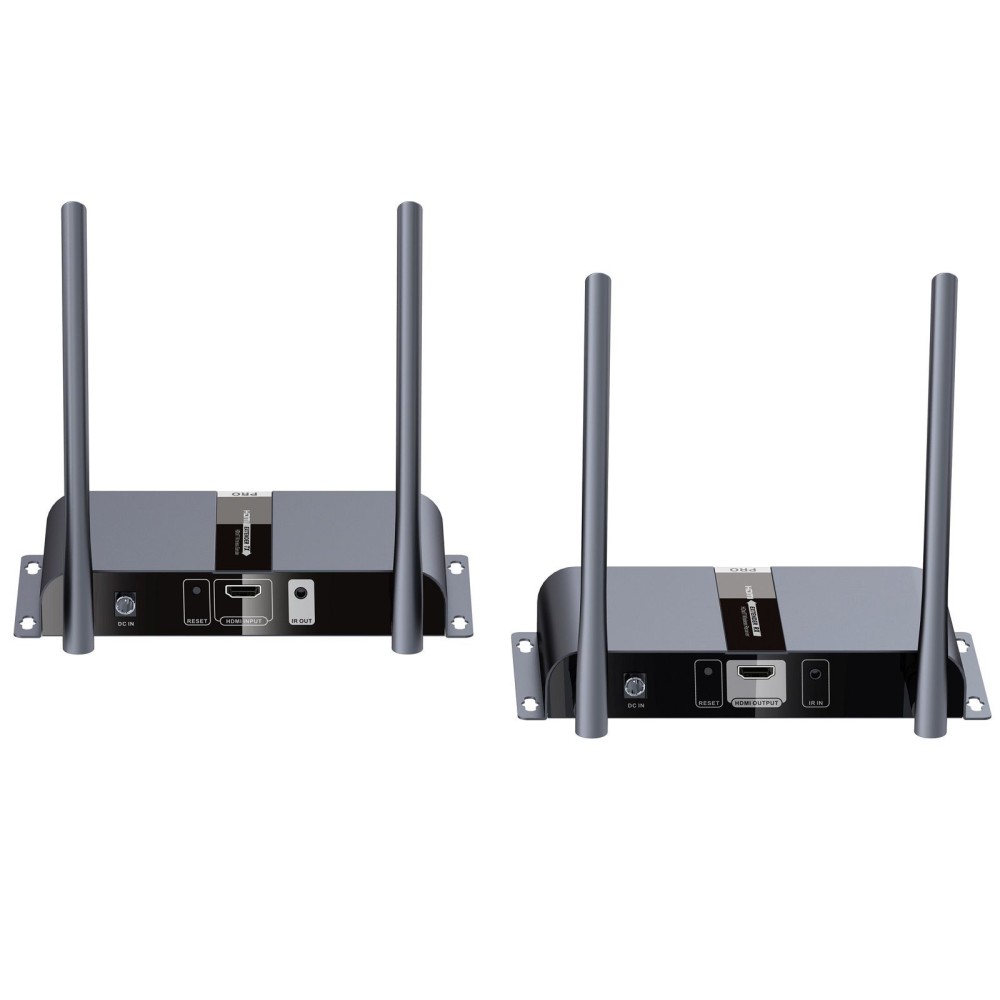

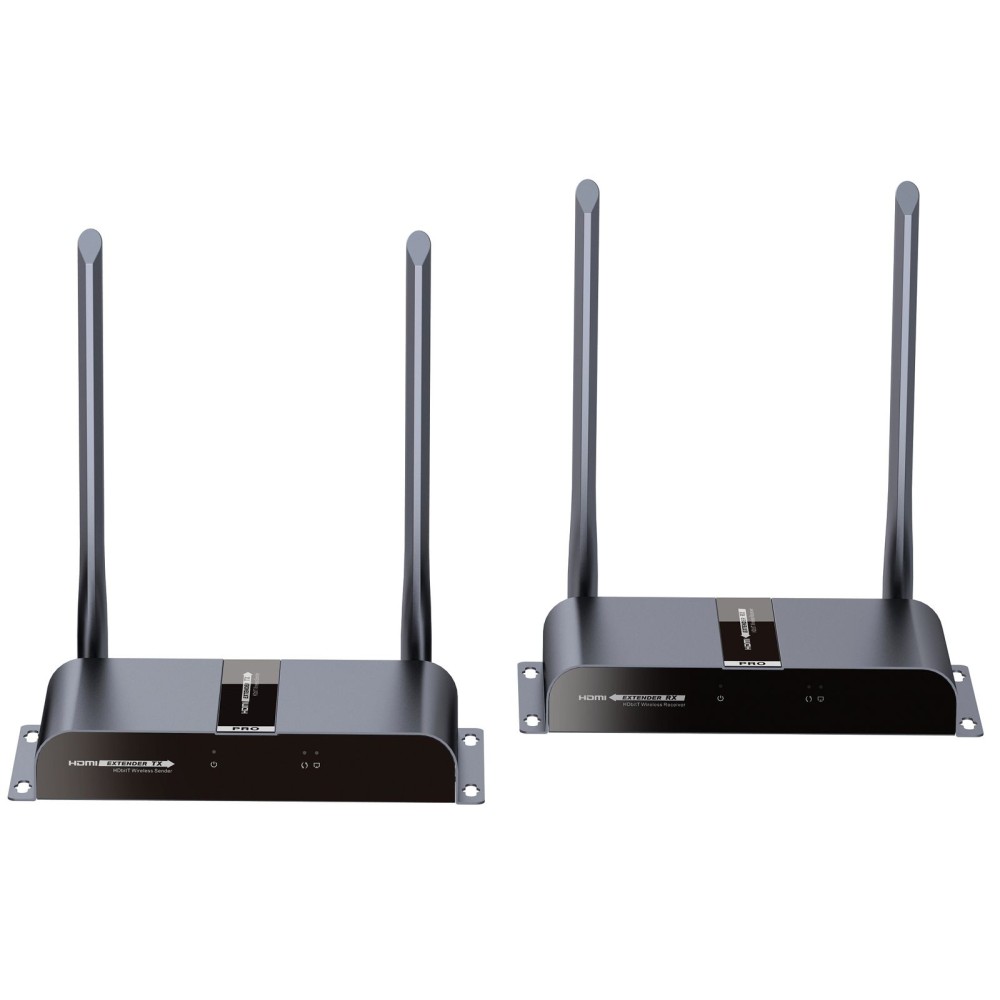

HDMI Wireless kit Full HD via HDbitT up to 200m

Tipo connettore A: HDMI
Tipo connettore B: HDMI
HDCP: 1.2
Choose a different Option:

• Extender e ricevitore per la trasmissione wireless del segnale HDMI tramite protocollo HDbitT a lungo raggio
• Supports wireless transmission of long-range wireless signal from a transmitter up to four receivers
• Full HD 1080p transmits up to 200 meters (in the absence of walls and / or obstacles)
• Full compatibility with HDMI and HDCP
• With infrared remote control for controll remote source device
• Frequency: 5GHZ
• HDCP Compatible 1.2
• Supports L / R stereo audio
• Plug and Play
• Power supply: DC 5V / 3A (included)
• Dimension (x2): 195.27 x 138.8 x 30.8 mm; Color: black

Accessories
    Description

    Details

    Extends high definition audio and video signal to any HDTV up to 200 meters
    Supports HD resolutions up to 1080p. Allows you to watch any device with HDMI connections on TV in wireless mode and eliminates the need for cables to connect.
    Transmits wirelessly to your HDTV or projector 1080p high definition audio and video signals up to 200 meters. These wireless extenders may lose the signal if the transmission occurs through walls, glass or other obstacles. We recommend installing it in a barrier-free environment so that the wireless signal can maintain the stability.

    Features
    • Supports wireless transmission of long-range wireless signal from a transmitter up to four receivers
    • Full HD 1080p transmits up to 200 meters (in the absence of walls and / or obstacles)
    • Full compatibility with HDMI and HDCP
    • With infrared remote control for controlling remote source device
    • Plug and Play does not require any installation software

    HDbitT
    HDbitT is a transmission protocol for high definition audio or video over the network. Compared to traditional technology, it offers more stable performance and greater clarity of the images.
    In addition to the transmission distance and other significant benefits, it can easily meet high definition demand in long distance transmission without the need for any converter.

    Plug and Play
    Just connect the transmitter to the HDMI port of your device and the receiver to the HDTV and you are immediately connected! It does not require any software installation.
    The wireless transmission kit lets you control your remote media device remotely with the receiver's IR support. Change channel, pause movie, adjust volume ... supports any function. Just point your remote control towards the receiver and press the button: it's so easy!

    Technical Specifications
    • Supports configuration with1 transmitter and 4 receivers
    • Transmission Protocol: HDbitT
    Supported Resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
    • Frequency: 5GHZ
    • HDCP Compatible 1.2
    • Transmission distance: 200 meters to 1080P 60Hz
    • Remote device 20 ~ 60kHz IR
    • Supports L / R stereo audio
    • Transmission speed: 10.2 Gbps
    • Operating temperature: 0 - 60 ° C
    • Material: metal
    • Color: black

    Power
    • Power supply: DC 5V / 3A
    • Consumption: 15 W

    Dimensions (x2)
    • Width: 195.27 mm
    • Depth: 138.80 mm
    • Height: 30.8 mm

    Certification
    • CE
    • FCC
    • RoHS

    Package Contents
    • 1x HDMI Transmitter
    • 1x HDMI Receiver
    • 2x IR sensor cable
    • 2x DC 5V / 3A power supply
    • 1x User Manual
    data sheet
    generale
    Brand
    Techly Np
    Barcode
    8051128100594
    Color
    No
    Codice Fornitore
    100594
    input
    Connector A Type
    HDMI
    format A connector
    female
    Number A Connector
    1
    Altri Connettori Input
    1x Alimentazione
    output
    Connector B Type
    HDMI
    format B connector
    female
    Number B Connector
    1
    specifiche tecniche
    Typology
    Amplifier
    Max Video Resolution
    1080p
    max bandwidth (MHz)
    No
    Deep Color
    No
    HDMI
    1.3
    HDCP
    1.2
    3D compatible
    No
    Supported audio standards
    Yes
    Transmission Distance
    200 m
    alimentazione
    Power supply
    Requested (included)
    Consumo energetico
    15 W
    dimensioni
    Width
    195.27 mm
    Height
    30.8 mm
    Depth
    138.80 mm
    Weight
    2.1620
    The package includes
    • 1x Trasmettitore HDMI • 1x Ricevitore HDMI • 2x Cavo per sensore IR • 2x Alimentatore DC 5V/3A • 1x Manuale d'uso
