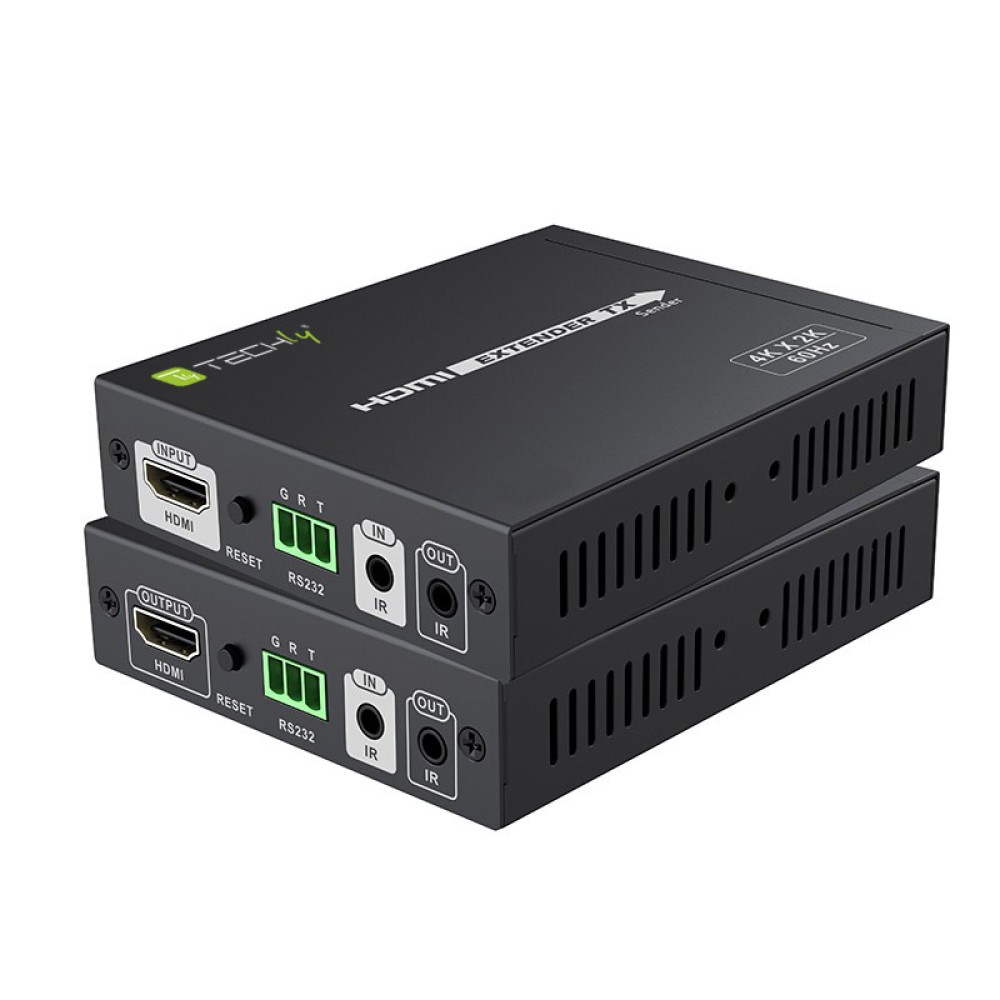

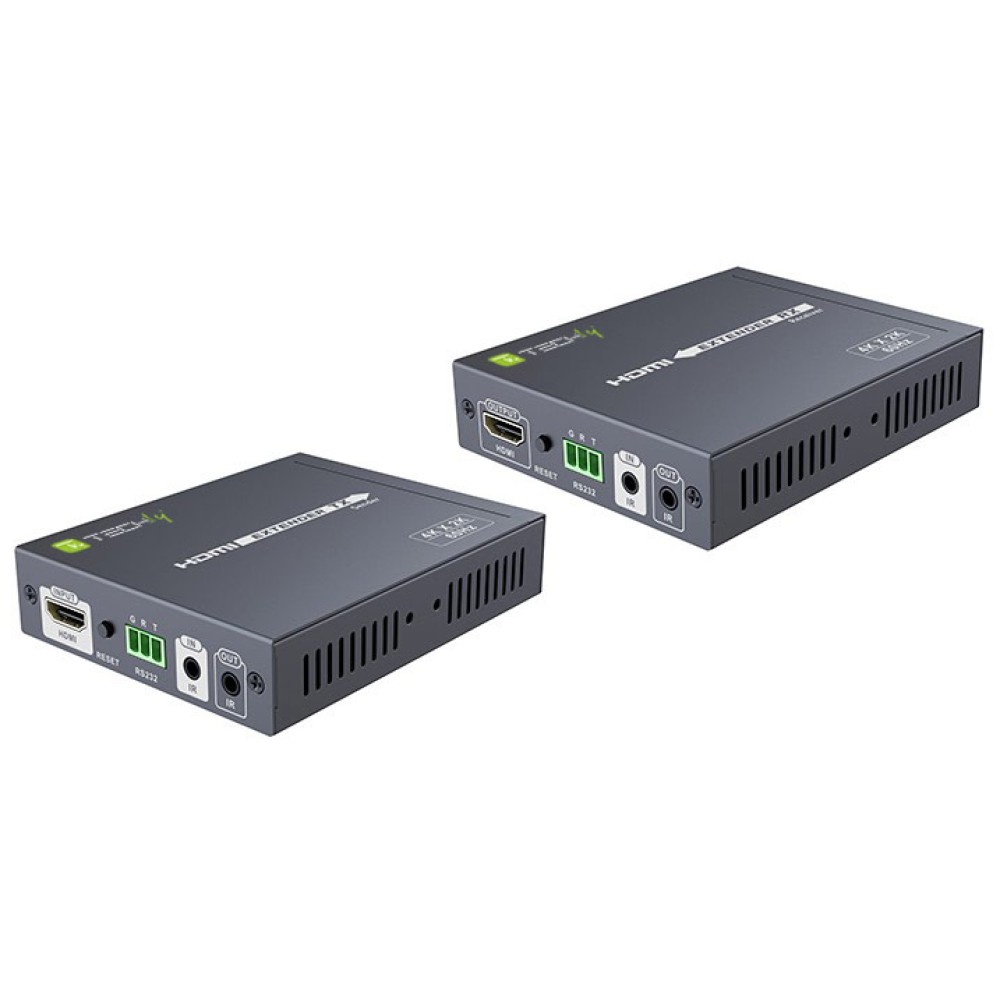

HDMI2.0 Extender Base-T 70m

Cod: IDATA EXT-E95

Barcode: 8051128104394

Supplier Code: 104394

Weight: 0.942 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
IDATA EXT-E95
Barcode
8051128104394
Supplier Code
104394
Weight
0.942 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: 1080p
Risoluzione Video Max: 480p
Compatibile 3D: Yes
  • Supports HDBaseT technology
  • Bidirectional pass-back support
  • Supports bidirectional RS232 control
  • Apply HDBaseT transmission technology
  • Supports HDMI2.0 HDCP2.2, CEC, deep color 24 bit
  • Supports DTS-HD and Dolby True HD LPCM audio
  • Supported resolution is up to 4Kx2K @ 60Hz ultra HD
  • Transmit 4Kx2K @ 60Hz signal on cat6 up to 70 meters
  • Dimension: 109,49 x 87,0 x 23,4 mm
Description
This HDBaseT single network cable extender transmits the HDMI signal up to 70 meters on cat6 smoothly and clearly, without loss of signal. Supports 3D, deep color 24 bit, 4kx2k, CEC, HDCP and ultra HD 4KX2K at 60Hz. IDATA EXT-E95 supports power supply via a network cable, just connect the power supply to the receiver unit, so that the device works properly. It is a perfect solution for audio and video transmission in HD conferencing system applications, HD media education systems, HD advertising and digital signage etc.

Features
  • Supports HDBaseT technology
  • Bidirectional pass-back support
  • Supports bidirectional RS232 control
  • Apply HDBaseT transmission technology
  • Supports HDMI2.0 HDCP2.2, CEC, deep color 24 bit
  • Supports DTS-HD and Dolby True HD LPCM audio
  • Supported resolution is up to 4Kx2K @ 60Hz ultra HD
  • Transmit 4Kx2K @ 60Hz signal on cat6 up to 70 meters
  • It can be powered by a network cable. It only needs to connect to the 12V power supply on the receiving unit
Installation Requirements
1. HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC, etc.
2. Display devices: with HDMI INPUT port, SDTV, HDTV
3. Network cables: UTP / STP Cat6 / Cat6A / Cat7 network cables, with IEEE-568B standard

Technical specifications
  • HDMI signal: HDMI2.0 HDCP2.2, CEC support and 24-bit deep color
  • Supported resolution 480i / 480P / 576i / 576P / 720P / 1080i / 1080P / 3D / 4Kx2K
  • Audio LPCM, DTS Digital, Dolby Digital
  • CAT6, CAT6A, CAT7 network cable
  • Transmission length 70m
  • IR Control Support for 20 ~ 60kHz wide frequency devices and bidirectional IR transmission
  • Operating temperature 0 ~ 55 °C
  • Storage temperature -10 ~ 70 °C
  • Humidity 0 ~ 90% (without condensation)
  • DC12V / 2A power supply x1pcs
  • TX absorbed power: < 6W; RX: < 8W
  • Material: iron alloy
  • TX weight: 240 g RX: 250 g
  • Black colour
Size
  • Depth: 109.49 mm
  • Width: 87.0 mm
  • Height: 23.4 mm
Package Contents
  • HD-BaseT TX Extender
  • HD-BaseT RX Extender
  • DC12V / 2A x1pz power supply unit
  • User Guide
Data sheet
general
Brand TECHLY NP Barcode 8051128104394
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 104394
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x IR in
output
Connector B Type HDMI-A format B connector female
Number B Connector 1 Altri Connettori Output 1x IR out
technical specifications
Typology HDMI Standard Max Video Resolution 1080i , 1080p, 480i, 480p , 576i, 576p, 720p , Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color 24 bit
HDMI - HDCP -
3D compatible Yes Supported audio standards Yes
Transmission Distance 70 m
power supply
Power supply Requested (included) Consumo energetico DC12V / 2A x1pz
dimensions
Width 87,0 mm Height 23,4 mm
Depth 109,49 mm Weight 0.9420
The package includes • Extender HD-BaseT TX • Extender HD-BaseT RX • 2 Ricevitori a infrarossi • 2 Trasmettitori a infrarossi • Alimentatore DC12V / 2A x1pz • Guida utente
