HDMI2.0 HDBitT 4K Kit Extender up to 120m

Cod: IDATA EXTIP-393

Barcode: 8051128104776

Supplier Code: 104776

Weight: 1.127 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Extender to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Extender
right for you
Configure now
Tipo connettore B: RJ45 8P8C
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
  • HDMI2.0 HDBitT 4K Kit Extender (Transmitter+Receiver) up to 120m
  • Supports HDMI2.0 and HDCP2.2
  • Extends HDMI signal over a single CAT5/6 cable
  • Long transmission distance up to 120 meters
  • Resolution supported is up to 4Kx2K@60Hz ultra HD
  • IR passback with 20-60Hz wide frequency to control source device from receiver easily
  • Supports one to one and one to many configuration
  • Interconnected with other HDBitT VGA/SDI/DVI transmitter via CAT5/6
  • It can be combined with Receiver Extender HDMI2.0 IDATA EXTIP-393R for one to many configuration
  • Color: black
Description
  • HDMI2.0 HDBitT 4K Kit Extender, extend HDMI signal up to 120m on Cat.6 cable, with 4Kx2K@60Hz resolution
  • Supports one to one and one to many configuration by using a switch/router
  • Supports L/R stereo audio
  • Supports HDCP 2.2 and IR remote control
Features
  • Supports HDMI2.0 and HDCP2.2
  • Extends HDMI signal over a single CAT5/6 cable
  • Long transmission distance up to 120 meters
  • Resolution supported is up to 4Kx2K@60Hz ultra HD
  • IR passback with 20-60Hz wide frequency to control source device from receiver easily
  • Supports one to one and one to many configuration
  • Interconnected with other HDBitT VGA/SDI/DVI transmitter via CAT5/6
  • It can be combined with Receiver Extender HDMI2.0 IDATA EXTIP-393R for one to many configuration
  • Material: iron alloy and crystal panel
  • Color: black
Technical specifications
  • Power supply: DC5V/3A
  • Power consumption: < 8W
  • HDMI input resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50Hz, 1080p@50/60Hz, 4Kx2K@24/25/30/60Hz
  • HDMI output resolution supported: 1080p@60Hz, 4Kx2K@30/60Hz
  • Audio formats supported: L/R stereo audio
  • Maximum transfer rate: 18Gbps
  • Input and output TMDS signal: 0.7 ~ 1.5Vp-p(TMDS)
  • Input and output DDC signal: 5Vp-p(TTL)
  • Transmission lenght: CAT5 80m / CAT5E 10m / CAT6 120m
  • Input/output cable supported: ≤ 5m (AWG24)
  • IR remote control: supports IR passback with 20~60Hz frequancy
  • HDbitT: transfer method over UTP/STP CAT5/5e/6; transmission distance 120m; connector RJ45; delay ≤ 200ms
Operating environment
  • Working temperature: from 0 to 50°C
  • Storage temperature: from -10 to 70°
  • Humidity: from 0 to 90% (no condensation)
Package contents

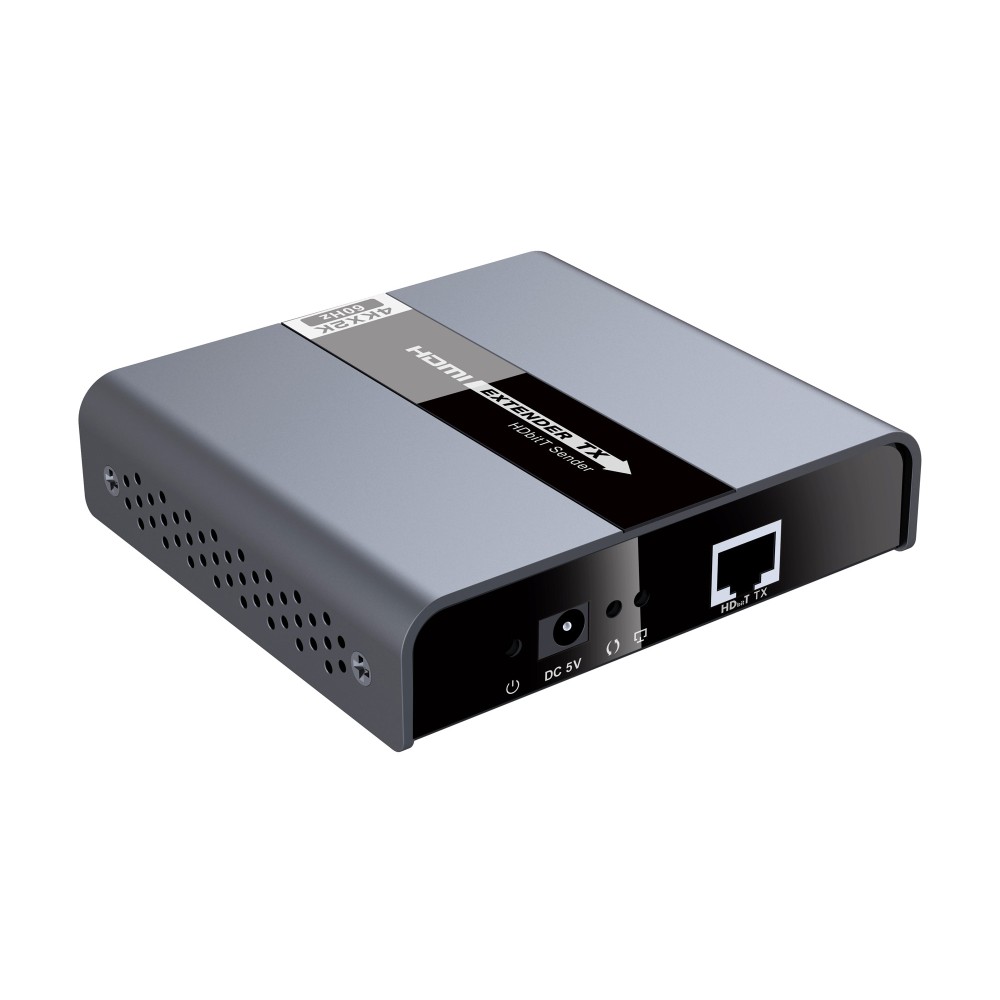

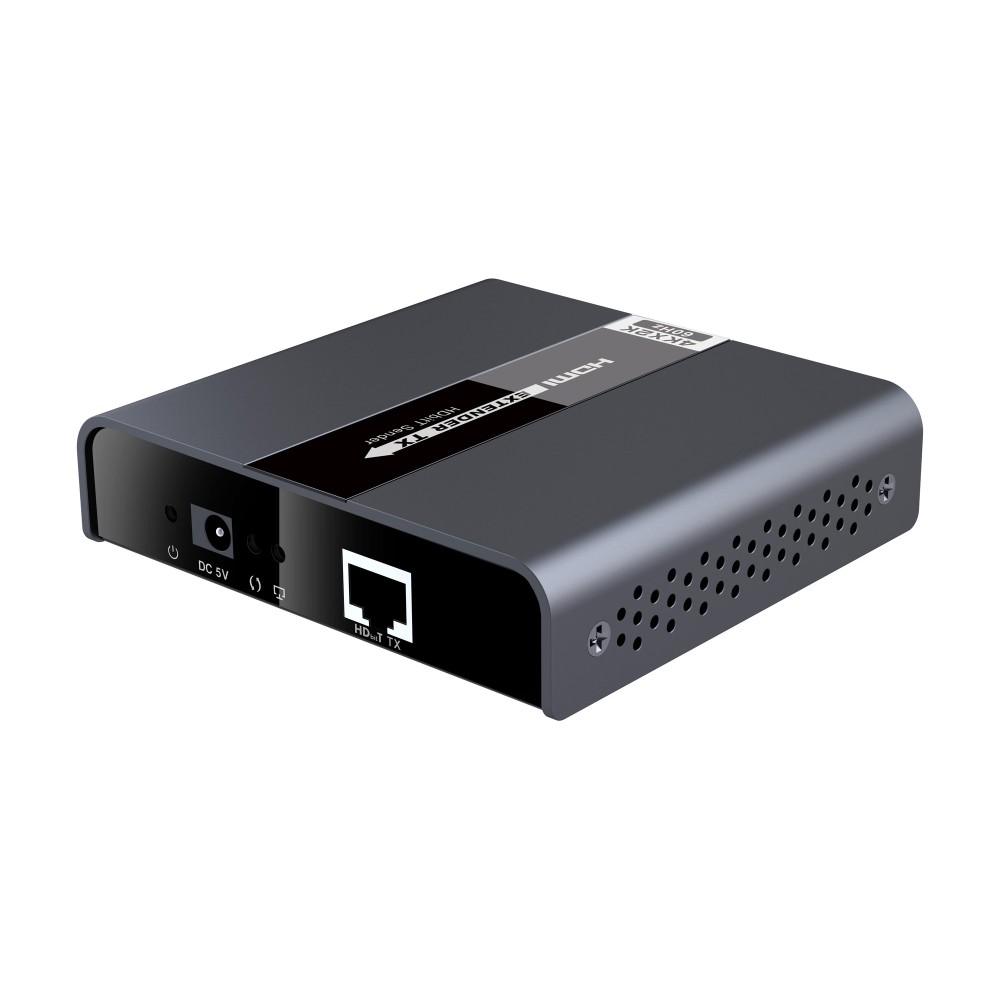

  • Trasmitter Extender HDMI2.0 HDBitT
  • Receiver Extender HDMI2.0 HDBitT
  • DC5V/3A power supply
  • IR blaster extension cable
  • User manual
Data sheet
general
Brand TECHLY NP Barcode 8051128104776
Color Black Codice Fornitore 104776
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input • 1 x IR • 1 x alimentatore
output
Connector B Type RJ45 8P8C format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible - Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Requested (included) Consumo energetico <8W
dimensions
Weight 1.1270 The package includes • Trasmettitore Extender HDMI2.0 HDBitT • Ricevitore Extender HDMI2.0 HDBitT • Alimentatore DC5V/3A • Cavo blaster IR • Manuale d'istruzioni
