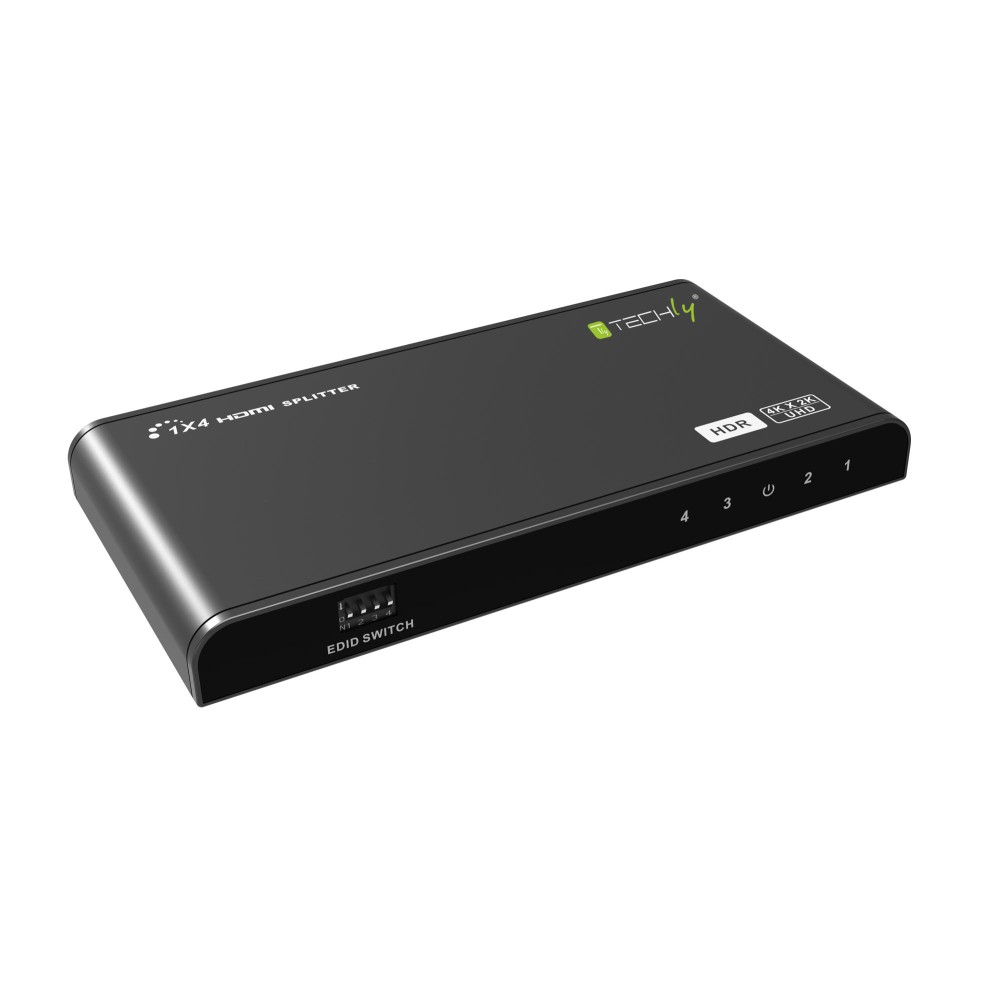

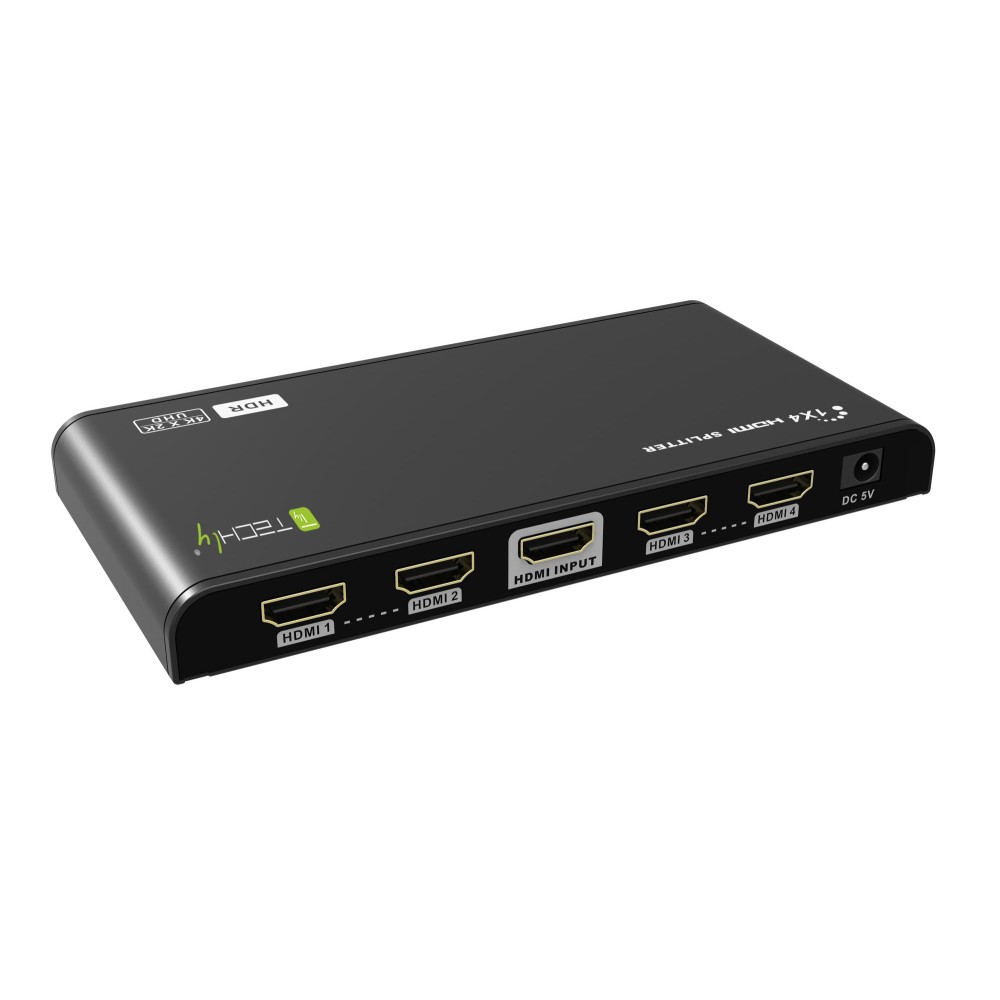

HDMI2.0 Splitter 4K 4 ways HDR

Cod: IDATA HDMI2-4K4HDR

Barcode: 8051128104844

Supplier Code: 104844

Weight: 0.491 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA HDMI2-4K4HDR
Barcode
8051128104844
Supplier Code
104844
Weight
0.491 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Certificazioni: CE
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
  • Allows you to distribute the same signal from an HDMI source to four HDMI monitors simultaneously
  • Supports Ultra HD resolution 4Kx2K @ 60Hz
  • Supports HDR technology (High Dynamic Rage) that allows, connected to devices that support the same technology, to watch movies, photographs or any other content with a dynamic width closer to that of the colors present in reality and perceived by the human eye
  • Supports EDID function: 16 different codes selectable via a 4-ways selector switch
  • HDCP2.2 compatible
  • Metal structure for better heat dissipation
  • Plug and Play
Description
  • Allows you to distribute the same signal from an HDMI source to four HDMI monitors simultaneously
  • Supports Ultra HD resolution 4Kx2K @ 60Hz
  • Supports HDR technology (High Dynamic Rage) that allows, connected to devices that support the same technology, to watch movies, photographs or any other content with a dynamic width closer to that of the colors present in reality and perceived by the human eye
  • Supports EDID function: 16 different codes selectable via a 4-ways selector switch
  • Metal structure for better heat dissipation
  • Plug and Play
Specifications
  • HDMI resolutions: 480i / 480p / 756i / 756p / 720p / 1080i / 1080p / 4Kx2K @ 24/25/30/60Hz
  • Supports audio: standard audio and DSD (Direct Stream Digital) and HD audio (HBR)
  • HDCP2.2 compatible
Environmental characteristics
  • Operating temperature: 0 ° C to 60 ° C
  • Relative humidity: 20-90% without condensation
Dimension
  • Width: 158 mm
  • Depth: 80 mm
  • Height: 17 mm
  • Weight: 196 g
  • Black colour
Certification
  • CE
  • RoHS
  • WEEE
Package Contents
  • HDMI2.0 4K 4-way HDR splitter
  • 5V / 2A DC power supply
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128104844
Certifications CE , RoHS Color Black
Codice Fornitore 104844
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x Alimentazione 5V DC
output
Connector B Type HDMI-A format B connector female
Number B Connector 4
technical specifications
Typology Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible - Supported audio standards Yes
Transmission Distance 5 m
power supply
Power supply Requested (included) Consumo energetico <8W
dimensions
Width 158 mm Height 17 mm
Depth 80 mm Weight 0.4910
The package includes • Splitter HDMI2.0 4K 4 vie HDR • Alimentatore DC 5V2A • Manuale d'istruzione
