HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-1
HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-1
HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-0
HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-1
HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-2
HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-3
+4
HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID   - Techly - IDATA HDMI2-4K2E-1
Techly

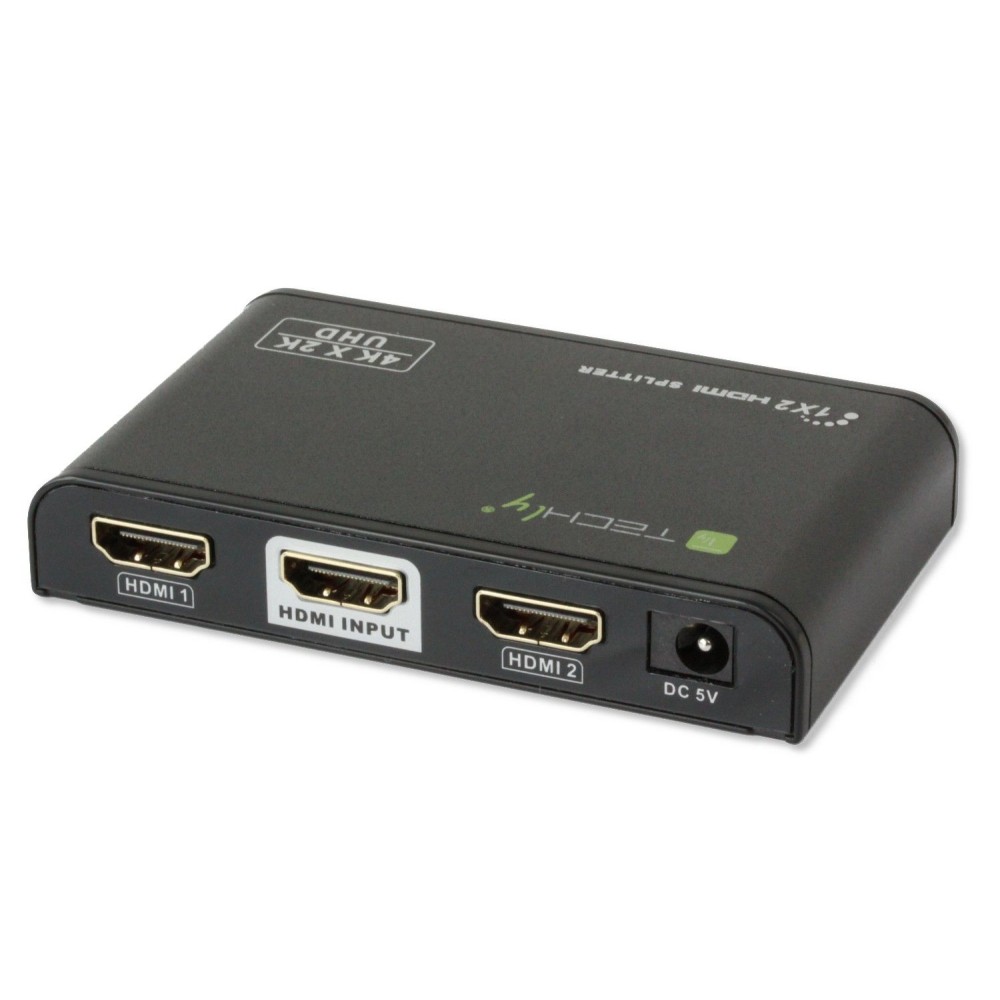

HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID

Cod: IDATA HDMI2-4K2E

Barcode: 8054529028238

Supplier Code: 028238

Weight: 0.243 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
IDATA HDMI2-4K2E
Barcode
8054529028238
Supplier Code
028238
Weight
0.243 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Certificazioni: CE
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
Compatibile 3D: Yes
  • Distributes 1 HDMI source to 2 HDMI displays
  • Supports resolution up to ultra HD 4K×2K@60Hz
  • Supports HDMI 3D
  • With EDID function: buit-in 16 kinds of EDID that can be selected by 4 switch codes
  • Compatible with HDCP1.4, HDCP2.2
  • Metal heat sink design, works more stably
  • Plug and Play
Description
  • Distributes 1 HDMI source to 2 HDMI displays
  • Supports resolution up to ultra HD 4K×2K@60Hz
  • Supports HDMI 3D
  • With EDID function: buit-in 16 kinds of EDID that can be selected by 4 switch codes
  • Metal heat sink design, works more stably
  • Plug and Play
Specification
  • HDMI resolution: 480i/480p/756i/756p/720p/1080i/1080p/4Kx2K@24/25/30/60Hz
  • Frequency range: 25 MHz - 600 MHz
  • Compatible with HDCP1.4, HDCP2.2
Enviromental information
  • Working temperature: 0°C to 60°C
Dimension
  • Width: 96 mm
  • Depth: 59 mm
  • Height: 17 mm
  • Weigh: 100 g
  • Color: black
Certification
  • CE
  • RoHS
  • RAEE
Package contents
  • HDMI2.0 Splitter 4K UHD 3D 2 ways with EDID
  • DC 5V/1A Power Supply
  • User's manual
Data sheet
general
Brand Techly Barcode 8054529028238
Certifications CE , RoHS Color Black
Codice Fornitore 028238
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x Alimentazione 5V DC
output
Connector B Type HDMI-A format B connector female
Number B Connector 2
technical specifications
Typology Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 600 MHz Deep Color 12 bit
HDMI 2.0 HDCP 2.2
3D compatible Yes Supported audio standards Yes
Transmission Distance -
power supply
Power supply Requested (included)
dimensions
Width 96 mm Height 16.8 mm
Depth 59 mm Weight 0.2430
The package includes • Splitter HDMI2.0 4K UHD 3D 2 vie con EDID • Alimentatore DC 5V/1A • Manuale d'istruzione
