High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-1
High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-1
High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-0
High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-1
High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-2
High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-3
+5
High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m - TECHLY - ICOC HDMI2-4-EXT010-1
Techly

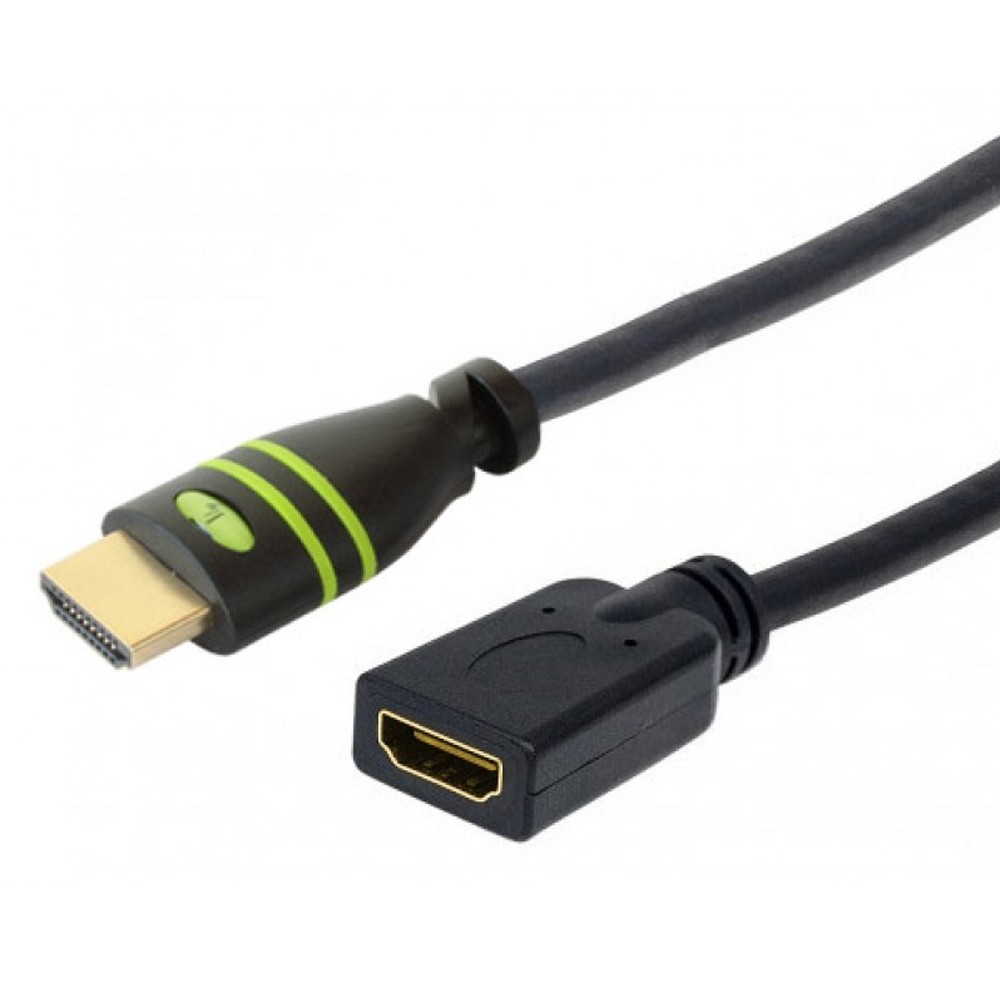

High Speed HDMI with Ethernet Extension Cable 4K 60Hz M / F 1.0 m

Cod: ICOC HDMI2-4-EXT010

Barcode: 8051128106831

Supplier Code: 106831

Weight: 0.068 Kg

Min. sale unit: 1 Pcs

Package pcs: 140 Pcs

Cod
ICOC HDMI2-4-EXT010
Barcode
8051128106831
Supplier Code
106831
Weight
0.068 Kg
Min. sale unit
1 Pcs
Package pcs
140 Pcs
Certificazioni: CE
Certificazioni: UL
Certificazioni: RoHS
Anni di Garanzia: 3
Tipo connettore B: HDMI-A
Connettori dorati: Yes
Risoluzione massima: 4K (2160p) 60fps
Altri Standard Supportati: 3D
Altri Standard Supportati: Full HD (1080i/p)
Altri Standard Supportati: HDCP
  • HDMI 19-pin male to HDMI 19-pin female
  • Ensures signal integrity between HDMI devices
  • Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 60Hz video resolution and Deep Color
  • Conforms to HDMI High Speed specifications with Ethernet
  • Up to 10.2 Gbps at 340 MHz bandwidth
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Length: 1.0 m
Description
  • HDMI 19-pin male to HDMI 19-pin female
  • Ensures signal integrity between HDMI devices
  • Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 60Hz video resolution and Deep Color
  • Conforms to HDMI High Speed ​​specifications with Ethernet
  • Up to 10.2 Gbps at 340 MHz bandwidth
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Die-cast PVC connector cover
Standards and certifications:
  • UL 20276
  • RoHS
  • EC
General Information:
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • Compliant or superior to existing HDMI standards
  • Length: 1.8 m
Contacts:
  • 1 x HDMI 19-pin male
  • 1 x HDMI 19-pin female
  • Gold contacts
  • PVC die-cast connector covers
  • Shielded, braided and aluminum foil
  • 30 AWG connectors
Electrical Information:
  • Current index: 0.5 A DC
  • Voltage: 300 V DC
  • Insulation resistance: 10 MOhms
  • Conductive resistance: 2 Ohms

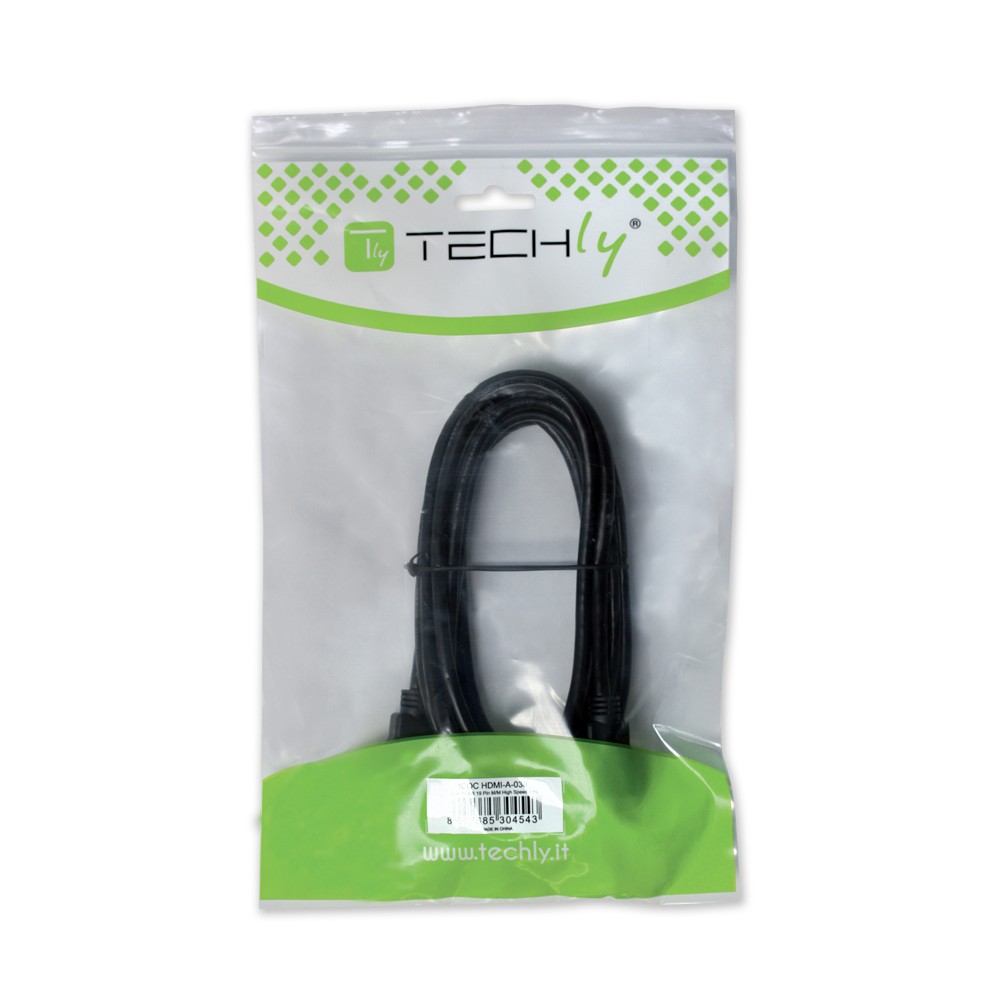

Package Contents:
  • High Speed ​​HDMI extension cable with Ethernet M / F 1.0 m
Data sheet
general
Brand TECHLY Barcode 8051128106831
Weight 0.0680 Certifications CE , UL, RoHS
Years of Warranty 3 Codice Fornitore 106831
specifications
Typology HDMI High Speed con Ethernet Length 1 m
Connector A Type HDMI-A format A connector male
Connector B Type HDMI-A format B connector male
Headphone connectors Yes Cable shielding Doble
Shielding type Braid and aluminum foil Cable size (AWG) 30
Color Black
technical specifications
Cable rate 340 MHz Maximum resolution 4K (2160p) 60fps
Maximum bandwidth per channel 10 Gbit/s Color space support Deep Color
Audio Standard Supportati Audio-Return Channel (ARC), Dolby Digital/Plus , Dolby TrueHD , DTS-HD Master Audio , DVD-Audio , SA-CD Other Standards Supported 3D , Full HD (1080i/p) , HDCP , HEC (HDMI Ethernet Channel), Ultra HD 4K (2160i/p)
