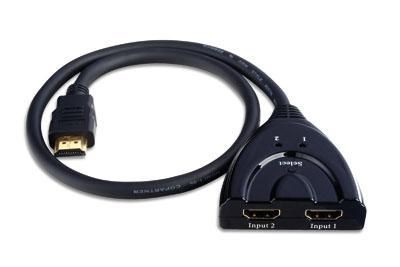

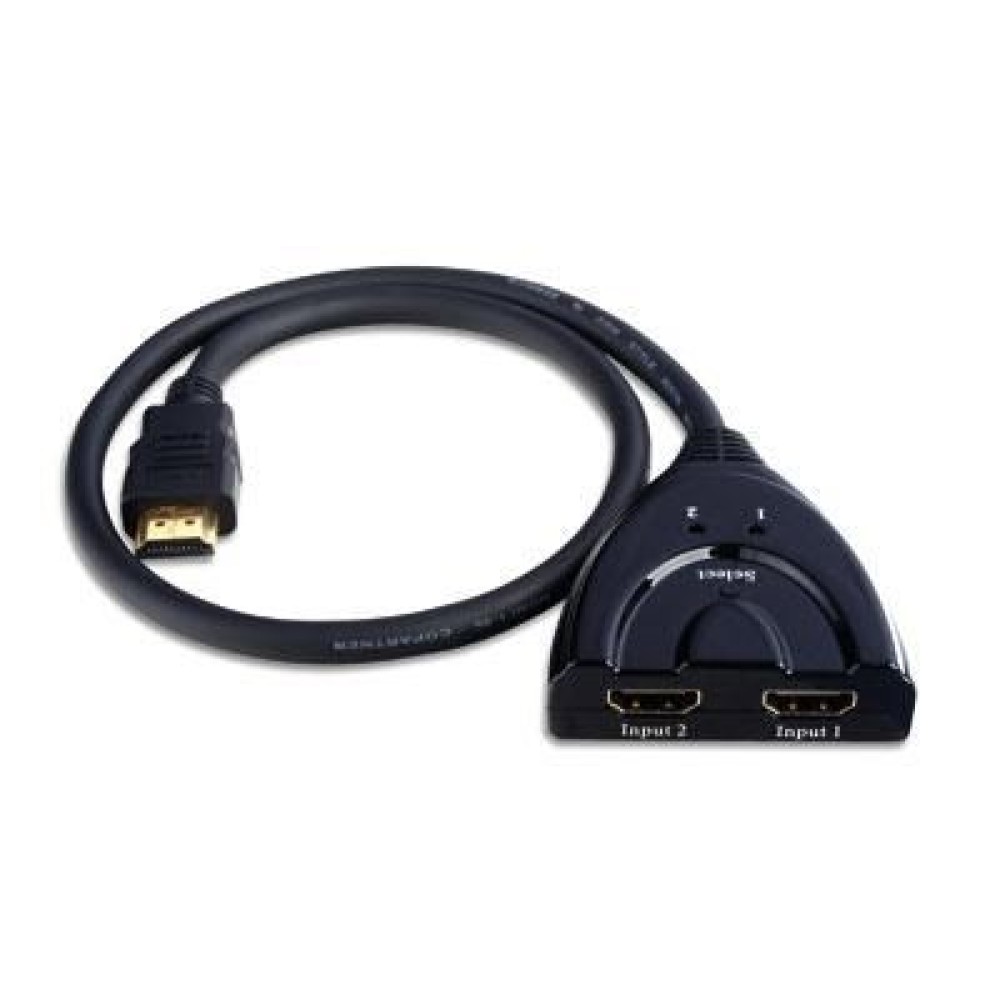

HMDI Switch 2 In 1 Out with Cable - Techly - IDATA HDMI-21D-1
HMDI Switch 2 In 1 Out with Cable - Techly - IDATA HDMI-21D-1
HMDI Switch 2 In 1 Out with Cable - Techly - IDATA HDMI-21D-0
HMDI Switch 2 In 1 Out with Cable - Techly - IDATA HDMI-21D-1
HMDI Switch 2 In 1 Out with Cable - Techly - IDATA HDMI-21D-1
Techly

HMDI Switch 2 In 1 Out with Cable

Cod: IDATA HDMI-21D

Barcode: 8057685301689

Supplier Code: 301689

Weight: 0.152 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA HDMI-21D
Barcode
8057685301689
Supplier Code
301689
Weight
0.152 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Tipo connettore A: HDMI
Tipo connettore B: HDMI
HDCP: 1.3
Compatibile 3D: Yes
Characteristics
  • HDMI Switch allows you to connect two sources to a monitor
  • In addition to the function key to move from one source to another, is equipped with the Intelligent
  • Supports high video resolution 1080p
  • Supports bandwidth of 250MHz / 2.5Gbps per channel (7.5Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channel)
  • HDCP pass-through
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports all 3D formats, including 1080p at 23.98 / 24Hz, 720p at 59.94 / 60Hz / 50Hz, with bandwidth up to 250MHz
  • No need for external power supply
Specification
  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum range Single Link: 1920 x 1080P
  • Video Output: HDMI
  • Vertical Frequency Range: 50 / 60Hz
  • Video Bandwidth: 2.5Gbps / 250MHz
  • Resolution (HDTV)
- Interlaced (50 & 60Hz): 480i, 576i, 1080i
- Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p
  • Power consumption (max) 5W
  • External power supply: not required

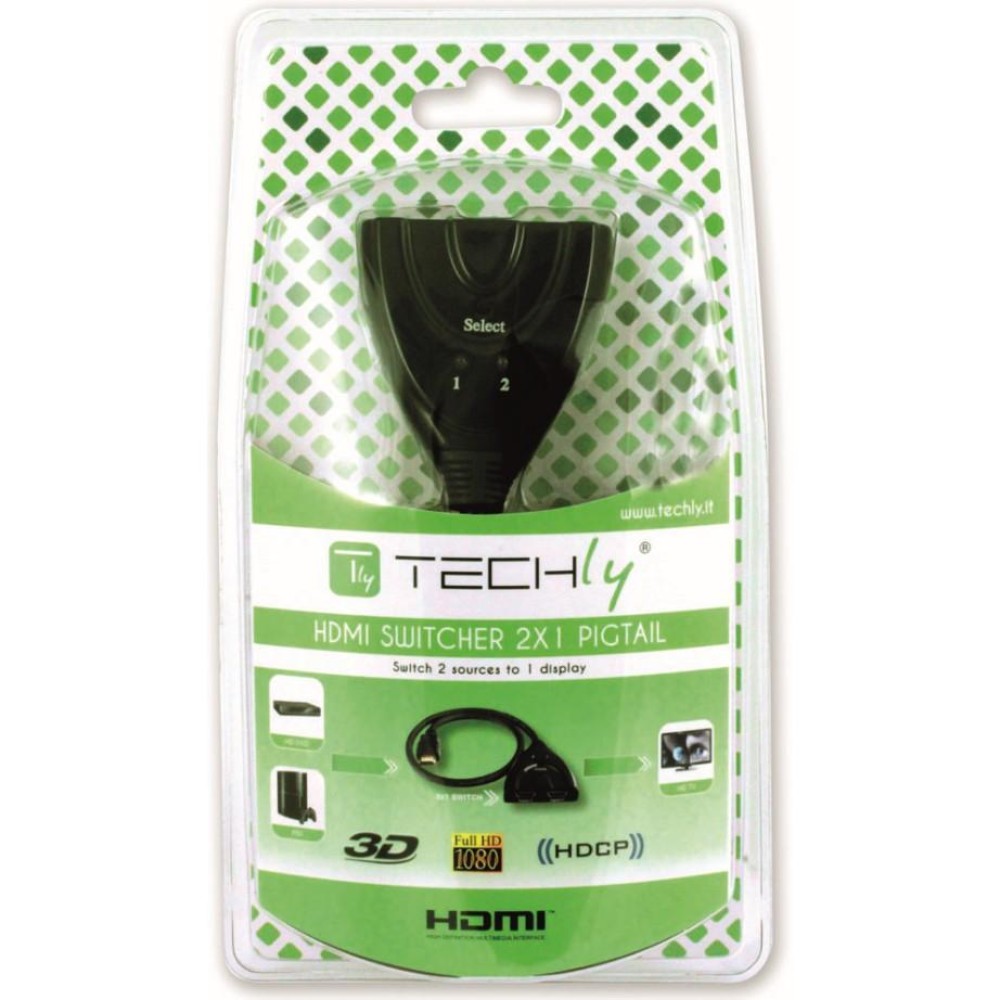

Package Contents
  • 2 in 1 out Switch HMDI cable with built-in
Description
Characteristics
  • HDMI Switch allows you to connect two sources to a monitor
  • In addition to the function key to move from one source to another, is equipped with the Intelligent
  • Supports high video resolution 1080p
  • Supports bandwidth of 250MHz / 2.5Gbps per channel (7.5Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channel)
  • HDCP pass-through
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports all 3D formats, including 1080p at 23.98 / 24Hz, 720p at 59.94 / 60Hz / 50Hz, with bandwidth up to 250MHz
  • No need for external power supply
Specification
  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum range Single Link: 1920 x 1080P
  • Video Output: HDMI
  • Vertical Frequency Range: 50 / 60Hz
  • Video Bandwidth: 2.5Gbps / 250MHz
  • Resolution (HDTV)
- Interlaced (50 & 60Hz): 480i, 576i, 1080i
- Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p
  • Power consumption (max) 5W
  • External power supply: not required
Package Contents
  • 2 in 1 out Switch HMDI cable with built-in
Data sheet
general
Brand Techly Barcode 8057685301689
Color Black Codice Fornitore 301689
input
Connector A Type HDMI format A connector female
Number A Connector 2
output
Connector B Type HDMI format B connector male
Number B Connector 1
technical specifications
Typology Switch Max Video Resolution 1080p
max bandwidth (MHz) 250 MHz Deep Color 12 bit
HDMI 1.3 HDCP 1.3
3D compatible Yes Supported audio standards Compressed, not compressed
power supply
Power supply Not required Consumo energetico 5 W
dimensions
Weight 0.1520 The package includes Switch HMDI 2 in 1 out con Cavo Manuale d'istruzione
Drivers and manuals
