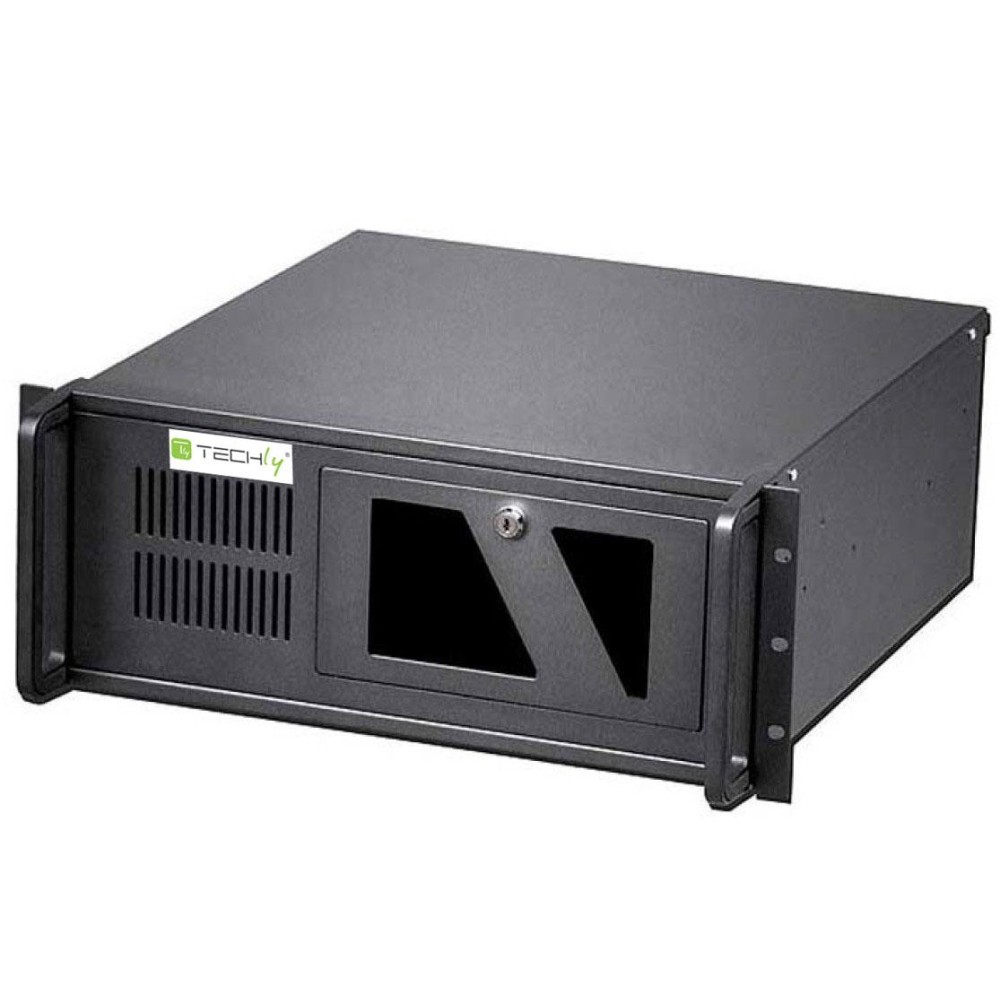

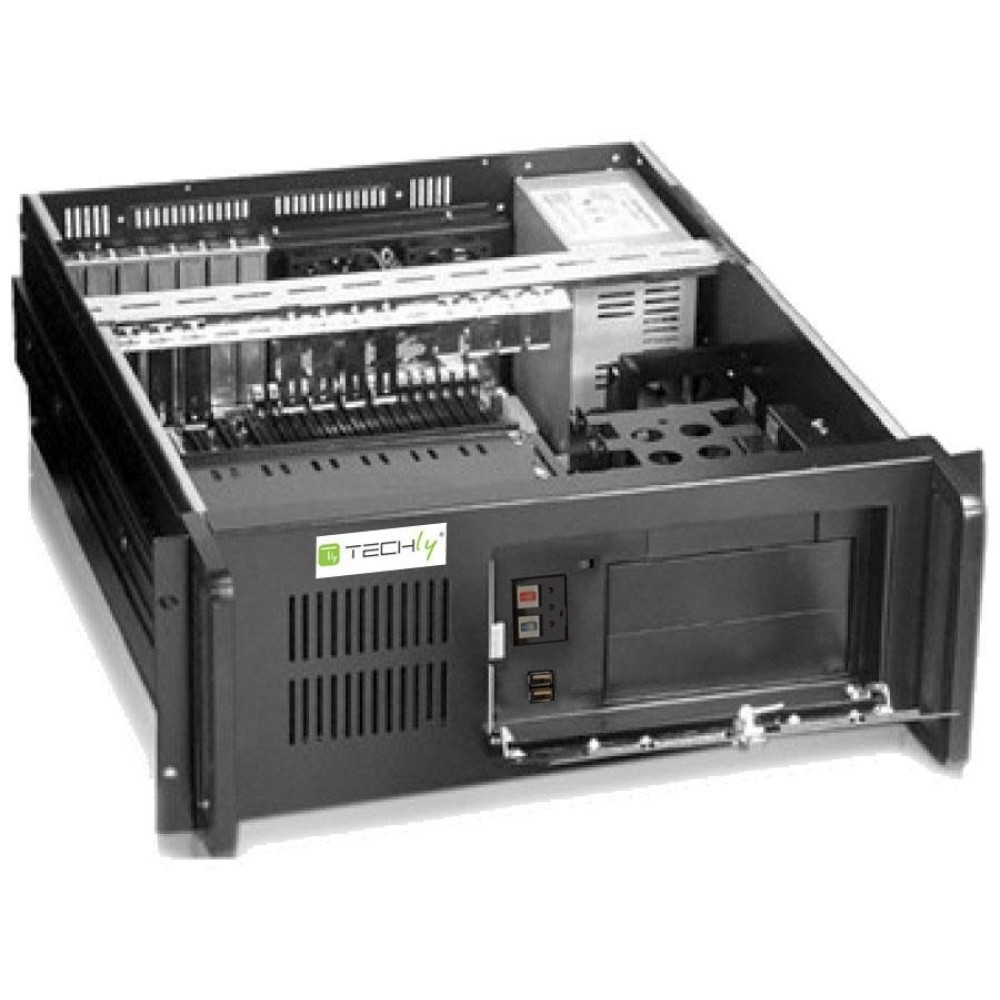

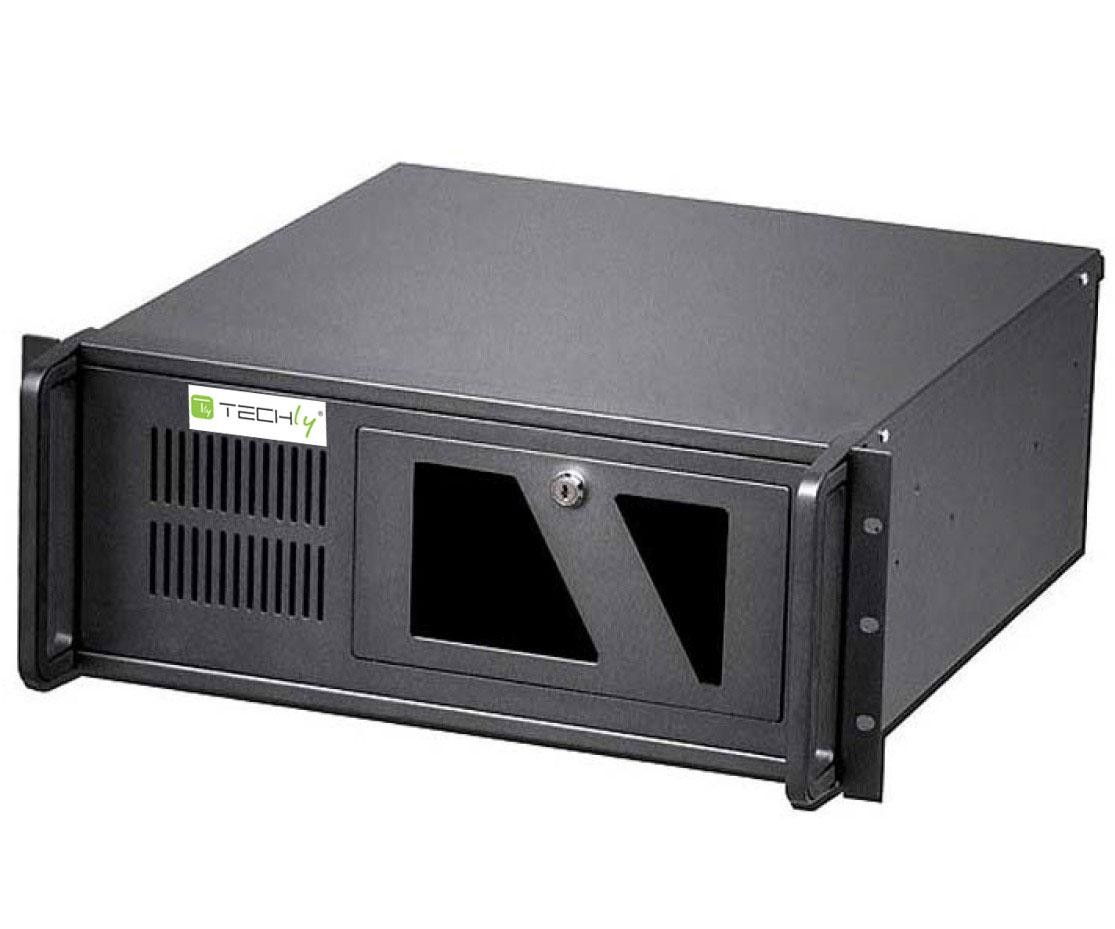

Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-1
Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-1
Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-0
Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-1
Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-2
Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-3
Industrial 4U Rackmount Computer Chassis 499mm - TECHLY - I-CASE MP-P4HX-BLK2-1
Techly

Industrial 4U Rackmount Computer Chassis 499mm

Cod: I-CASE MP-P4HX-BLK2

Barcode: 8057685305519

Supplier Code: 305519

Weight: 12.348 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE MP-P4HX-BLK2
Barcode
8057685305519
Supplier Code
305519
Weight
12.348 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Certificazioni: RoHS
  • Cooling fans
- Front: 1 x 120 mm
  • USB Ports: 2 front ports USB 2.0 Hi-Speed
  • Housing:
- Outside: 2 x 5.25 "and 1 x 3.5"
- Interior: 8 x 3.5 "
  • Material: steel and rust resistant SECC 1mm thick
  • Dimensions: 482 (W) x 177 (H) x 499 (L) mm
  • Weight: 12.1 kg
  • Operating temperature: 0-50 ° C
  • Operating Humidity: 10 - 90% RH, non-condensing
Description
  • Chassis Industrial PC
  • Installation in 19 "rack
  • Height 4U
  • Front door control with lock
  • Two 5.25 "drive bays, one external 3.5" and eight internal 3.5 "
  • Two front USB 2.0 connections
  • removable air filter
  • Motherboard 12 "x 9.6"
  • Prepared for feeder standard ATX PS2 or PS2 mini redundant 300W ~ 550W
  • It has two circular holes with a diameter of 6 cm on the top panel for ventilation
General information
  • Cooling fans
- Front: 1 x 120 mm
- Rear: 2 x 80 mm
  • USB Ports: 2 front ports USB 2.0 Hi-Speed
  • Housing:
- Outside: 2 x 5.25 "and 1 x 3.5"
- Interior: 8 x 3.5 "

LED
  • Power
  • HDD
Physical Information
  • Material: steel and rust resistant SECC 1mm thick
  • Dimensions: 482 (W) x 177 (H) x 499 (L) mm
  • Weight: 12.1 kg
  • Operating temperature: 0-50 ° C
  • Operating Humidity: 10 - 90% RH, non-condensing
Data sheet
special attributes
No. Fiber optic ports -
general
Brand TECHLY Barcode 8057685305519
Compatibility rack cabinet 19'' Materiale Metal
Material description Resistant steel and rust-DRY 1 mm thick Color Black
Certifications RoHS Codice Fornitore 305519
specifications
Power supply Not includede Motherboard Compatibility 12 x 9.6''
Frontal USB 2 Front audio connectors No
Slots Esterni: 2x 5.25" e 1x 3.5"; Interni: 8 x 3.5" (di cui 1 esterno) Espansione: 7 slot posteriori per ATX Ventole 1x 120 mm anteriore 2x 80mm posteriori
dimensions
Width 482 mm Height 177 mm
Depth 499 mm
