Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-1
Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-1
Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-0
Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-1
Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-2
Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-3
+1
Industrial Rackmount Computer Chassis 400 mm - TECHLY - I-CASE MP-P4HX-BLK-1
Techly

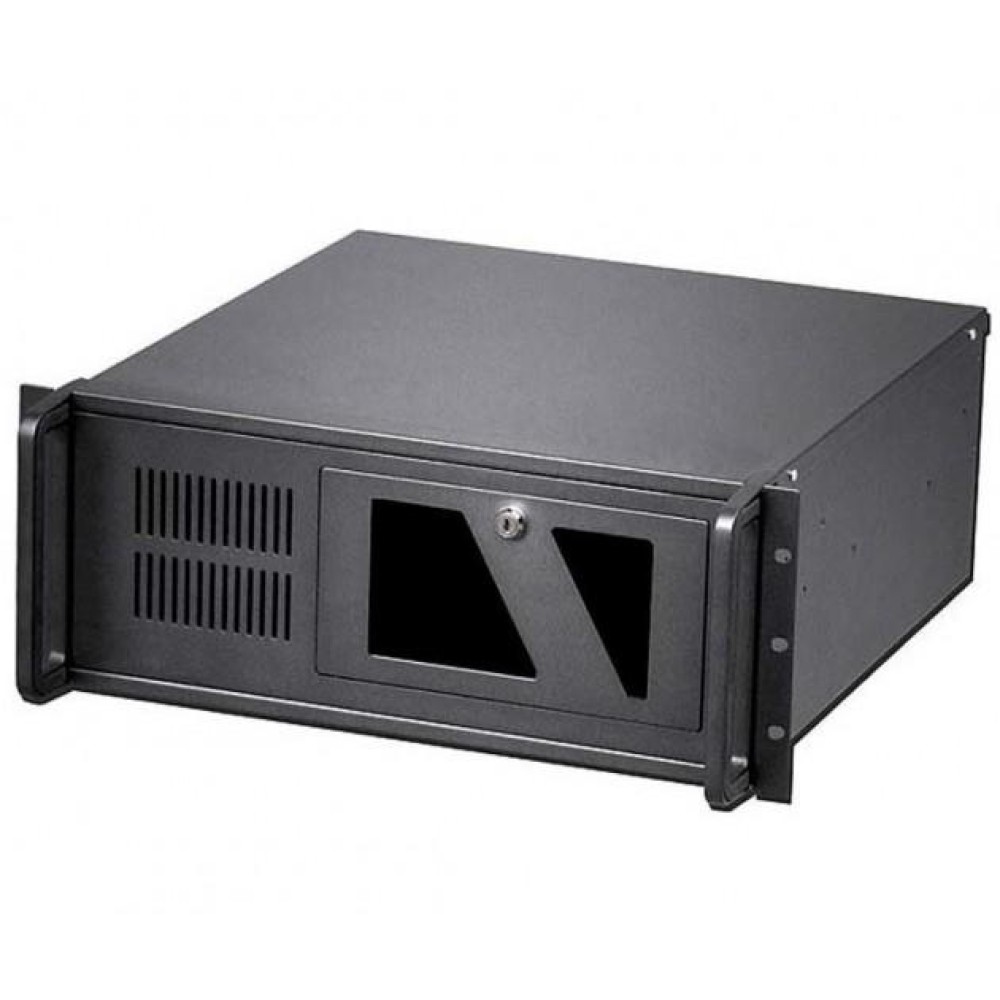

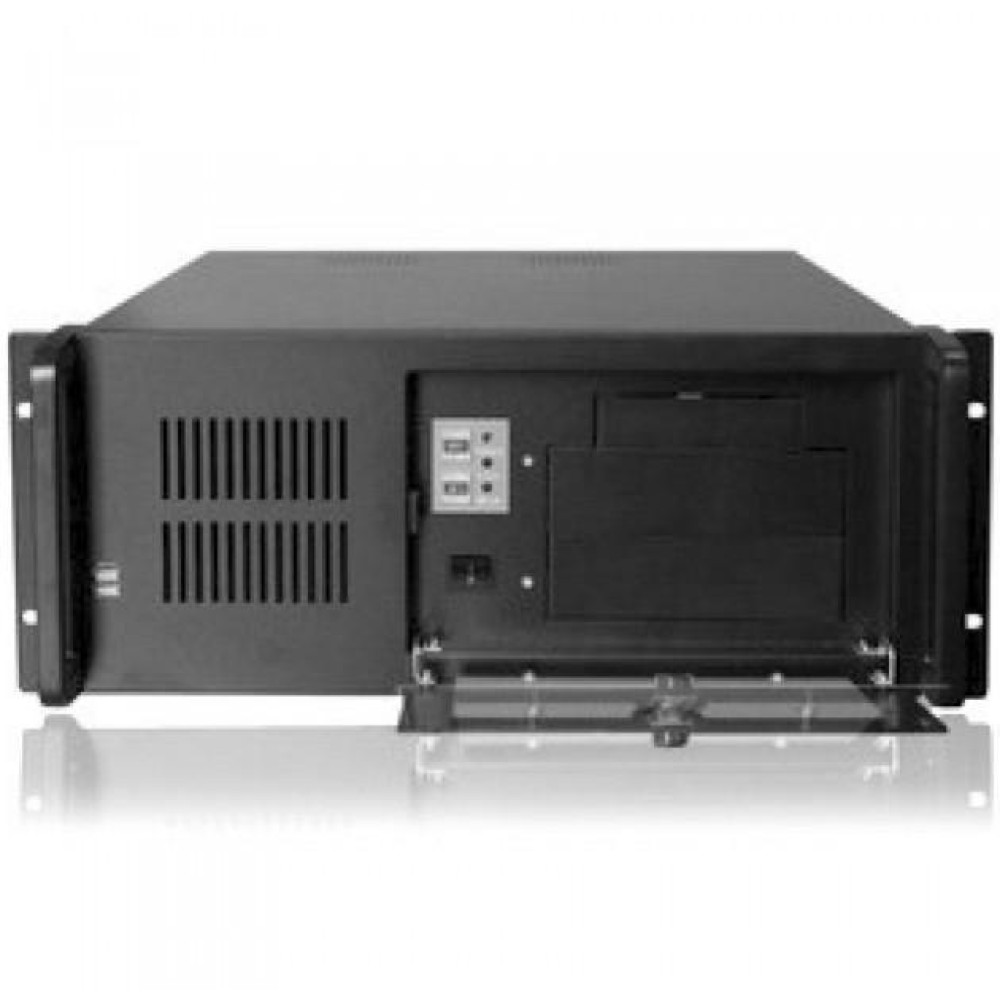

Industrial Rackmount Computer Chassis 400 mm

Cod: I-CASE MP-P4HX-BLK

Barcode: 8057685303973

Supplier Code: 303973

Weight: 10.269 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE MP-P4HX-BLK
Barcode
8057685303973
Supplier Code
303973
Weight
10.269 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
General information
  • Cooling fans
- Front: 1 x 120 mm
- Rear 2 x 60 mm
  • USB Ports: 2 front ports USB 2.0 Hi-Speed
  • Housing:
- Outside: 2 x 5.25 "and 1 x 3.5"
- Interior: 8 x 3.5 "
  • External switch
  • Key external reset
Supply
  • Power supply: standard PS-2 ATX (not included)
Description
  • Industrial Chassis for PC
  • Installation in 19" rack
  • Height 4U
  • Front door control with lock
  • Two 5.25 "drive bays, one external 3.5" and eight internal 3.5 "
  • Two front USB 2.0 connections
  • removable air filter
  • Motherboard 12 "x 9.6"
  • Power supply non included
  • It has two circular holes with a diameter of 6 cm on the rear for ventilation
General information
  • Cooling fans
- Front: 1 x 120 mm
- Rear 2 x 60 mm
  • USB Ports: 2 front ports USB 2.0 Hi-Speed
  • Housing:
- Outside: 2 x 5.25 "and 1 x 3.5"
- Interior: 8 x 3.5 "
  • External switch
  • Key external reset
LED
  • Power
  • HDD
Physical Information
  • Material: steel and rust resistant SECC 1mm thick
  • Dimensions: 485 (W) x 177 (H) x 400 (L) mm
  • Weight: 9.0 kg
  • Operating temperature: 0-50 ° C
  • Operating Humidity: 10 - 90% RH, non-condensing
Supply
  • Power supply: standard PS-2 ATX (not included)
Data sheet
special attributes
No. Fiber optic ports -
general
Brand TECHLY Barcode 8057685303973
Compatibility rack cabinet 19'' Materiale Metal
Material description Resistant steel and rust-DRY 1 mm thick Color Black
Codice Fornitore 303973
specifications
Power supply Requested (not included) Motherboard Compatibility 12 x 9.6''
Frontal USB 2 Front audio connectors No
Slots Esterni: 2x 5.25" , 8 x 3.5" (di cui 1 con con accesso esterno) Ventole 1x 120 mm anteriore 2x 60 mm posteriori
dimensions
Width 482 mm Height 177 mm
Depth 400 mm
