IP54 fan unit 140mc/h - 204x204 mm - TECHLY PROFESSIONAL - I-CASE IP-FAN204-1
IP54 fan unit 140mc/h - 204x204 mm - TECHLY PROFESSIONAL - I-CASE IP-FAN204-1
IP54 fan unit 140mc/h - 204x204 mm - TECHLY PROFESSIONAL - I-CASE IP-FAN204-0
IP54 fan unit 140mc/h - 204x204 mm - TECHLY PROFESSIONAL - I-CASE IP-FAN204-1
Techly Professional

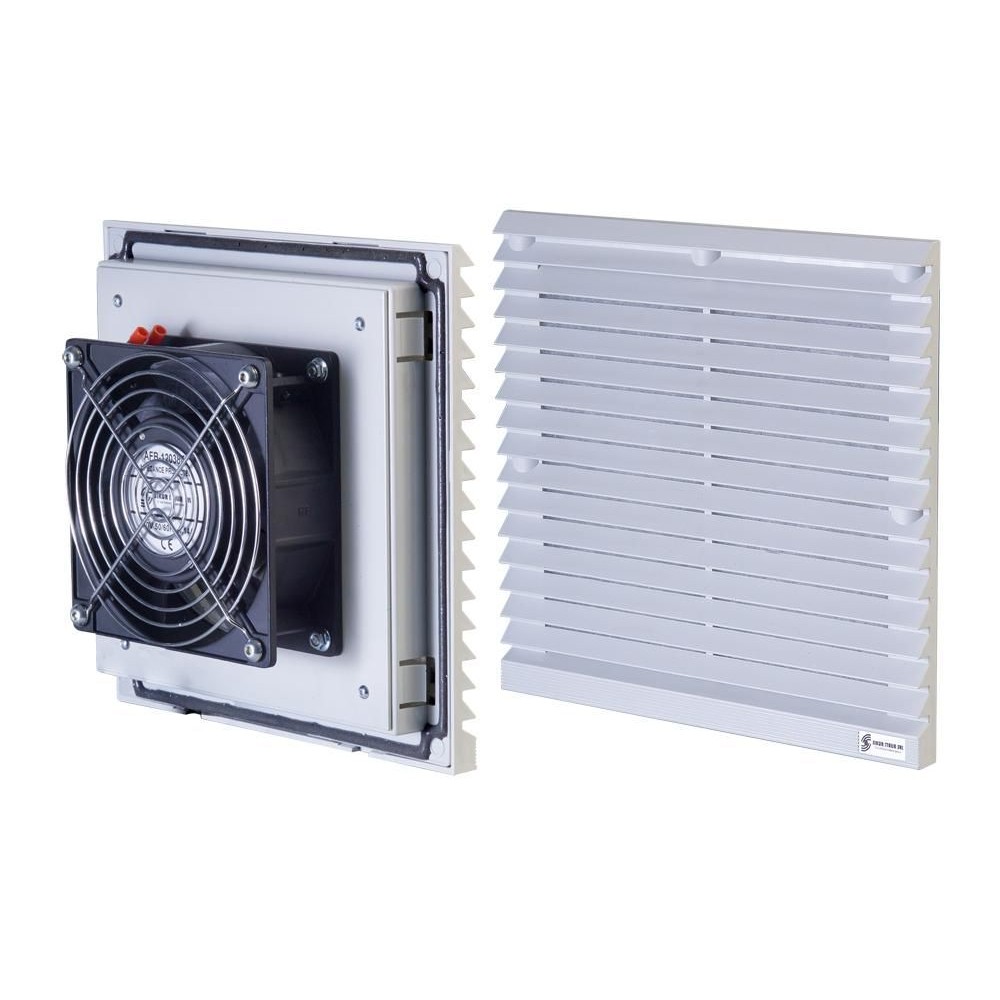

IP54 fan unit 140mc/h - 204x204 mm

Cod: I-CASE IP-FAN204

Barcode: 8054529029075

Supplier Code: 029075

Weight: 1.260 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE IP-FAN204
Barcode
8054529029075
Supplier Code
029075
Weight
1.260 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
  • IP54 fan unit 140mc/h
  • Dimension: 204x204x84 mm
  • Suitable for installation on floor cabinet with high degreee of protection IP65
  • Installation together with filter I-CASE IP-FIL204
Warning: the installation of this fan on cabinets with high grade of protection causes a reduction to IP54 for the degree of protection and the installation requires the creation of the hole on the structure of the cabinet due this is not ready
Description
  • IP54 fan unit 140mc/h
  • Dimension: 204x204x84 mm
  • Suitable for installation on floor cabinet with high degreee of protection IP65
  • Installation together with filter I-CASE IP-FIL204
Specification
  • Rated operating voltage: 230V 50-60Hz
  • Power: 40W
  • Absorbed Fan Current: 0,22 A
  • Seal: polyurethane foam
  • Rotor: ball bearings
  • Motor: induction with shielded poles
  • Motor protection: impedance for overload
  • Electrical connection: clamp
  • Structure: Self-extinguishing UL94 V0
  • Mounting: snap / screws
  • Operating temperature range from -20 to +65°C
  • Service life hours: 60.000 hours at 25°C
Warning: the installation of this fan on cabinets with high grade of protection causes a reduction to IP54 for the degree of protection and the installation requires the creation of the hole on the structure of the cabinet due this is not ready
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529029075
Color Grey Length -
Measure - Weight 1.2600
Codice Fornitore 029075
