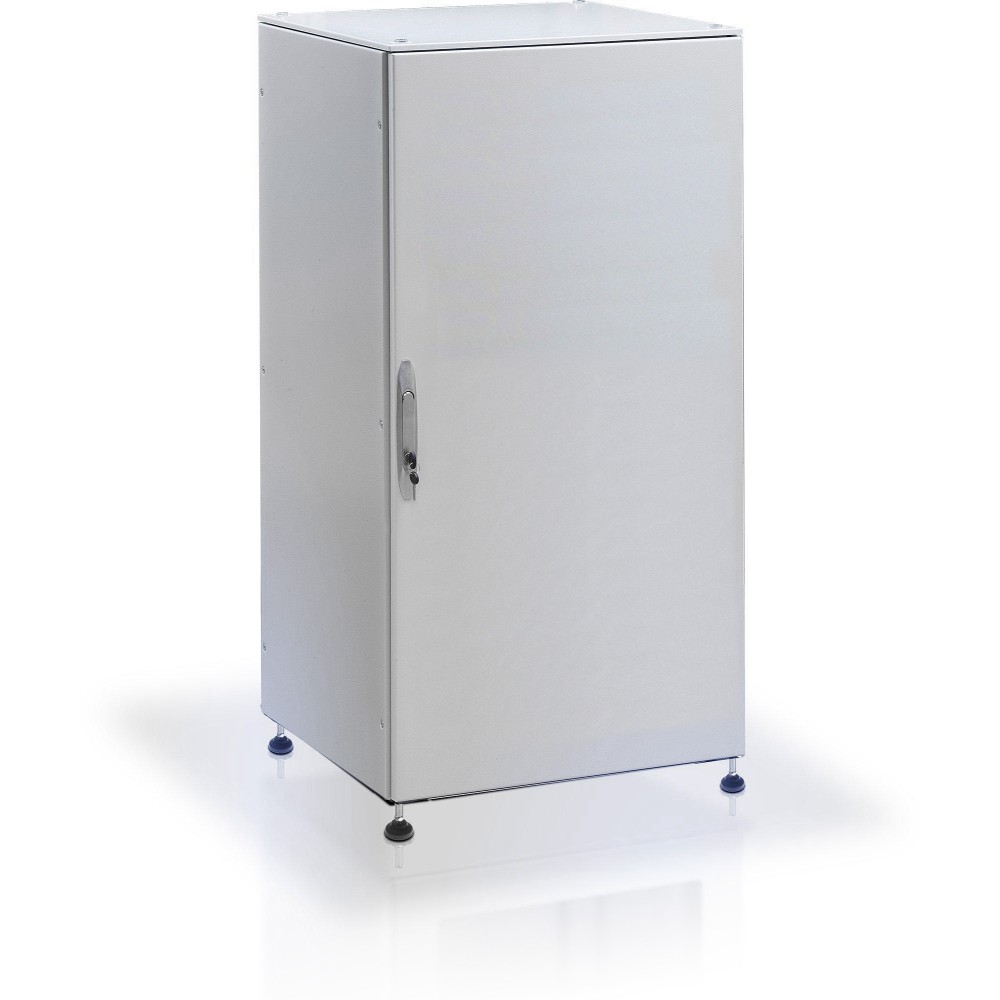

IP55 Floor cabinet 19" 25U Grey with blind door

Cod: I-CASE IP-2580GC

Barcode: 8054529027842

Supplier Code: 027842

Weight: 100.800 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Available

Incl. Tax: €1,049.99

Excl. Tax: €860.65 + VAT

Cod
I-CASE IP-2580GC
Barcode
8054529027842
Supplier Code
027842
Weight
100.800 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Add to Compare
Free shipping
Order now and we'll ship tomorrow
Made easy
Secure payments
Pollici Rack: 19
Grado di protezione IP: 55
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • 25U Floor Cabinet with IP55 high degree of protection which allows an excellent protection of any equipment in very severe environmental conditions: protects the device installed inside from dust and water
  • P55 degree of protection according to IEC EN62208, EN60529, granted by dual-component polyurethane foam seal
  • IK10 degree of impact resistance complying with IEC EN62208, EN50102
  • Sheet metal door with frame reinforcement and opening system with a unique design, lever-operated and lock points: closes in 4 points
  • Resistant blind side panels, removable roof andbottom designed for cable entry
  • A pair of adjustable 19" front rails with numbered Units
  • Supplied with levelling feet
  • Color: RAL 7035 (grey)
  • Dimension: 1200x600x800 mm (HxWxD)
Description
  • 25U Floor Cabinet with IP55 high degree of protection which allows an excellent protection of any equipment in very severe environmental conditions: protects the device installed inside from dust and water
  • P55 degree of protection according to IEC EN62208, EN60529, granted by dual-component polyurethane foam seal
  • IK10 degree of impact resistance complying with IEC EN62208, EN50102
  • Sheet metal door with frame reinforcement and opening system with a unique design, lever-operated and lock points: closes in 4 points
  • Resistant blind side panels
  • Removable roof for easy inspection
  • A pair of adjustable 19" front rails with numbered Units
  • Bottom designed for cable entry with plate and sealing gasket
  • Supplied with levelling feet
  • Color: RAL 7035 (grey)
  • Dimension: 1200x600x800 mm (HxWxD)
Certification
  • Compliance with following norms: EN 62208, EN60529, UNI EN ISO 9001:2008
  • Compliance with norm UL508A, CSA C22.2 No.14
* The image is indicative and only has the purpose of showing the cabinet structure; for color and size please refer to the product page
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529027842
Typology Floor Rack inches 19"
Assembly Assembled Units 25
Color Grey Ingress Protection IP 55
Ability to static load - Certifications ISO 9001
Years of Warranty 15 Codice Fornitore 027842
dimensions
Rack width 600 mm Rack depth 800 mm
Height 1200 mm Weight 100.8000
side panels
Appearance Blind Removable Yes
Closure type -
rear panel
Appearance Blind Removable Yes
Closing handle points - Maximum aperture -
front door
Appearance Blind Removable Yes
Door material Sheet Reversible Yes
Closure type Handle Locking points 4
Maximum aperture -
roof
Prepared for ventilation No Prepared for Cable Input No
uprights
Front 2 adjustable Rear Optional
included accessories
Leveling feet Yes Base Optional
Wheel Optional Uprights 10''/19'' Anteriors
Brushes hold powder No Grounding kit No
