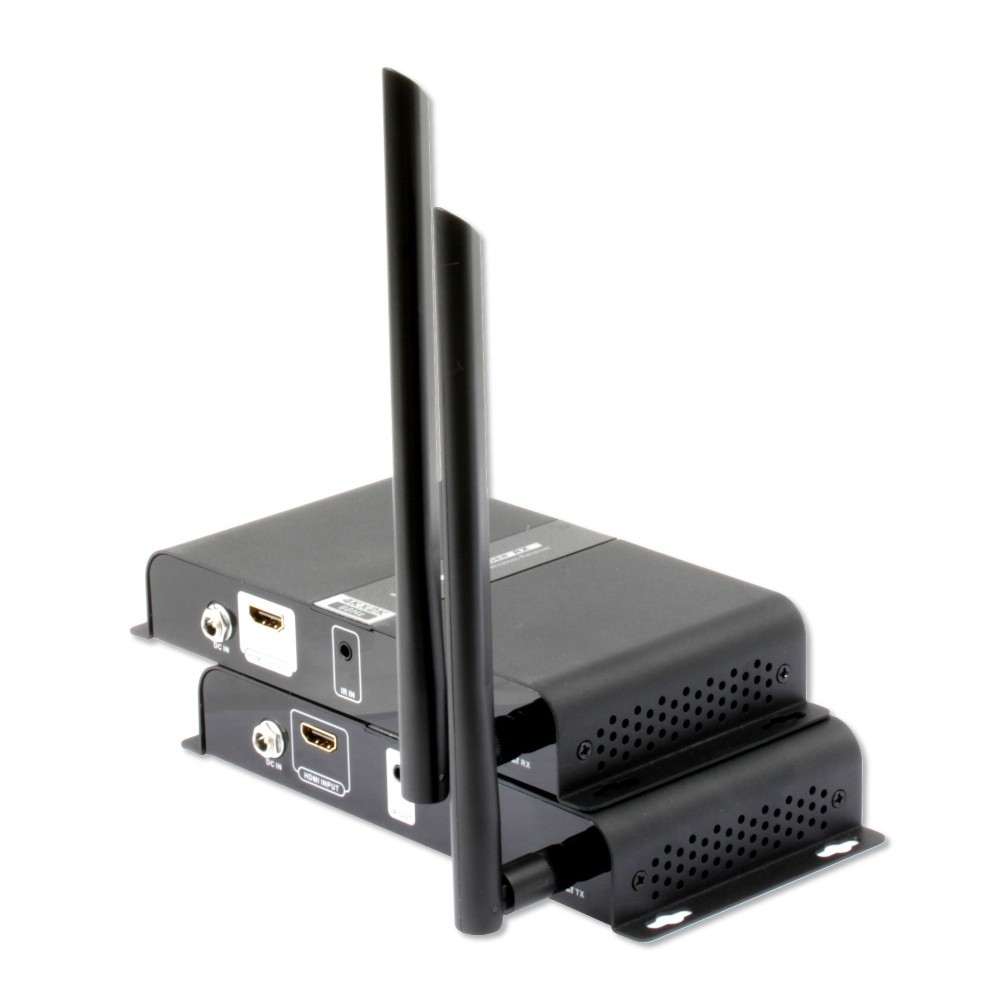

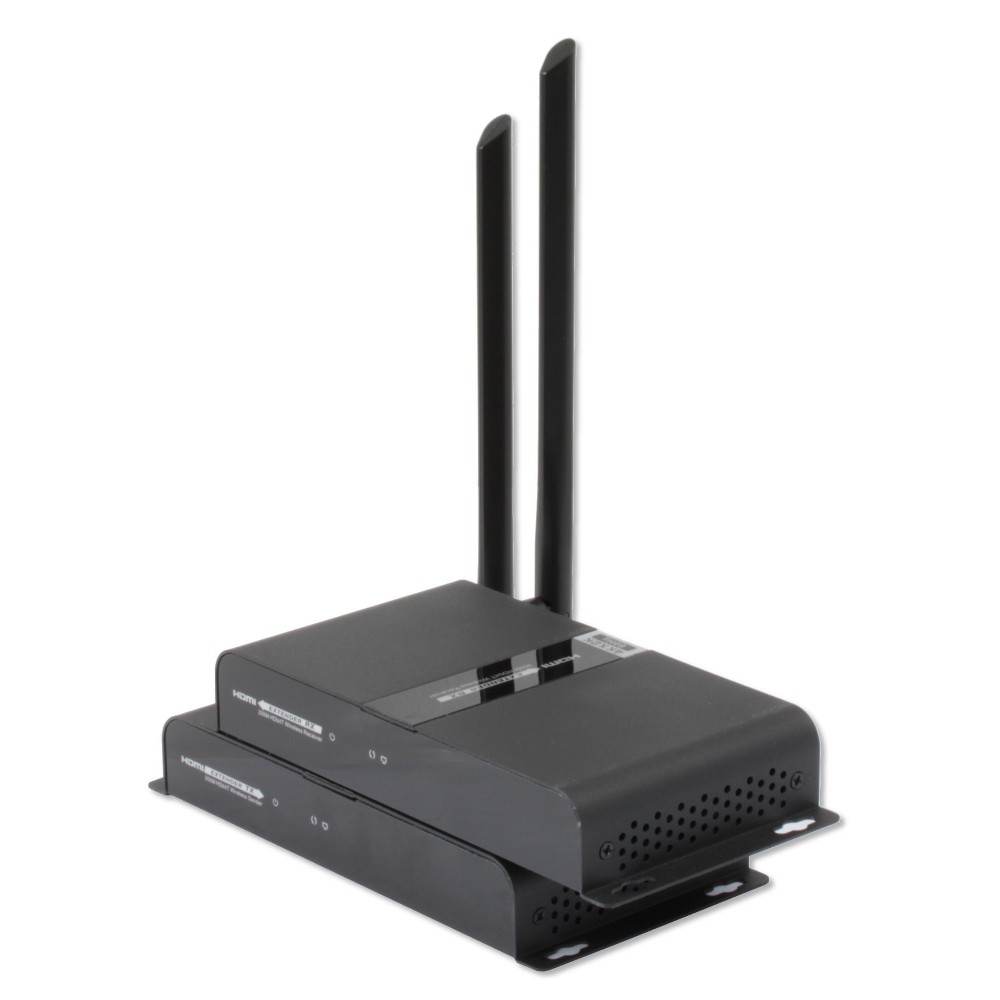

Kit Wireless HDMI 2.0 Full HD by HDbitT up to 200m

Cod: IDATA HDMI2-WL200

Barcode: 8051128100624

Supplier Code: 100624

Weight: 2.081 Kg

Min. sale unit: 1 Pcs

Package pcs: 5 Pcs

Cod
IDATA HDMI2-WL200
Barcode
8051128100624
Supplier Code
100624
Weight
2.081 Kg
Min. sale unit
1 Pcs
Package pcs
5 Pcs
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
  • Wireless HDMI Extender Kit to extend high definition audio and video to any HDTV up to 200 meters away using wireless technology and leveraging the benefits of the HDbitT protocol (we recommend the installation in rooms without obstacles that may interfere with signal transmission)
  • Supports Ultra HD 4Kx2K @ 60Hz resolution up to 200 meters, thanks also to 5GHz operating frequency
  • Supports HDMI 2.0 and HDCP 2.2
  • Remote device support 20 ~ 60kHz IR
  • Supports audio stereo L/R
  • Plug and Play, does not require any installation software
  • Power supply: DC 5V/3.5A
  • Dimension (x2): 195.4 x 138.3 x 30.8 mm; Color: black
Description
Wireless HDMI Extender Kit to extend high definition audio and video to any HDTV up to 200 meters away using wireless technology and leveraging the benefits of the HDbitT protocol.
Supports Ultra HD resolutions up to 4Kx2K @ 60Hz. No need cables to connect transmitter and receiver, which makes installation simpler and more tidy. These wireless extenders may lose the signal if the transmission occurs through walls, glass or other obstacles. It is recommended to install it in barrier-free environments so that the wireless signal can maintain its stability.

Features
  • Tramission of the HDMI signal between the transmitter and the receiver in wireless mode
  • Supports Ultra HD 4Kx2K @ 60Hz resolution up to 200 meters, thanks also to 5GHz operating frequency
  • Full compatibility with HDMI and HDCP
  • Infrared remote control extender for controlling the source device
  • Plug and Play, does not require any installation software
  • Supports HDBitT protocol that allows the transmission of audio and video signals over the network, providing superior performance with clear images and more stable signal
Specifications
  • Supports HDMI 2.0
  • Supports HDCP 2.2
  • Transmission Protocol: HDbitT
  • Supported HDMI resolution (input): 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 4Kx2K @ 24/25/30 / 60Hz
  • Supported HDMI resolution (output): 1080p @ 50 / 60Hz, 4Kx2K @ 30 / 60Hz
  • Remote device support 20 ~ 60kHz IR
  • Frequency: 5.1 - 5.8 GHz
  • Supports stereo audio L/R
  • Transmission distance: 200 meters
  • Material: metal
  • Color: black
Power supply
  • Power supply DC 5V / 3.5A
  • Consumption: TX < 11 W RX < 12 W
Dimension (x2)
  • Width: 195.4 mm
  • Depth: 138.3 mm
  • Height: 30.8 mm
Certification
  • CE
  • FCC
  • RoHS
Package Contents
  • 1x HDMI Transmitter
  • 1x HDMI Receiver
  • 2x Extension Cable for IR
  • 2x Power Supply 5V / 3.5A DC
  • 1x User Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128100624
Color - Codice Fornitore 100624
input
Connector A Type HDMI format A connector female
Number A Connector 1 Altri Connettori Input 1 x IR, 1 x alimentazione
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible No Supported audio standards Yes
Transmission Distance 200 m
power supply
Power supply Requested (included) Consumo energetico TX<11 W RX<12 W
dimensions
Width 195.4 mm Height 30.8 mm
Depth 138.3 mm Weight 2.0810
The package includes • 1x Trasmettitore HDMI • 1x Ricevitore HDMI • 2x Cavo prolunga per IR • 2x Alimentatore DC 5V/3.5A • 1x Manuale d'uso
