LC/LC Fiber Optic Cable Uniboot HD 50/125 Multimode LSZH 1m OM4
Code: ILWL OM4U-LCLC-010TY    Barcode: 8051128106541

   Supplier Code: 106541

Available

LC/LC Fiber Optic Cable Uniboot HD 50/125 Multimode LSZH 1m OM4

Certificazioni: RoHS
Anni di Garanzia: 3
Core Cavo Fibra: 50/125 Multimod OM4
Rivestimento cavo: LSZH
Diametro cavo: 3.0 mm
Choose a different Option:

• OM4: 50/125 multimode fiber cable designed to carry 10 Gigabit Ethernet up to 550 m, 40 and 100 Gigabit Ethernet up to 150 m
• Connectors: LC to LC HD Uniboot
• Category: OM4
• Duplex
• Cable diameter: 3.0 mm
• Type of fiber: multimodal
• Length: 1m

    Description

    Details

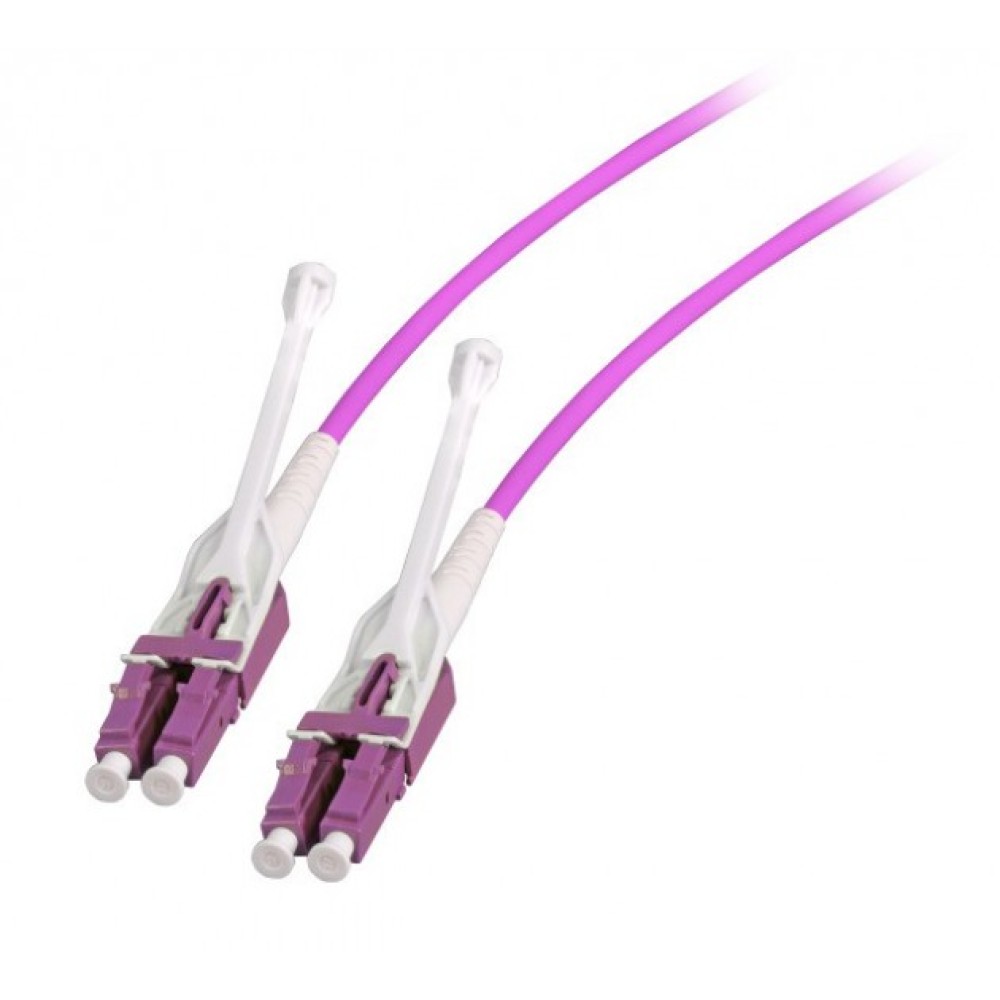

    The Duplex HD Uniboot risers, using a single round cable with a diameter of 3.0 mm, reduce the volume of cables present on the equipment, favoring the flow of air for cooling and simplifying the management of permutations (patching). The Uniboot LC HD jumper has a long release lever that facilitates disconnection from high density panels. The polarity or coding of the duplex connector can be changed in the simplest way to achieve the application requirements.

    Technical features
    • Fiber type: multimode 50/125
    • Category: OM4
    • Fiber number: 2
    • Cable type: I-V (ZN) H
    • Cable diameter: 3.0 mm
    • External sheath color: fuchsia
    • Connections: LC / LC
    • Connector color: fuchsia
    • Cable construction: duplex
    • Sheath material: LSZH
    • Connector conforming to the IEC 61754-20 standard
    • Cable according to IEC 60793-2 standard
    • Insertion loss 850nm <0.3 dB

    Environmental characteristics
    • Operating temperature: -20 - 70 °C
    • Storage temperature: -20 - 70 °C

    Package Contents

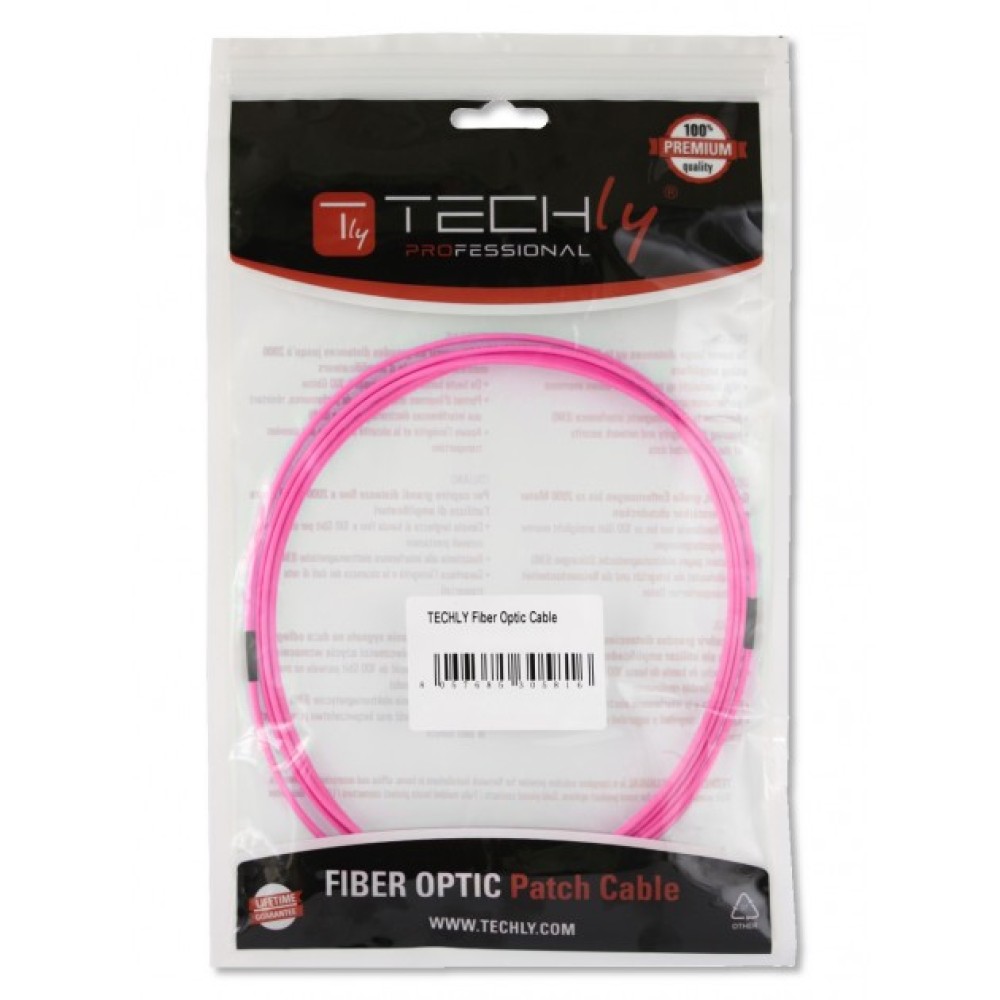

    • LC-LC optical fiber harness Uniboot OM4 1m
    data sheet
    generale
    Brand
    Techly Professional
    Barcode
    8051128106541
    Weight
    0.0280
    Certifications
    RoHS
    Years of Warranty
    3
    Codice Fornitore
    106541
    specifiche tecniche
    Fiber connector
    LC/LC
    Core Cable Fiber
    50/125 Multimod OM4
    Fiber number
    2
    Cable sheath
    LSZH
    Length
    1 m
    Cable diameter
    3.0 mm
    Color
    Fucsia
    CPR
    No
    connessioni
    Connector A Type
    LC Duplex
    Connector B Type
    LC Duplex
    format A connector
    male
    format B connector
    male
