Techly Professional

LCD monitor 17" Rack 19" 8 Units Black

Cod: I-CASE MONI-LCD

Barcode: 8054529026678

Supplier Code: 026678

Weight: 7.175 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE MONI-LCD
Barcode
8054529026678
Supplier Code
026678
Weight
7.175 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs

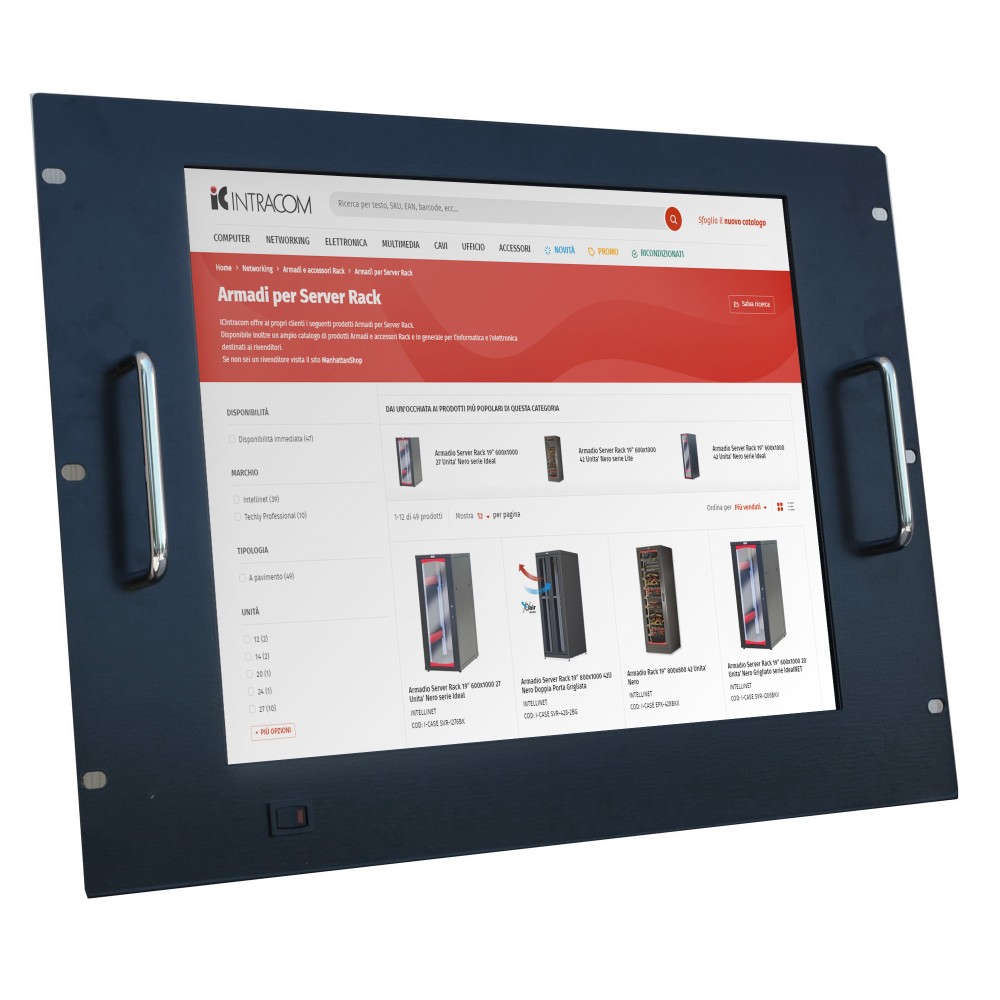

LCD monitor 19" for rack installation. Ideal for server workstations installed within 19". Combined with master INTELLINET KVM switch.

Features:
  • Resolution: 1280x 1024 (sxga)
  • Pixel Size (mm): 264 x 0.264
  • Colors: 16.7 Million
  • Horizontal Frequency (kHz): 30-83
  • Vertical Frequency (Hz): 50-75
  • Brightness (cd / m2): 300 cd / m2 / 4 lamps
  • Dynamic Contrast: 3000: 1 DCR
  • Response time: 2 ms
  • Viewing angle (CR> 5): O. 175 - 175 V.
  • Input signals: VGA (D-Sub)
  • Power consumption: <40W
  • Low Power Mode: Yes (less than 1W)
Specifications:
  • AC / DC input adapter included (100 -240V, 50-60Hz)
  • External power supply with 220VAC power supply
  • Dimensions: 482 x 353 x 55 mm
  • Units-8U
  • Black Colour
The package includes:
  • Rack Monitors 19 "8U
  • SVGA Cable 1.8m
  • Power cord 1.8 m
Description
LCD monitor 19" for rack installation. Ideal for server workstations installed within 19". Combined with master INTELLINET KVM switch.

Features:
  • Resolution: 1280x 1024 (sxga)
  • Pixel Size (mm): 264 x 0.264
  • Colors: 16.7 Million
  • Horizontal Frequency (kHz): 30-83
  • Vertical Frequency (Hz): 50-75
  • Brightness (cd / m2): 300 cd / m2 / 4 lamps
  • Dynamic Contrast: 3000: 1 DCR
  • Response time: 2 ms
  • Viewing angle (CR> 5): O. 175 - 175 V.
  • Input signals: VGA (D-Sub)
  • Power consumption: <40W
  • Low Power Mode: Yes (less than 1W)
Specifications:
  • AC / DC input adapter included (100 -240V, 50-60Hz)
  • External power supply with 220VAC power supply
  • Dimensions: 482 x 353 x 55 mm
  • Units-8U
  • Black Colour
The package includes:
  • Rack Monitors 19 "8U
  • SVGA Cable 1.8m
  • Power cord 1.8 m
Data sheet
general
Brand Techly Professional Barcode 8054529026678
Diagonal Size (inches) 17 " Tecnologia retroilluminazione LCD
Maximum resolution (Width) 1280 Maximum resolution (Height) 1024
Integrated webcam No Consumo energetico <40W
Durata esercizio media - Color Black
The package includes • Monitor a rack 19" 8U • Cavo SVGA 1,8 m • Alimentatore 12V e Cavo alimentazione 1,8 m Codice Fornitore 026678
dimensions
Height 354.9 mm Width 479 mm
Depth 55 mm Weight 7.1750
display
Colors 16,7 milioni Response time 2 ms
Brightness 300 cd/m2 Dot pitch -
Horizontal Viewing Angle 175 gradi Vertical Viewing Angle 175 gradi
Contrasto standard - Dynamic contrast 3.000 :1
Frequenza minima - Frequenza massima -
Video signal Analogic
features
Plug and play - Inclinazione range (da) -
Inclinazione range (a) - Compatibile kensington lock -
Energy star, certificato - Funzione Pivot -
Regolazione Altezza - Piano girevole -
Supporto montaggio vesa -
audio
No. Speakers - Power -
Multimediale -
connections
VGA port 1 Nr. porte USB -
Porta HDMI - Nr. porte DVI -
Nr. porte DVI-D - Nr. porte DisplayPort -
Nr. porte Ethernet - Nr. porte Firewire 800 -
Nr. porte Thunderbolt -
system requirements
Mac - Windows 7 -
Windows Vista - Windows XP -
Windows 2000 - Windows 98 -
