LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-1
LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-1
LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-0
LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-1
LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-2
LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-3
+4
LED Panel Light Plus 60x60cm 42W Cold White A+ - Techly - I-LED-P66-P542W-1
Techly

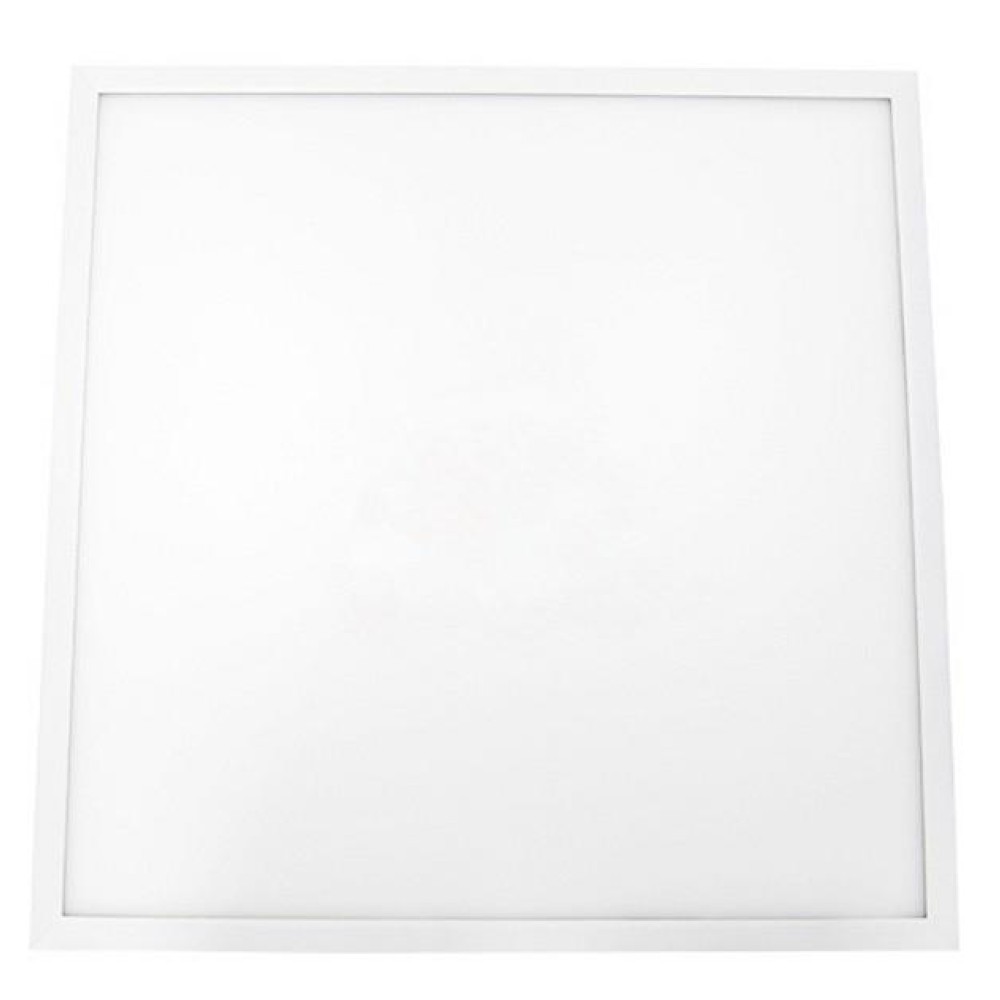

LED Panel Light Plus 60x60cm 42W Cold White A+

Cod: I-LED-P66-P542W

Barcode: 8054529025176

Supplier Code: 025176

Weight: 4.200 Kg

Min. sale unit: 1 Pcs

Package pcs: 4 Pcs

Cod
I-LED-P66-P542W
Barcode
8054529025176
Supplier Code
025176
Weight
4.200 Kg
Min. sale unit
1 Pcs
Package pcs
4 Pcs
Classe energetica: A +

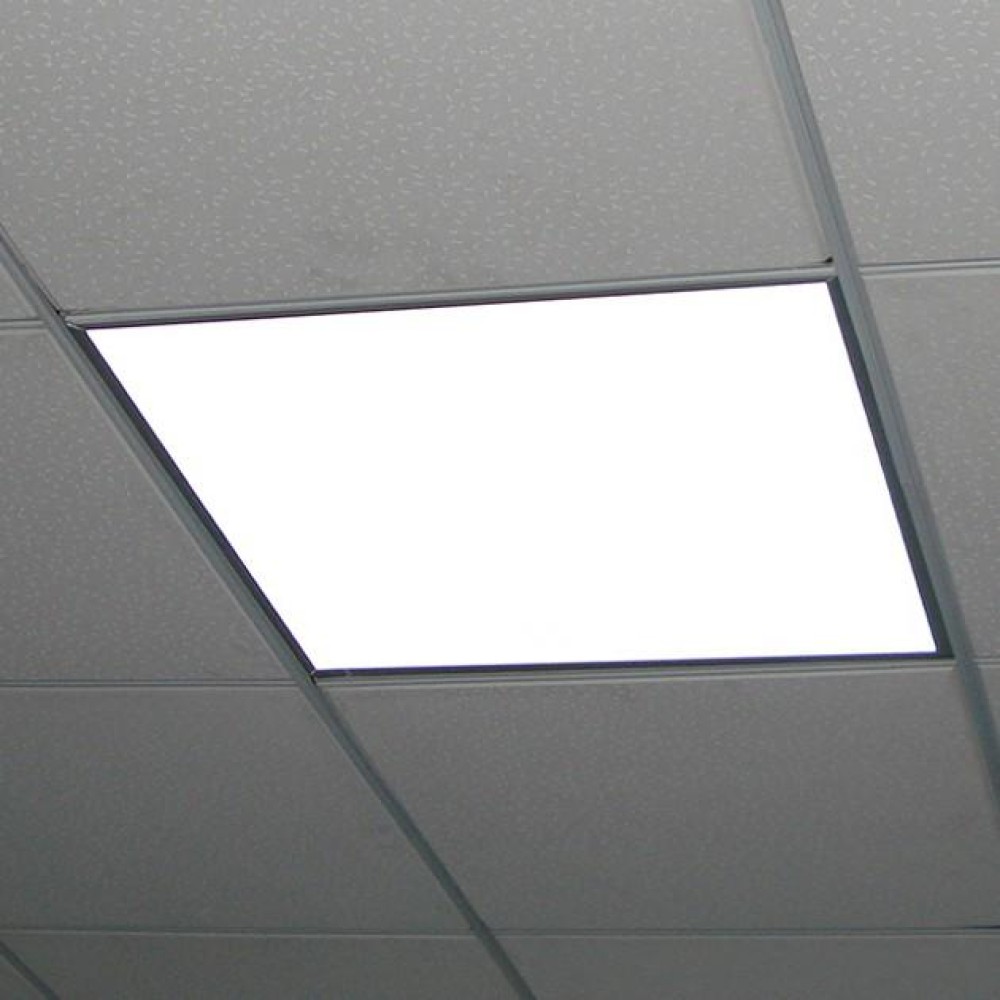

The ultra-thin panel I-LED-P66-P542W, besides ensuring significant energy savings, is an innovative technological solution in terms of lighting quality and design. Utilizing the latest LED chip generation that ensures uniformity of light, pleasant color and high energy efficiency. Replace a ceiling light fluorescent tubes with a bright LED panel is to enter into a new dimension made of bright colors, uniformity of light and incomparable aesthetics.
The Plus version provides high luminous efficiency of 120lm / W.

  • LED light panel with an elegant design with frame in white painted anodized aluminum
  • Adopt the latest LED technologies that guarantee the stability of the panel, a high luminance, long life and no emission of UV and IR
  • The high quality of these LED light panels makes them ideal substitutes for traditional network lights and fluorescent neon tubes
  • Powered by a constant current of voltage drivers, guarantees safety, energy saving and long life
  • Designed to create harmony and uniformity of light inside the room
  • Thanks to the modern design, fits perfectly into any environment, ideal for offices, homes, bars, shops, hotels and more
  • Can be installed in the wall / ceiling with the possibility to fix it both horizontally and vertically
  • Can be installed in the counters of shops or bars, or used for reading of radiographs and documents in transparency
Features
  • High Brightness
  • Full lighting and uniform panel
  • up to 50% savings compared to panels with fluorescent tubes (neon) and 80% than traditional lights
  • Duration: up to 5 times higher than normal fluorescent tubes
  • Stylish Ultra-slim design
  • Easy to dispose: are not classified as hazardous waste
  • Low operating temperature
  • Easy to clean and sanitize
  • Transformer included
  • frame color: white
Technical specifications
  • Lamp LED Panel 42W
  • Light color: cool white, 5000K
  • stable driver with PFC increased by 0.9
  • luminous efficiency of 120 lm / W
  • Output Lumen: 4620
  • angle of the light beam: 110°
  • Color Rendering Index (CRI)> 80
  • Degree of protection: IP54
  • Lamp life: 50,000 h
  • With opaque diffusing panel to remedy the problems, a direct view of the LED chip
  • Includes transformer
  • Energy Efficiency: A+
Installation
  • Recessed
  • On the surface (not included kit)
  • A suspension (kit not included)
Dimensions
  • Width: 600 mm
  • Height: 600 mm
  • Thickness: 9 mm
  • Frame Width: 18 mm
  • Cable length: 1.40 m
Certifications
  • EC
  • RoHS
  • WEEE
  • UL
Package Contents
  • Luminous panel 60 x 60 cm cool white
  • Transformer
Description
The ultra-thin panel I-LED-P66-P542W, besides ensuring significant energy savings, is an innovative technological solution in terms of lighting quality and design. Utilizing the latest LED chip generation that ensures uniformity of light, pleasant color and high energy efficiency. Replace a ceiling light fluorescent tubes with a bright LED panel is to enter into a new dimension made of bright colors, uniformity of light and incomparable aesthetics.
The Plus version provides high luminous efficiency of 120lm / W.

  • LED light panel with an elegant design with frame in white painted anodized aluminum
  • Adopt the latest LED technologies that guarantee the stability of the panel, a high luminance, long life and no emission of UV and IR
  • The high quality of these LED light panels makes them ideal substitutes for traditional network lights and fluorescent neon tubes
  • Powered by a constant current of voltage drivers, guarantees safety, energy saving and long life
  • Designed to create harmony and uniformity of light inside the room
  • Thanks to the modern design, fits perfectly into any environment, ideal for offices, homes, bars, shops, hotels and more
  • Can be installed in the wall / ceiling with the possibility to fix it both horizontally and vertically
  • Can be installed in the counters of shops or bars, or used for reading of radiographs and documents in transparency
Features
  • High Brightness
  • Full lighting and uniform panel
  • up to 50% savings compared to panels with fluorescent tubes (neon) and 80% than traditional lights
  • Duration: up to 5 times higher than normal fluorescent tubes
  • Stylish Ultra-slim design
  • Easy to dispose: are not classified as hazardous waste
  • Low operating temperature
  • Easy to clean and sanitize
  • Transformer included
  • frame color: white
Technical specifications
  • Lamp LED Panel 42W
  • Light color: cool white, 5000K
  • stable driver with PFC increased by 0.9
  • luminous efficiency of 120 lm / W
  • Output Lumen: 4620
  • angle of the light beam: 110°
  • Color Rendering Index (CRI)> 80
  • Degree of protection: IP54
  • Lamp life: 50,000 h
  • With opaque diffusing panel to remedy the problems, a direct view of the LED chip
  • Includes transformer
  • Energy Efficiency: A+
Installation
  • Recessed
  • On the surface (not included kit)
  • A suspension (kit not included)
Dimensions
  • Width: 600 mm
  • Height: 600 mm
  • Thickness: 9 mm
  • Frame Width: 18 mm
  • Cable length: 1.40 m
Certifications
  • EC
  • RoHS
  • WEEE
  • UL
Package Contents
  • Luminous panel 60 x 60 cm cool white
  • Transformer
Data sheet
general
Brand Techly Barcode 8054529025176
Lighting type LED Socket -
Color Cold white Height 60 cm
Width 60 cm Weight 4.2000
Codice Fornitore 025176
technical specifications
Power 42 W Lamp replacement -
Voltage AC 110-240V Angle output 110°
Degrees Kelvin (color gradation) - Lumen 4620
Life 50.000 hours Energetic class A +
Dimmerabile No Measure 600 x 600 mm
