LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-1
LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-1
LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-0
LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-1
LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-2
LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-3
+4
LED Panel Light Premium 60x60cm 36W Cold White A+ - TECHLY - I-LED-P66-P536WA-1
Techly

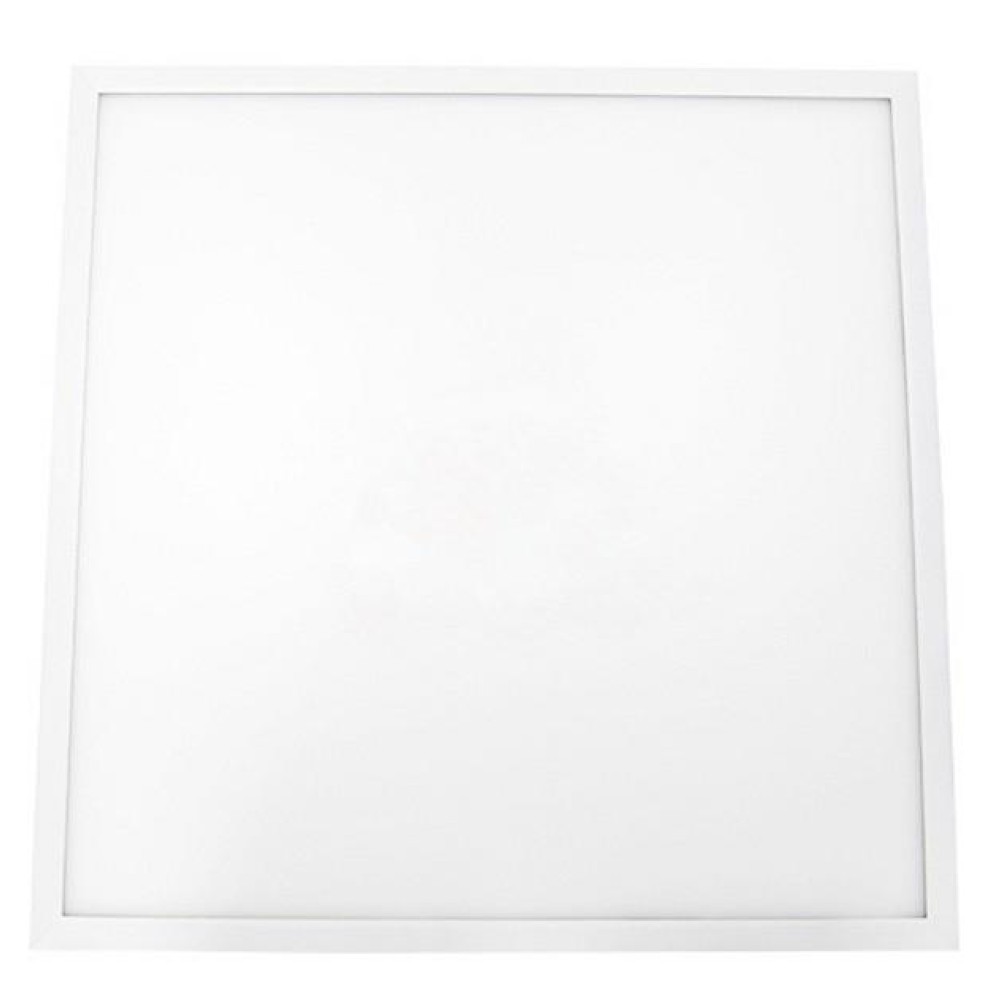

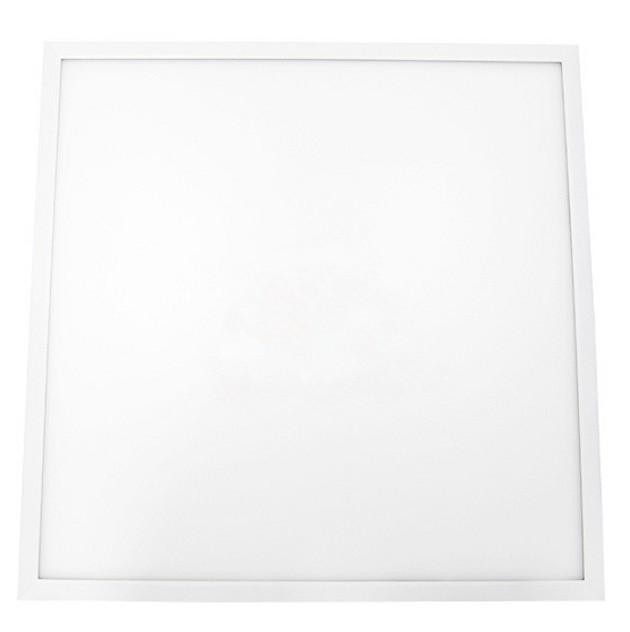

LED Panel Light Premium 60x60cm 36W Cold White A+

Cod: I-LED-P66-P536WA

Barcode: 8054529028337

Supplier Code: 028337

Weight: 2.100 Kg

Min. sale unit: 1 Pcs

Package pcs: 6 Pcs

Cod
I-LED-P66-P536WA
Barcode
8054529028337
Supplier Code
028337
Weight
2.100 Kg
Min. sale unit
1 Pcs
Package pcs
6 Pcs
Classe energetica: A +
  • Light Square LED Panel 60 x 60 cm 36W
  • Premium Version, high luminous efficiency
  • Colours emitted: cool white, 5000K
  • Luminous efficiency of 130 lm / W; Lumen Output: 4680
  • Ultra-slim design and modern. Can be installed on the ceiling or wall
  • Complete and uniform illumination of the surface
  • Save up to 50% compared to panels with fluorescent tubes (neon) and up to 80% compared with conventional lights
  • Powered by a constant current of voltage drivers
  • Ideal for offices, homes, shops, bars, restaurants and much more
  • Robust frame in white painted anodized aluminum
  • Total LED spotlight Dimensions: 600 x 600 x 11 mm
Description
The ultra-thin panel I-LED-P66-P536WA, besides ensuring significant energy savings, is an innovative technological solution in terms of lighting quality and design. Utilizing the latest LED chip generation that ensures uniformity of light, pleasant color and high energy efficiency. Replace a ceiling light fluorescent tubes with a bright LED panel is to enter into a new dimension made of bright colors, uniformity of light and incomparable aesthetics.
The Premium version provides high luminous efficiency of 130lm / W.

  • Light Panel LED elegantly designed with frame in white painted anodized aluminum
  • Adopt the latest LED technologies that guarantee the stability of the panel, a high luminance, long life and no emission of UV and IR
  • The high quality of these LED light panels makes them ideal substitutes for traditional network lights and fluorescent neon tubes
  • Powered by a constant current of voltage drivers, guarantees safety, energy saving and long life
  • Designed to create harmony and uniformity of light inside the room
  • Thanks to the modern design, fits perfectly into any environment, ideal for offices, homes, bars, shops, hotels and more

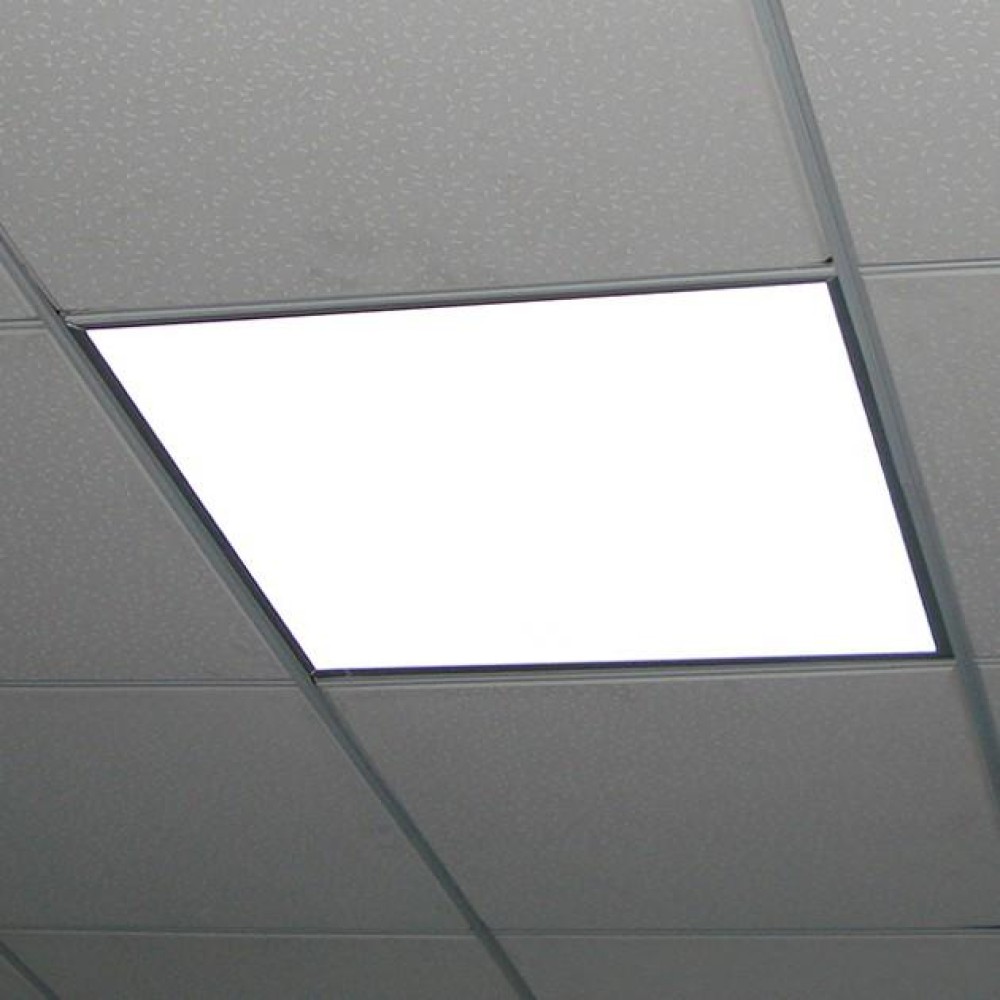

  • Can be installed in the wall / ceiling with the possibility to fix it both horizontally and vertically
  • Can be installed in the counters of shops or bars, or used for reading of radiographs and documents in transparency
Features
  • High Brightness
  • Full lighting and uniform panel
  • Up to 50% savings compared to panels with fluorescent tubes (neon) and 80% than traditional lights
  • Duration: up to 5 times higher than normal fluorescent tubes
  • Stylish Ultra-slim design
  • Easy to dispose: are not classified as hazardous waste
  • Low operating temperature
  • Easy to clean and sanitize
  • Transformer included
  • Frame color: white
Specifications
  • Lamp LED Panel 36W
  • Light color: cool white, 5000K
  • Stable driver with increased PFC 0.9
  • Luminous efficiency of 130 lm / W
  • Output Lumen: 4680
  • Angle of the light beam: 110°
  • Color Rendering Index (CRI)> 80
  • Degree of protection: IP20
  • Lamp life: 50,000 h
  • With opaque diffusing panel to remedy the problems, a direct view of the LED chip
  • Includes transformer
  • Energy Efficiency: A+
Programs
  • Recessed
  • A suspension (not included kit)
Size
  • Width: 600 mm
  • Height: 600 mm
  • Thickness: 11 mm
  • Frame Width: 18 mm
  • Cable length: 1.40 m
Certifications
  • EC
  • RoHS
  • WEEE
  • UL
In the box
  • Luminous panel 60 x 60 cm cool white
  • Power transformer
Data sheet
general
Brand TECHLY Barcode 8054529028337
Lighting type LED Socket -
Color Cold white Height 60 cm
Width 60 cm Weight 2.1000
Codice Fornitore 028337
technical specifications
Power 36 W Lamp replacement -
Voltage AC 200-240V Angle output 110°
Degrees Kelvin (color gradation) 5.000 K Lumen 4680
Life 50.000 hours Energetic class A +
Dimmerabile No Measure 600 x 600 mm
