Matrix HDMI 4 IN 2 OUT 4K UHD 3D

Cod: IDATA HDMI-H42B

Barcode: 8054529024889

Supplier Code: 024889

Weight: 1.174 Kg

Min. sale unit: 1 Pcs

Package pcs: 6 Pcs

Cod
IDATA HDMI-H42B
Barcode
8054529024889
Supplier Code
024889
Weight
1.174 Kg
Min. sale unit
1 Pcs
Package pcs
6 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 1.4
Compatibile 3D: Yes
  • Matrix 4 HDMI inputs 2 outputs
  • Switch easily between any four HDMI sources
  • Distributes any of the four inputs to any combination of the two HDMI display outputs
  • Supports video resolutions up to 4Kx2K
  • Supports bandwidth 340MHz / 3.4Gbps per channel (10.2Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channels)
  • Supports HDCP 1.4 and 3D
  • Dimensions: 258 x 112 x 26 mm; Black Colour
Description

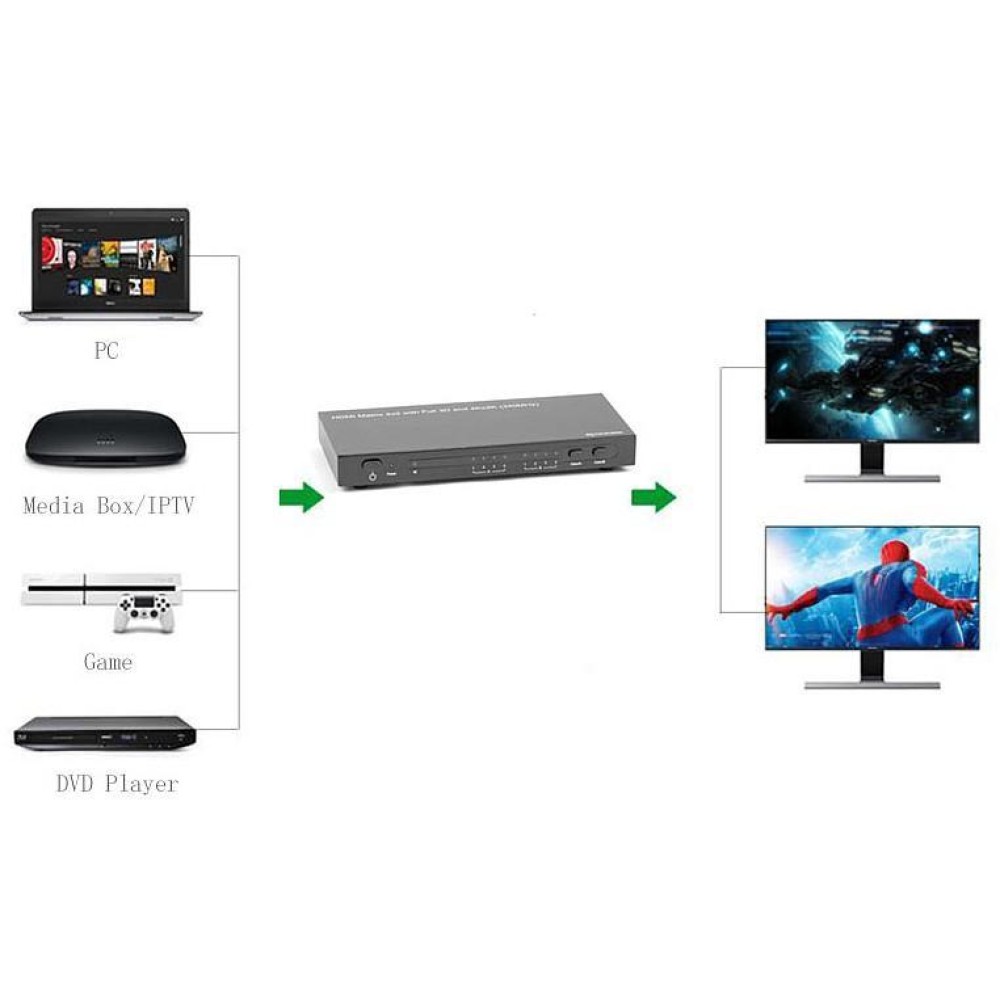

The H42B HDMI matrix routes high definition video in multiple resolutions up to 4Kx2K and multichannel digital audio from any of four HDMI sources connected to two monitors.
Two outputs offer the choice of sending audio signals and high-definition video to two connected screens. This eliminates the need to constantly disconnect and reconnect sources to monitor.
HD operates DVD readers, blue Ray, PS3 and Set top, satellite boxes that connect Two HDMI screen. Every source is accessible at all times by any display by selecting it with an IR remote.

Features
  • Switch easily between any four HDMI sources
  • Distributes any of the four inputs to any combination of the two HDMI display outputs
  • Supports video resolutions up to 4Kx2K
  • Supports bandwidth 340MHz / 3.4Gbps per channel (10.2Gbps all channels)
  • Supports deep color 12bit per channel (36bit all channels)
  • Supports HDCP 1.4
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital
  • DTS-HD and Dolby True HD
  • Supports all 3D formats, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 340 MHz
Specifications
  • Video input signal: 5 volts p-p (TTL)
  • Maximum single link range: 4Kx2K
  • Video Output: HDMI

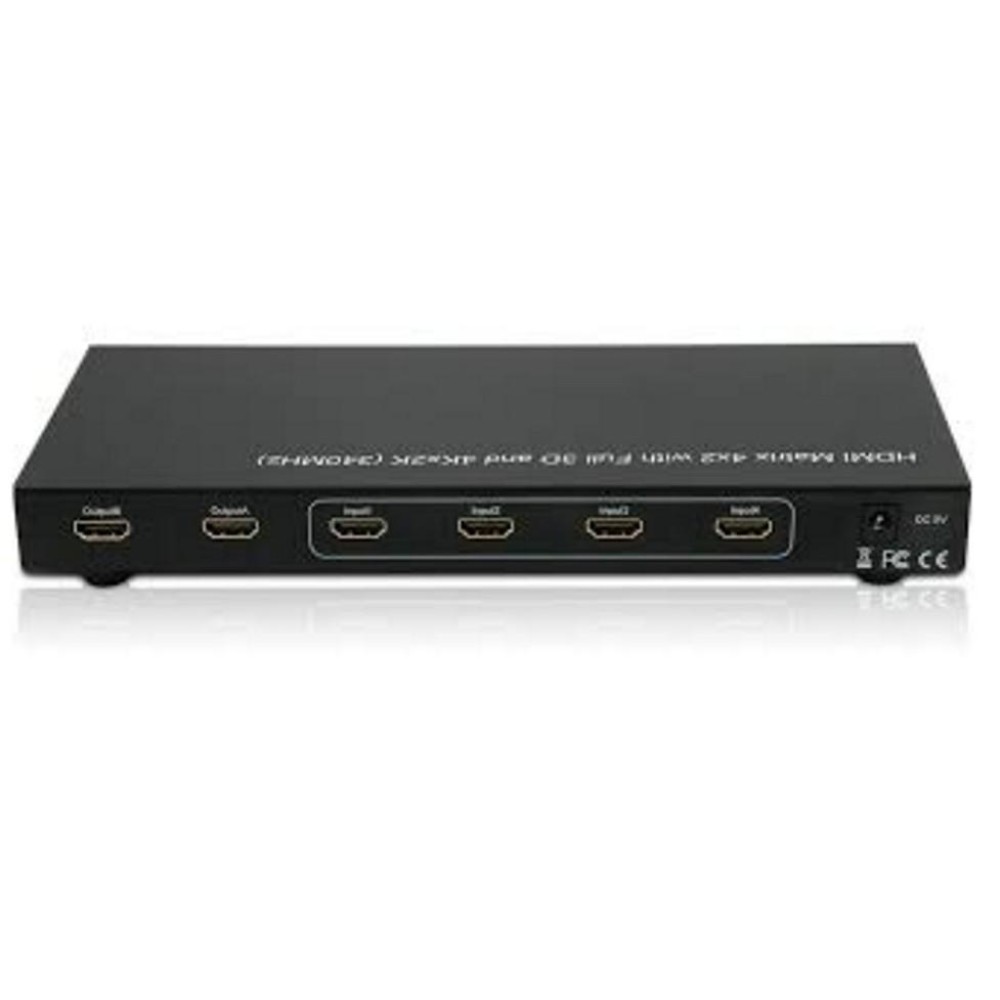

  • Connections HDMI input / output: Type A 19 pin
  • Vertical Frequency Range: 50/60 Hz
  • bandwidth video amplifier width: 3.4Gbps / 340MHz
Resolutions (HDTV)
  • Interlaced (50 and 60 Hz) 480i, 576i, 1080i
  • Progressive (50 and 60Hz), 480p, 576p, 720p, 1080p, 4Kx2K
Power
  • External Power Supply: 5V DC @ 2A
  • Power consumption (max): 4W
environmental features
  • Operating Temperature: 0 ℃ to + 70 ℃
  • Storage temperature: -10 ℃ to + 80 ℃
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage Humidity: 5% to 90% RH (non-condensing)
Size
  • Width: 258 mm
  • Depth: 112 mm
  • Height: 26 mm
Certificates
  • THERE IS
  • FCC
  • RoHS
  • WEEE
in the Box
  • Base Matrix 4x2
  • 1 Power Base
  • 1 Remote Base
Data sheet
general
Brand TECHLY NP Barcode 8054529024889
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 024889
input
Connector A Type HDMI-A format A connector female
Number A Connector 4 Altri Connettori Input 1x 5V DC
output
Connector B Type HDMI-A format B connector female
Number B Connector 2
technical specifications
Typology Matrix Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 340 MHz Deep Color 36 bit
HDMI 1.4 HDCP 1.4
3D compatible Yes Supported audio standards Yes
Transmission Distance -
power supply
Power supply Requested (included) Consumo energetico 4W
dimensions
Width 258 mm Height 26 mm
Depth 112 mm Weight 1.1740
The package includes • Base Matrice 4x2 • 1 Alimentatore Base • 1 Telecomando Base
