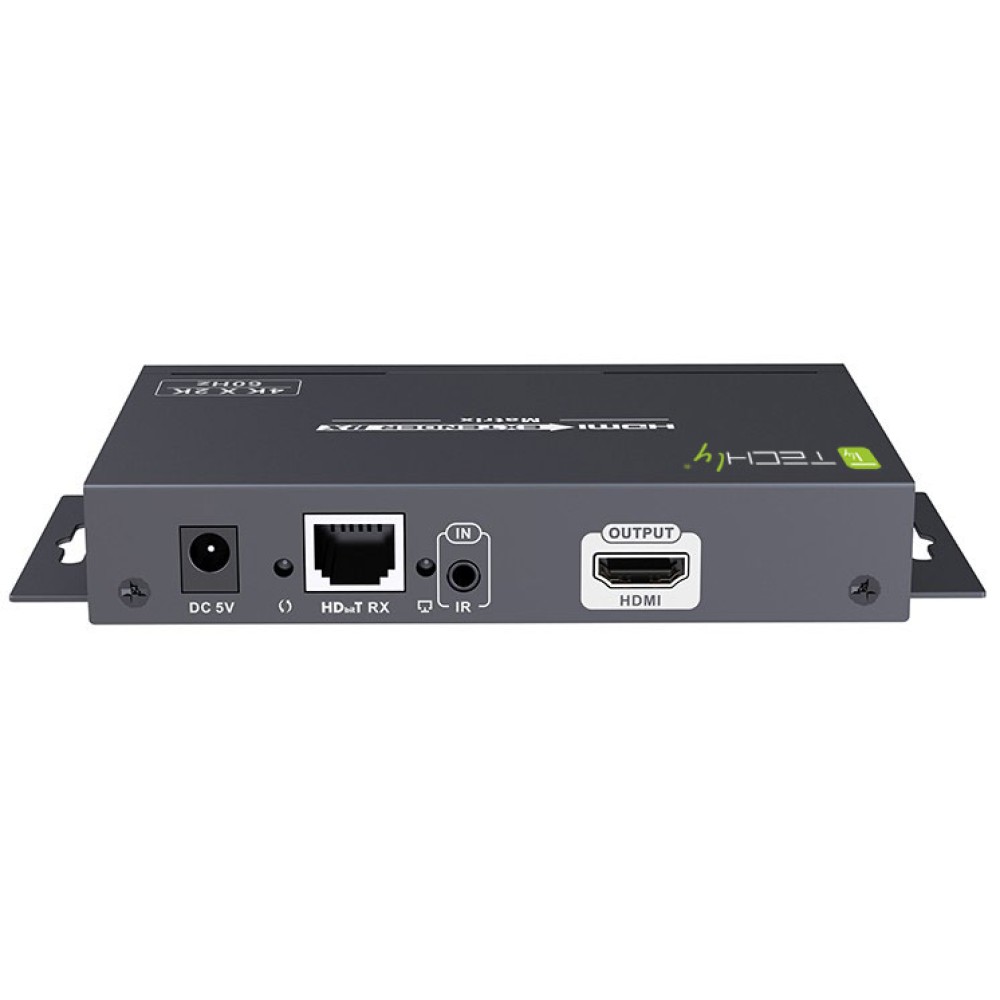

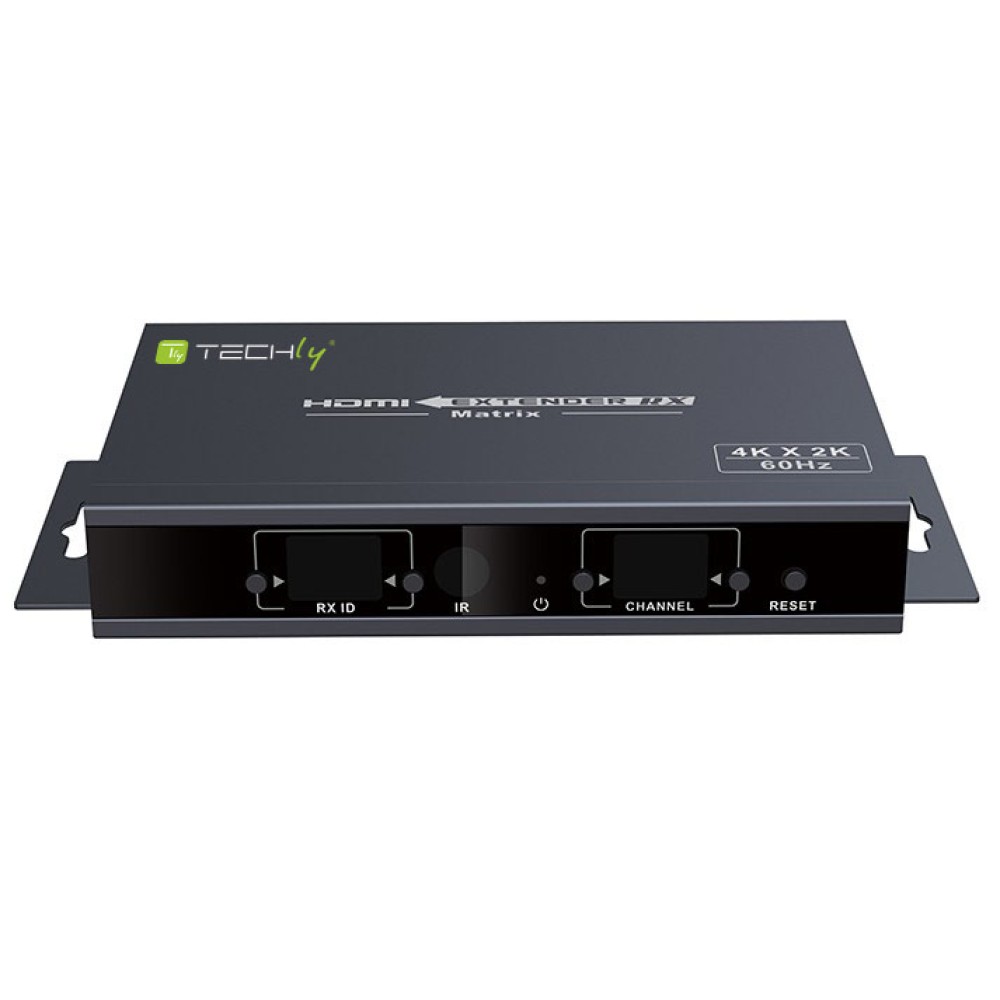

Matrix HDMI2.0 HDbitT Extender receiver up to 120m

Receiver unit (RX) for HDMI HDbit matrix.
Together with the transmitter, it allows the distribution and switching of the high-definition video / audio signal from this product and from the standard IGMP switch. Applies the advanced HDbitT technology, the supported resolution is up to 4Kx2K @ 60Hz ultra HD. It can also be used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertising, in the control room, in command centers, in the exhibition and entertainment center, in the security monitoring system, etc.

Features

• Supported resolution up to 4Kx2K @ 60Hz ultra HD

• Transmission distance of 120 meters via CAT6

• Supports the IR passback function to control the source device from the RX position

• Provides a scalable and flexible input-output matrix configuration, allows 100 inputs to infinite outputs

• Support computer control software to select and change device input source

• Plug and play

• Support to select and change the input of the source device from the receiver by remote control or fixed key

• Supports APP control, the user can scan, preview, create their own configuration easily using a phone / tablet


Technical specifications

• HDMI signal

• HDMI2.0, HDCP2.2 compatible

• HDMI input resolution supported:


480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz,
576p @ 50Hz, 720p @ 50 / 60Hz,
1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 4Kx2K @ 24/25/30 / 60Hz

• HDMI output resolution supported:


1080p @ 60Hz, 4Kx2K @ 30 / 60Hz

• Supported audio formats: PCM

• Maximum transfer rate: 18 Gbps

• TMDS signal input and output: 0.7 ~ 1.5Vp-p (TMDS)

• DDC signal input and output: 5Vp-p (TTL)

• Input cable length: ≤5m (AWG26)

• Output cable length: ≤5m (AWG26)

• APP control: support APP control, the user can scan, preview, create their own configuration easily using a phone / tablet, operating system supports IOS and Android

• IR remote control

• Supports IR pass-back with frequency 20 ~ 60 KHz

• Transfer method: UTP / STP CAT5 / 5e / 6

• Transmission distance: 120 meters

• Connector: RJ45

• Delay ≤ 200 ms


Size

• Width: 164 mm

• Depth: 108.5 mm

• Height: 23.6 mm


Environmental characteristics

• Operating temperature: 0 ~ 50 °C

• Storage temperature: -10 ~ 70 °C

• Humidity: 0 ~ 90% (without condensation)


Certification

• EC

• FCC

• RoHS

• WEEE


Package Contents

• 1x Matrix HDMI Receiver

• 1x Receiver extension cable

• 1x Instructions for use

• 1x 5V / 1A DC power supply
