Matrix Transmitter HDMI2.0 HDbitT Extender up to 120m
Code: IDATA HDMI-MX393T    Barcode: 8051128104349

   Supplier Code: 104349

Available

Matrix Transmitter HDMI2.0 HDbitT Extender up to 120m

Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
Risoluzione Video Max: 480p
HDCP: 2.2
Choose a different Option:

• IR Transmitter Switch Matrix Extender HDMI HDbitT
• Transmission distance of 120 meters via CAT6
• Supports video resolution up to 4Kx2K @ 60Hz ultra HD
• IR transmission supports IR frequency 20-60KHZ
• Transmits a reliable HDMI 2.0 signal over CAT6 network cable
• Supports HDMI 2.0, HDCP 2.2 compatible
• With network management function and IGMP / IGMP snooping
• Supports cascading connection
• Matrix dimensions: 16.4 x 10.8 x 2.3 cm; Black colour

Accessories
    Description

    Details

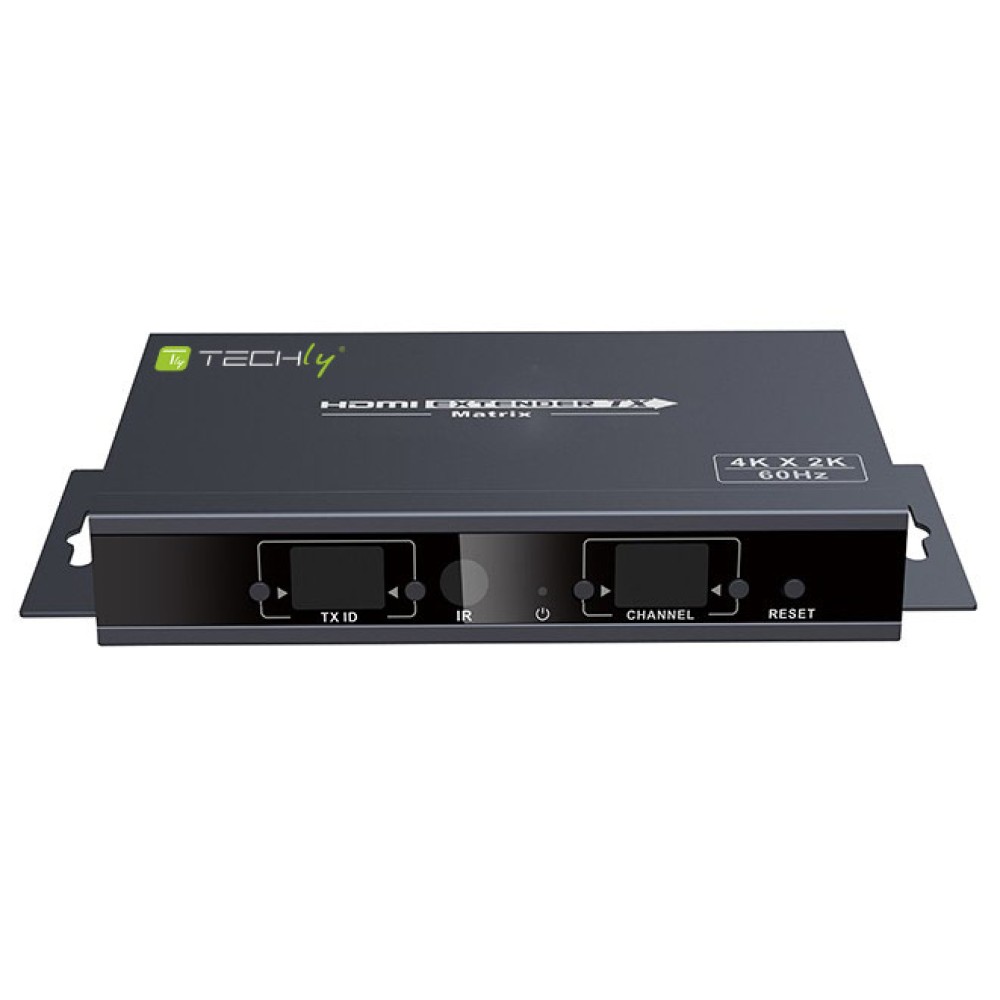

    Transmitter unit (TX) for HDMI HDbit matrix.

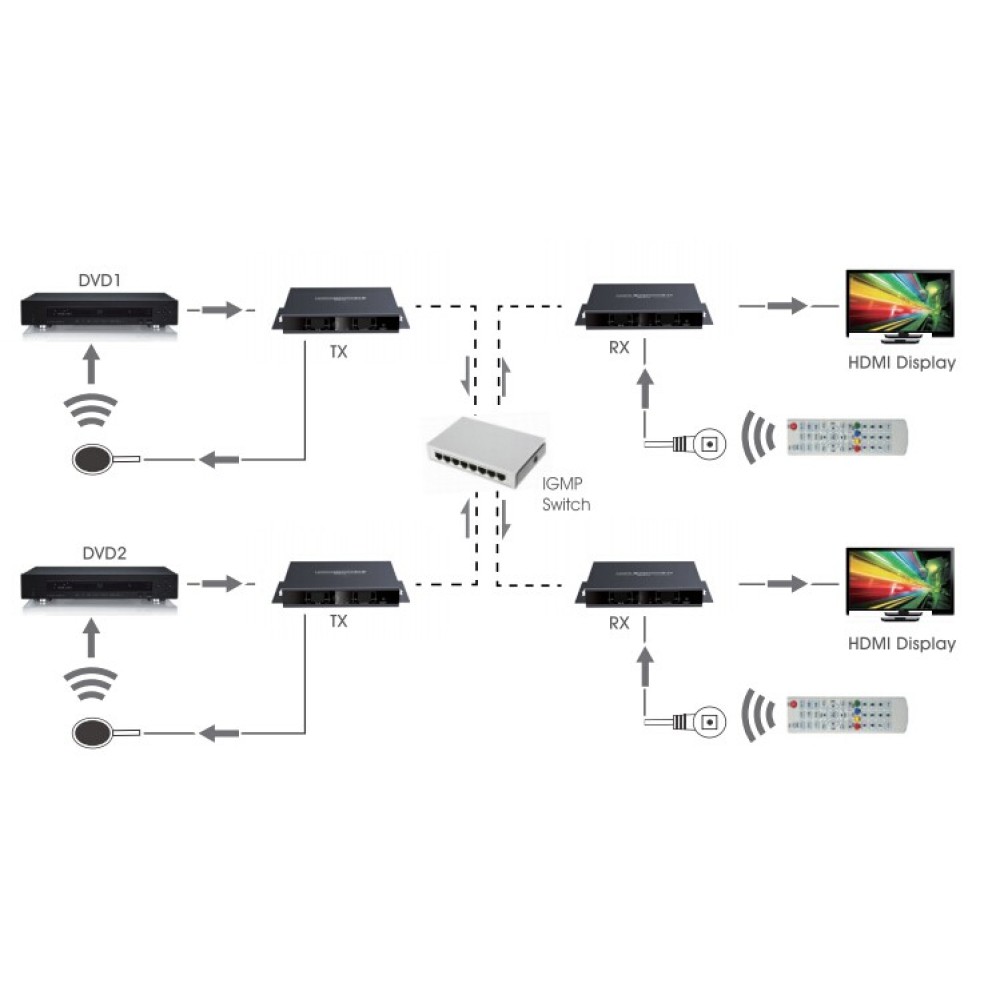

    Together with the receiver, it allows the distribution and switching of the high-definition video / audio signal from this product and the standard IGMP switch. Applies the advanced HDbitT technology, the supported resolution is up to 4Kx2K @ 60Hz ultra HD. It can also be used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertising, in the control room, in command centers, in the exhibition and entertainment center, in the security monitoring system, etc.

    Features
    • Supported resolution up to 4Kx2K @ 60Hz ultra HD
    • Transmission distance of 120 meters via CAT6
    • Supports the IR passback function to control the source device from the RX position
    • Provides a scalable and flexible input-output matrix configuration, allows 100 inputs to infinite outputs
    • Support computer control software to select and change device input source
    • Plug and play
    • Support to select and change the input of the source device from the receiver by remote control or fixed key
    • Supports APP control, the user can scan, preview, create their own configuration easily using a phone / tablet

    Technical specifications
    • HDMI signal
    • HDMI2.0, HDCP2.2 compatible
    • HDMI input resolution supported:
    480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz,
    576p @ 50Hz, 720p @ 50 / 60Hz,
    1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz, 4Kx2K @ 24/25/30 / 60Hz
    • HDMI output resolution supported:
    1080p @ 60Hz, 4Kx2K @ 30 / 60Hz
    • Supported audio formats: PCM
    • Maximum transfer rate: 18 Gbps
    • TMDS signal input and output: 0.7 ~ 1.5Vp-p (TMDS)
    • DDC signal input and output: 5Vp-p (TTL)
    • Input cable length: ≤5m (AWG26)
    • Output cable length: ≤5m (AWG26)
    • APP control: support APP control, the user can scan, preview, create their own configuration easily using a phone / tablet, operating system supports IOS and Android
    • IR remote control
    • Supports IR pass-back with frequency 20 ~ 60 KHz
    • Transfer method: UTP / STP CAT5 / 5e / 6
    • Transmission distance: 120 meters
    • Connector: RJ45
    • Delay ≤ 200 ms

    Size
    • Width: 164 mm
    • Depth: 108.5 mm
    • Height: 23.6 mm

    Environmental characteristics
    • Operating temperature: 0 ~ 50 °C
    • Storage temperature: -10 ~ 70 °C
    • Humidity: 0 ~ 90% (without condensation)

    Certification
    • EC
    • FCC
    • RoHS
    • WEEE

    Package Contents
    • 1x Matrix HDMI Transmitter
    • 1x Receiver extension cable
    • 1x Instructions for use
    • 1x 5V / 1A DC power supply
    data sheet
    generale
    Brand
    Techly Np
    Barcode
    8051128104349
    Certifications
    CE , FCC , RoHS
    Color
    Black
    Codice Fornitore
    104349
    input
    Connector A Type
    RJ45 8P8C
    format A connector
    female
    Number A Connector
    1
    Altri Connettori Input
    1x HDMI femmina 1x Alimentazione 5V DC
    output
    Connector B Type
    IR
    format B connector
    female
    Number B Connector
    1
    specifiche tecniche
    Typology
    Matrix
    Max Video Resolution
    1080i , 1080p, 480i, 480p , 576i, 576p, 720p , Ultra HD 4K 2160p
    max bandwidth (MHz)
    No
    Deep Color
    No
    HDMI
    2.0
    HDCP
    2.2
    3D compatible
    No
    Supported audio standards
    Yes
    Transmission Distance
    120 m
    alimentazione
    Power supply
    Requested (included)
    Consumo energetico
    DC 5V/1A
    dimensioni
    Width
    164 mm
    Height
    23,6 mm
    Depth
    108,5 mm
    Weight
    0.7370
    The package includes
    • 1x Matrix HDMI Transmitter • 1x Receiver extension cable • 1x Instructions for use • 1x 5V / 1A DC power supply
