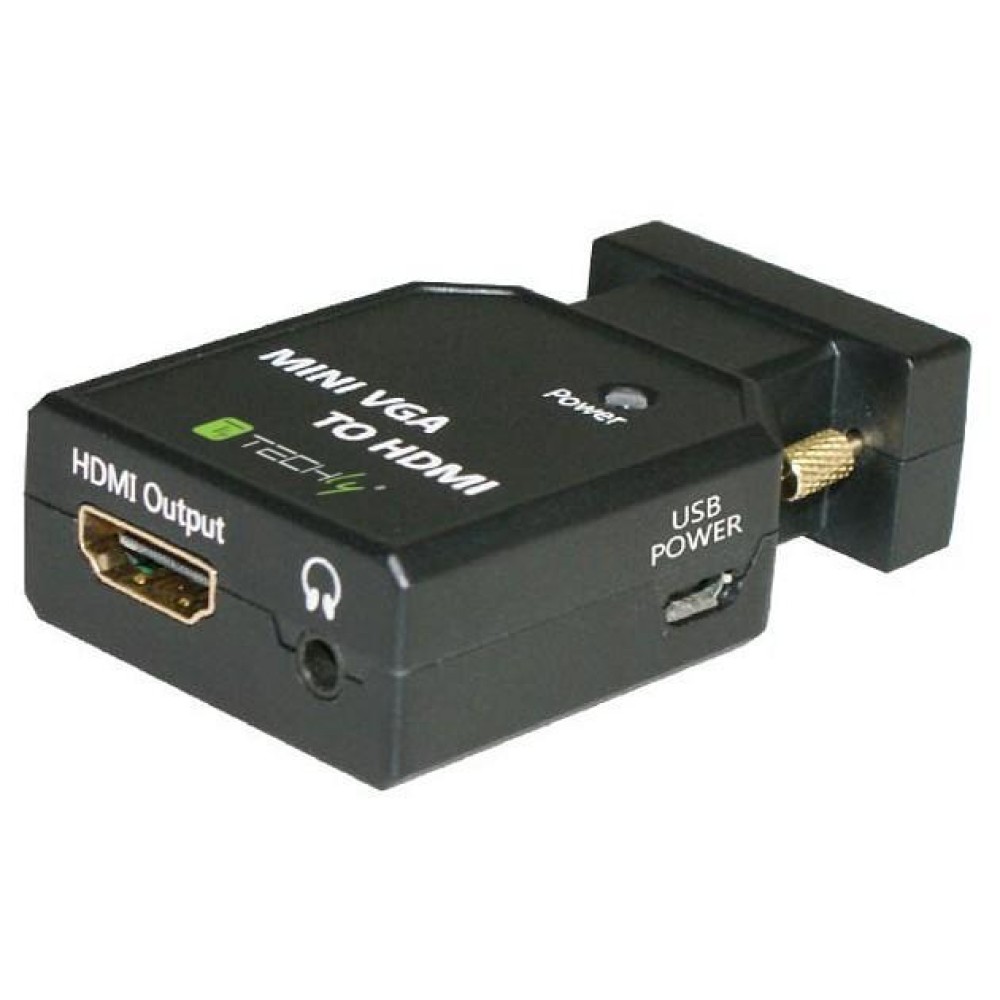

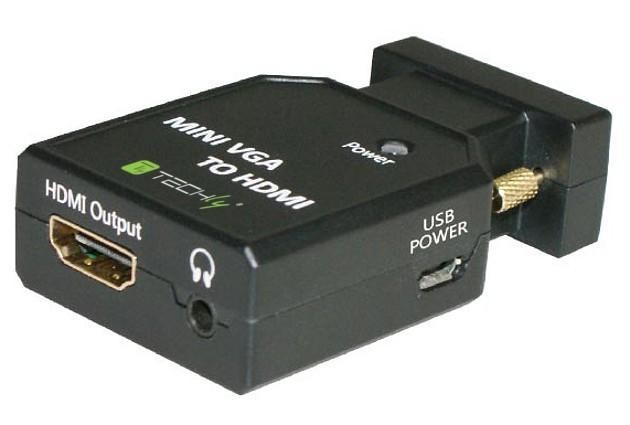

Mini Converter VGA and Audio to HDMI
Code: IDATA VGA-HDMINI    Barcode: 8054529026517

   Supplier Code: 026517

Available

Mini Converter VGA and Audio to HDMI

Certificazioni: CE
Certificazioni: FCC
Tipo connettore B: HDMI-A
Choose a different Option:

IDATA VGA-HDMINI allows you to connect a notebook / PC with VGA output directly to an HD TV, LCD or projector with HDMI digital input.
It's enough to insert the adapter into the VGA port on your computer and connect an HDMI cable to the output, by connecting the other end to the TV. It supports and also converts the audio signal through the audio input 3.5mm jack, which allows you to connect headphones, speakers or a HiFi system.
Is powered by VGA input and therefore does not need any power supply / external transformer. However, the package includes a Micro USB charging cable through which the converter can also be powered by the PC's network.

Features:
• Converter VGA and audio to HDMI
• Revenue: 1x VGA female; Audio 1x 3.5 "female
• Output: 1x HDMI female
• It has Micro USB port charging
• Gold-plated connectors
• Quick and easy plug and play installation
• Detects and adjusts the required resolution
• HDMI Output: HDMI 1.3
• Input Signal: RGB: 0.7 Vp-p 75 ohms
• Power consumption: 0.5W

Accessories
    Description

    Details

    IDATA VGA-HDMINI allows you to connect a notebook / PC with VGA output directly to an HD TV, LCD or projector with HDMI digital input.
    It's enough to insert the adapter into the VGA port on your computer and connect an HDMI cable to the output, by connecting the other end to the TV. It supports and also converts the audio signal through the audio input 3.5mm jack, which allows you to connect headphones, speakers or a HiFi system.
    Is powered by VGA input and therefore does not need any power supply / external transformer. However, the package includes a Micro USB charging cable through which the converter can also be powered by the PC's network.

    Features
    • Converter VGA and audio to HDMI
    • Revenue: 1x VGA female; Audio 1x 3.5 "female
    • Output: 1x HDMI female
    • It has Micro USB port charging
    • Gold-plated connectors
    • Quick and easy plug and play installation
    • Detects and adjusts the required resolution
    • HDMI Output: HDMI 1.3
    • Input Signal: RGB: 0.7 Vp-p 75 ohms
    • Power consumption: 0.5W maximum
    • With power indicator LED

    Supported resolutions
    640 × 480 @ 60/72/75 / 85Hz, 720x400 @ 70Hz,
    800 × 600 @ 60/72/75 / 85Hz, 1024x768 @ 60/70/75 / 85Hz,
    1152 × 864 @ 75Hz 1280x720 @ 60Hz,
    1280 × 768 @ 60/75 / 85Hz, 1280x800 @ 60/75 / 85Hz,
    1280 × 960 @ 60Hz, 1280x1024 @ 60 / 75Hz,
    1360 × 768 @ 60Hz, 1400x1050 @ 60Hz,
    1440 × 900 @ 60Hz, 1600x1200 @ 60Hz,
    1680 × 1050 @ 60Hz, 1920x1080 @ 60Hz,
    1920 × 1200_RB @ 60Hz, 1920x1200 @ 60Hz

    Environmental features
    • Operating Temperature: 0-70 °C
    • Operating Humidity: 10% - 85% RH (non-condensing)
    • Storage temperature: -10 - 80 °C
    • Storage humidity: 5% - 90% RH (non-condensing)

    Dimensions
    • Length: 72 mm
    • Width: 41 mm
    • Height: 18 mm

    Certifications
    • EC
    • FCC

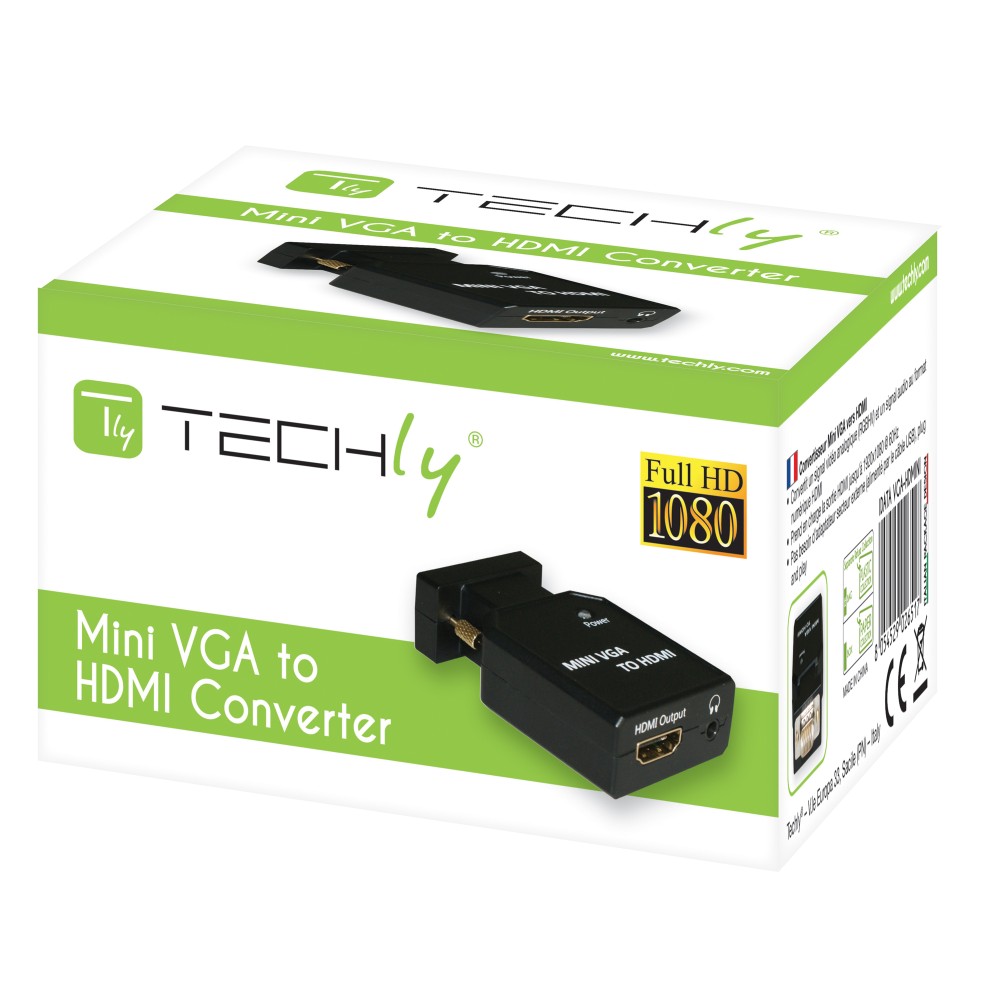

    Package Contents
    • 1x VGA + Audio to HDMI Converter
    • 1x Micro USB Cable
    • 1x VGA Cable
    • 1x Audio cable
    • 1x User Manual
    data sheet
    generale
    Brand
    Techly
    Barcode
    8054529026517
    Certifications
    CE , FCC
    Color
    Black
    Codice Fornitore
    026517
    input
    Connector A Type
    VGA + Audio 3.5mm
    format A connector
    male
    Number A Connector
    1
    output
    Connector B Type
    HDMI-A
    format B connector
    female
    Number B Connector
    1
    Altri Connettori Output
    Micro USB
    specifiche tecniche
    Typology
    Converter
    Max Video Resolution
    1920 x 1200
    max bandwidth (MHz)
    No
    Deep Color
    No
    HDMI
    1.3
    HDCP
    No
    3D compatible
    No
    Supported audio standards
    Yes
    Transmission Distance
    No
    alimentazione
    Power supply
    Optional
    Consumo energetico
    0.5W massimo
    dimensioni
    Width
    41 mm
    Height
    18 mm
    Depth
    72 mm
    Weight
    0.2000
    The package includes
    • 1x Convertitore VGA+Audio a HDMI • 1x Cavo Micro USB • 1x Cavo VGA • 1x Cavo audio • 1x Manuale utente
