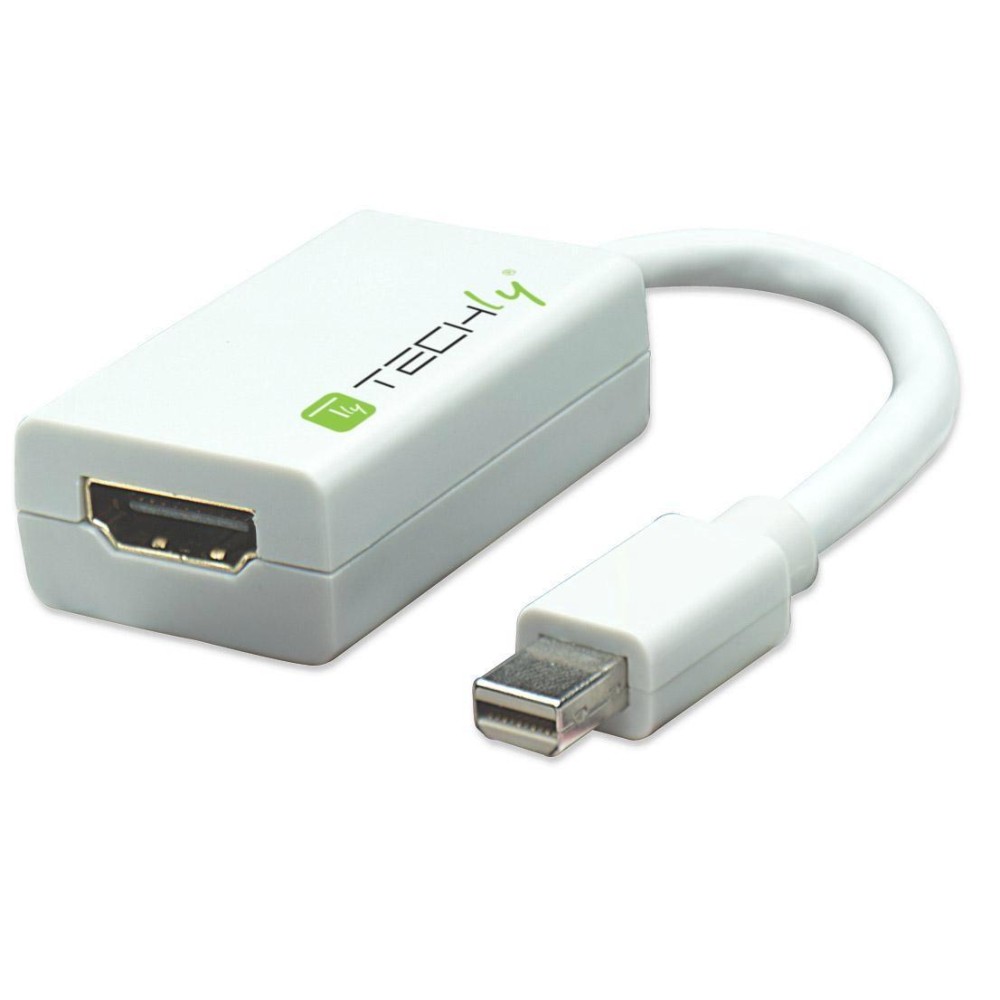

Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-1
Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-1
Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-0
Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-1
Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-2
Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-3
+2
Mini DisplayPort (Thunderbolt) to HDMI - TECHLY - IADAP MDP-HDMIF-1
Techly

Mini DisplayPort (Thunderbolt) to HDMI

Cod: IADAP MDP-HDMIF

Barcode: 8057685304239

Supplier Code: 304239

Weight: 0.027 Kg

Min. sale unit: 1 Pcs

Package pcs: 100 Pcs

Cod
IADAP MDP-HDMIF
Barcode
8057685304239
Supplier Code
304239
Weight
0.027 Kg
Min. sale unit
1 Pcs
Package pcs
100 Pcs
Certificazioni: CE
Anni di Garanzia: 3
Tipo connettore B: HDMI-A
  • Connect a source mini-DisplayPort (Thunderbolt) to a cable HDMI monitor
  • Provides a single high-quality signal to an HDMI monitor - ideal for MAC
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Molded PVC boot
Standards and Certifications
  • UL
  • DisplayPort 1.1
Contacts
  • (1) Mini-DisplayPort 20-pin male (Thunderbolt)
  • (1) HDMI 19-pin female
  • Nickel-plated
  • Molded PVC boot
  • Shielded
Cable
  • 30 AWG connectors
  • shielding and Mylar aluminum
  • Withstanding voltage: 300V DC
  • Insulation resistance: 5 MOhms
  • Conductive resistance: 10 Ohms
  • Length: 15 cm
  • Weight: 20 g

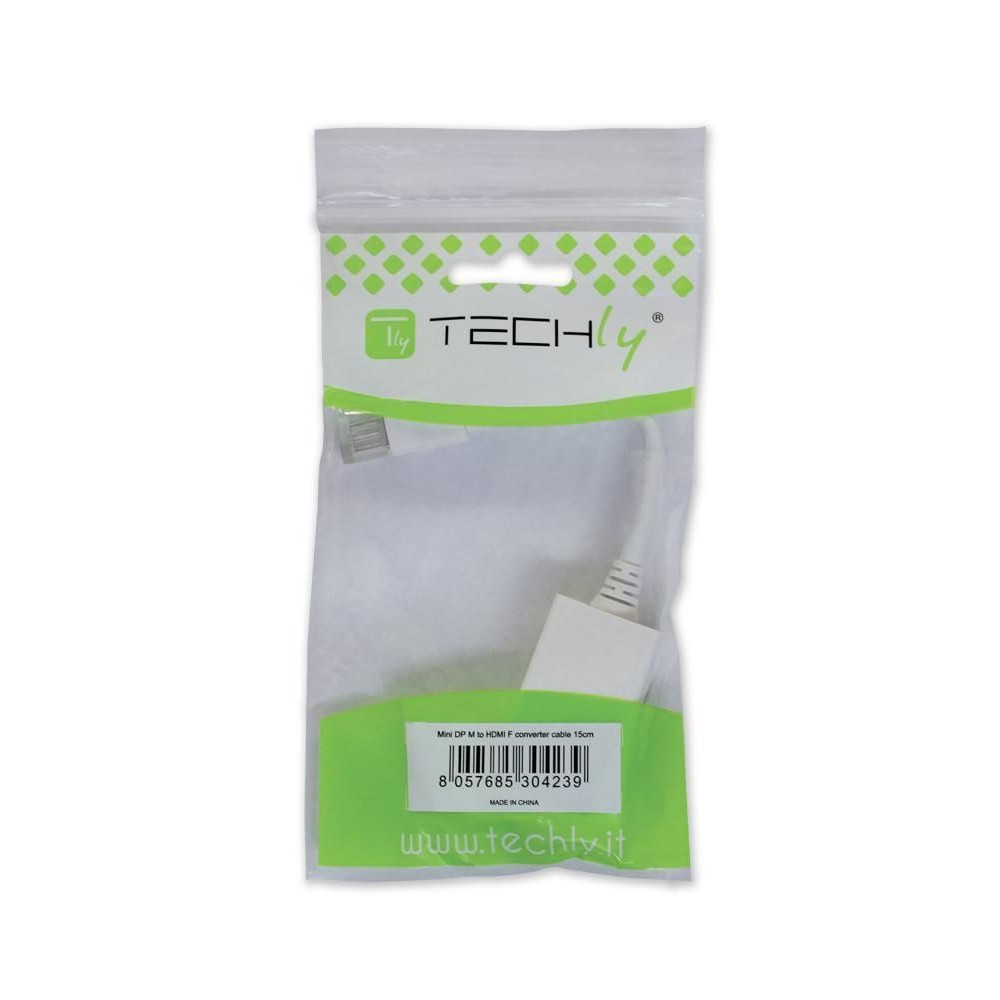

Package Contents
  • Adapter Mini-DisplayPort (Thunderbolt) to HDMI
Description
  • Connect a source mini-DisplayPort (Thunderbolt) to a cable HDMI monitor
  • Provides a single high-quality signal to an HDMI monitor - ideal for MAC
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Molded PVC boot
Standards and Certifications
  • UL
  • DisplayPort 1.1
Contacts
  • (1) Mini-DisplayPort 20-pin male (Thunderbolt)
  • (1) HDMI 19-pin female
  • Nickel-plated
  • Molded PVC boot
  • Shielded
Cable
  • 30 AWG connectors
  • shielding and Mylar aluminum
  • Withstanding voltage: 300V DC
  • Insulation resistance: 5 MOhms
  • Conductive resistance: 10 Ohms
  • Length: 15 cm
  • Weight: 20 g
Package Contents
  • Adapter Mini-DisplayPort (Thunderbolt) to HDMI
Data sheet
general
Brand TECHLY Barcode 8057685304239
Weight 0.0270 Certifications CE
Years of Warranty 3 Codice Fornitore 304239
technical specifications
Typology Converter Color White
Connector A Type Mini DP (Thunderbolt) format A connector male
Connector B Type HDMI-A format B connector female
Maximum resolution - Headphone connectors No
MHL support - HDCP -
dimensions
Lunghezza 15 cm
