Techly
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-1
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-1
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-0
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-1
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-2
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-3
+4
Monitor Cable 3m DisplayPort to DVI 1.2 - TECHLY - ICOC DSP-C12-030-1
Techly

Monitor Cable 3m DisplayPort to DVI 1.2

Cod: ICOC DSP-C12-030

Barcode: 8054529020799

Supplier Code: 020799

Weight: 0.234 Kg

Min. sale unit: 1 Pcs

Package pcs: 40 Pcs

Cod
ICOC DSP-C12-030
Barcode
8054529020799
Supplier Code
020799
Weight
0.234 Kg
Min. sale unit
1 Pcs
Package pcs
40 Pcs
Certificazioni: CE
Certificazioni: RoHS
Anni di Garanzia: 3
Tipo connettore A: DisplayPort 20-pin
Connettori dorati: Yes
Displayport is a standard digital video interface promoted by the Video Electronics Standards Association VESA. This standard defines a type of free digital audio / video for use mainly in the connection between the computer and monitor, or between computers and home theater systems.

Characteristics

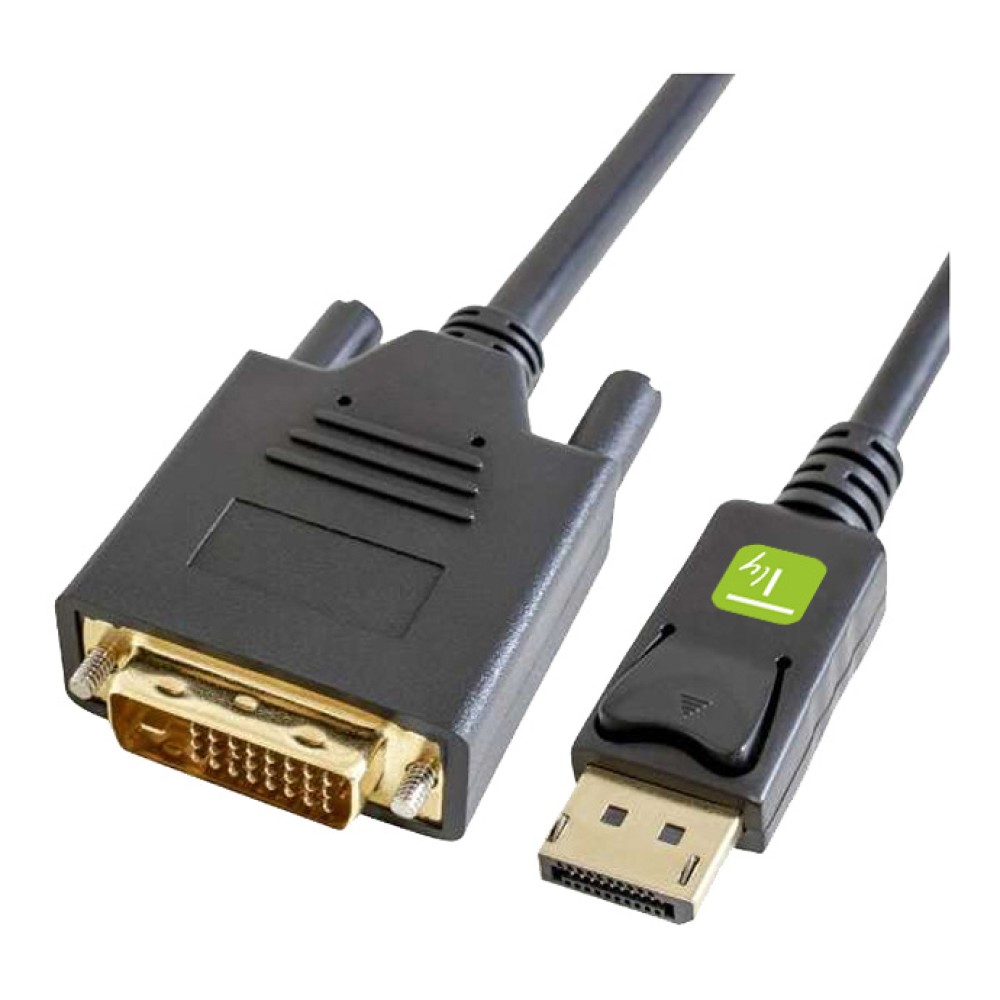

  • DisplayPort 20-pin male to DVI 24 + 1-pin male
  • It provides a high-bandwidth, audio / visual signals between PCs and digital monitors and other devices that support the standard DisplayPort - up to a resolution of 1920x1080 @ 60Hz
  • Copper Wire
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Plug and Play for box-to-box applications
  • Molded-cast PVC
  • Length: 3m
  • Black Colour
Technical specifications
  • Supports DisplayPort 1.2 input and DVI output
  • Supports DVI highest video resolution 1920x1080 @ 60 Hz
  • Supports multiple color format: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2.8 / 10 / 12bpc
  • Supports Deep Color 10/12-bit 1080p up to 2.25 Gbps
General information
  • Compliant with DisplayPort 1.2
  • Maximum resolution 1920x1080 @ 60Hz

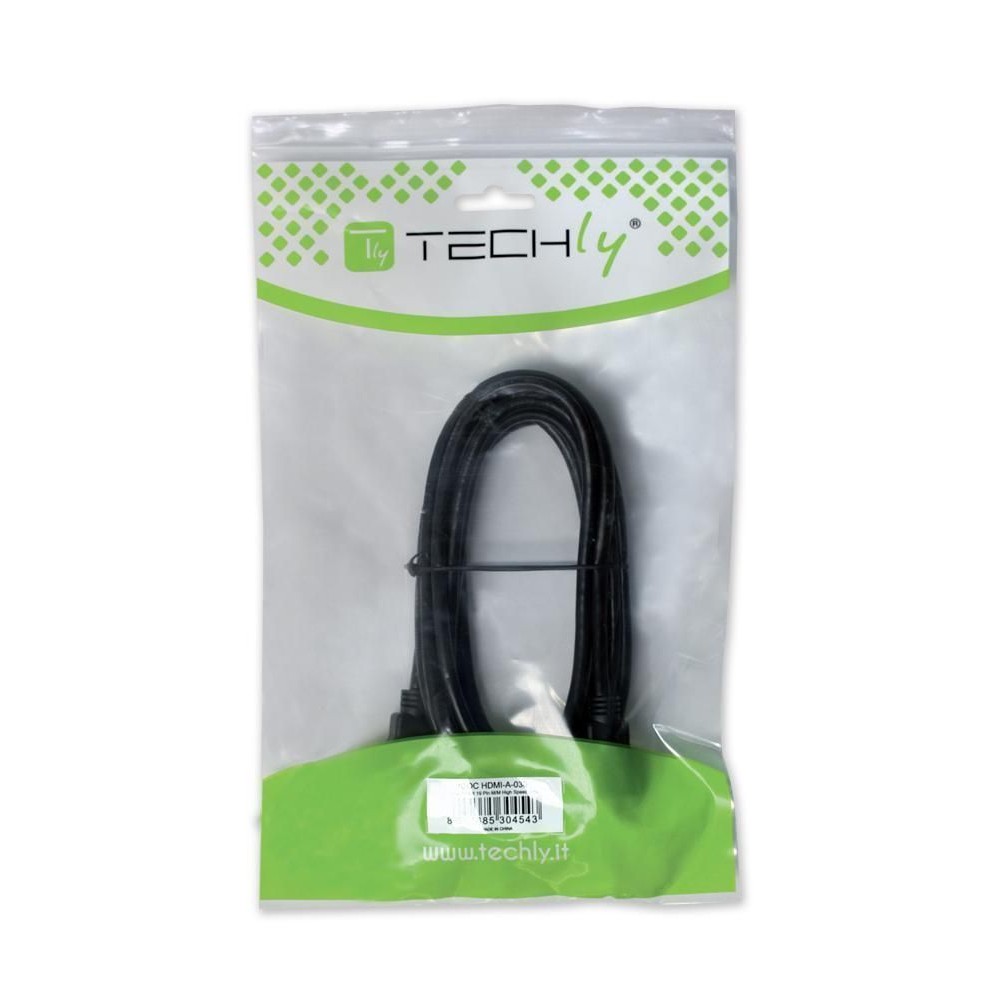

Package Contents
  • Cable Display port to DVI 24 + 1, 3m
Description
Displayport is a standard digital video interface promoted by the Video Electronics Standards Association VESA. This standard defines a type of free digital audio / video for use mainly in the connection between the computer and monitor, or between computers and home theater systems.

Characteristics
  • DisplayPort 20-pin male to DVI 24 + 1-pin male
  • It provides a high-bandwidth, audio / visual signals between PCs and digital monitors and other devices that support the standard DisplayPort - up to a resolution of 1920x1080 @ 60Hz
  • Copper Wire
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Plug and Play for box-to-box applications
  • Molded-cast PVC
  • Length: 3m
  • Black Colour
Technical specifications
  • Supports DisplayPort 1.2 input and DVI output
  • Supports DVI highest video resolution 1920x1080 @ 60 Hz
  • Supports multiple color format: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2.8 / 10 / 12bpc
  • Supports Deep Color 10/12-bit 1080p up to 2.25 Gbps
General information
  • Compliant with DisplayPort 1.2
  • Maximum resolution 1920x1080 @ 60Hz
Package Contents
  • Cable Display port to DVI 24 + 1, 3m
Data sheet
general
Brand TECHLY Barcode 8054529020799
Weight 0.2340 Certifications CE , RoHS
Years of Warranty 3 Codice Fornitore 020799
technical specifications
Typology Video Length 3 m
Connector A Type DisplayPort 20-pin format A connector male
Connector B Type DVI-D Dual Link format B connector male
Headphone connectors Yes Cable shielding Doble
Cable size (AWG) 30 Maximum resolution WUXGA (1920 x 1080)
Color Black
