Techly Professional
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-1
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-1
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-0
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-1
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-2
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-3
+3
NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack  - TECHLY PROFESSIONAL - I-CASE FP-24VTBK2-1
Techly Professional

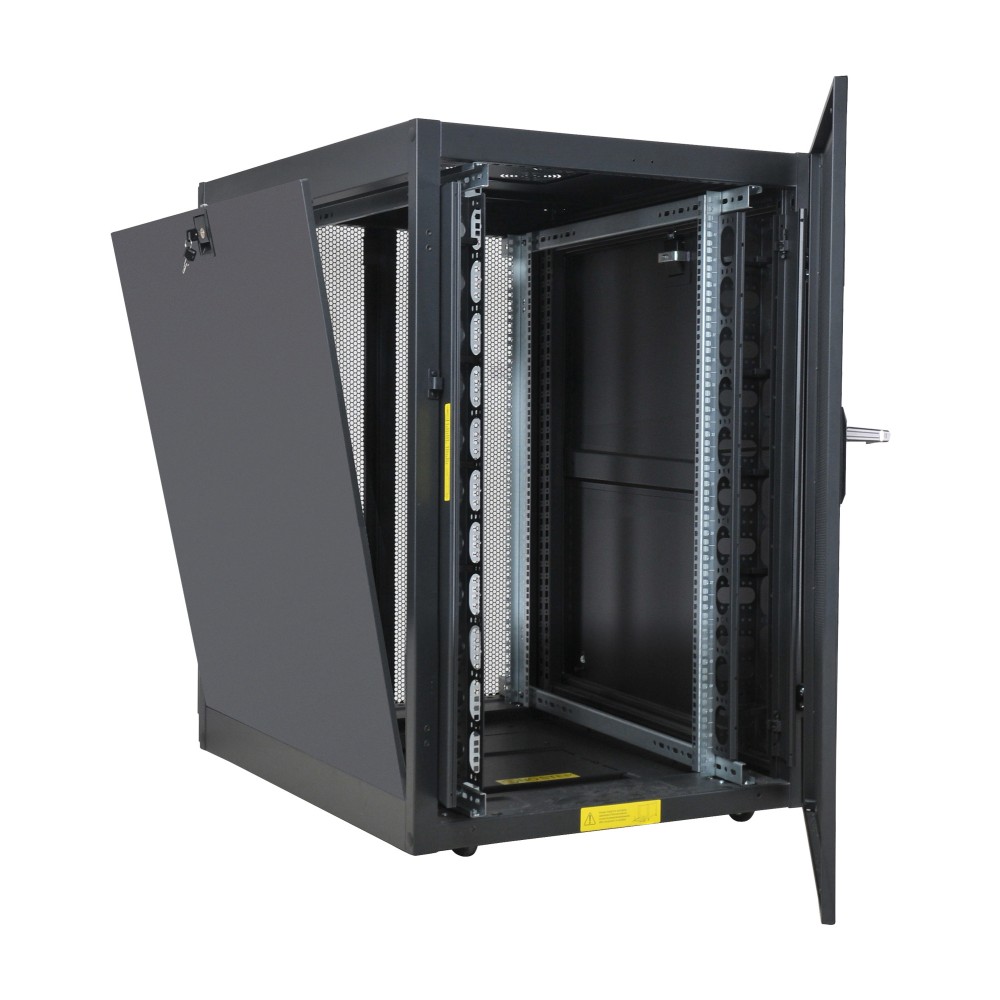

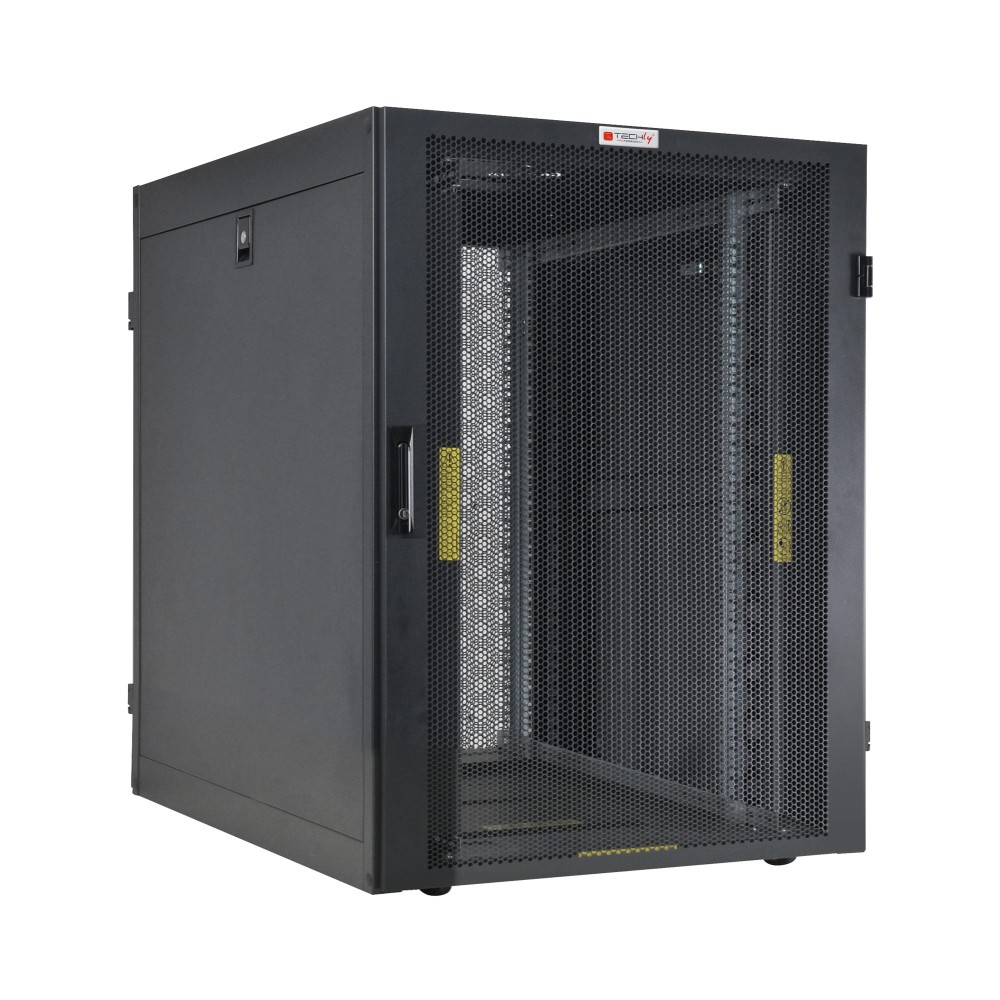

NetRack Cabinet 19" 600x1000 24 Units Vented ports Black in Flat Pack

Cod: I-CASE FP-24VTBK2

Barcode: 8051128104967

Supplier Code: 104967

Weight: 105.000 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE FP-24VTBK2
Barcode
8051128104967
Supplier Code
104967
Weight
105.000 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 1.300 kg
Anni di Garanzia: 15
  • Supplied completely disassembled to facilitate transport and reduce logistics and shipping costs
  • Sturdy and resistant structure made of cold-rolled steel with static capacity up to 1300 kg
  • Metal vented front door (hexagonal holes with air inlet opening 70%), with handle with key lock and 180° opening angle
  • Metal vented rear door (hexagonal holes with air inlet opening 70%) with double opened, equipped with handle with key lock and 180° opening angle
  • Blind and removable side panels lockable with key lock
  • Cable entries on top and bottom with sliding and adjustable cable entries
  • Top ready for installation ventilation unit
  • Equipped with cable brush on the top
  • Equipped with two pairs of sturdy 19" rails with scale for precise and rapid installations
  • Complete with 4 wheels and 4 adjustable feet M12 (plinth not installable)
  • Package included an assembly kit with 20 cage nuts and 20 M6 screws
  • External dimension: (HxWxD) 1200 x 600 x 1000 mm
  • Color: Black RAL9004
Description
This line of Techly Professional floor rack cabinets is supplied as an assembly kit and the cabinet can be quickly and easily assembled directly at the installation site; following a few simple steps, the operator can assemble the cabinet without using special tools. This solution reduces both transport and logistics costs as the cabinet occupies 50% less space. Resolves any problems related to difficult delivery places without however affecting the performance and robustness of the cabinet.

Specifications
  • Supplied completely disassembled to facilitate transport and reduce logistics and shipping costs
  • Sturdy and resistant structure made of cold-rolled steel with static capacity up to 1300 kg
  • Metal vented front door (hexagonal holes with air inlet opening 70%), with handle with key lock and 180° opening angle
  • Metal vented rear door (hexagonal holes with air inlet opening 70%) with double opened, equipped with handle with key lock and 180° opening angle
  • Blind and removable side panels lockable with key lock
  • Cable entries on top and bottom with sliding and adjustable cable entries
  • Top ready for installation ventilation unit
  • Equipped with cable brush on the top
  • Equipped with two pairs of sturdy 19" rails with scale for precise and rapid installations
  • Complete with 4 wheels and 4 adjustable feet M12 (plinth not installable)
  • With two multi-function cable management available on the rear
  • Package included an assembly kit with 20 cage nuts and 20 M6 screws
  • External dimension: (HxWxD) 1200 x 600 x 1000 mm
  • Unit: 24 U
  • Color: Black RAL9004
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128104967
Typology Floor Rack inches 19"
Assembly To be assembled Units 24
Color Black Ingress Protection IP 20
Ability to static load 1.300 kg Years of Warranty 15
Codice Fornitore 104967
dimensions
Rack width 600 mm Rack depth 1000 mm
Height 1200 mm Weight 105.0000
side panels
Appearance Blind Removable Yes
Closure type Key
rear panel
Appearance 70% Grilled door, double door Removable Yes
Closure type Handle Closing handle points -
Maximum aperture 180°
front door
Appearance a swing, 70% grilled Removable Yes
Door material Sheet Reversible No
Closure type Handle Locking points 2
Maximum aperture 180°
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front 2 adjustable Rear 2 adjustable
included accessories
Leveling feet Yes Base No
Wheel Yes Uprights 10''/19'' Front and rear
Brushes hold powder No Grounding kit No
The package includes Due canale di gestione dei cavi Kit di montaggio composto da 20 dadi in gabbia e 20 viti M6
