Pair of Speakers Brackets Wall / Ceiling Universal Adjustable - TECHLY NP - ICA-SP SS20-1

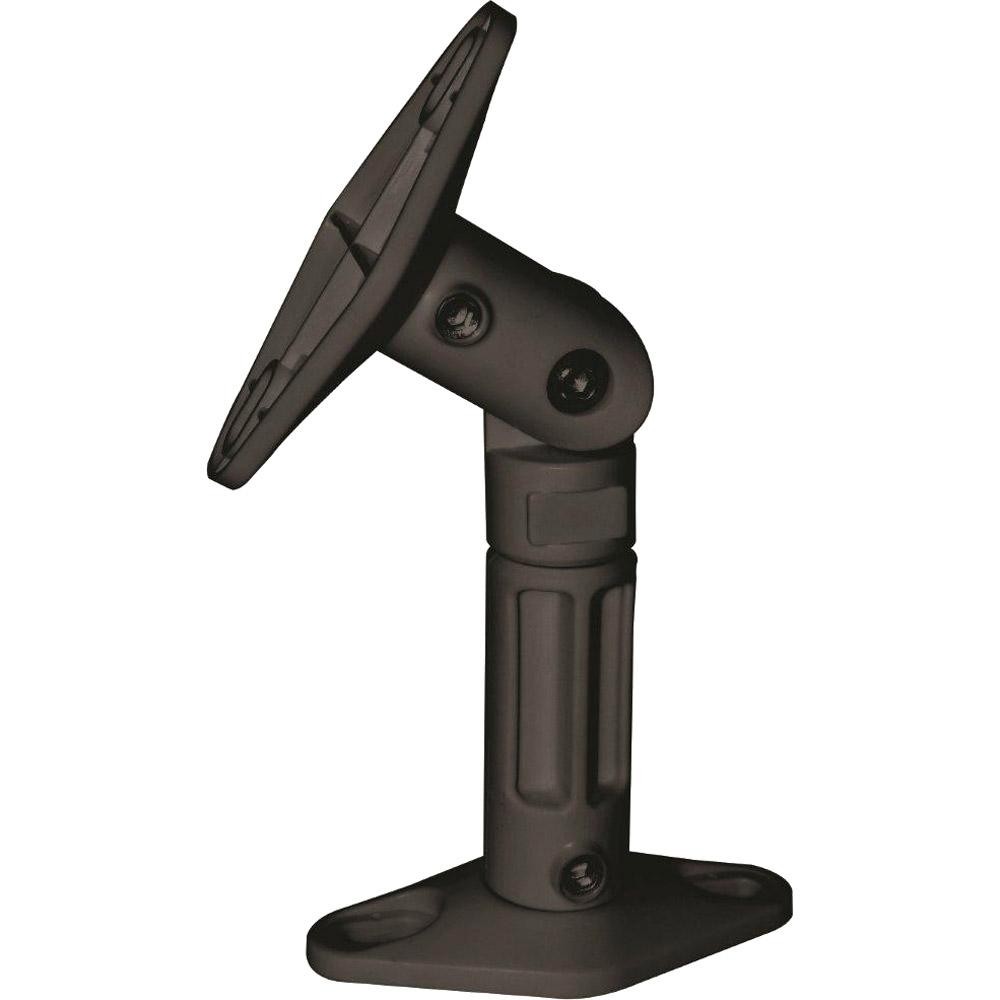

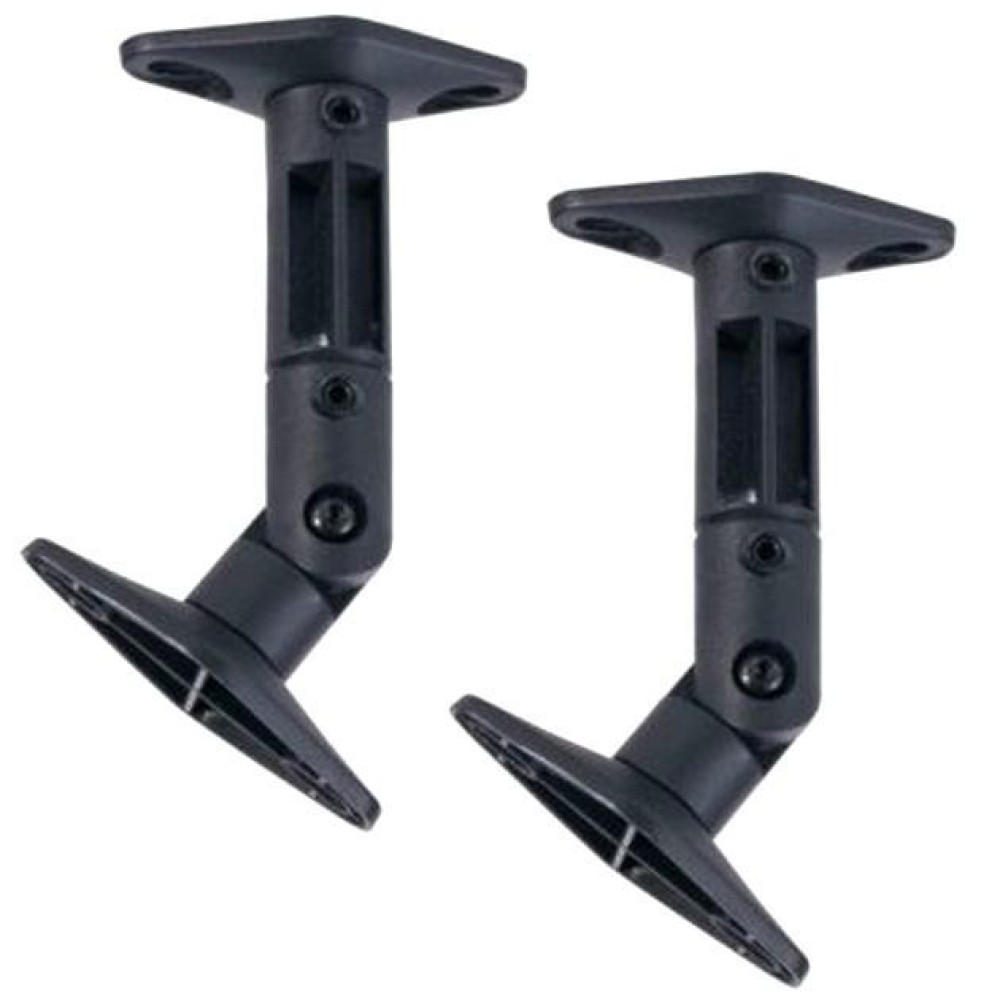

Pair of Speakers Brackets Wall / Ceiling Universal Adjustable

Cod: ICA-SP SS20

Barcode: 8057685309715

Supplier Code: 309715

Weight: 0.359 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
ICA-SP SS20
Barcode
8057685309715
Supplier Code
309715
Weight
0.359 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Anni di Garanzia: 2
Portata Kg: 3.5
Inclinazione Verticale: +/- 90°
Rotazione: 360°
ICA-SP SS20 are small speaker stands, ideal for mounting on the wall or ceiling speakers with a weight not exceeding 3.5 kg.
It 'an ideal mounting solution for speakers with dual threaded inserts spaced from 52.5 mm to 67.5 mm.
When fully extended, they hold a distance of 142 mm of the speakers from the wall / ceiling.
They appear as extremely versatile 2 arms that allow a dual mode anchor, embracing a wide range of speakers on the market.
Simple, linear design, are articulated and allow to obtain the desired angle, thanks to an angle of 90 ° and 360 °.

Features
  • Universal brackets for loudspeakers
  • Can be installed on the wall or ceiling
  • Maximum supported weight: 3.5 kg
Specifications
  • Installation: wall / ceiling
  • Adjusting pin: 1
  • Holes speakers: single hole; double holes
  • Vertical Tilt: -90° ~ + 90°
  • Rotation: 360°
  • Maximum distance from the wall: 142 mm
  • Cable management system: no
  • Material: Plastic
  • Color: Black
Dimensions
  • Height 142 mm
  • Width 86 mm
  • Depth 45 mm
Package Contents
  • Pair of bracket
  • Fixing screws
Description
ICA-SP SS20 are small speaker stands, ideal for mounting on the wall or ceiling speakers with a weight not exceeding 3.5 kg.
It 'an ideal mounting solution for speakers with dual threaded inserts spaced from 52.5 mm to 67.5 mm.
When fully extended, they hold a distance of 142 mm of the speakers from the wall / ceiling.
They appear as extremely versatile 2 arms that allow a dual mode anchor, embracing a wide range of speakers on the market.
Simple, linear design, are articulated and allow to obtain the desired angle, thanks to an angle of 90 ° and 360 °.

Features
  • Universal brackets for loudspeakers
  • Can be installed on the wall or ceiling
  • Maximum supported weight: 3.5 kg
Specifications
  • Installation: wall / ceiling
  • Adjusting pin: 1
  • Holes speakers: single hole; double holes
  • Vertical Tilt: -90° ~ + 90°
  • Rotation: 360°
  • Maximum distance from the wall: 142 mm
  • Cable management system: no
  • Material: Plastic
  • Color: Black
Dimensions
  • Height 142 mm
  • Width 86 mm
  • Depth 45 mm
Package Contents
  • Pair of bracket
  • Fixing screws
Data sheet
general
Brand TECHLY NP Barcode 8057685309715
Weight 0.3590 The package includes • Coppia di supporti • Viti di fissaggio • Manuale d'uso
Years of Warranty 2 Codice Fornitore 309715
compatibility
Typology Wall mount, Ceiling Capacity Kg 3.5
features
Minimum wall distance 142 mm Maximum wall distance 142 mm
Tilt +/- 90° Junctions number 1
Rotation 360° Color Black
Levelling bubble No Security system No
