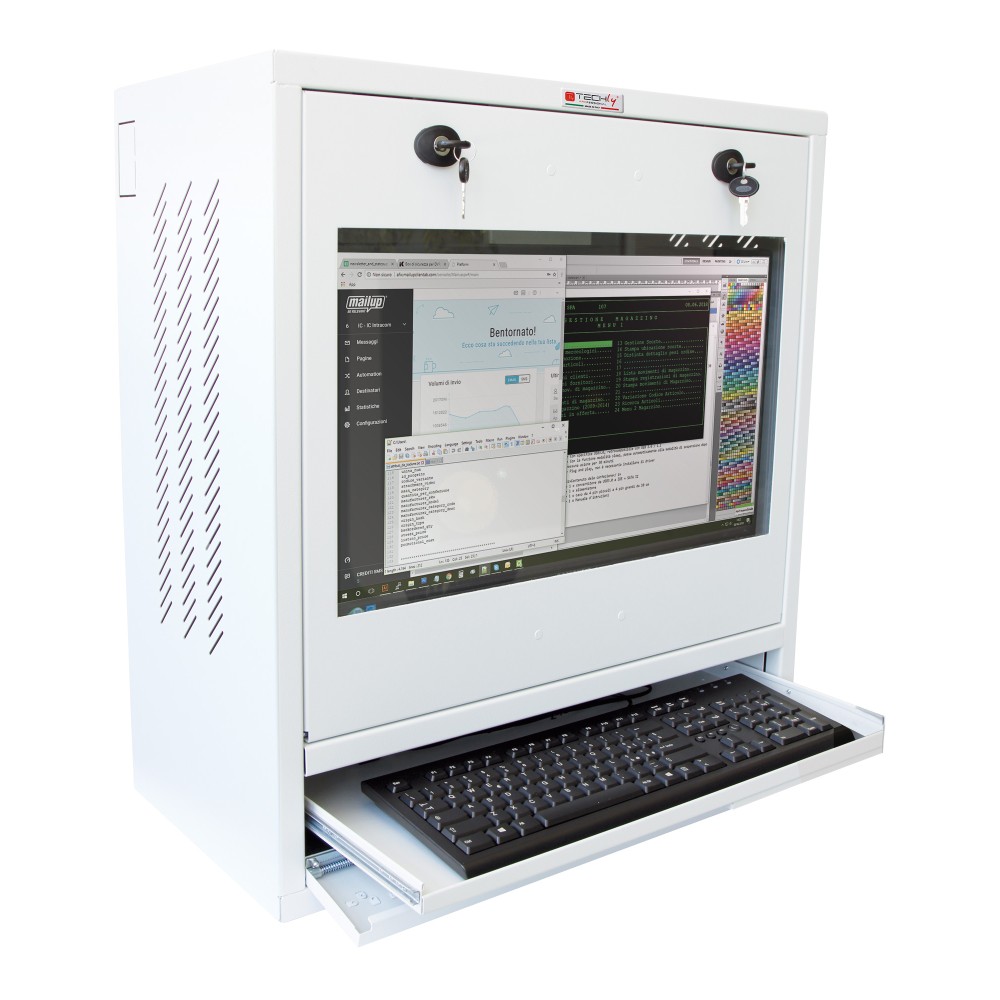

PC, LCD monitor and keyboard safety cabinet, White

Cod: ICRLIM10W

Barcode: 8051128104899

Supplier Code: 104899

Weight: 28.350 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
ICRLIM10W
Barcode
8051128104899
Supplier Code
104899
Weight
28.350 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Anni di Garanzia: 15
  • Painted metal cabinet suitable to house a PC, an LCD monitor up to 22 "and a keyboard
  • Upper compartment with removable door equipped with tempered glass window with two locks with different keys
  • Upper compartment with ample space available for housing a PC
  • The front door of the upper compartment is equipped with a bracket with VESA 50/75/100 connections to allow the installation of a 22" LCD monitor
  • Ready for installation of a 10-inch PDU
  • Lower compartment with blind door provided with key lock and equipped with a removable drawer suitable for storing a standard keyboard; integrated a practical retractable shelf ideal for using a mouse
  • Laterally, it has ventilation slots and a predisposition for cable passage through pre-cut profiles of 65 x 40 mm
  • The top is ready for the installation of a 120 x 120 ventilation fan
  • Back with spacers for fast wall mounting
  • External dimensions: 670 x 620 x 304 mm (AxLxP)
  • Color: RAL9016 white
Description
Painted metal cabinet suitable to house a PC, an LCD monitor up to 22 "and a keyboard. Two locks with different keys allow you to protect the device from unwanted access, securing all sensitive data. In factories and industrial environments it allows to protect the delicate devices housed inside against dust, dirt or other risks present in these situations. The upper compartment is particularly large allowing you to house a PC and install a monitor up to 22" on the front door. Internally it is ready for installing a 10" PDU. The lower compartment, also equipped with a lock, contains a sliding shelf to store a keyboard and a hidden shelf for using the mouse.

Specifications:
  • Upper compartment with removable door equipped with tempered glass window with two locks with different keys
  • Upper compartment with ample space available for housing a PC (dimensions (DxH): 250 x 530 mm)
  • Bracket for fixing a monitor with VESA 50/75/100 (dimensions (LxH): 375 x 70 mm)
  • Ready for installation of a 10-inch PDU (purchase of I-CASE M10-4 is recommended)
  • Lower compartment with 125 mm height and key lock
  • Removable keyboard tray shelf with useful dimensions 260 x 540 mm (DxL)
  • Retractable rotating shelf for mouse with dimensions 250 x 165 mm
  • The top is ready for the installation of a 120 x 120 ventilation fan
  • Laterally, it has ventilation slots and a predisposition for cable passage through pre-cut profiles of 65 x 40 mm
  • Back with spacers for fast wall mounting
  • External dimensions: 670 x 620 x 304 mm (AxLxP)
  • Color: RAL9016 white
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128104899
Typology Wall mount Rack inches -
Assembly Assembled Units 1
Color White Ingress Protection IP -
Ability to static load - Years of Warranty 15
Codice Fornitore 104899
dimensions
Rack width 620 mm Rack depth 304 mm
Height 670 mm Weight 28.3500
side panels
Appearance Blind Removable No
Closure type -
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Blind Removable Yes
Door material Sheet Reversible No
Closure type Lock Locking points 2
Maximum aperture 90°
roof
Prepared for ventilation Yes Prepared for Cable Input No
uprights
Front - Rear -
included accessories
Leveling feet - Base -
Wheel - Uprights 10''/19'' -
Brushes hold powder - Grounding kit -
