PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-1
PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-1
PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-0
PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-1
PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-2
PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-3
PIR Motion Sensor Wireless 150m - Techly - I-BELL-RING-PIR-1
Techly

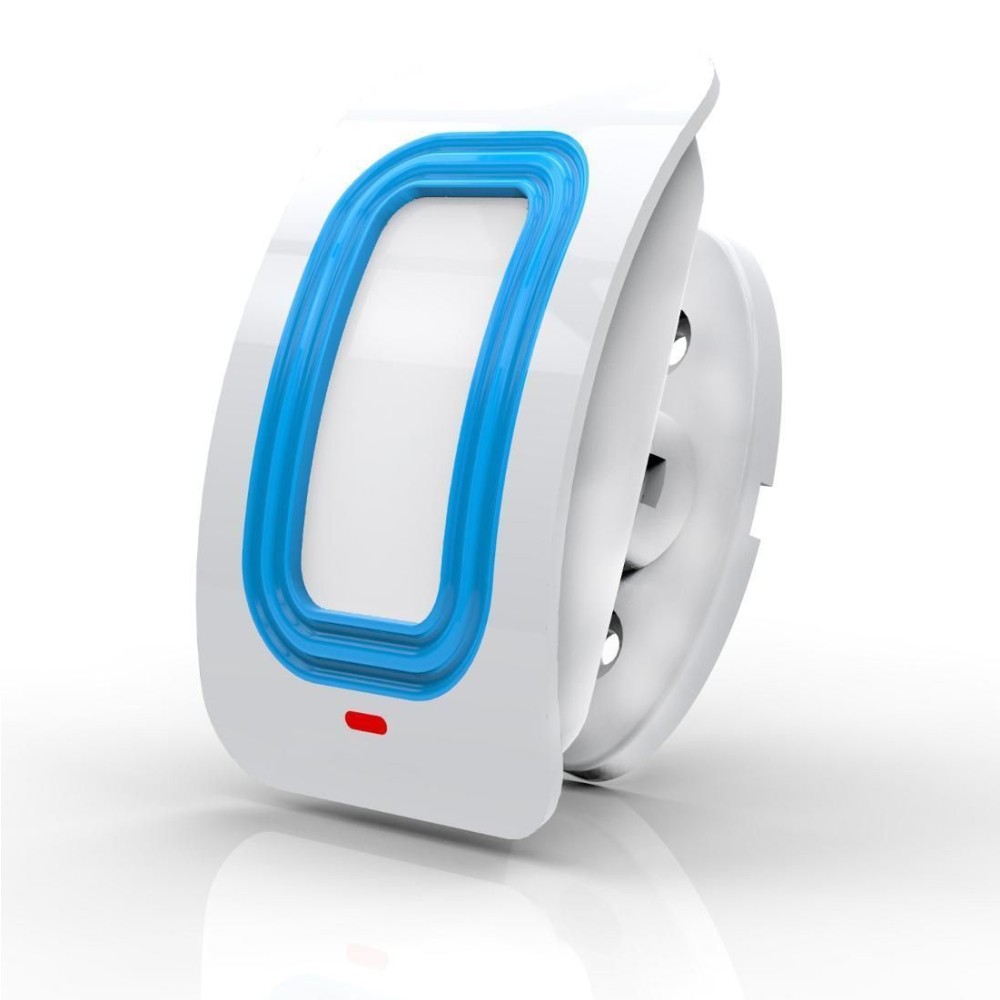

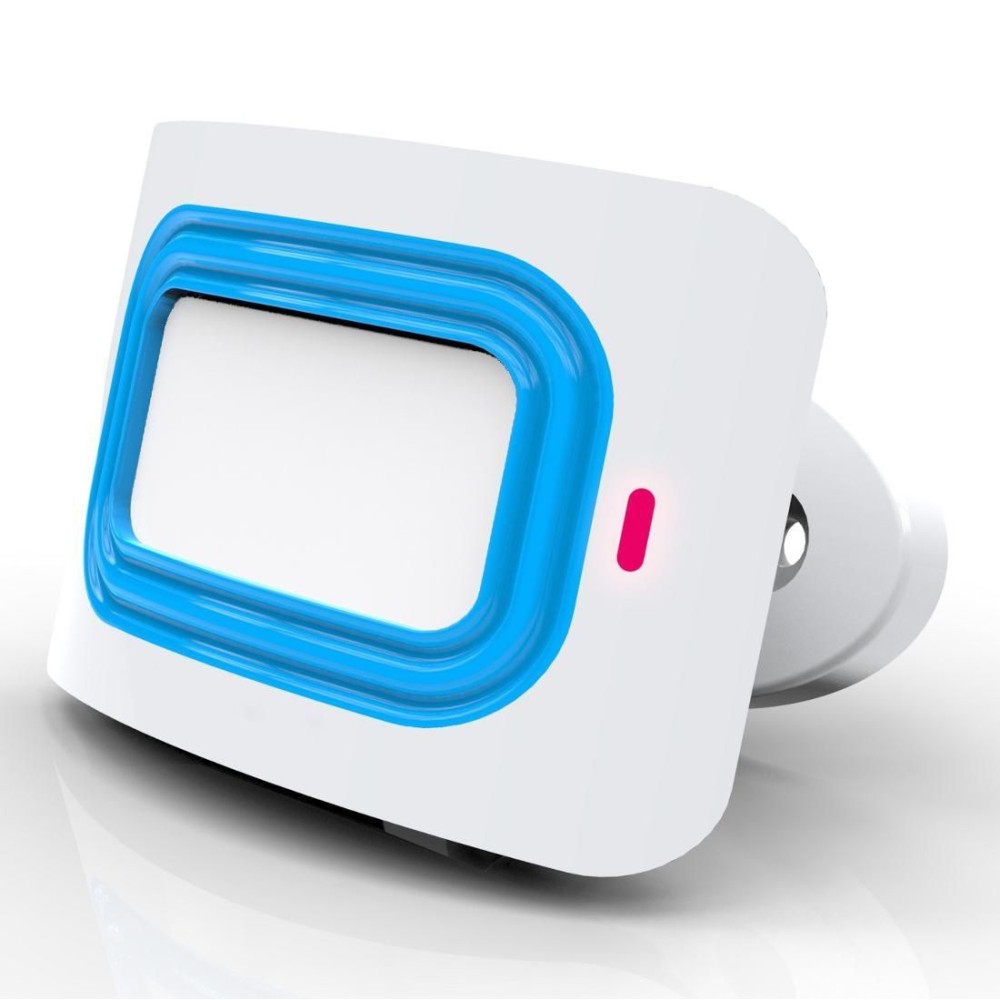

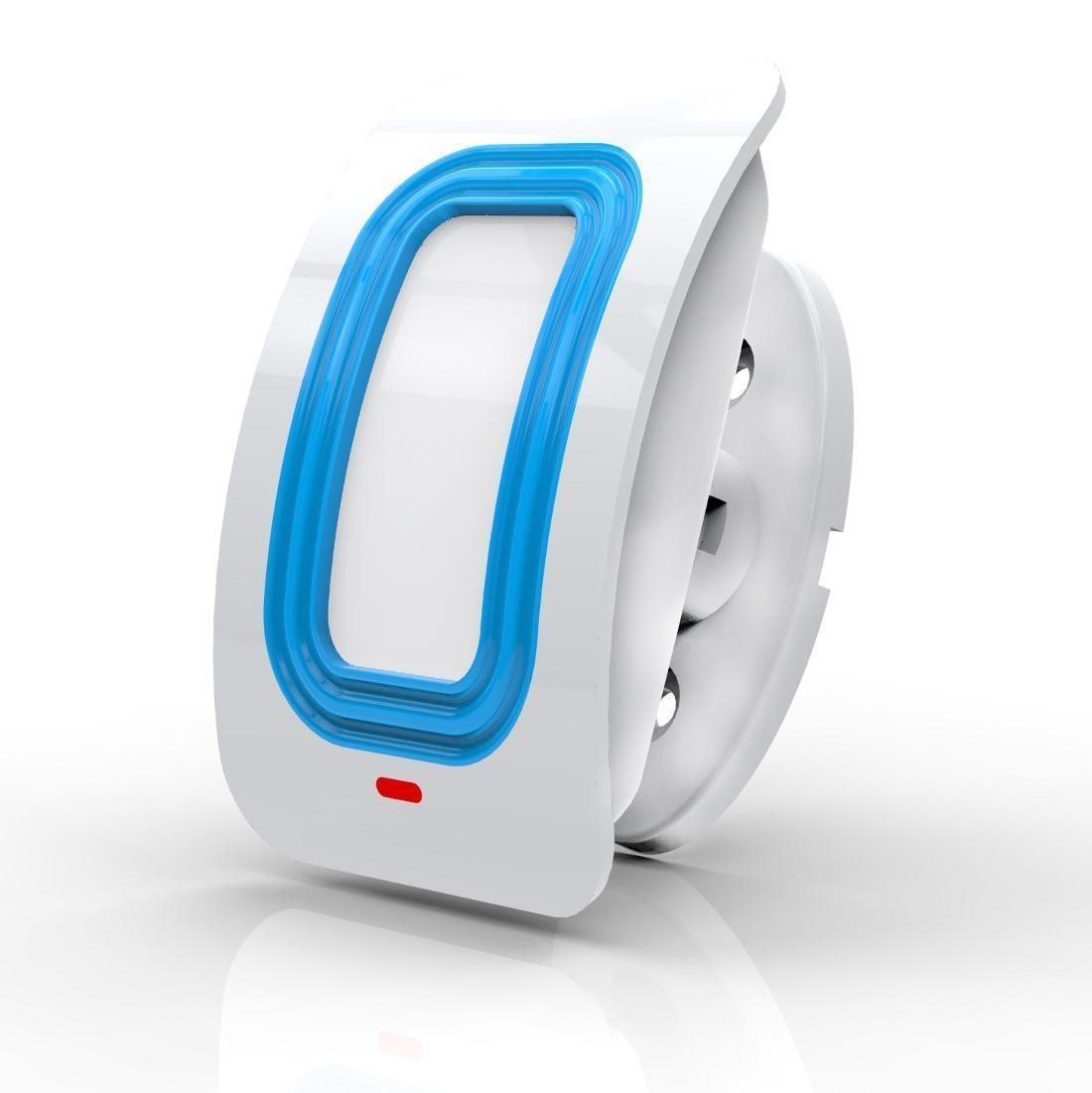

PIR Motion Sensor Wireless 150m

Cod: I-BELL-RING-PIR

Barcode: 8054529020362

Supplier Code: 020362

Weight: 0.175 Kg

Min. sale unit: 1 Pcs

Package pcs: 48 Pcs

Cod
I-BELL-RING-PIR
Barcode
8054529020362
Supplier Code
020362
Weight
0.175 Kg
Min. sale unit
1 Pcs
Package pcs
48 Pcs
Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
  • Passage detector wireless motion sensor with infrared battery powered
  • Must be used in conjunction with I-BELL-RING02 and I-BELL-RING03
  • Wireless 433MHz
  • Installing situated next to the front door, the window or near the stairs, in order to be alerted by a sound if someone enters, trying to force the door, or if children approach the stairs or any danger in your home
  • Great to be installed in the home, but also in the office, or in the store to be notified of the entry of a customer
  • It requires no electrical connection
  • Plug and Play
Technical features
  • Powered by two AAA alkaline batteries mini stylus
  • Operating voltage receiver: 3V DC
  • Power consumption: 15mW
  • With USB power socket (no charging function), voltage 5V
  • Detection distance greater than 4m
  • Reaches 150m wireless transmission distance in open field
  • Detection angle up to 110 °
  • Operating Frequency: 433.92 MHZ +/- 200K
  • Operating temperature: -20 ° C / 60 ° C
  • Support supply via USB connection
  • Easy to install, up to 360 ° rotation
Certifications
• EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • PIR
  • Battery
  • Set of screws
  • Manual
Description
  • Passage detector wireless motion sensor with infrared battery powered
  • Must be used in conjunction with I-BELL-RING02 and I-BELL-RING03
  • Wireless 433MHz
  • Installing situated next to the front door, the window or near the stairs, in order to be alerted by a sound if someone enters, trying to force the door, or if children approach the stairs or any danger in your home
  • Great to be installed in the home, but also in the office, or in the store to be notified of the entry of a customer
  • It requires no electrical connection
  • Plug and Play
Technical features
  • Powered by two AAA alkaline batteries mini stylus
  • Operating voltage receiver: 3V DC
  • Power consumption: 15mW
  • With USB power socket (no charging function), voltage 5V
  • Detection distance greater than 4m
  • Reaches 150m wireless transmission distance in open field
  • Detection angle up to 110 °
  • Operating Frequency: 433.92 MHZ +/- 200K
  • Operating temperature: -20 ° C / 60 ° C
  • Support supply via USB connection
  • Easy to install, up to 360 ° rotation
Certifications
• EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • PIR
  • Battery
  • Set of screws
  • Manual
Data sheet
general
Brand Techly Barcode 8054529020362
Recommended for No Certifications CE , FCC , RoHS
The package includes • Sensore PIR • Batteria • Set di viti • Manuale Codice Fornitore 020362
connectivity
No. LAN ports - No. RJ-45 ports -
No. WAN ports - LAN ports speed -
Console port - VLAN support -
Quality of Service (QoS) -
wireless
Wireless (standard) - Wireless speed -
Banda di frequenza - Wireless antenna -
MIMO technology - Management interface -
physical features
Color - WPS button function -
dimensions
Weight 0.1750
power supply
Supply internal Voltage DC 3V
Consumo energetico 15mW PoE 802.3af support -
compatibility
Windows 98 - Windows 2000 -
Windows XP - Windows Vista -
Windows 7 - Windows 8 -
Windows 10 - Mac -
Linux -
