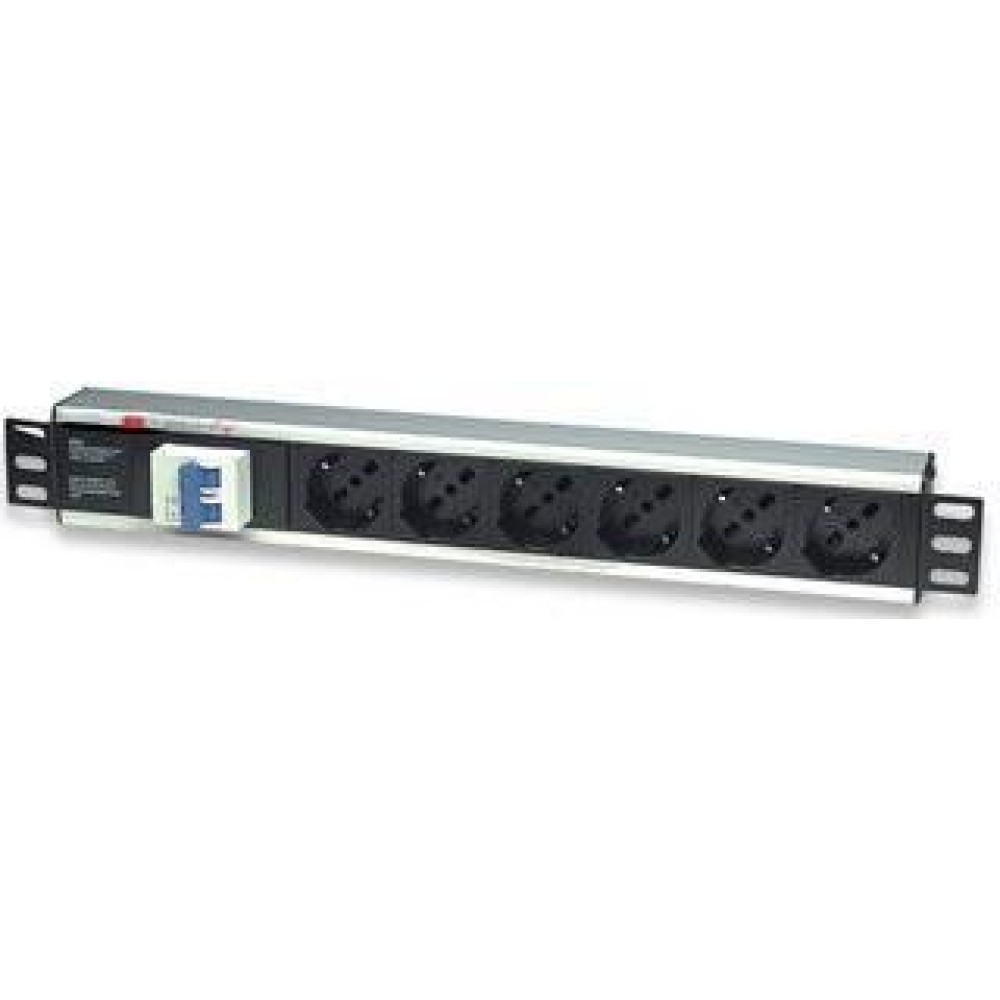

Rack 19" PDU 6 outputs with Circuit breaker
Press release & video?
Code: I-CASE STRIP-16A    Barcode: 8054529023219

   Supplier Code: 023219

Available

Rack 19" PDU 6 outputs with Circuit breaker

Certificazioni: CE
Certificazioni: RoHS
Certificazioni: ISO 9001
Sistemi sicurezza: Magnetic protection
Choose a different Option:

• Power strip for 19" Rack with circuit breaker
• Modern design, finished in black and aluminum
• Power Strip 6 outputs with circuit breaker
• Connections: 6 UNEL sockets with Shuko / Italian 45° with earth standards
• Power cable: H05VV-F 3G 2.5 mm²
• Cable length: 1.8 m
• Input: single input at the back of PDU at left end; front installation
• Supported Voltage: 220-250 Vac 16A
• Maximum load capacity 3.5 Kw

    Description

    Details

    Features
    • Power strip for 19" Rack with circuit breaker
    • Standard plug CEI-23-16 and universal sockets schuko/italian 45° with earth standard
    • For rack 19" installation, needs 1.5 heights
    • Power cable: standard power cord 1.8 m
    • Electrical characteristics: 16 A, 250 V AC
    • Dimensions: 482.6 x 44.4 x 62 mm

    Specification
    • Modern design, finished in black and aluminum
    • Power Strip 6 outputs with circuit breaker
    • Connections: 6 UNEL sockets with Shuko / Italian 45° with earth standards
    • Power cable: H05VV-F 3G 2.5 mm²
    • Cable length: 1.8 m
    • Input: single input at the back of PDU at left end; front installation
    • Supported Voltage: 220-250 Vac 16A
    • Maximum load capacity 3.5 Kw

    Certification
    • CE
    • WEEE

    Package contents
    • Power strip for 19" Rack with circuit breaker
    data sheet
    generale
    Brand
    Techly Professional
    Barcode
    8054529023219
    Color
    Black / Silver
    Certifications
    CE , RoHS, ISO 9001
    Codice Fornitore
    023219
    caratteristiche tecniche
    Number of sockets
    6
    Sockets type
    6 universal (UNEL)
    Compatibility rack cabinet
    19''
    Units
    1,5
    Voltage
    AC 220-250V
    Maximum load (W)
    3.500 Watt
    Alimentation cable
    H05VV-F 3G 2.5 mm²
    Cable length
    1.8 m
    Connector A Type
    No
    Button
    Bipolar agnetothermic C16 400V/DC 6000
    Security systems
    Magnetic protection
    dimensioni
    Height
    62 mm
    Width
    482 mm
    Depth
    44.4 mm
    Weight
    1.5550
