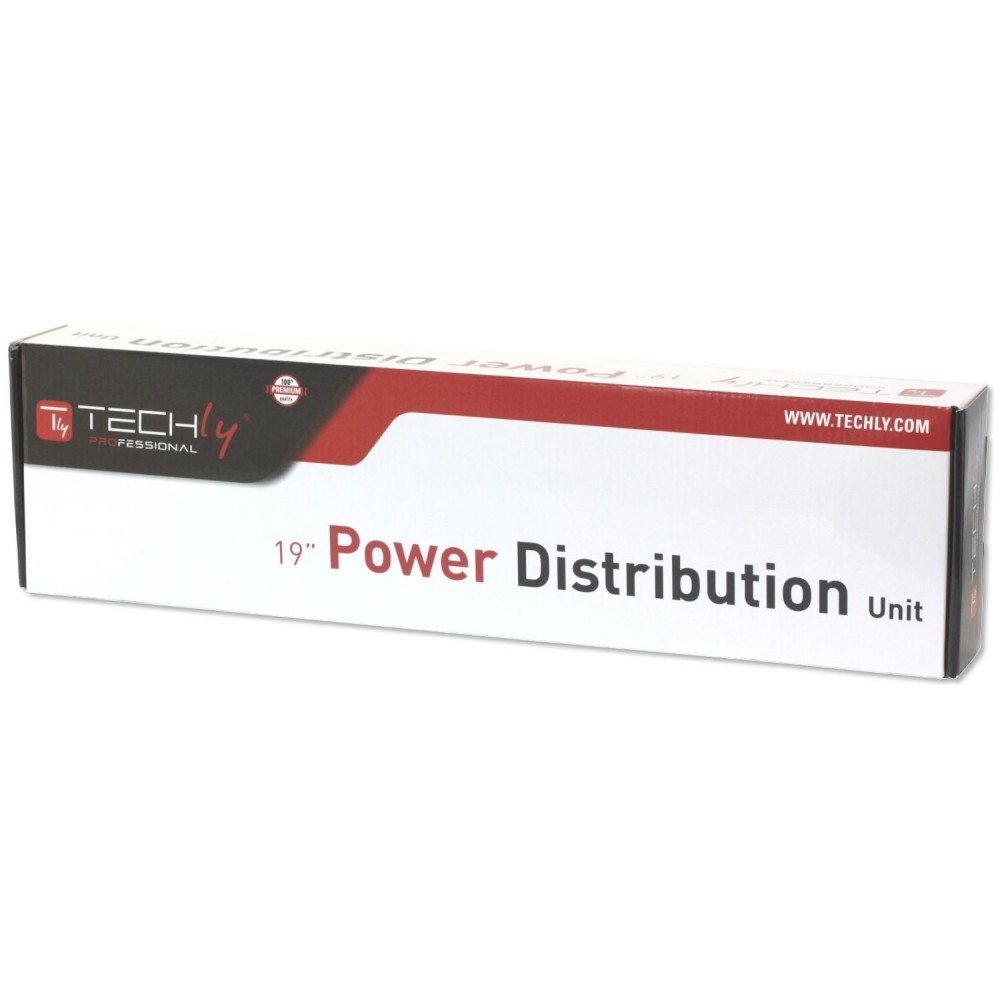

Rack 19'' PDU 8 outputs with switch 3m cable

Cod: I-CASE STRIP-18A3

Barcode: 8054529023264

Supplier Code: 023264

Weight: 1.391 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

Cod
I-CASE STRIP-18A3
Barcode
8054529023264
Supplier Code
023264
Weight
1.391 Kg
Min. sale unit
1 Pcs
Package pcs
10 Pcs
Certificazioni: CE
Certificazioni: RoHS
Certificazioni: ISO 9001
Pulsante: Light on / off button with cover
Sistemi sicurezza: Socket with children protection
  • Modern design, finished in black and aluminum
  • Power Strip 8 outputs with on/off switch
  • Connections: 8 UNEL sockets with Shuko / Italian 45° with earth standards
  • Power cable: H05VV-F 3G 2.5 mm²
  • Cable length: 3 m
  • Cable input: single input at the back of PDU at left end; front installation
  • Supported Voltage: 220-250 Vac 16A
  • Maximum load capacity 3.5 Kw
Description
Features
  • Power strip for 19" Rack with on/off switch
  • Standard plug CEI-23-16 and universal sockets schuko/italian 45° with earth standard
  • For rack 19" installation, needs 1.5 heights
  • Power cable: standard power cord 3 m
  • Electrical characteristics: 16 A, 250 V AC
  • Dimensions: 482.6 x 44.4 x 62 mm
Specification
  • Modern design, finished in black and aluminum
  • Power Strip 8 outputs with on/off switch
  • Connections: 8 UNEL sockets with Shuko / Italian 45° with earth standards
  • Power cable: H05VV-F 3G 2.5 mm²
  • Cable length: 3 m
  • Cable input: single input at the back of PDU at left end; front installation
  • Supported Voltage: 220-250 Vac 16A
  • Maximum load capacity 3.5 Kw
Certification
  • CE
  • WEEE
Package contents
  • Power strip for 19" Rack with switch
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529023264
Color Black Certifications CE , RoHS, ISO 9001
Codice Fornitore 023264
technical features
Number of sockets 8 Sockets type 8 universal (UNEL)
Compatibility rack cabinet 19'' Units 1,5
Voltage AC 220-250V Maximum load (W) 3.500 Watt
Alimentation cable H05VV-F 3G 2.5 mm² Cable length 3 m
Connector A Type - Button Light on / off button with cover
Security systems Socket with children protection
dimensions
Height 62 mm Width 482 mm
Depth 44.4 mm Weight 1.3910
