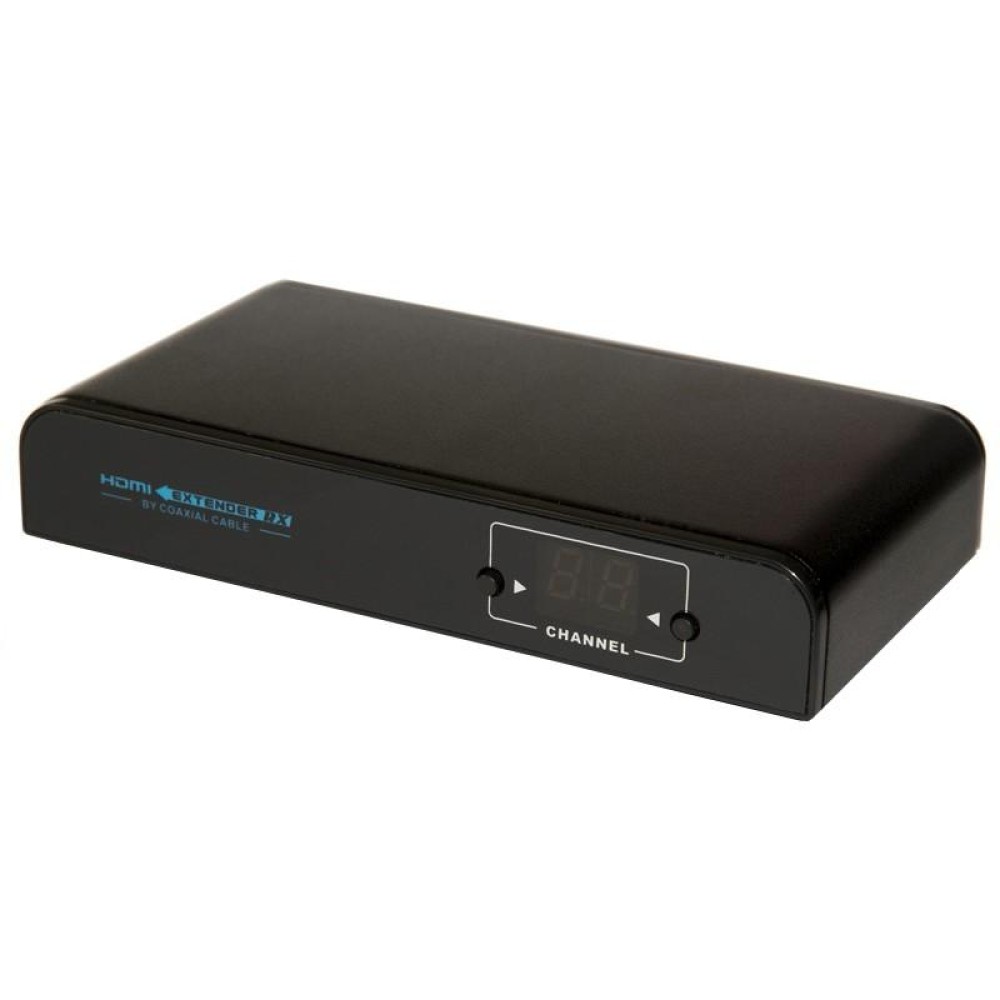

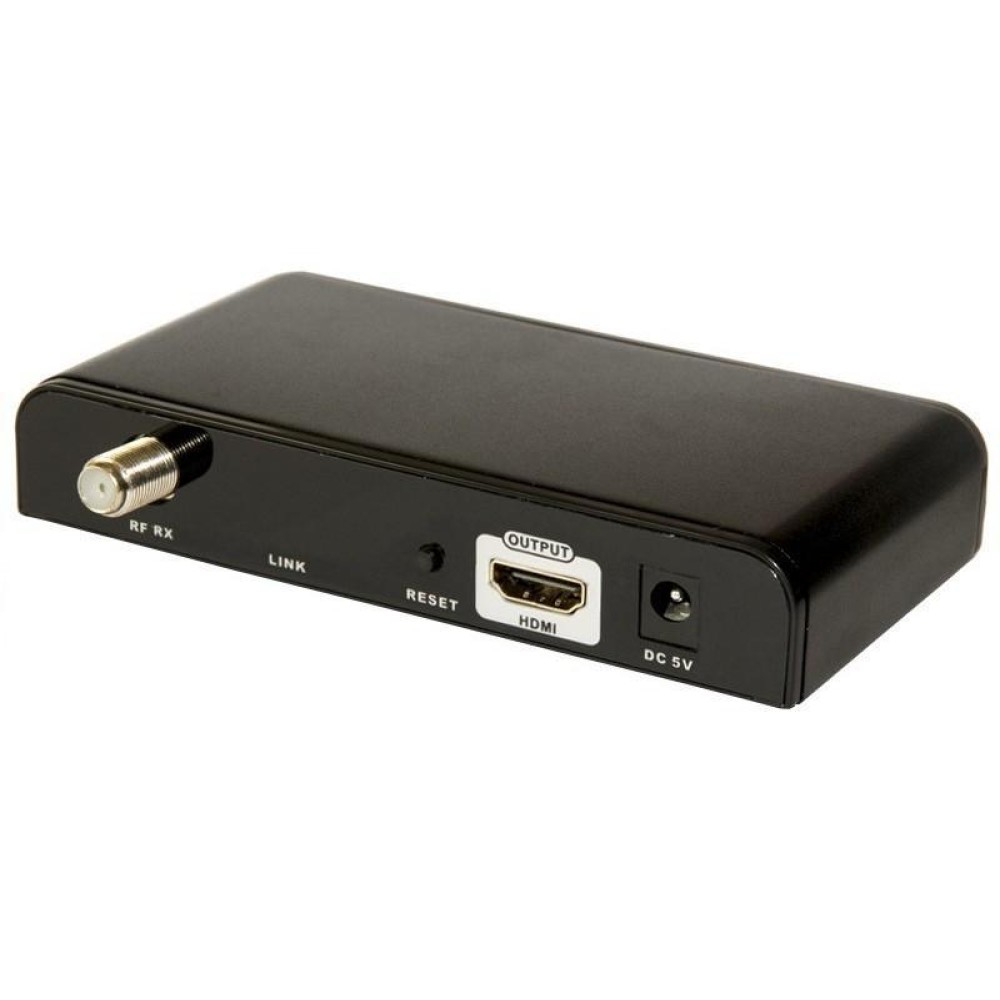

Receiver HDMI Extender up to 700m on Coaxial Cable

Cod: IDATA HDMI-COAXR

Barcode: 8054529020058

Supplier Code: 020058

Weight: 0.378 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

NO LONGER AVAILABLE
Visit the category Audio Video Switch and Splitter to find a product that meets your needs, or search among the alternative products

Go to category
Find Audio Video Switch and Splitter
right for you
Configure now
Certificazioni: CE
Certificazioni: FCC
Certificazioni:
Tipo connettore B: HDMI
HDCP: 1.2
The extender IDATA HDMI-COAXR is a receiver designed to convert the signal in HDMI high-definition digital TV signal through the coaxial transmission. Updated than the traditional analog cable TV, applying 64QAM mode to get the signal from the HD signal and HD digital TV broadcasts via coaxial cable to long distance, up to 700 meters.
With the advantage of a good image quality, strong resistance to interference and the availability of 99 channels, can be widely applied in CCTV, large external displays, advertising in shopping centers, teaching, digital KVM, etc.

Possible applications
  • Connection to pear pear: a source connected directly to the HDMI display via HDMI single coaxial cable
  • Individual connection / multiple: a transmitter connected to multiple receivers
  • Multilink / Multiple: multiple transmitters connected to multiple receivers
Technical specifications
  • Power supply: DC 5V 1A (included)
  • Resolution entrance supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Output resolution supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Graphics resolution HDMI supports up to 1920x1080 @ 60Hz
  • Video coding: H.264
  • Audio encoding: MPEG2
  • Coaxial cable: RG6, RG7, RG11, etc.
  • Point Frequency: 100-1000M
  • Transmission effective: max 31.6M bits
  • Insertion loss: <2dBm
  • Consumption output: + 0dBm
  • Sensitivity: different for each frequency
  • RF Connector: 75Ω Type F
  • Transmission delay: 500ms
  • Consumption: <3W
Environmental Characteristics
  • Operating Temperature: 0 to 50 ° C
  • Storage Temperature: -10 - 70 ° C
  • Operating Humidity: 10-80% non-condensing
  • Storage Humidity: 10-90% non-condensing
Dimensions
  • Width 130 mm
  • Depth 68 mm
  • Height 24 mm
Package Contents
  • 1x Receiver
  • 1x Power DC 5V 1A
  • 1x Instruction Manual
Description
The extender IDATA HDMI-COAXR is a receiver designed to convert the signal in HDMI high-definition digital TV signal through the coaxial transmission. Updated than the traditional analog cable TV, applying 64QAM mode to get the signal from the HD signal and HD digital TV broadcasts via coaxial cable to long distance, up to 700 meters.
With the advantage of a good image quality, strong resistance to interference and the availability of 99 channels, can be widely applied in CCTV, large external displays, advertising in shopping centers, teaching, digital KVM, etc.

Possible applications
  • Connection to pear pear: a source connected directly to the HDMI display via HDMI single coaxial cable
  • Individual connection / multiple: a transmitter connected to multiple receivers
  • Multilink / Multiple: multiple transmitters connected to multiple receivers
Technical specifications
  • Power supply: DC 5V 1A (included)
  • Resolution entrance supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Output resolution supported: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
  • Graphics resolution HDMI supports up to 1920x1080 @ 60Hz
  • Video coding: H.264
  • Audio encoding: MPEG2
  • Coaxial cable: RG6, RG7, RG11, etc.
  • Point Frequency: 100-1000M
  • Transmission effective: max 31.6M bits
  • Insertion loss: <2dBm
  • Consumption output: + 0dBm
  • Sensitivity: different for each frequency
  • RF Connector: 75Ω Type F
  • Transmission delay: 500ms
  • Consumption: <3W
Environmental Characteristics
  • Operating Temperature: 0 to 50 ° C
  • Storage Temperature: -10 - 70 ° C
  • Operating Humidity: 10-80% non-condensing
  • Storage Humidity: 10-90% non-condensing
Dimensions
  • Width 130 mm
  • Depth 68 mm
  • Height 24 mm
Package Contents
  • 1x Receiver
  • 1x Power DC 5V 1A
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8054529020058
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 020058
input
Connector A Type BNC format A connector female
Number A Connector 1 Altri Connettori Input Alimentazione 5V DC
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution Full HD 1920 x 1080
HDMI 1.3 HDCP 1.2
Supported audio standards Yes Transmission Distance 700 m
power supply
Power supply Requested (included) Consumo energetico DC 5V 1A
dimensions
Width 130 mm Height 24 mm
Depth 68 mm Weight 0.3780
The package includes • 1x Ricevitore • 1x Alimentatore DC 5V 1A • 1x Manuale d'istruzioni
