Techly

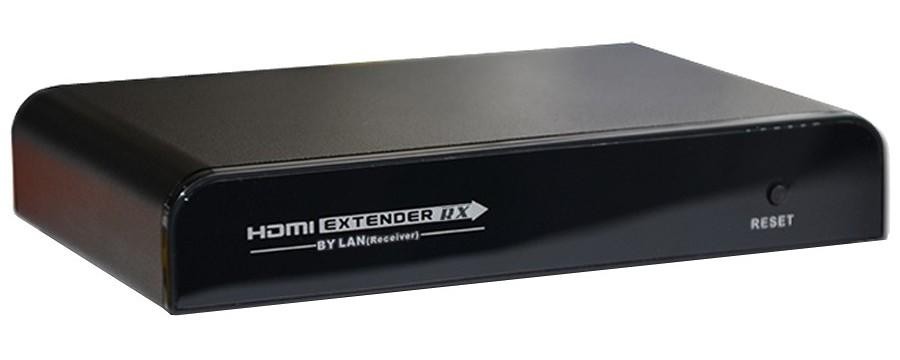

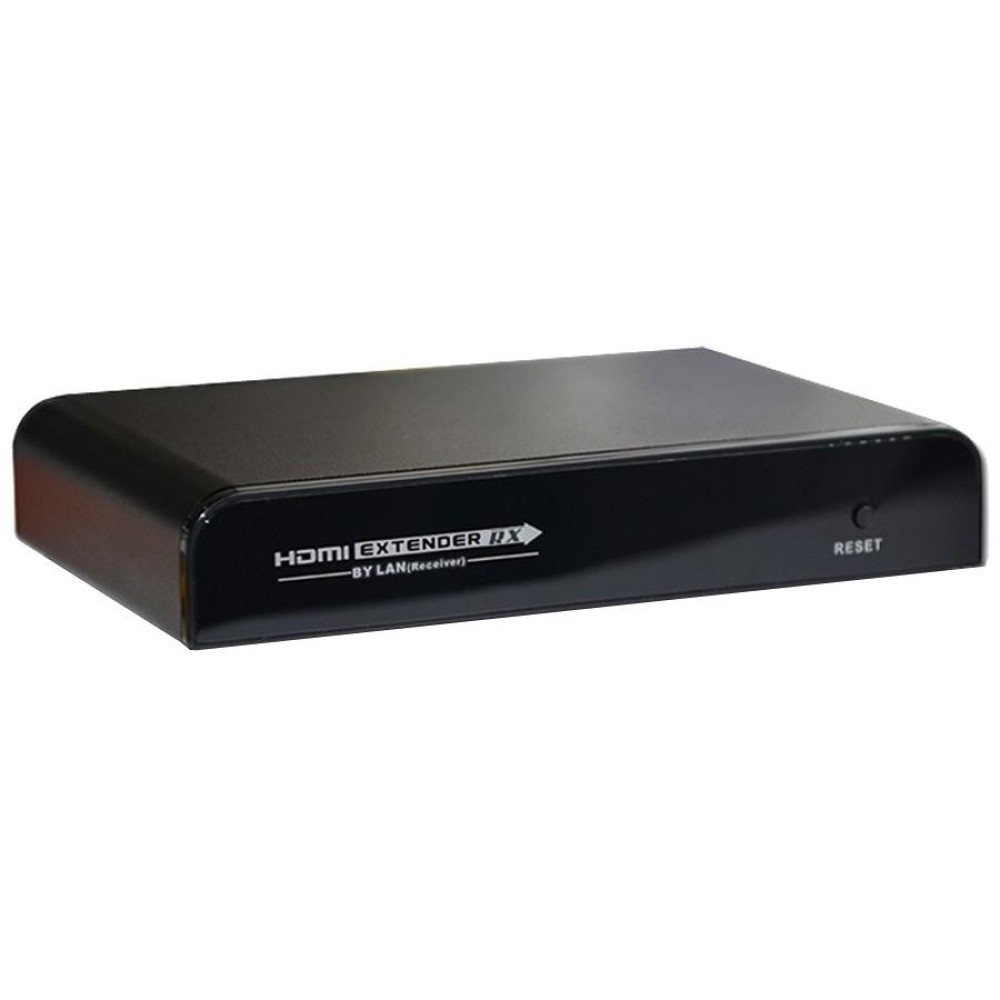

Receiver Matrix HDMI Extender up to 120 m, with IR

Cod: IDATA HDMI-MX373R

Barcode: 8057685306684

Supplier Code: 306684

Weight: 0.502 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

NO LONGER AVAILABLE
This product has been replaced by IDATA HDMI-MX383R, or search in the category Audio Video Switch and Splitter for a product that meets your needs.

Go to category
Find Audio Video Switch and Splitter
right for you
Configure now
Certificazioni: CE
Certificazioni: FCC
Certificazioni:
Tipo connettore B: HDMI
Risoluzione Video Max: 720p
HDCP: 1.2
  • Receiver IR Extender HDMI Matrix Switch with up to 120m
  • Beaming supports IR frequency 20-60KHZ
  • Transmits HDMI signal on a reliable network cable CAT5 / 6
  • Distances supported: CAT5≤80m; CAT5E≤100m; CAT 6≤120m
  • Supports 1080p video resolution at 50Hz, 60Hz
  • With function of network management and IGMP / IGMP snooping
  • Supports cascade connection
  • Dimensions matrix: 13 x 8.6 x 2.5 cm; black
Description
  • Receiver for HDMI Matrix Switch with Extender up to 120m via IR
  • Provides a reliable transmission of HDMI cable network CAT5 / 6
  • Enable the function of Signal Extender via LAN with support IGMP
  • Supports cascade connection
  • Supports TCP / IP
  • Provides a good signal stability and reduces interference
  • Widely applied in fields that require full HD, such as advertising campaigns, demonstrations of new products, CCTV systems, etc..
<b> Features </ b>
  • Network cable: UTP / STP Cat5e / 6
  • Length of cable network between all terminals: ≤ 80m CAT5; CAT5E ≤ 100m; CAT 6 ≤ 120m
  • Switch Lan: function supports network management and IGMP / IGMP snooping. Support network bandwidth in lacale ≥ 100m
  • IR Remote Control: Support IR frequency signal 20-60KHZ
  • Consumption: Shipping 3W; receive 3W
  • Power supply: DC 5V / 1A (x2)
  • Color: Black
<b> Supported resolutions </ b>
  • Resolutions Incoming: 480i / 480p @ 60Hz; 576i / 576p @ 50Hz; 720p / 1080i / 1080p (50Hz, 60Hz)
  • Resolutions output: 480p @ 60Hz; 576p @ 50Hz; 720p / 1080p (50Hz, 60Hz)
<b> Installation Requirements </ b>
  • Source HDMI (video card of the computer, DVD, PS3, etc.).
  • Monitor or projector with HDMI port
  • Network switch with IGMP snooping or IGMP
  • Connection of network cable Cat. 5E / 6
<b> Size </ b>
  • Width 13 cm
  • Depth 8.6 cm
  • Height 2.5 cm
<b> Certifications </ b>
  • CE
  • FCC
  • RoHS
  • WEEE
<b> Package Contents </ b>
  • 1x HDMI LAN Receiver RX
  • 1x Receiver RX Extension Cable
  • 1x User manual
  • 1x Power Supply DC 5V / 1A
Data sheet
general
Brand TECHLY Barcode 8057685306684
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 306684
input
Connector A Type RJ45 8P8C format A connector female
Number A Connector 1 Altri Connettori Input 1x IR femmina 1x Alimentazione 5V DC
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Matrix Max Video Resolution 1080p, 480p , 720p
HDMI 1.3 HDCP 1.2
Supported audio standards Yes Transmission Distance 120 m
power supply
Power supply Requested (included) Consumo energetico DC 5V/1A
dimensions
Width 13 cm Height 2,5 cm
Depth 8,6 cm Weight 0.5020
The package includes • 1x Ricevitore LAN HDMI RX • 1x Cavo prolunga ricevitore RX • 1x Istruzioni per l'uso • 1x Alimentatore DC 5V/1A
