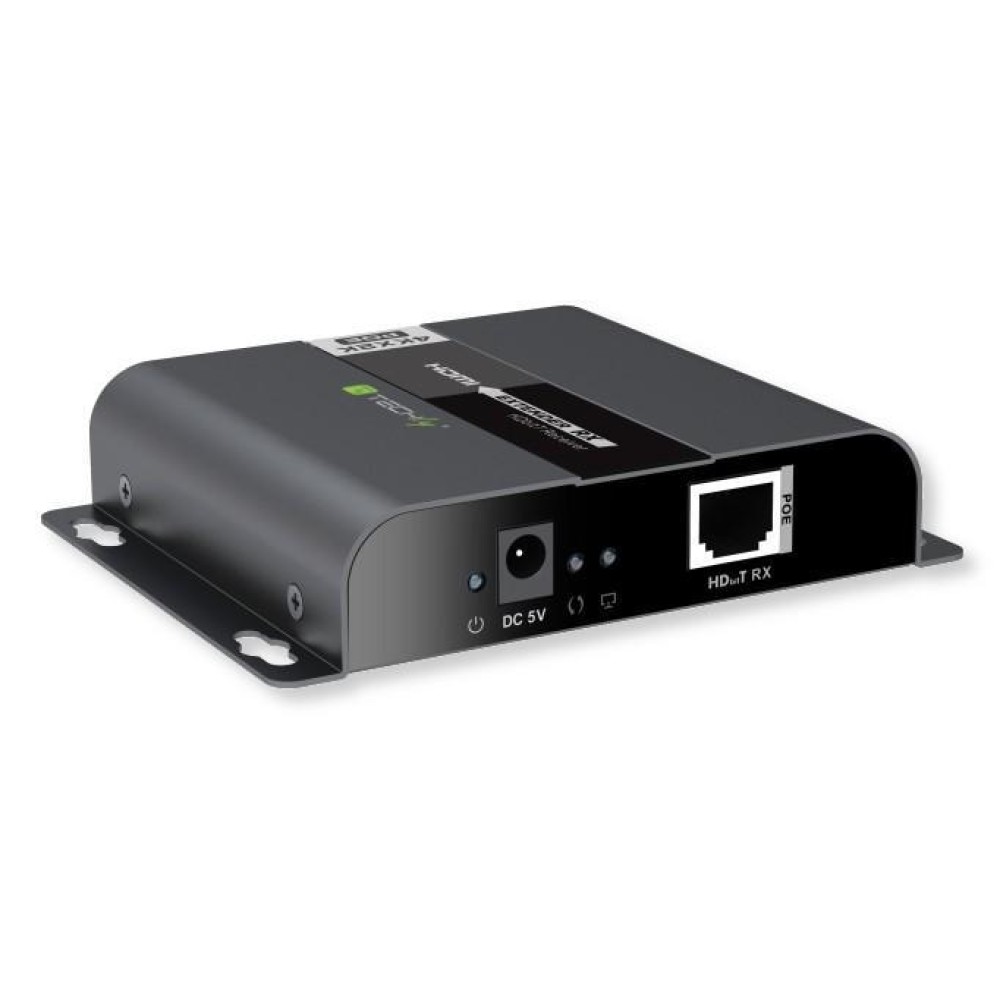

Additional HDMI Extender Receiver HDbitT PoE 4K UHD IR Cat.6 120m

Cod: IDATA EXTIP-3834KPR

Barcode: 8054529025534

Supplier Code: 025534

Weight: 0.491 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA EXTIP-3834KPR
Barcode
8054529025534
Supplier Code
025534
Weight
0.491 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Tipo connettore B: HDMI
Risoluzione Video Max: 720p
HDCP: 1.4
  • Extra receiver for HDMI HDBitT signal amplifier up to 120m over a single cable Cat. 5 / 5E / 6
  • Supports resolution 4Kx2K @ 30Hz
  • IEEE 802.3af PoE (10W input): electrical power and data in a single cable, expands the network even without electric line
  • Power: 5V 2A (adapter not included)
  • Supports point-to-point connection with router or multiconnection
  • With IR support; It Supports HDMI and HDCP
  • Dimensions: 119 x 94 x 23.8 mm; Black Colour
Description

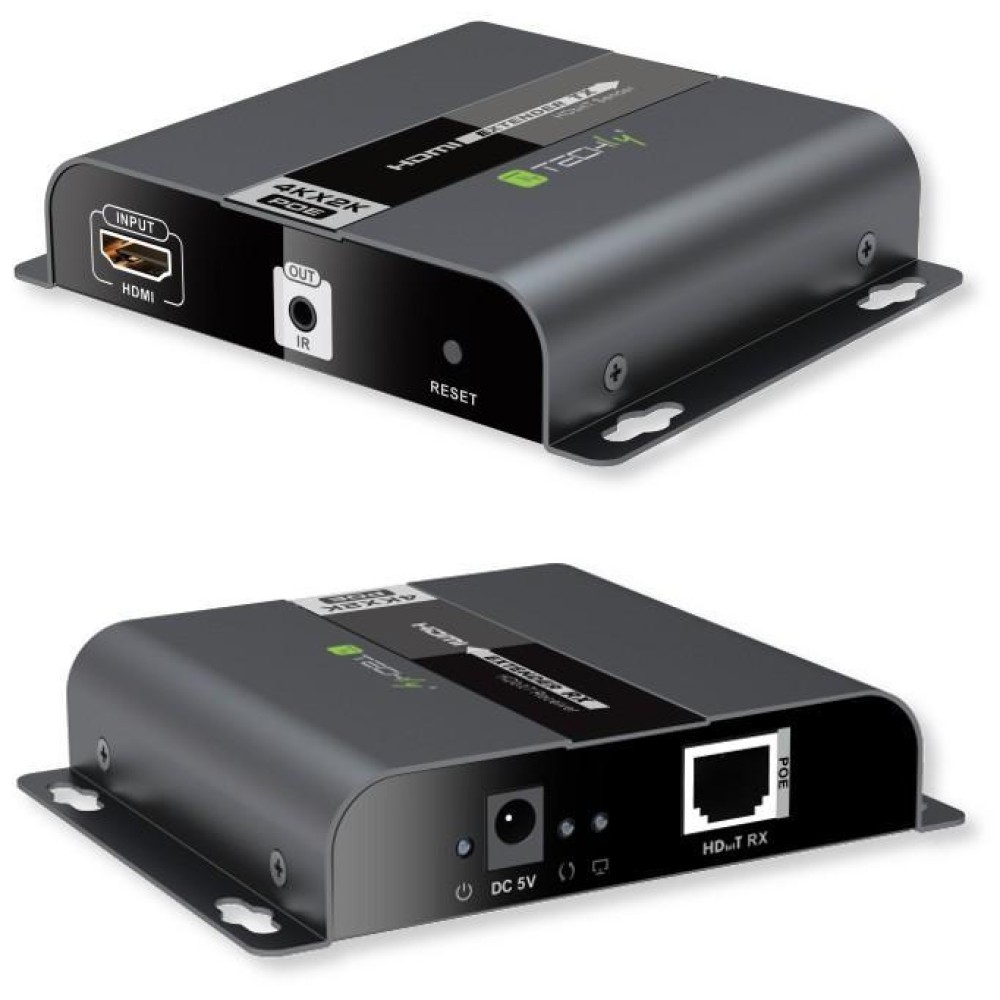

Extra receiver for HDMI extender that applies HDbitT technology to transmit the HDMI signal over a single CAT5 / 5e / 6 cable to achieve a transmission distance up to 120 meters. The maximum resolution supported is 4Kx2K (3840x2160 @ 30Hz) and supports POE to power directly to both TX and RX ends, allowing clean and compact installations.
Due to the high bandwidth consumption should use these devices with IGMP router, or alternatively on dedicated networks or separate port based VLAN.

Features
  • Extend the HDMI signal over a single CAT5 / 5e / 6
  • Transmission distance up to 120 meters
  • Supports both TX and RX powered by PoE switch
  • Supports 4K Ultra HD resolutions
  • IR Support
  • Compatible with the existing network, does not affect internet
  • Support connected with PoE router to share and extend the HDMI signal without limits
  • HDMI and HDCP
  • Black Colour
Connection
  • Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (powered by 5V DC 1A)
  • Connection with router: using a router / repeater, you can reach unlimited extensions (powered by PoE switch)
  • Point-to-Multipoint Connection: using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function (powered by PoE switch)
Specifications
  • HDMI signal: compatible with HDCP
  • Technology: HDBitT
  • Supported resolutions: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz; 4Kx2K @ 24/25 / 30Hz
  • Network cable: UTP / STP Cat5 / 5e / 6
  • Transmission Distance: 120m to 1080p @ 60Hz Full HD on cable Cat.6
  • Supports PoE IEEE 802.3 af (10W input)
  • Power: 5V 2A (adapter not included)
  • Consumption: 4.5W TX; RX 3.5W
Size
  • Width: 119 mm
  • Depth: 94 mm
  • Height: 23.8 mm
in the Box
  • 1x HDMI Receiver RX POE EXTENDER
  • 1x extension cable IR receiver
  • 1x User Manual
Data sheet
general
Brand Techly Np Barcode 8054529025534
Color Black Codice Fornitore 025534
input
Connector A Type RJ45 8P8C format A connector female
Number A Connector 1
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Amplifier Max Video Resolution 1080i , 1080p, 480p , 720p , Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 1.4 HDCP 1.4
3D compatible - Supported audio standards Yes
Transmission Distance 120 m
power supply
Power supply Not includede Consumo energetico 3.5W
dimensions
Width 119 mm Height 23.8 mm
Depth 94 mm Weight 0.4910
The package includes • 1x Ricevitore HDMI EXTENDER POE RX • 1x Cavo estensione IR receiver • 1x Manuale utente
