Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-1
Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-1
Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-0
Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-1
Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-2
Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-3
+13
Security box for DVR and video surveillance systems White RAL9016 - TECHLY PROFESSIONAL - ICRLIM08W2-1
Techly Professional

Security box for DVR and video surveillance systems White RAL9016

Cod: ICRLIM08W2

Barcode: 8051128105100

Supplier Code: 105100

Weight: 16.380 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Available

Incl. Tax: €218.99

Excl. Tax: €179.50 + VAT

Cod
ICRLIM08W2
Barcode
8051128105100
Supplier Code
105100
Weight
16.380 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Add to Compare
Free shipping
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Metal cabinet to secure the video surveillance system from unauthorized access; it allows in fact to house inside a videorecorder and a monitor, but also small switches
  • Front door with double lock with two different keys
  • Tray for housing equipment with a 19 "1U bracket and an L bracket for fixing equipment without a 19" connection
  • Fins for fixing a 10 "power strip (we recommend purchasing the I-CASE M10-4 power strip)
  • Sides fitted with slots and provision for fixing a fan; pre-cut profiles for cable routing
  • Roof and base equipped with slits for heat exchange and pre-cut profiles for cable passage
  • Bottom provided with VESA attachment 50x50, 75x75, 100x100
  • External dimensions (W x H x D): 58 x 54.6 x 15 cm; White color
Description

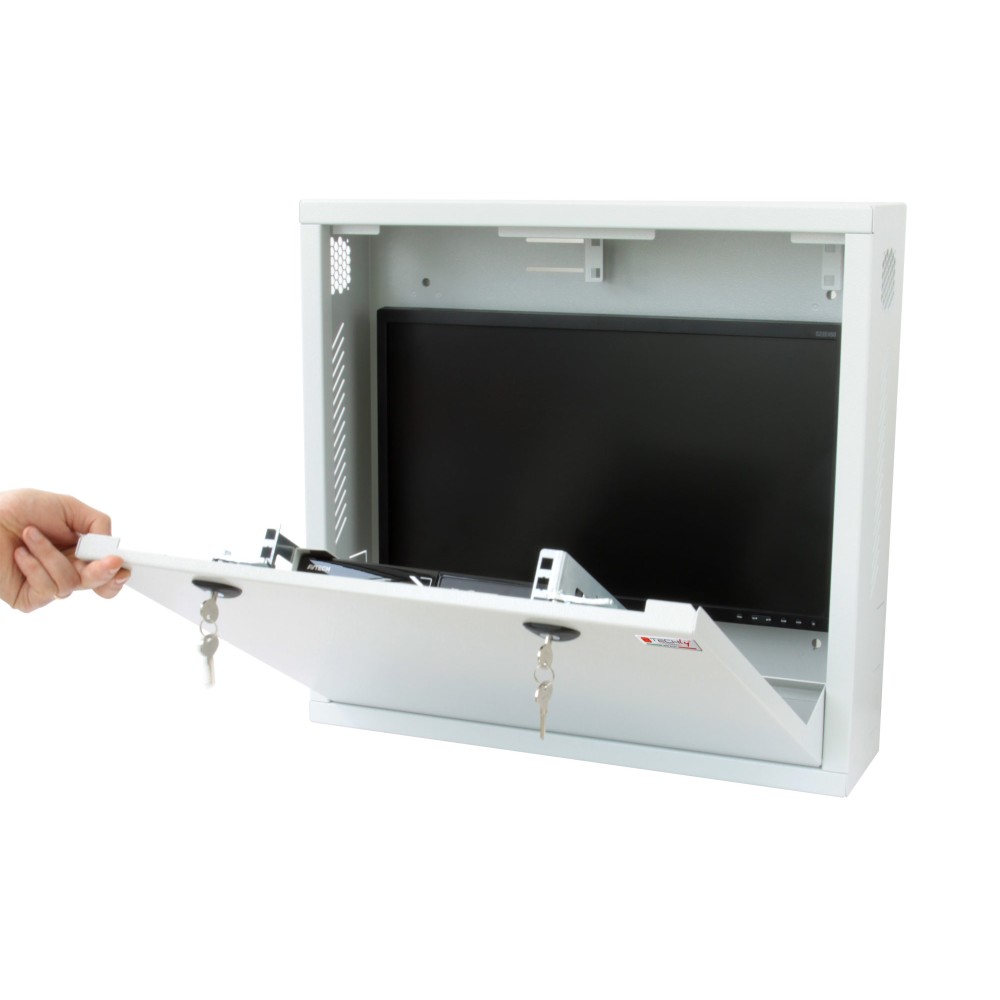

The ICRLIM08 cabinet is designed to secure your video surveillance system from unauthorized access; it allows in fact to house inside a videorecorder and a monitor, but also small switches thanks to the 1U bracket with holes 19 "supplied. The devices are installed directly on the cover which, thanks to the 90 ° opening, allows a kidnapped and practical access to the devices that will be found in a horizontal position.The monitor is installed on the bottom where the VESA 50/75 and 100 connections are located. The box is also provided with a double lock with different keys to ensure greater protection. The presence on all sides of the slit box guarantees internal air circulation, heat dissipation can also be enhanced by installing two fans on the sides, thanks to the foreseen arrangements.The sides also have pre-cut profiles to facilitate cable routing, a 10 "multi-socket socket is provided inside

Features
  • Metal locker for video surveillance with door equipped with double key lock (different keys)
  • Tray for housing equipment with a 19 "1U bracket with a length of 36.5 cm, adjustable in width (minimum 24 cm, maximum 48 cm)
  • L-shaped bracket for fixing equipment not provided with a 19 "connection (with minimum height 1 cm and maximum 5 cm)
  • Possibility of replacing the 1U bracket with a 2U bracket (ICRLIMRAIL2) for housing 2 peripherals (monitor not installable)
  • Fins for fixing a 10 "power strip (guides adjustable in width from 25.7 cm to 34.2 cm); we recommend the purchase of the I-CASE M10-4 socket
  • Sides fitted with slits for passive dissipation; on the upper part predisposition for fixing a fan to increase the air flow; pre-cut profiles for the passage of cables in the lower part of the side (dimensions 13 x 4 cm)
  • Roof provided with slits for heat exchange and two pre-cut profiles for cable passage (size 6.5 x 4 cm)
  • Base equipped with slits for heat exchange and a pre-cut profile for the passage of cables (size 6.5 x 4 cm)
  • Bottom with VESA attachment 50x50, 75x75, 100x100 indicated for the installation of a monitor
  • Rear equipped with 11 mm spacers for wall mounting
  • External dimensions (W x H x D): 58 x 54.6 x 15 cm
  • Color: White RAL9016
Package Contents:
  • White video locker
  • Pair of 19 "1U brackets
  • Two locking keys
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128105100
Typology Wall mount Rack inches -
Assembly Assembled Units 1
Color White Ingress Protection IP -
Ability to static load - Certifications ISO 9001
Years of Warranty 15 Codice Fornitore 105100
dimensions
Rack width 580 mm Rack depth 150 mm
Height 540 mm Weight 16.3800
side panels
Appearance Blind Removable No
Closure type No
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Blind Removable No
Door material Sheet Reversible No
Closure type Lock Locking points 2
Maximum aperture -
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front - Rear -
included accessories
Leveling feet - Base -
Wheel - Uprights 10''/19'' -
Brushes hold powder - Grounding kit -
