F/UTP Roll Cable Cat.5E CCA 100m Stranded Grey
Code: ITP8-FLS-0100    Barcode: 8054529022526

   Supplier Code: 022526

Available

F/UTP Roll Cable Cat.5E CCA 100m Stranded Grey

Certificazioni: RoHS
Anni di Garanzia: 2
Categoria: Cat. 5e
CPR: Class Eca
Choose a different Option:

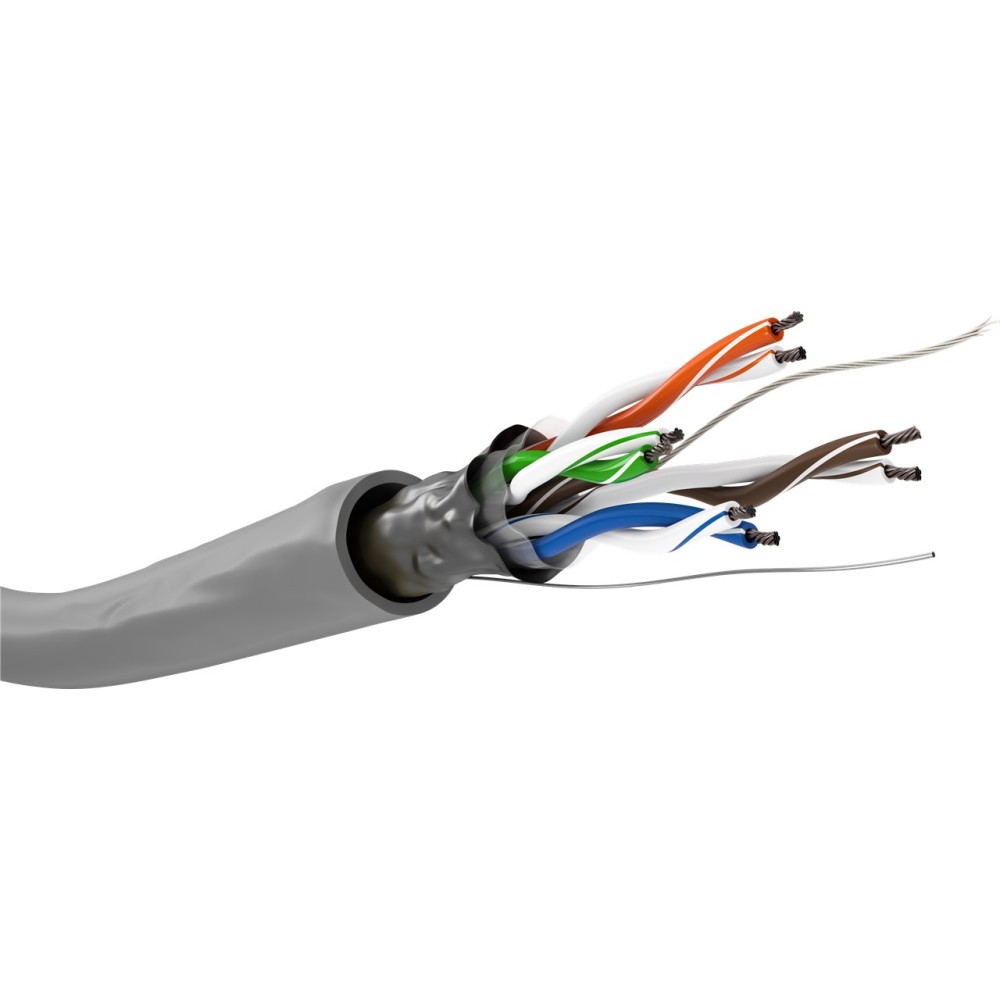

• F / UTP: twisted-pair cable with double overall shield
• In CCA: Copper Clad Aluminum
• 4-pair cable: 4 x 2 x AWG26 / 7 (Stranded)
• Complies with CPR (EU 305/2011) class Eca - EN 50575: 2014 + A1: 2016
• Impedance: 100 ohms ± 15
• Built with PVC jacket
• Size indication on the cable every meter

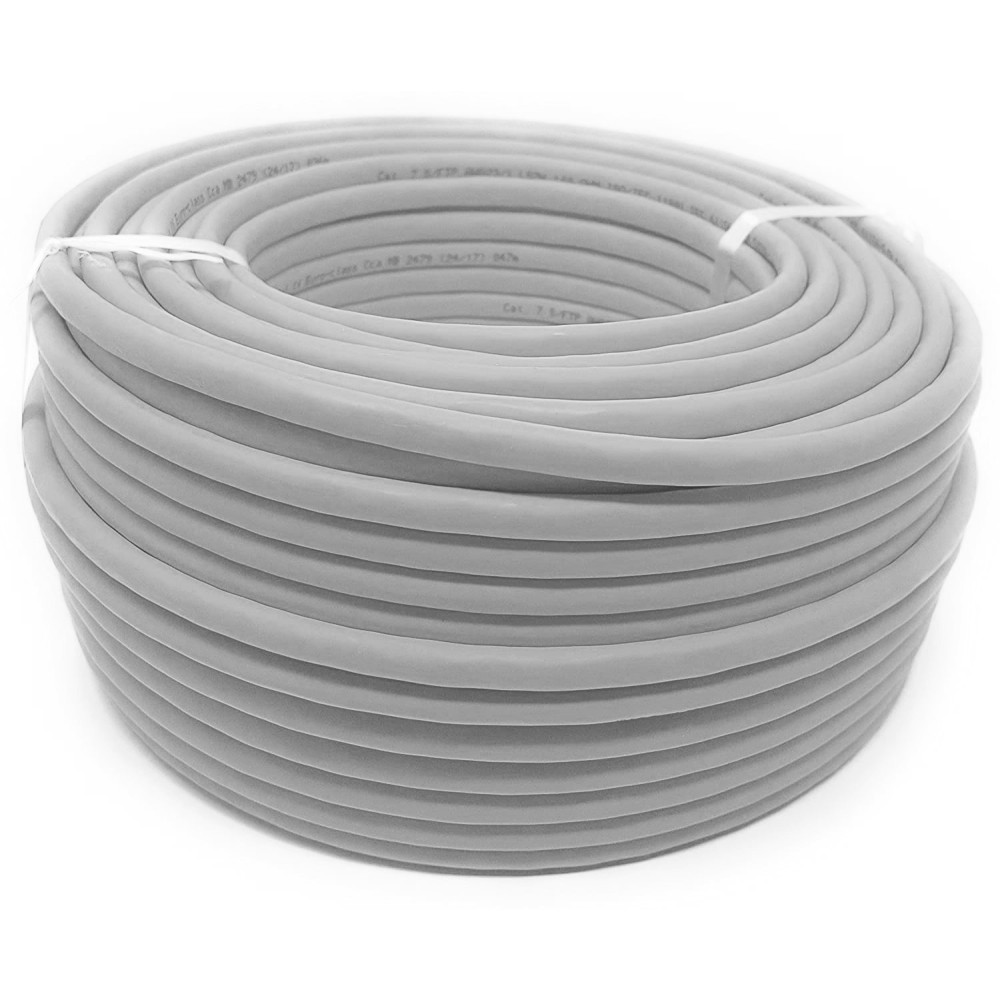

• Length: 100 meters
• Color: Grey

    Description

    Details

    • F / UTP: twisted-pair cable with double overall shield
    • In CCA: Copper Clad Aluminum
    • 4-pair cable: 4 x 2 x AWG26 / 7 (Stranded)
    • Complies with CPR (EU 305/2011) class Eca - EN 50575: 2014 + A1: 2016
    • Size indication on the cable every meter

    Features:
    • Impedance: 100 ohms ± 15
    • Operating temperature: -20 + 70 °C
    • Built with PVC jacket
    • Applications: 10 Base T, 100 Base Tx, Gigabit
    • Length: 100m
    • Color: Grey
    data sheet
    generale
    Brand
    Techly Professional
    Barcode
    8054529022526
    Weight
    2.7670
    Certifications
    RoHS
    Years of Warranty
    2
    Codice Fornitore
    022526
    specifiche tecniche
    Category
    Cat. 5e
    Conductor type
    Flexible
    Conductor material
    CCA
    Shielding
    F/UTP: shielded
    Cable size (AWG)
    26
    Cable rate
    100 MHz
    Length
    100 m
    Color
    Grey
    CPR
    Class Eca
    connessioni
    Connector A Type
    No
    Connector B Type
    No
    format A connector
    No
    format B connector
    No
    Shape A connector
    No
    Shape B connector
    No
