Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-1
Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-1
Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-0
Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-1
Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-2
Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-3
+1
Shielded Inline Toolless Coupler Cat 6A - TECHLY PROFESSIONAL - IWP-8P8C-COUPS6ATY-1
Techly Professional

Shielded Inline Toolless Coupler Cat 6A

Cod: IWP-8P8C-COUPS6ATY

Barcode: 8051128105094

Supplier Code: 105094

Weight: 0.037 Kg

Min. sale unit: 1 Pcs

Package pcs: 500 Pcs

Available
Limited time offer!

Incl. Tax: €8.04

Excl. Tax: €6.59 + VAT

Cod
IWP-8P8C-COUPS6ATY
Barcode
8051128105094
Supplier Code
105094
Weight
0.037 Kg
Min. sale unit
1 Pcs
Package pcs
500 Pcs
Shipping from €6.50 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Categoria: Cat. 6A
Tipo connettore A: RJ45 8P8C
Certificazioni: RoHS
  • "Slim" shielded inline coupler for connecting 2 network cables
  • Quick and easy assembly, does not require any special tools
  • Connects data cables from AWG 24/1 to 22/1 (rigid cable)
  • Rigid copper wires with a diameter of 0.5 to 0.64 mm
  • Flexible copper wires with diameters from 0.61 to 0.76 mm
  • Suitable for cables with a total diameter between 5.0 and 9.7 mm
Description

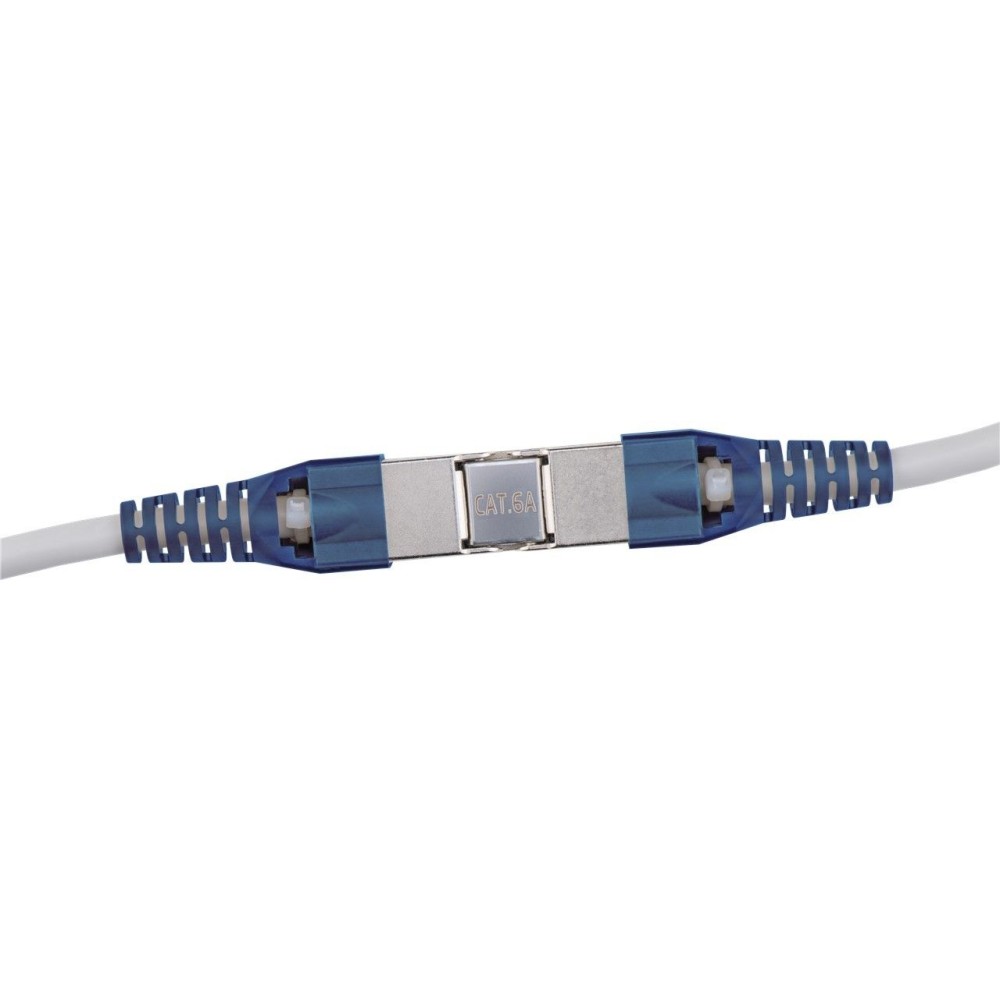

This cable coupler is designed for eight-wire connection, extension, repair of Cat 6 or 6A data / LAN cables, eliminating the need to use bulky connection boxes. It is incredibly easy to assemble - requires no special tools - and can easily be inserted into the channel due to its small size (18 x 26 x 39 mm). Fully shielded die-cast zinc body with connector covers on both sides.

Features
  • Shielded connection and cable clamp integrated into the housing
  • Quick and easy assembly, does not require any special tools
  • Allows connection of data cables from AWG 24/1 to 22/1 (rigid cable)
  • Rigid copper wires with a diameter of 0.5 to 0.64 mm
  • Flexible copper wires with diameters from 0.61 to 0.76 mm
  • Suitable for cables with a total diameter between 5.0 and 9.7 mm
Specifications
  • Connection 1, type LSA (toolless)
  • Connection 2, LSA type (toolless)
  • Cat.6A specific compliant cable
  • Shielding class: STP
  • Signal transmission: maximum 500 MHz bandwidth
  • Material: die-cast zinc
  • Length: 65 mm
  • Width: 11 mm
  • Height: 11 mm
Package Contents
  • Shielded Cat.6A cable coupler
  • Copriconnectors and clamps
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128105094
Materiale Metal Color -
Weight 0.0370 Codice Fornitore 105094
technical specifications
Category Cat. 6A Cable rate 500 MHz
format A connector - Connector A Type RJ45 8P8C
Shielding Yes Certifications RoHS
dimensions
Height 11 mm Width 11 mm
Depth 65 mm
