Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-1
Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-1
Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-0
Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-1
Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-2
Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-3
+6
Splitter HDMI 2.0 4K UHD 3D 2-way - TECHLY - IDATA HDMI2-4K2-1
Techly

Splitter HDMI 2.0 4K UHD 3D 2-way

Cod: IDATA HDMI2-4K2

Barcode: 8054529023974

Supplier Code: 023974

Weight: 0.249 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
IDATA HDMI2-4K2
Barcode
8054529023974
Supplier Code
023974
Weight
0.249 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
Compatibile 3D: Yes
USB standard: USB 2.0

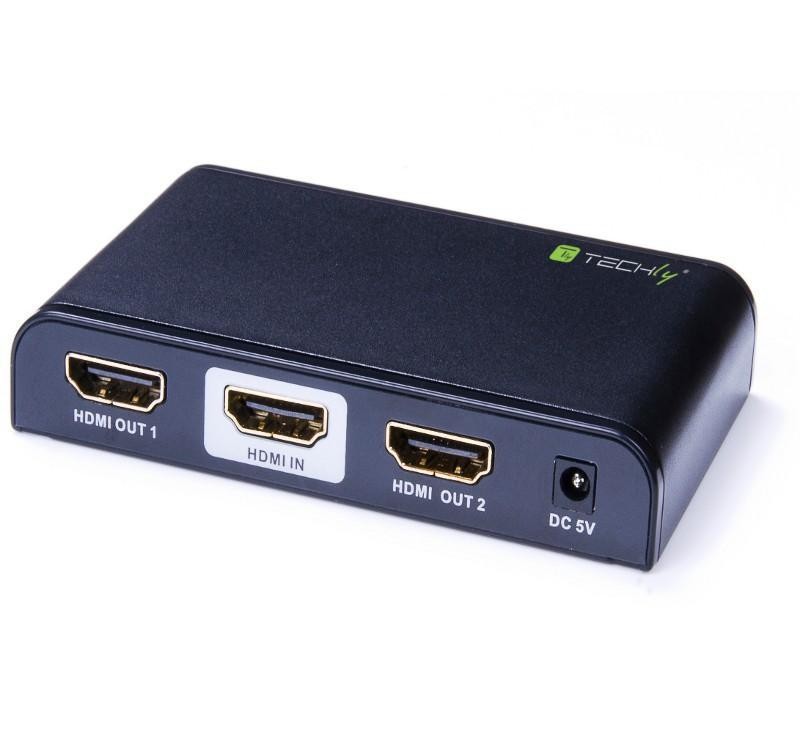

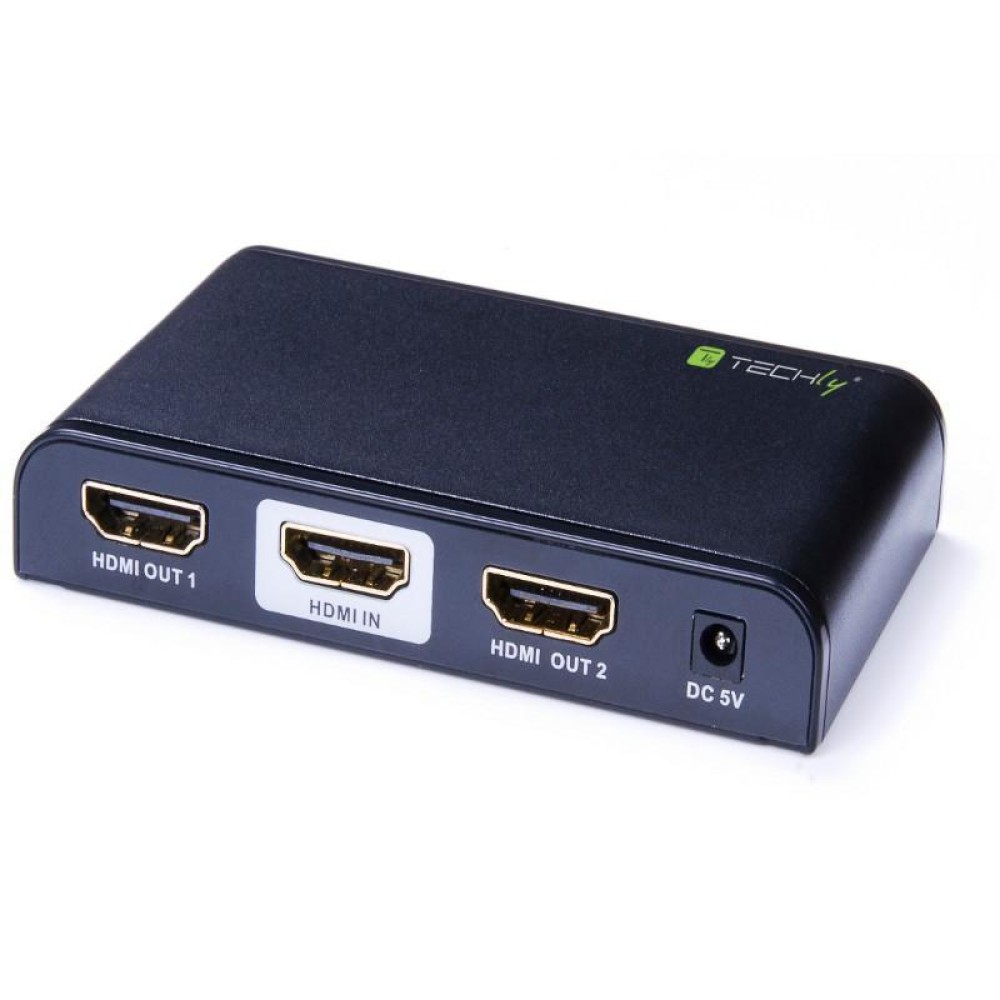

The splitter IDATA HDMI2-4K2 allows you to split the audio / video signal from an HDMI source such as a Blueray player, STB, DVD, PS3, etc. on two LCD monitors, projectors, or HD displays simultaneously.

Features
  • 1 input, 2 HDMI 2.0 output
  • Allows you to display the same image on two monitors at once
  • It can extend the distance of 30m from the source and from the splitter to monitor up to 25 m
  • Supports 3D
  • Supports HDCP 1.4 and 2.2
  • Supported Audio: standard audio, DSD (Direct Stream Digital) and HD (HBR) audio
  • HDMI Supported Resolutions: 480i / 480p / 756th / 756p / 720p / 1080i / 1080p / 4Kx2K @ 24/25/30 / 60Hz
  • Supports Full HD resolution up to 4K Ultra-HD
  • Black Colour
Environmental Features
  • Operating temperature: -10 / 55 ° C
  • Storage temperature: -20 / 70 ° C
  • Relative humidity: 0/95% non-condensing
Dimensions
  • Width 96 mm
  • Depth 59 mm
  • Height 17 mm
  • Weight 98 g
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x HDMI 2.0 Splitter 2-way
  • 1x 5V / 1A
  • 1x Instruction Manual
Description
The splitter IDATA HDMI2-4K2 allows you to split the audio / video signal from an HDMI source such as a Blueray player, STB, DVD, PS3, etc. on two LCD monitors, projectors, or HD displays simultaneously.

Features
  • 1 input, 2 HDMI 2.0 output
  • Allows you to display the same image on two monitors at once
  • It can extend the distance of 30m from the source and from the splitter to monitor up to 25 m
  • Supports 3D
  • Supports HDCP 1.4 and 2.2
  • Supported Audio: standard audio, DSD (Direct Stream Digital) and HD (HBR) audio
  • HDMI Supported Resolutions: 480i / 480p / 756th / 756p / 720p / 1080i / 1080p / 4Kx2K @ 24/25/30 / 60Hz
  • Supports Full HD resolution up to 4K Ultra-HD
  • Black Colour
Environmental Features
  • Operating temperature: -10 / 55 ° C
  • Storage temperature: -20 / 70 ° C
  • Relative humidity: 0/95% non-condensing
Dimensions
  • Width 96 mm
  • Depth 59 mm
  • Height 17 mm
  • Weight 98 g
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x HDMI 2.0 Splitter 2-way
  • 1x 5V / 1A
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY Barcode 8054529023974
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 023974
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x Alimentazione 5V DC
output
Connector B Type HDMI-A format B connector female
Number B Connector 2
technical specifications
Typology Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 600 MHz Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible Yes Supported audio standards Yes
Transmission Distance 30 m USB standard USB 2.0
power supply
Power supply Requested (included) Consumo energetico 5V/1A
dimensions
Width 96 mm Height 17 mm
Depth 59 mm Weight 0.2490
The package includes • 1x Splitter HDMI2.0 a 2 vie • 1x Alimentatore 5V/1A • 1x Manuale d'istruzioni
