Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-1
Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-1
Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-0
Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-1
Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-2
Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-3
+6
Splitter HDMI 2 Way 4K*2K - TECHLY - IDATA HDMI-4K2-1
Techly

Splitter HDMI 2 Way 4K*2K

Cod: IDATA HDMI-4K2

Barcode: 8057685306646

Supplier Code: 306646

Weight: 0.258 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
IDATA HDMI-4K2
Barcode
8057685306646
Supplier Code
306646
Weight
0.258 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni: RoHS
Tipo connettore B: HDMI-A
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 1.3
Compatibile 3D: Yes
  • Allows you to display the same image on two monitors at once
  • It can extend the distance from the source of 30 m from the splitter to the monitors up to 25 m
  • Supports 3D
  • Supports CEC
  • Supports HDCP 1.2
  • Audio supported: HD, including DTS-HD Master Audio / Dolby TrueHD / LPCM 7.1 / dts / Dolby- AC3 / DSD
  • Supports Ultra HD 3840 x 2160 resolution and 3D, deep color 30bit, 36bit, Blu-ray 24/50 / 60fs / xvYCC
  • Supports resolution ultra-HD 4K * 2K
  • Resolutions Supported HDMI: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50Hz, 60Hz), 1080p / 24Hz 3D, 720p / 50Hz 3D, 720p / 60Hz 3D 4Kx2K
  • Maximum transmission speed: 10.2Gbs
  • Housing: metal; Black color

Description

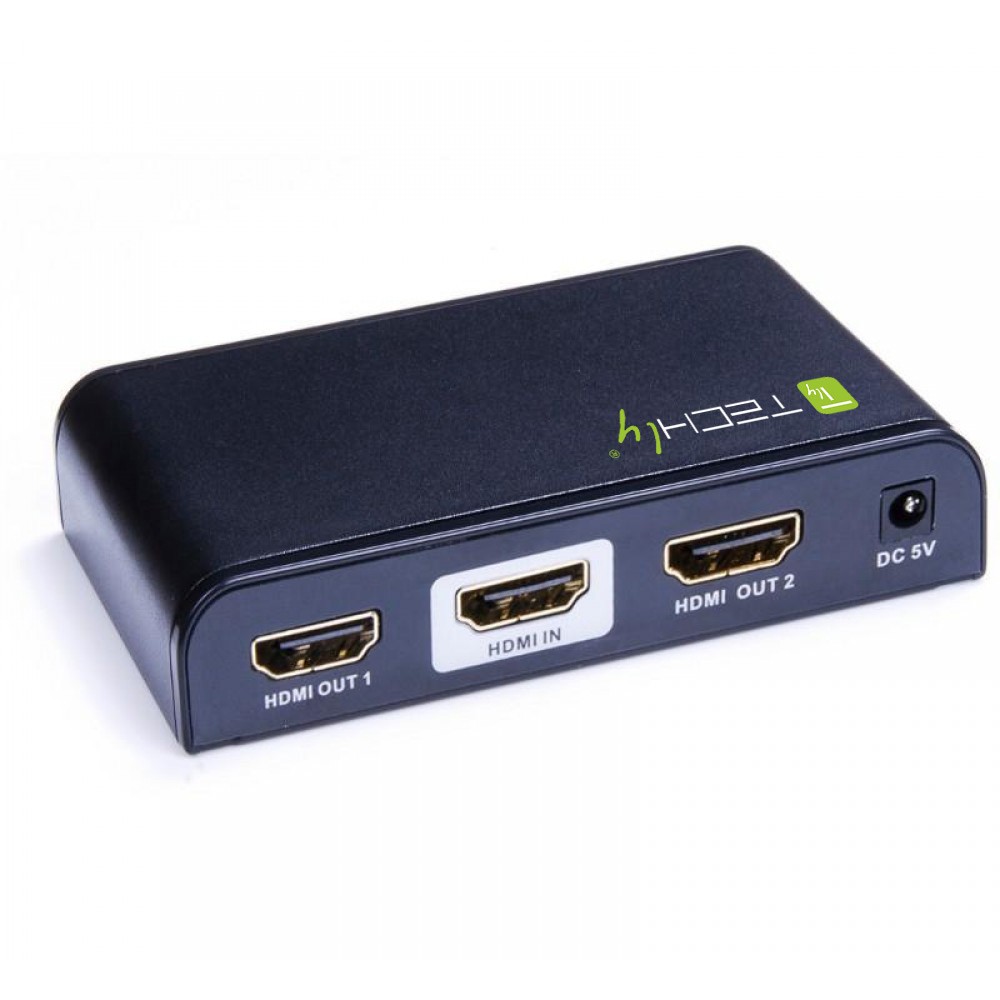

The splitter IDATA HDMI-4K2 allows you to split the audio / video from an HDMI source such as a Blueray player, STB, DVD, PS3, etc. two LCD monitor, projector or HD display simultaneously.

Characteristics
  • 1 input, 2 HDMI output
  • Allows you to display the same image on two monitors at once
  • It can extend the distance from the source of 30 m from the splitter to the monitors up to 25 m
  • Supports 3D
  • Supports CEC
  • Supports HDCP 1.2
  • Audio supported: HD, including DTS-HD Master Audio / Dolby TrueHD / LPCM 7.1 / dts / Dolby- AC3 / DSD
  • Supports Ultra HD 3840 x 2160 resolution and 3D, deep color 30bit, 36bit, Blu-ray 24/50 / 60fs / xvYCC
  • Supports resolution ultra-HD 4K * 2K
  • Resolutions Supported HDMI: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50Hz, 60Hz), 1080p / 24Hz 3D, 720p / 50Hz 3D, 720p / 60Hz 3D 4Kx2K
  • Maximum transmission speed: 10.2Gbs
  • Housing: metal
  • Black color
Environmental Characteristics
  • Operating Temperature: -10 / 55 ° C
  • Storage Temperature: -20 / 70 ° C
  • Relative humidity: 0/95% non-condensing
Dimensions
  • Width 96 mm
  • Depth 59mm
  • Height 17 mm
  • Weight 98 g
Certifications
  • EC
  • FCC
  • RoHS
  • WEEE
Package Contents
  • 1x HDMI Splitter 2-way
  • 1x Power supply 5V / 1A
  • 1x Instruction Manual
Data sheet
general
Brand TECHLY Barcode 8057685306646
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 306646
input
Connector A Type HDMI-A format A connector female
Number A Connector 1 Altri Connettori Input 1x Alimentazione 5V DC
output
Connector B Type HDMI-A format B connector female
Number B Connector 2
technical specifications
Typology Splitter Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color 36 bit
HDMI 1.4 HDCP 1.3
3D compatible Yes Supported audio standards Yes
Transmission Distance 30 m
power supply
Power supply Requested (included) Consumo energetico 5V/1A
dimensions
Width 96 mm Height 17 mm
Depth 59 mm Weight 0.2580
The package includes • 1x Splitter HDMI a 2 vie • 1x Alimentatore 5V/1A • 1x Manuale d'istruzioni
