VGA Video Splitter 1x2 with Audio - TECHLY NP - IDATA VSP-0102-1
VGA Video Splitter 1x2 with Audio - TECHLY NP - IDATA VSP-0102-1
VGA Video Splitter 1x2 with Audio - TECHLY NP - IDATA VSP-0102-0
VGA Video Splitter 1x2 with Audio - TECHLY NP - IDATA VSP-0102-1
VGA Video Splitter 1x2 with Audio - TECHLY NP - IDATA VSP-0102-1

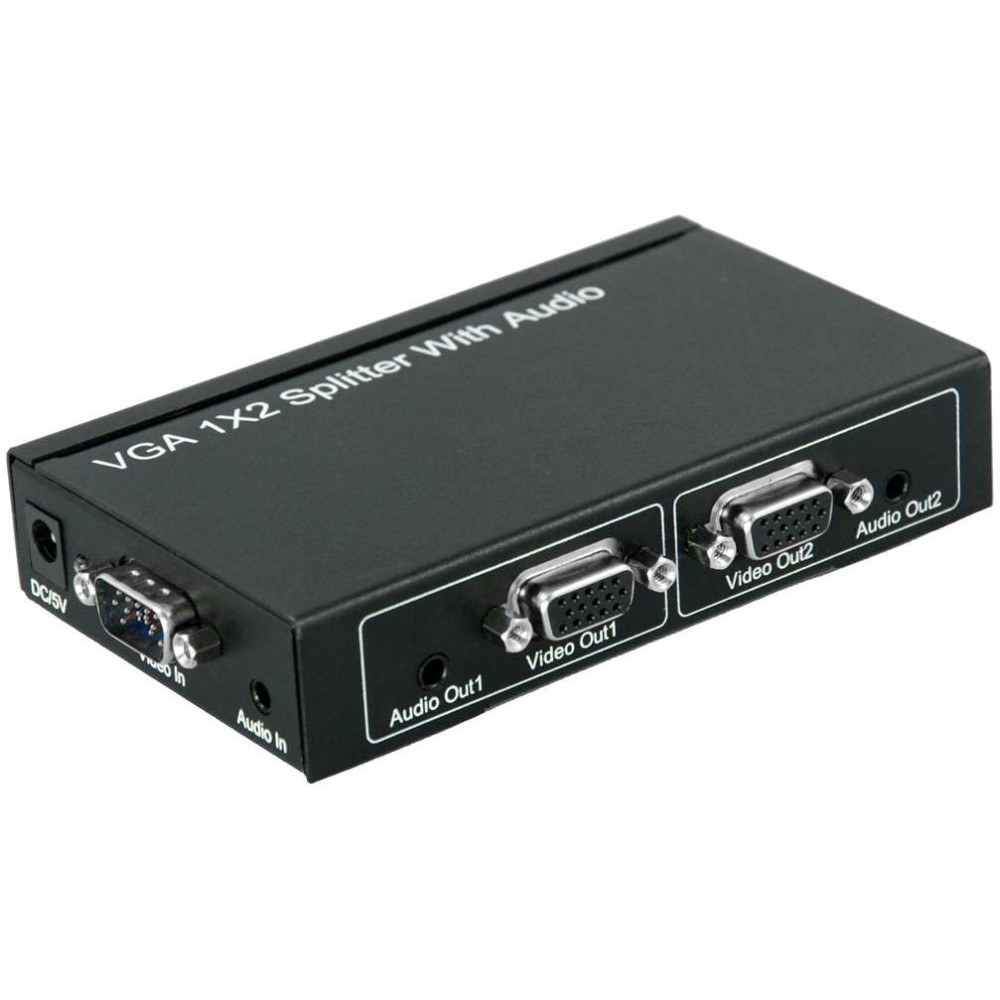

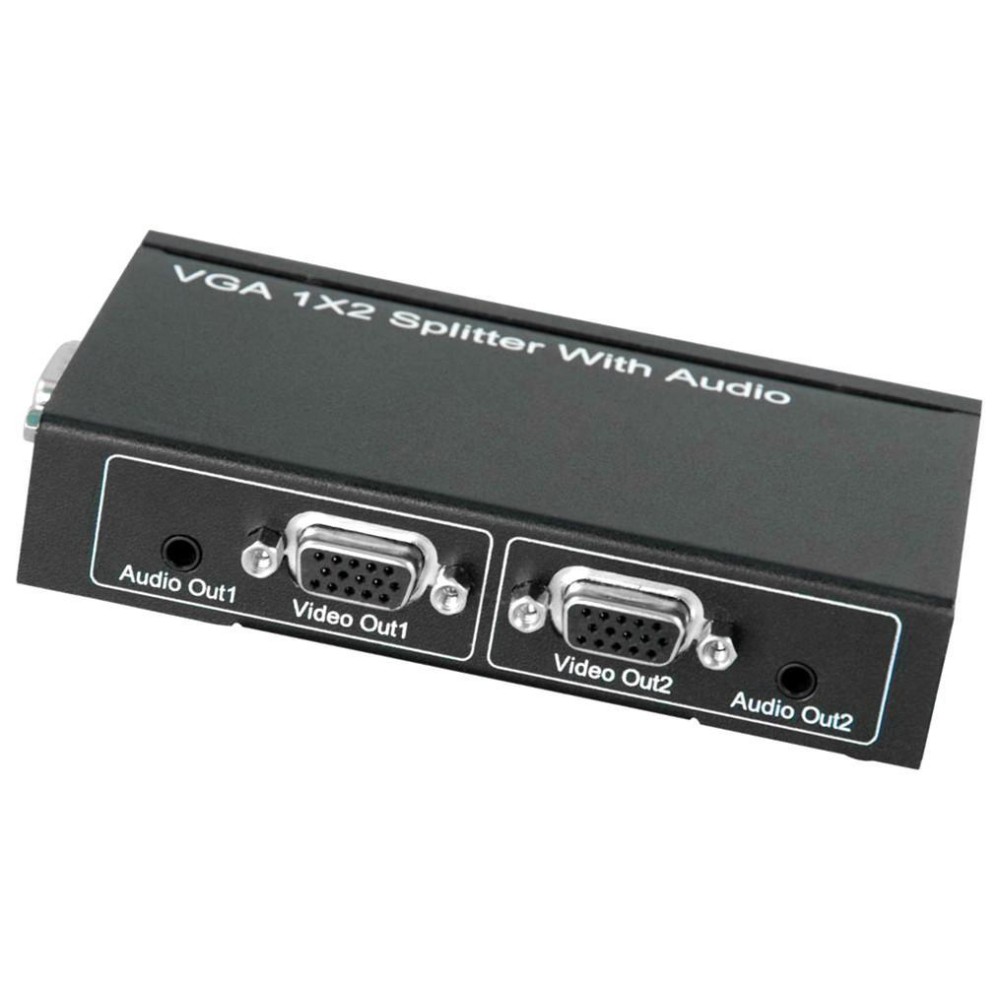

VGA Video Splitter 1x2 with Audio

Cod: IDATA VSP-0102

Barcode: 8054529025800

Supplier Code: 025800

Weight: 0.882 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA VSP-0102
Barcode
8054529025800
Supplier Code
025800
Weight
0.882 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
Tipo connettore A: VGA
Tipo connettore B: VGA
  • Splitter VGA video with audio, 1 input 2 output
  • Distributes the VGA input signal and the stereo audio signal to two identical outputs simultaneously
  • Easy to use: install in seconds without setting
  • Connect the VGA input to 2 VGA monitor at the same time
  • Connect a stereo audio source to 2 audio receivers
  • Equipped with buffering capacity and amplification, it reaches a higher transmission distance of 15 meters
  • Supports high video resolutions up to 1920 x 1200 and 1080p
  • It supports video bandwidth up to 500MHz
Description
The device is a 1x2 VGA splitter with audio. It distributes the VGA input signal and the stereo audio signal to two identical outputs simultaneously. It has ability of buffering and amplifying. Each output of the amplifier splitter can reach long distances VGA signal transmission over 15 meters.
It offers a convenient way to monitor or projector in various situations and is ideal in presentations in conference rooms, schools and during corporate training.

Features
  • Easy to use, installs in seconds, it requires no setting
  • Connects a VGA source to two VGA monitors simultaneously
  • Connect a stereo audio source to two audio receivers at the same time
  • Supports high video resolutions up to 1920 x 1200 and 1080p
  • Supports amplification video bandwidth up to 500MHz
Specifications
  • Input video signal: 1.2 volts p-p
  • Maximum Range single link: 1920 x 1200, 1080p
  • Vertical Frequency Range: 30-170 Hz
  • bandwidth video amplifier Width: 500 Mhz
  • Input Connection: VGA 15 pin male
  • output Connection: VGA 15 pin female
  • Dimensions (WxDxH): 120 x 71 x 24.5 mm
  • Operating Temperature: 0 ? to + 70 ?
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ° C to + 80 ° C
  • Storage Humidity: 5% to 90% RH (non-condensing)
  • External Power Supply: 5V DC @ 2A
  • Consumption: 5W Maximum
in the Box
  • Main Unit
  • VGA Cable M / F 2m
  • DC 5V / 2A
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8054529025800
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 025800
input
Connector A Type VGA format A connector male
Number A Connector 1 Altri Connettori Input 1 connettore audio 3.5" F
output
Connector B Type VGA format B connector female
Number B Connector 2 Altri Connettori Output 2 connettori audio 3.5" F
technical specifications
Typology Splitter Max Video Resolution 1920 x 1200
max bandwidth (MHz) 500 MHz Deep Color -
HDMI - HDCP -
3D compatible - Supported audio standards Yes
Transmission Distance 15 m
power supply
Power supply Requested (included) Consumo energetico 2A
dimensions
Width 120 mm Height 24,5 mm
Depth 71 mm Weight 0.8820
The package includes • Unità principale • Cavo VGA M/F 2mt • Alimentatore DC 5V / 2A • Manuale d'istruzione
