VGA Video Splitter 1x4 with Audio - TECHLY NP - IDATA VSP-0104-1
VGA Video Splitter 1x4 with Audio - TECHLY NP - IDATA VSP-0104-1
VGA Video Splitter 1x4 with Audio - TECHLY NP - IDATA VSP-0104-0
VGA Video Splitter 1x4 with Audio - TECHLY NP - IDATA VSP-0104-1
VGA Video Splitter 1x4 with Audio - TECHLY NP - IDATA VSP-0104-2
VGA Video Splitter 1x4 with Audio - TECHLY NP - IDATA VSP-0104-1

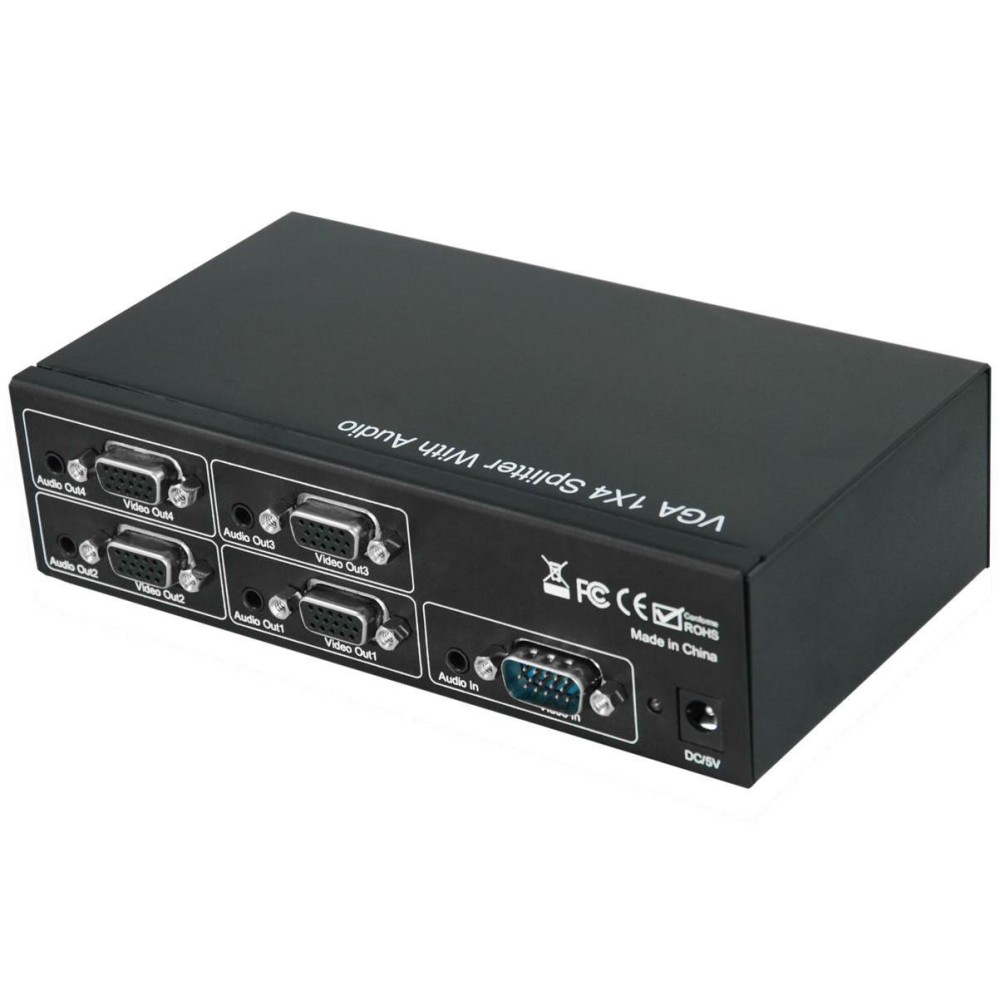

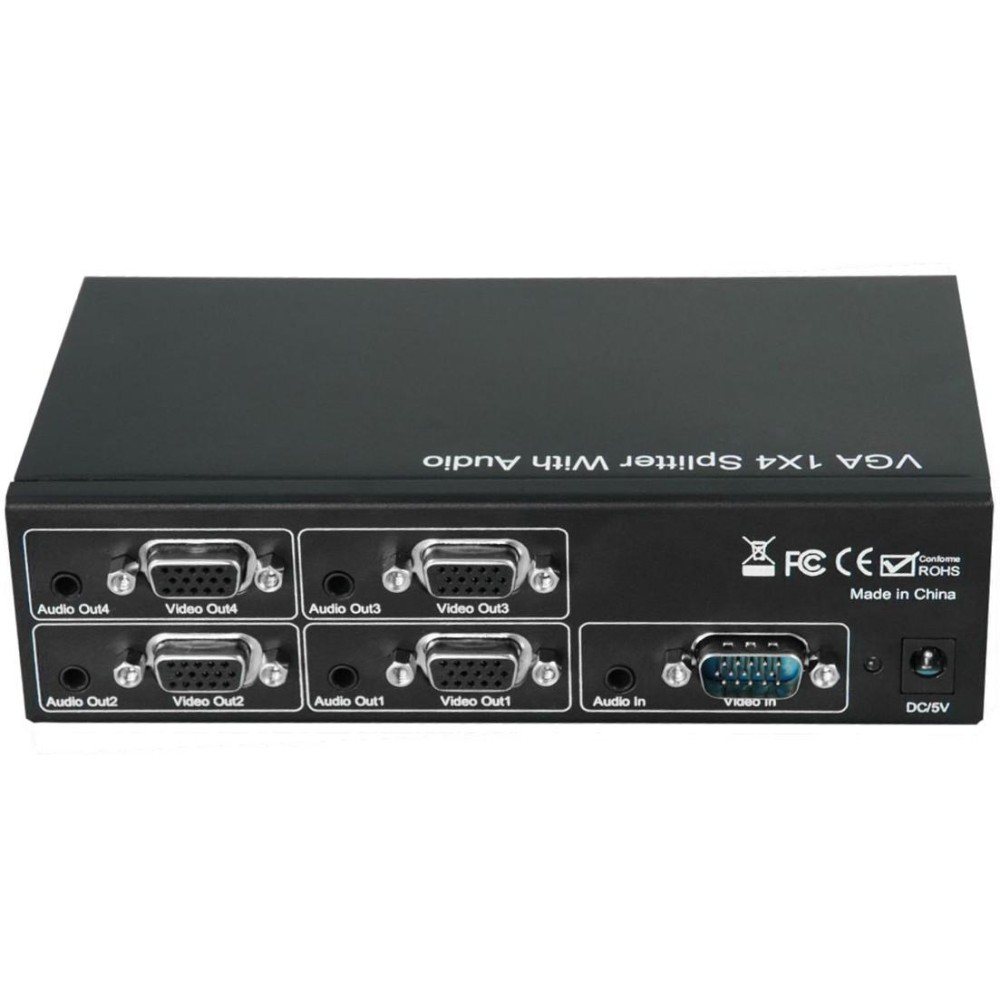

VGA Video Splitter 1x4 with Audio

Cod: IDATA VSP-0104

Barcode: 8054529025794

Supplier Code: 025794

Weight: 1.134 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Available

Incl. Tax: €93.79

Excl. Tax: €76.88 + VAT

Cod
IDATA VSP-0104
Barcode
8054529025794
Supplier Code
025794
Weight
1.134 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Find Audio Video Switch and Splitter
right for you
Configure now
Shipping from €6.50 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
Tipo connettore A: VGA
Tipo connettore B: VGA
  • Splitter VGA video with audio, 1 input 4 output
  • Distributes the VGA input signal and the stereo audio signal to four identical outputs simultaneously
  • Easy to use: install in seconds without setting
  • Connect the VGA input 4 VGA monitor at the same time
  • Connect a stereo audio source to 4 audio receivers
  • Equipped with buffering capacity and amplification, it reaches a higher transmission distance of 15 meters
  • Supports high video resolutions up to 1920 x 1200 and 1080p
  • It supports video bandwidth up to 500MHz
Description
The device is a 1x4 VGA splitter with audio. It supports VGA input signal and the stereo audio signal to 4 identical outputs simultaneously. It has ability of buffering and amplifying. Each output of the amplifier splitter can reach long distances VGA signal transmission over 15 meters.
It offers a convenient way to monitor or projector in various situations and is ideal in presentations in conference rooms, schools and during corporate training.

Features
  • Easy to use, installs in seconds, it requires no setting
  • Connects a VGA source to four VGA monitor at the same time
  • Connect a stereo audio source to four audio receivers at the same time
  • Supports high video resolutions up to 1920 x 1200 and 1080p
  • Supports amplification video bandwidth up to 500MHz
Specifications
  • Input video signal: 1.2 volts p-p
  • Maximum Range single link: 1920 x 1200, 1080p
  • Vertical Frequency Range: 30-170 Hz
  • bandwidth video amplifier Width: 500 Mhz
  • Input Connection: VGA 15 pin male
  • output Connection: VGA 15 pin female
  • Dimensions (WxDxH): 120 x 71 x 24.5 mm
  • Operating Temperature: 0' to + 70'
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ° C to + 80 ° C
  • Storage Humidity: 5% to 90% RH (non-condensing)
  • External Power Supply: 5V DC @ 2A
  • Consumption: 5W Maximum
in the Box
  • Main Unit
  • VGA Cable M / F 2m
  • DC 5V / 2A
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8054529025794
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 025794
input
Connector A Type VGA format A connector male
Number A Connector 1 Altri Connettori Input 1 connettore audio 3.5" F
output
Connector B Type VGA format B connector female
Number B Connector 4 Altri Connettori Output 4 connettori audio 3.5" F
technical specifications
Typology Splitter Max Video Resolution 1920 x 1200
max bandwidth (MHz) 500 MHz Deep Color -
HDMI - HDCP -
3D compatible - Supported audio standards Yes
Transmission Distance 15 m
power supply
Power supply Requested (included) Consumo energetico 2A
dimensions
Width 120 mm Height 24,5 mm
Depth 71 mm Weight 1.1340
The package includes • Unità principale • Cavo VGA M/F 2mt • Alimentatore DC 5V / 2A • Manuale d'istruzione
