VGA Video Splitter 1x8 with Audio - TECHLY NP - IDATA VSP-0108-1
VGA Video Splitter 1x8 with Audio - TECHLY NP - IDATA VSP-0108-1
VGA Video Splitter 1x8 with Audio - TECHLY NP - IDATA VSP-0108-0
VGA Video Splitter 1x8 with Audio - TECHLY NP - IDATA VSP-0108-1
VGA Video Splitter 1x8 with Audio - TECHLY NP - IDATA VSP-0108-2
VGA Video Splitter 1x8 with Audio - TECHLY NP - IDATA VSP-0108-1

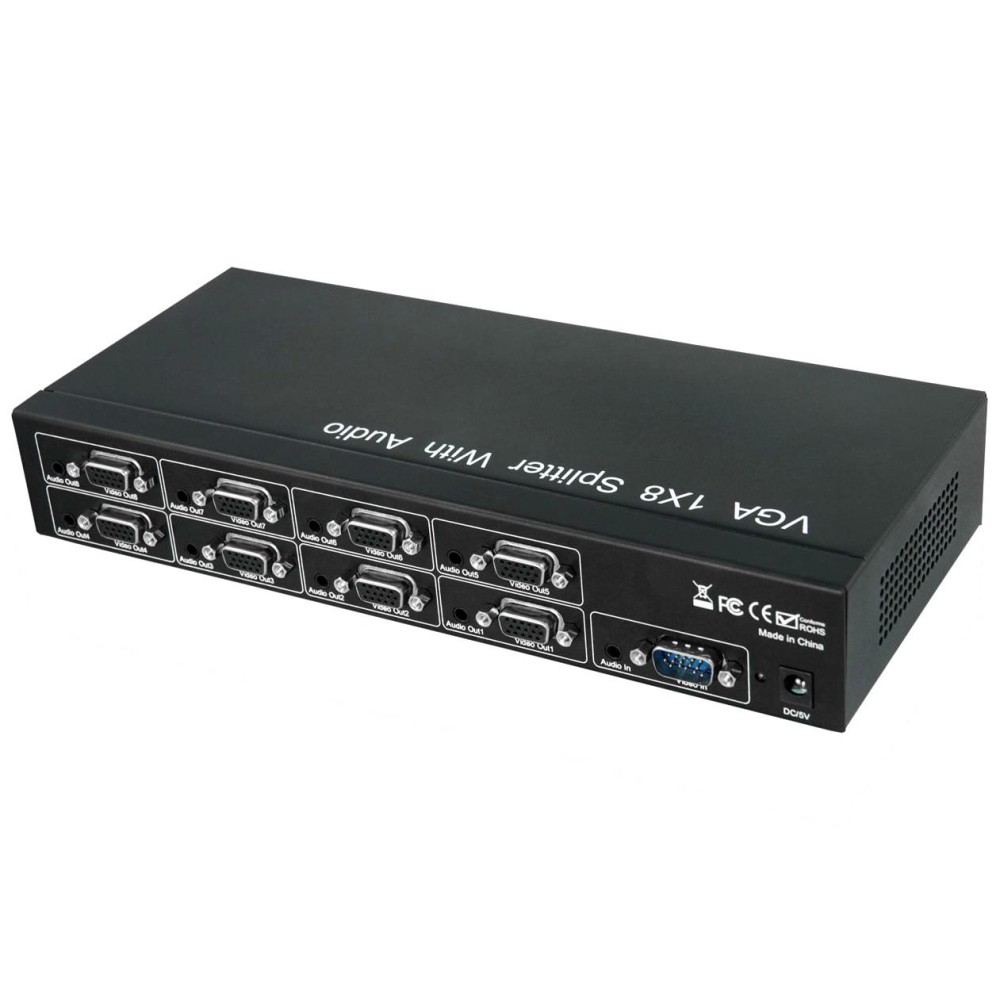

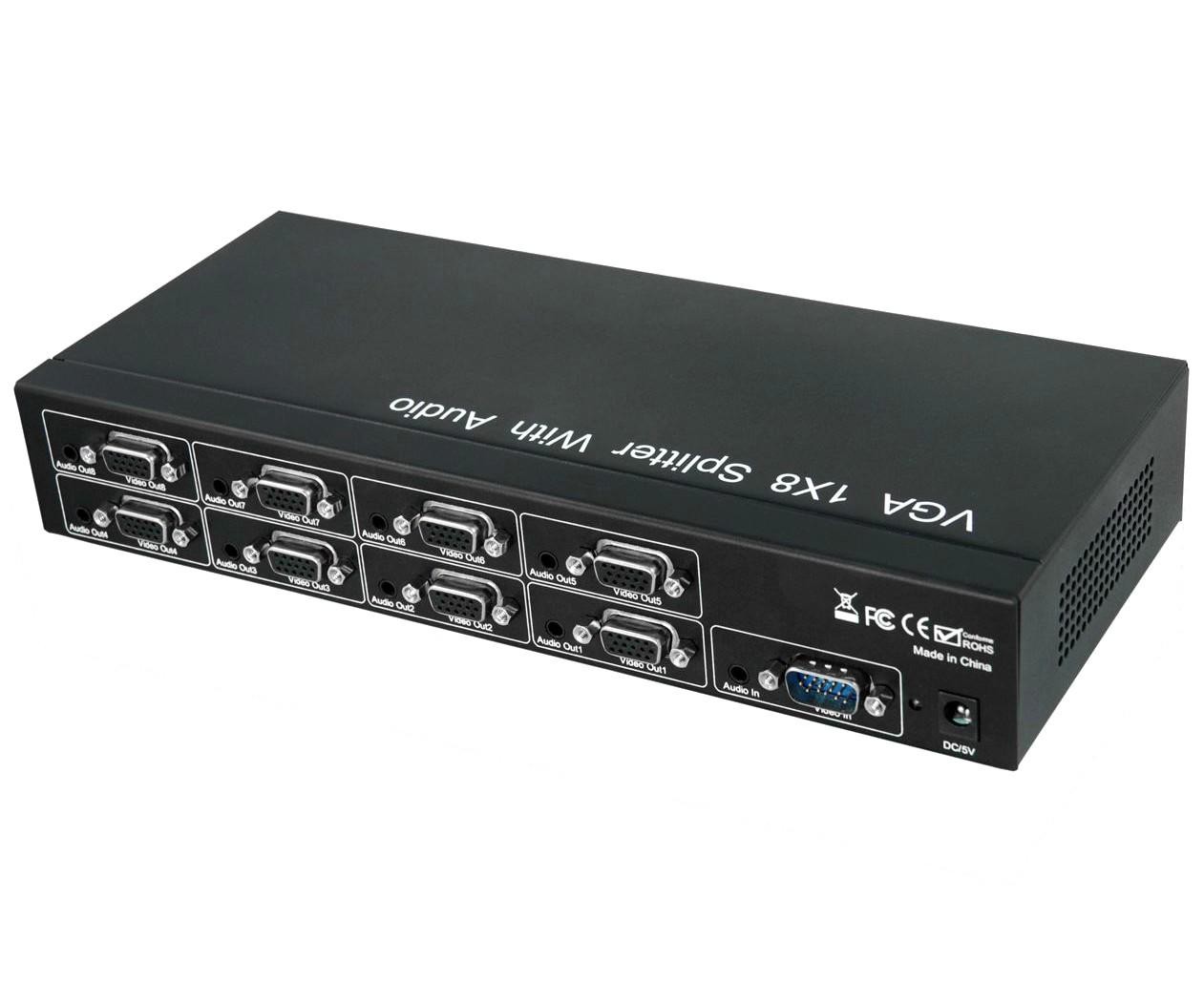

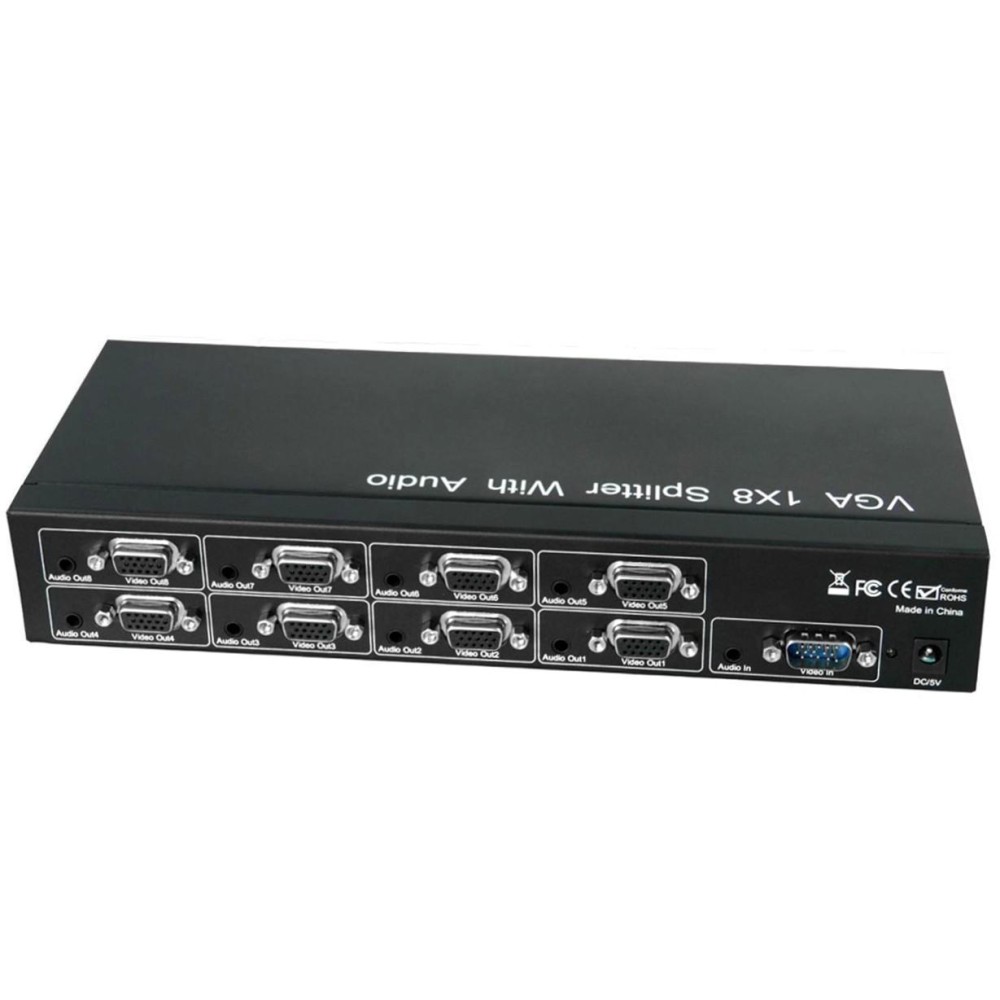

VGA Video Splitter 1x8 with Audio

Cod: IDATA VSP-0108

Barcode: 8054529025817

Supplier Code: 025817

Weight: 1.641 Kg

Min. sale unit: 1 Pcs

Package pcs: 6 Pcs

Cod
IDATA VSP-0108
Barcode
8054529025817
Supplier Code
025817
Weight
1.641 Kg
Min. sale unit
1 Pcs
Package pcs
6 Pcs
Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
Tipo connettore A: VGA
Tipo connettore B: VGA
  • Splitter VGA video with audio, 1 input 8 output
  • Distributes the VGA input signal and the stereo audio signal to 8 identical outputs simultaneously
  • Easy to use: install in seconds without setting
  • Connects a VGA source to 8 VGA monitor at the same time
  • Connect a stereo audio source to 8 audio receivers
  • Equipped with buffering capacity and amplification, it reaches a higher transmission distance of 15 meters
  • Supports high video resolutions up to 1920 x 1200 and 1080p
  • It supports video bandwidth up to 500MHz
Description
The device is a 1x8 VGA splitter with audio. It supports VGA input signal and the stereo audio signal to 8 identical outputs simultaneously. It has ability of buffering and amplifying. Each output of the amplifier splitter can reach long distances VGA signal transmission over 15 meters.
It offers a convenient way to monitor or projector in various situations and is ideal in presentations in conference rooms, schools and during corporate training.

Features
  • Easy to use, installs in seconds, it requires no setting
  • Connects a VGA source to 8 VGA monitor at the same time
  • Connect a stereo audio source to 8 audio receivers at the same time
  • Supports high video resolutions up to 1920 x 1200 and 1080p
  • Supports amplification video bandwidth up to 500MHz
Specifications
  • Input video signal: 1.2 volts p-p
  • Maximum Range single link: 1920 x 1200, 1080p
  • Vertical Frequency Range: 30-170 Hz
  • bandwidth video amplifier Width: 500 Mhz
  • Input Connection: VGA 15 pin male
  • output Connection: VGA 15 pin female
  • Dimensions (WxDxH): 120 x 71 x 24.5 mm
  • Operating Temperature: 0 ? to + 70 ?
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ° C to + 80 ° C
  • Storage Humidity: 5% to 90% RH (non-condensing)
  • External Power Supply: 5V DC @ 2A
  • Consumption: 5W Maximum
in the Box
  • Main Unit
  • VGA Cable M / F 2m
  • DC 5V / 2A
  • Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8054529025817
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 025817
input
Connector A Type VGA format A connector male
Number A Connector 1 Altri Connettori Input 1 connettore audio 3.5" F
output
Connector B Type VGA format B connector female
Number B Connector 8 Altri Connettori Output 8 connettori audio 3.5" F
technical specifications
Typology Splitter Max Video Resolution 1920 x 1200
max bandwidth (MHz) 500 MHz Deep Color -
HDMI - HDCP -
3D compatible - Supported audio standards Yes
Transmission Distance 15 m
power supply
Power supply Requested (included) Consumo energetico 2A
dimensions
Width 120 mm Height 24,5 mm
Depth 71 mm Weight 1.6410
The package includes • Unità principale • Cavo VGA M/F 2mt • Alimentatore DC 5V / 2A • Manuale d'istruzione
