Techly

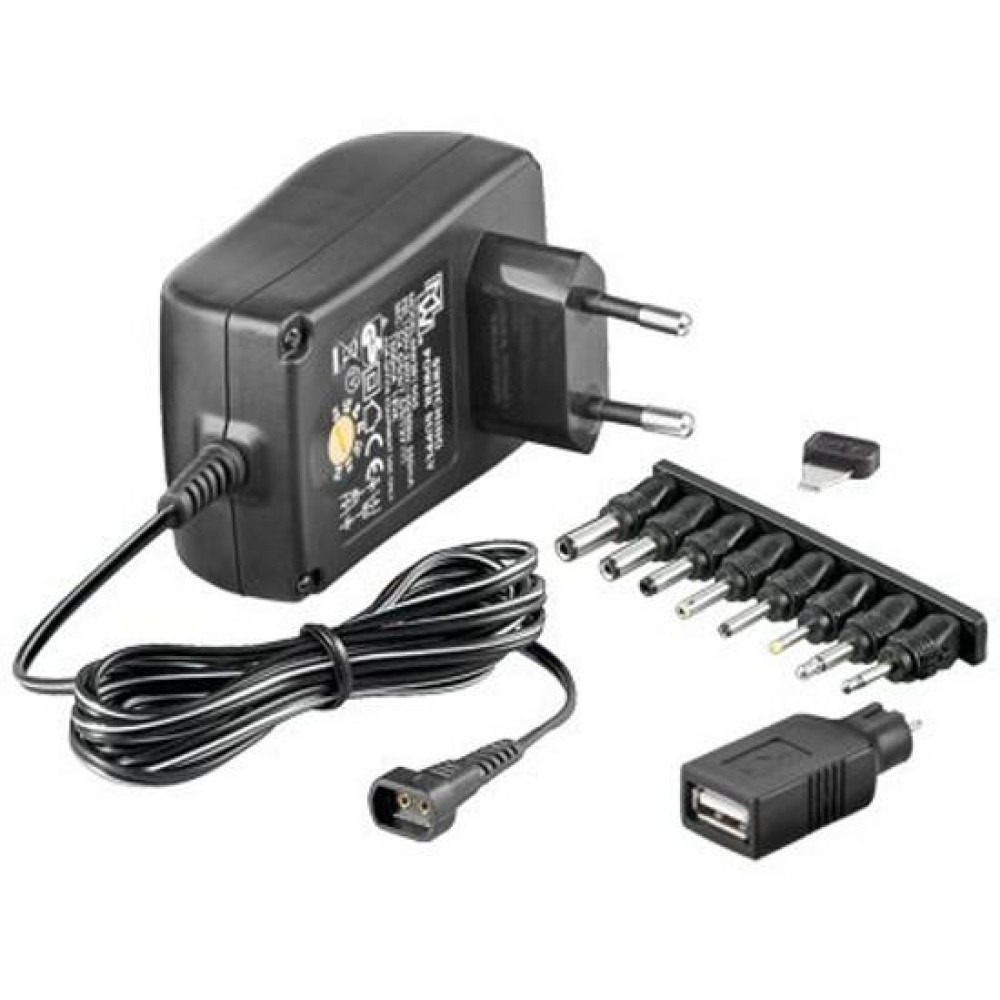

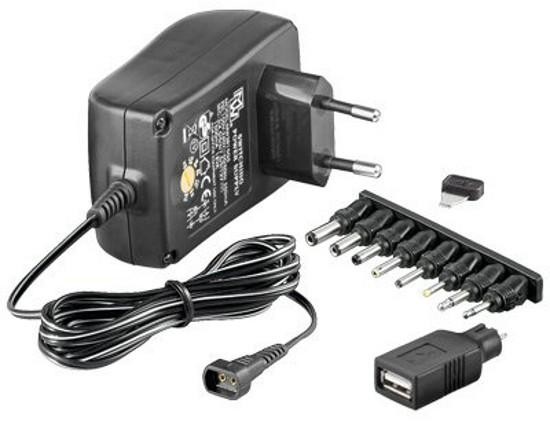

Stabilized Adjustable Power Supply 2250mA

Cod: IPW-NTS2250G

Barcode: 8057685301955

Supplier Code: 301955

Weight: 0.286 Kg

Min. sale unit: 1 Pcs

Package pcs: 40 Pcs

Cod
IPW-NTS2250G
Barcode
8057685301955
Supplier Code
301955
Weight
0.286 Kg
Min. sale unit
1 Pcs
Package pcs
40 Pcs
Connessione USB: Si
LED: Yes
Protezioni: Overcurrent
Protezioni: Overload
Protezioni: Short circuit
This new and compact power adapter already meets the requirements of the powerful new international agreement to reduce emissions in addition to the European standards. The purpose of these standards is a reduction of the appliances on stand-by for the reduction of CO² emissions. It allows energy savings of up to 90% in 'stand-by-mode' than standard power supplies conventional and save up to 30% energy under load.

Characteristics
  • Input voltage 100-240V AC
  • Output voltage selectable from 3 / 4.5 / 5/6 / 7.5 / 9/12 V DC
  • Maximum output power 27W
  • Output current: 2250 mA
  • AC Plug Type: European
  • Version-stabilized
  • Interchangeable DC Plug: 9
  • Protection against overload, over-current, over temperature
Specification
  • Input voltage 100-240 VAC
  • Output voltage 3-12 V DC
  • Output current up to 2250 mA
  • Plug European type
  • Version stabilized
  • Includes 9 interchangeable connector tips:
- 2.5 mm plug
- 3.5 mm plug
- 3.5 x 1.35mm DC plug
- 5.0 x 2.1 mm DC plug
- 5.5 x 1.5 mm DC plug
- 5.5 x 2.5 mm DC plug
- 5.5 x 2.1 mm DC plug
- 4.0 x 1.7 mm DC plug
- USB connector
  • Switching Adapter: yes
  • Short circuit protection: yes
  • Overload protection: yes
  • Over current protection: yes
  • Over voltage protection: no
  • Overheat protection: yes
  • Cable length: 180 cm
  • Stand-by consumption: 0.3 W
  • Power LED
  • Dimensions: 88 x 51 x 42 mm
Package Contents
  • Power adjustable 2250mA stabilized
  • 9 Interchangeable Plugs
  • User manual
Description
This new and compact power adapter already meets the requirements of the powerful new international agreement to reduce emissions in addition to the European standards. The purpose of these standards is a reduction of the appliances on stand-by for the reduction of CO² emissions. It allows energy savings of up to 90% in 'stand-by-mode' than standard power supplies conventional and save up to 30% energy under load.

Characteristics
  • Input voltage 100-240V AC
  • Output voltage selectable from 3 / 4.5 / 5/6 / 7.5 / 9/12 V DC
  • Maximum output power 27W
  • Output current: 2250 mA
  • AC Plug Type: European
  • Version-stabilized
  • Interchangeable DC Plug: 9
  • Protection against overload, over-current, over temperature
Specification
  • Input voltage 100-240 VAC
  • Output voltage 3-12 V DC
  • Output current up to 2250 mA
  • Plug European type
  • Version stabilized
  • Includes 9 interchangeable connector tips:
- 2.5 mm plug
- 3.5 mm plug
- 3.5 x 1.35mm DC plug
- 5.0 x 2.1 mm DC plug
- 5.5 x 1.5 mm DC plug
- 5.5 x 2.5 mm DC plug
- 5.5 x 2.1 mm DC plug
- 4.0 x 1.7 mm DC plug
- USB connector
  • Switching Adapter: yes
  • Short circuit protection: yes
  • Overload protection: yes
  • Over current protection: yes
  • Over voltage protection: no
  • Overheat protection: yes
  • Cable length: 180 cm
  • Stand-by consumption: 0.3 W
  • Power LED
  • Dimensions: 88 x 51 x 42 mm
Package Contents
  • Power adjustable 2250mA stabilized
  • 9 Interchangeable Plugs
  • User manual
Data sheet
general
Brand TECHLY Barcode 8057685301955
Color Black Weight 0.2860
The package includes Alimentatore regolabile 2250mA Stabilizzato 9 Spinotti intercambiabili Manuale d'istruzione Codice Fornitore 301955
input
Input voltage 100/240 V AC Frequency -
output
Output voltage 3 V , 4, 5 V , 6 V , 7, 9 V , 12 V Ampere output 2.2 A
Power 27 W Standby consumption 0,3 W
Current output 2250 mA
connections
Connessioni ingresso - 2.5 mm plug - 3.5 mm plug - 3.5 x 1.35 mm DC plug - 5.0 x 2.1 mm DC plug - 5.5 x 1.5 mm DC plug - 5.5 x 2.5 mm DC plug - 5.5 x 2.1 mm DC plug - 4.0 x 1.7 mm DC plug Number of power connectors -
USB connection Si
technical specifications
LED Yes Stabilized Yes
Promotion Overcurrent, Overheating, Overload, Short circuit
dimensions
Height 88 mm Width 51 mm
Depth 42 mm Cable length -
