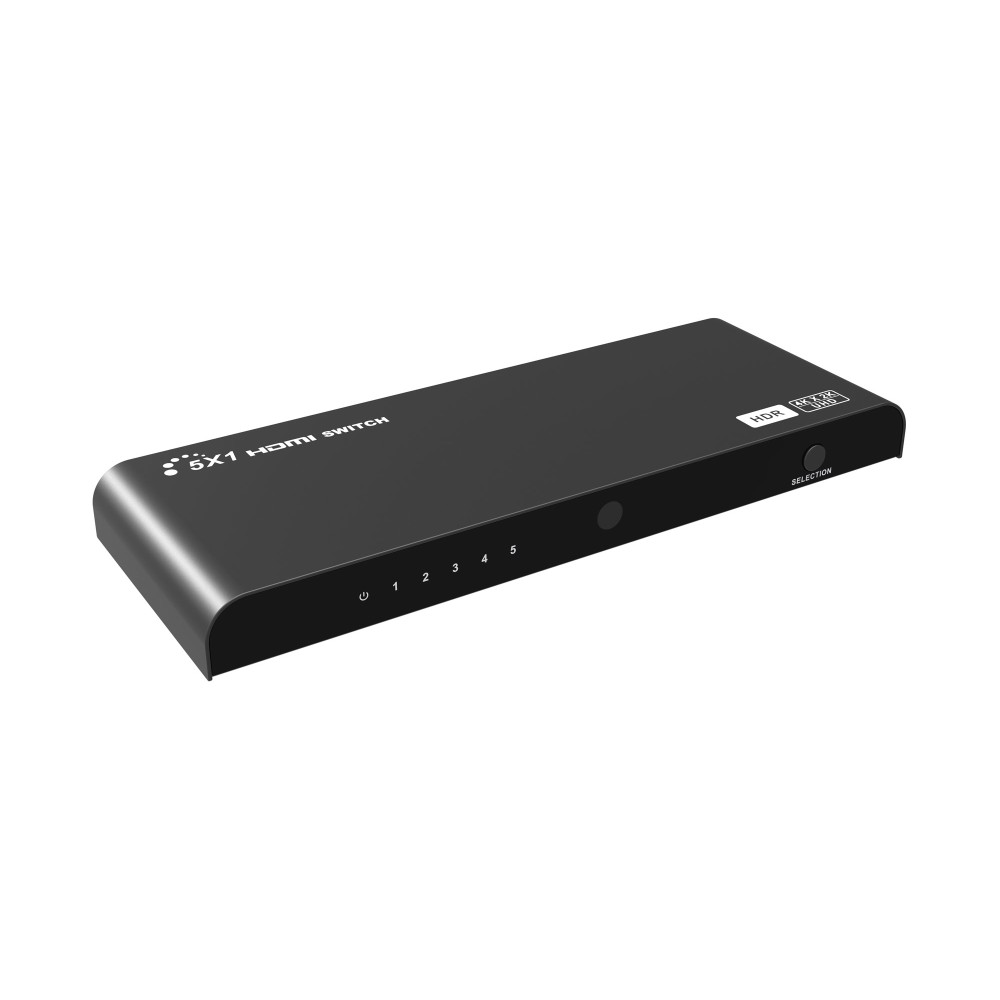

Switch HDMI 2.0 5 ports HDR

Cod: IDATA HDMI2-4K51HDR

Barcode: 8051128104936

Supplier Code: 104936

Weight: 0.791 Kg

Min. sale unit: 1 Pcs

Package pcs: 10 Pcs

NO LONGER AVAILABLE
This product has been replaced by IDATA HDMI2-4K5160, or search in the category Audio Video Extender for a product that meets your needs.

Go to category
Find Audio Video Extender
right for you
Configure now
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 2.2
Compatibile 3D: Yes
  • Switch HDMI 2.0 5 ports HDR
  • Switch easily between any 5 HDMI sources
  • Supports resolution up to ultra HD 4Kx2K@60Hz and highest bandwidth up to 18 Gbps
  • Supports HDR
  • Supports HDMI 3D
  • Supports IR control and RS232
  • Plug and play, easy to use
  • Metal heat sink design, works more stably
Description
This switch routes 5 differents sources at resolution of up to 4Kx2K@60Hz ultra HD to a HDTV display. The unit with 5 HDMI inputs, which makes this unit ideal for simultaneous connection of multiple HDMI device, such as HDTV, Set Top Box, DVD etc. In addition, this unit with IR receiving window and RS232 port, thus it is easy and flexible to control the input signal as you need. It is perfect for security system, medium entertainment, conference exhibition center and digital monitoring system etc.

Features
  • Switch easily between any 5 HDMI sources
  • Supports resolution up to ultra HD 4Kx2K@60Hz and highest bandwidth up to 18 Gbps
  • Supports HDR
  • Supports HDMI 3D
  • Supports IR control and RS232
  • Plug and play, easy to use
  • Metal heat sink design, works more stably

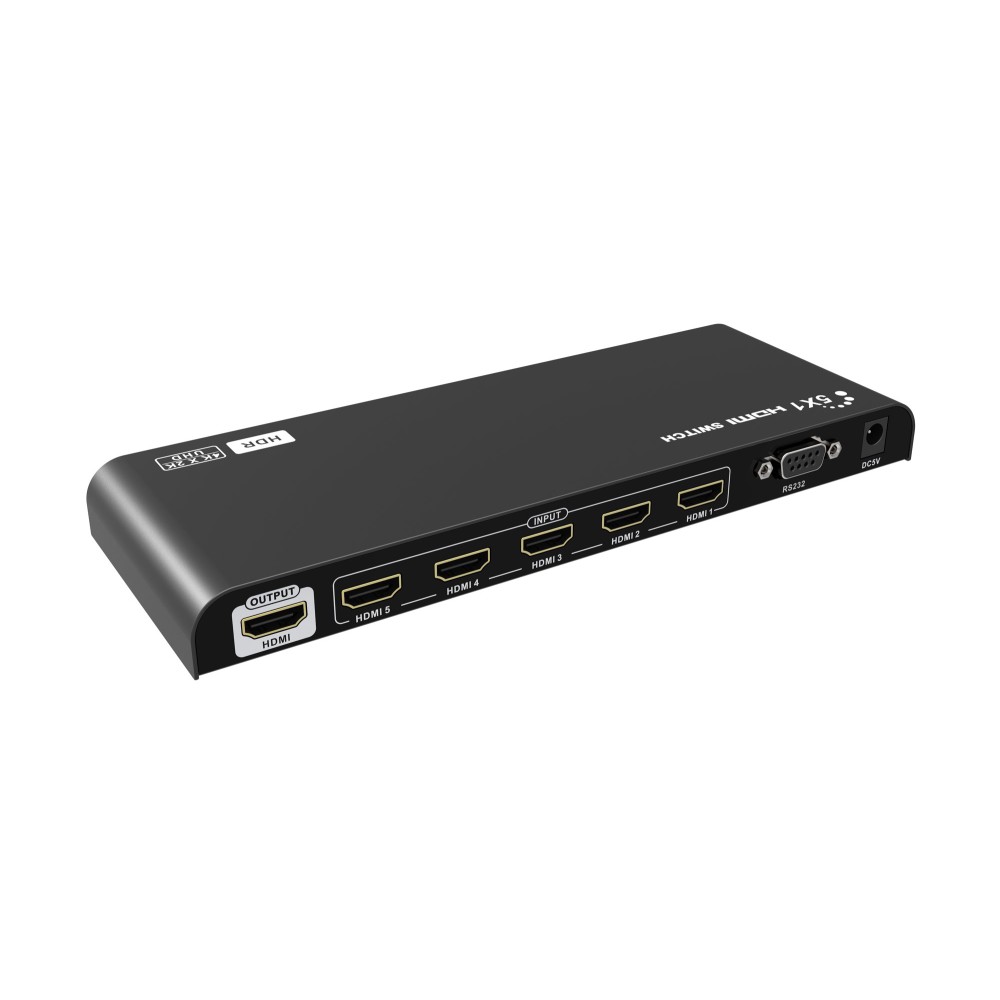

Technical specifications
  • 5 HDMI input
  • 1 HDMI output
  • HDMI Version: compatible with DVI1.0, HDMI1.4, HDMI2.0
  • HDCP Version: compatible with HDCP1.4, HDCP2.2
  • Supports 12 bit full HD Video, 3D Video and 4Kx2K@30/60Hz ultra HD Video
  • Input/Outpu TMDS signal: 0.7 ~ 1.2Vp-p
  • Supports Standard Audio DSD (Direct Stream Digital) and HD(HBR) audio
  • HDMI resolution: 480i/480p/576i/576p/720p/10801/1080p/4Kx2K@24/25/30/60Hz
  • Operative temperature: 0°C ~ 60°C
  • Power supply: DC5V/1A
  • Power consumption: < 5W
  • Color: black
Package content
  • 1 x Switch
  • 1 x Remote controller
  • 1 x 5V/1A Power Adapter
  • 1 x User Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128104936
Color Black Codice Fornitore 104936
input
Connector A Type HDMI format A connector female
Number A Connector 5 Altri Connettori Input • 1 x porta RS232 • 1 x ingresso alimentatore
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Switch Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 18 Gbps Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible Yes Supported audio standards Yes
Transmission Distance -
power supply
Power supply Requested (included) Consumo energetico < 5W
dimensions
Width 218 mm Height 20.5 mm
Depth 78.8 mm Weight 0.7910
The package includes • 1 x Switch • 1 x Telecomando • 1 x Adattatore 5V/1A • 1 Manuale d'istruzioni
