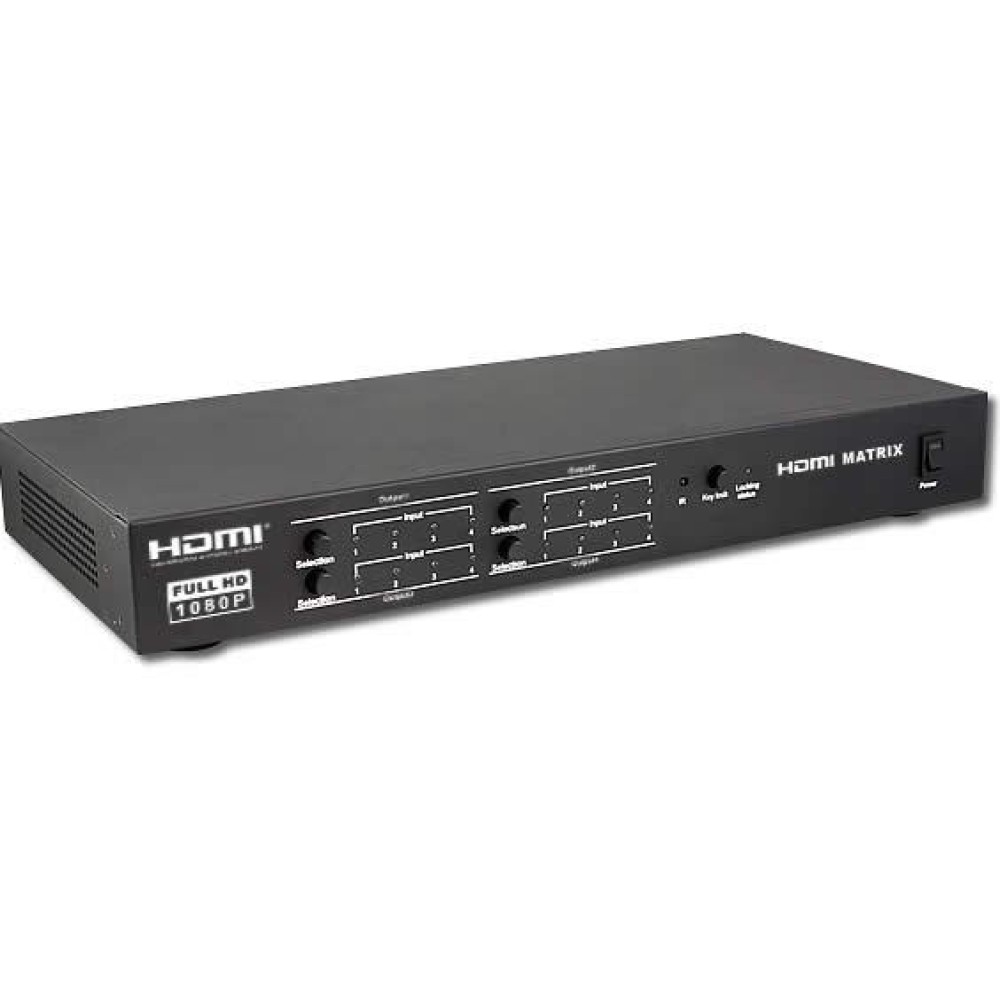

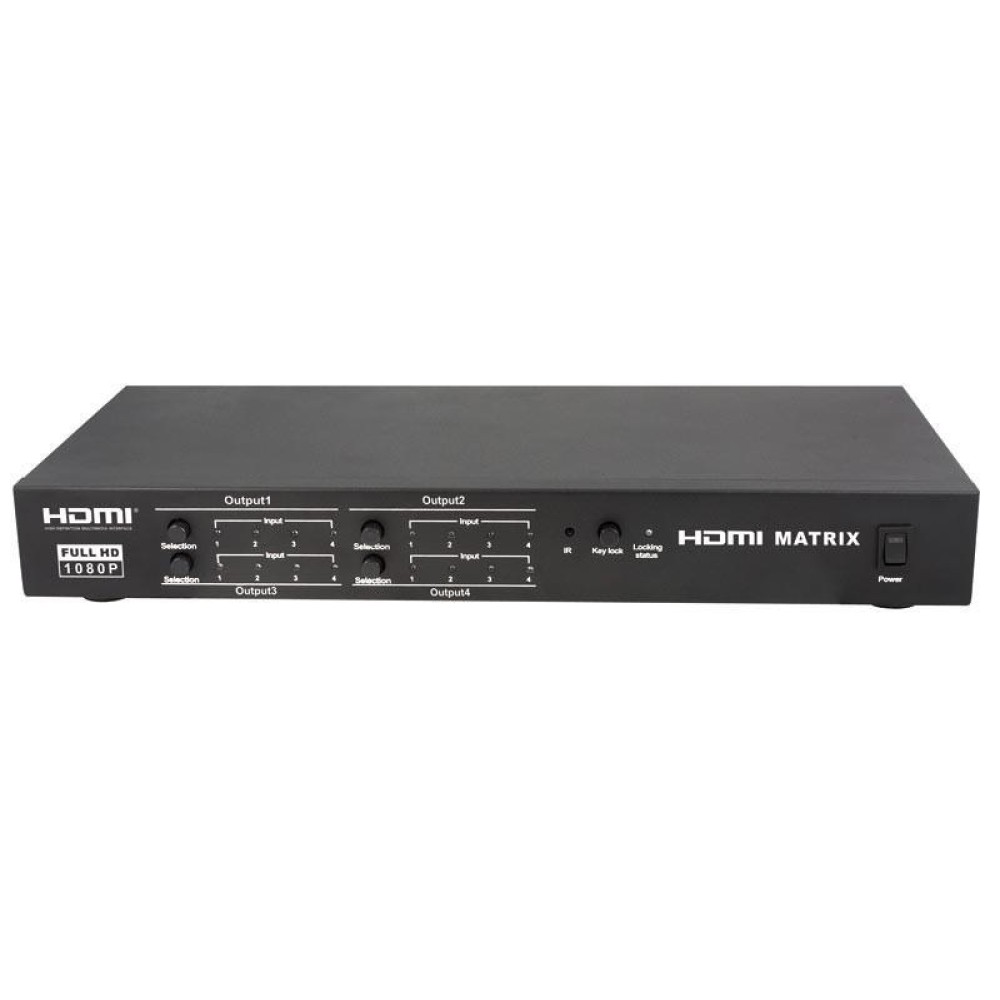

Switch HDMI 3D 4IN 4 OUT with Remote Control and RS232

Cod: IDATA HDMI-VS344

Barcode: 8054529022960

Supplier Code: 022960

Weight: 3.518 Kg

Min. sale unit: 1 Pcs

Package pcs: 4 Pcs

Cod
IDATA HDMI-VS344
Barcode
8054529022960
Supplier Code
022960
Weight
3.518 Kg
Min. sale unit
1 Pcs
Package pcs
4 Pcs
Tipo connettore A: HDMI
Tipo connettore B: HDMI
HDCP: 1.2
Compatibile 3D: Yes
IDATA HDMI VS-344 is a HDMI Matrix Switch 4-way that allows one of the input sources to be displayed simultaneously on 4 displays.
It offers an ideal solution for HD video conference rooms, supermarkets, shopping centers, showrooms, etc.

Features
  • Switch HDMI 1.3 which allows you to share 4 HDMI sources to four HD monitors
  • Supports 1080p video resolution, 1080i, 720p and 720i
  • Supports 3D 1080P 24HZ
  • Multiple switching modes: IR remote control, manually or via RS232 port
  • With IR extender for amplifying the remote control signal
  • Provided with mounting kit and screws for fixing to the rack
  • incoming video signal: 0.5-1.0 volts p-p
  • Video DDC Signal: 5 volts p-p (TTL)
  • maximum signal transmission: up to 10 meters of 28AWG cable and 15 meters of 26AWG cable (for further distances the HDMI extender is optional)
  • Supports HDCP 1.2
  • Power Consumption: MAX. 36W
  • Power supply: 12V DC, 3A
Dimensions
  • Width: 44 cm
  • Height: 7 cm
  • depth 20 cm
Package Contents
  • Switch 4 in 4 out
  • IR Extender
  • Software CD
  • Power supply
  • Remote control
  • Mounting kits for fixing screws and rack
  • User manual
Description
IDATA HDMI VS-344 is a HDMI Matrix Switch 4-way that allows one of the input sources to be displayed simultaneously on 4 displays.
It offers an ideal solution for HD video conference rooms, supermarkets, shopping centers, showrooms, etc.

Features
  • Switch HDMI 1.3 which allows you to share 4 HDMI sources to four HD monitors
  • Supports 1080p video resolution, 1080i, 720p and 720i
  • Supports 3D 1080P 24HZ
  • Multiple switching modes: IR remote control, manually or via RS232 port
  • With IR extender for amplifying the remote control signal
  • Provided with mounting kit and screws for fixing to the rack
  • incoming video signal: 0.5-1.0 volts p-p
  • Video DDC Signal: 5 volts p-p (TTL)
  • maximum signal transmission: up to 10 meters of 28AWG cable and 15 meters of 26AWG cable (for further distances the HDMI extender is optional)
  • Supports HDCP 1.2
  • Power Consumption: MAX. 36W
  • Power supply: 12V DC, 3A
Dimensions
  • Width: 44 cm
  • Height: 7 cm
  • depth 20 cm
Package Contents
  • Switch 4 in 4 out
  • IR Extender
  • Software CD
  • Power supply
  • Remote control
  • Mounting kits for fixing screws and rack
  • User manual
Data sheet
general
Brand TECHLY NP Barcode 8054529022960
Color Black Codice Fornitore 022960
input
Connector A Type HDMI format A connector female
Number A Connector 4 Altri Connettori Input 1x RS232
output
Connector B Type HDMI format B connector female
Number B Connector 4
technical specifications
Typology Switch Max Video Resolution 1080i , 1080p, 720i , 720p
max bandwidth (MHz) - Deep Color -
HDMI 1.3 HDCP 1.2
3D compatible Yes Supported audio standards Yes
Transmission Distance 15 m
power supply
Power supply Requested (included) Consumo energetico 12V DC, 3A
dimensions
Width 44 cm Height 7 cm
Depth 20 cm Weight 3.5180
The package includes • Switch 4 in 4 out • Extender IR • CD software • Alimentatore • Telecomando • Kit di montaggio e viti per fissaggio a rack • Manuale d'uso
