Techly

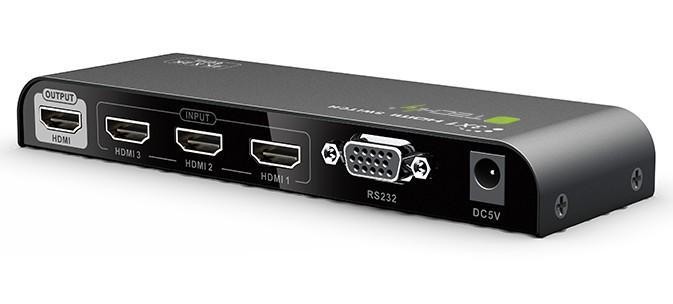

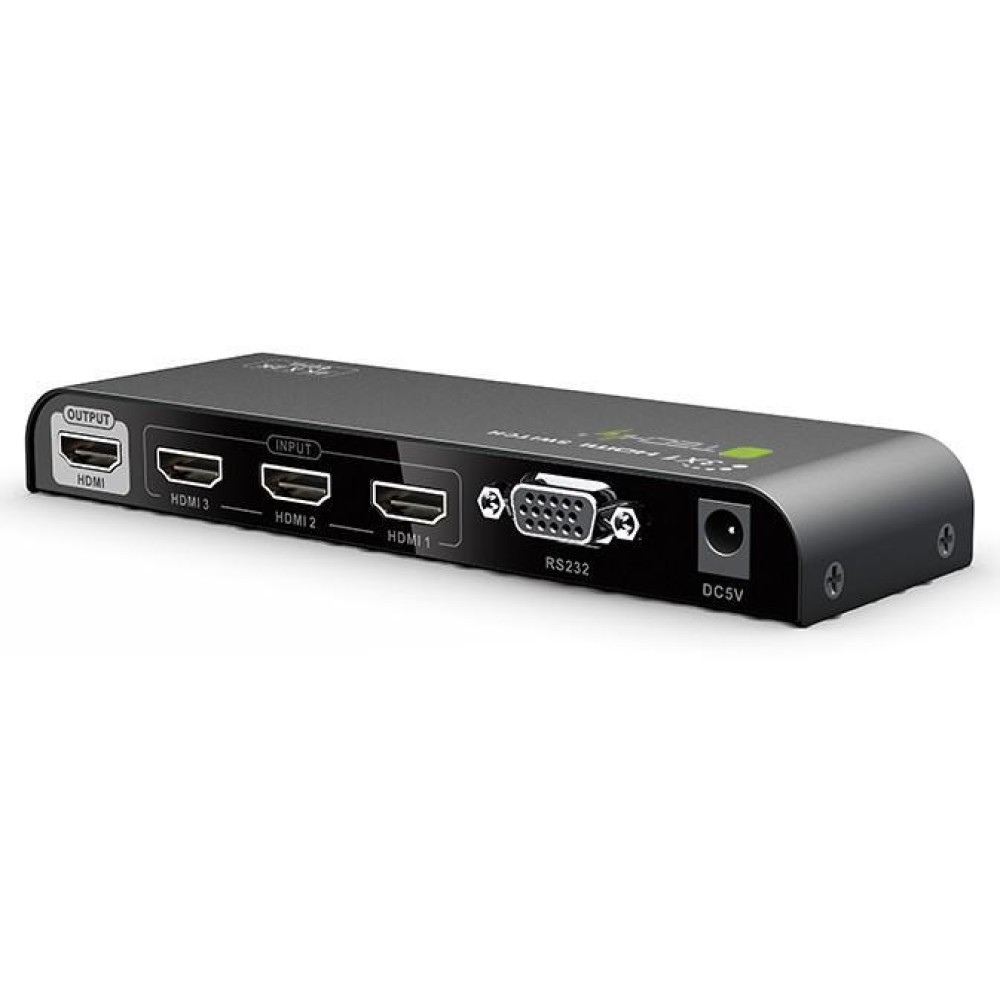

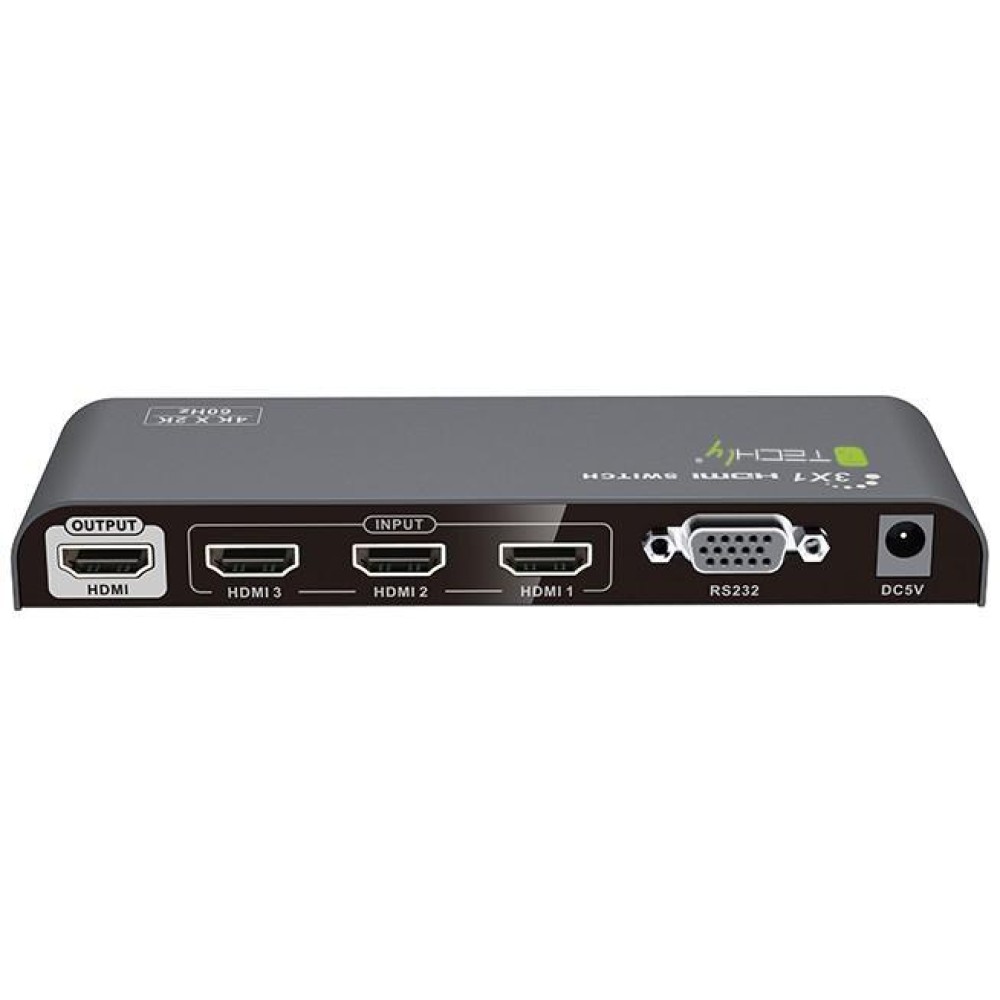

HDMI2.0 Switch 3 ports 4K UHD 3D, RS232, Remote Control

Cod: IDATA HDMI2-4K31

Barcode: 8054529025442

Supplier Code: 025442

Weight: 0.528 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IDATA HDMI2-4K31
Barcode
8054529025442
Supplier Code
025442
Weight
0.528 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Certificazioni: CE
Certificazioni: RoHS
Certificazioni:
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: 1080p
Risoluzione Video Max: 720p
HDCP: 2.2
Compatibile 3D: Yes
  • Switch HDMI 2.0 lets you share HDMI sources with a single HD monitor
  • Allows you to switch between 3 HDMI sources such as BlueRay player, DVD player and various game console to a TV with HDMI input with ease
  • It transmits both digital and audio signals through the HDMI connection; HDMI supports 3D
  • Supports resolutions up to Ultra HD 4Kx2K @ 60Hz
  • Supports maximum bandwidth of up to 18Gbps
  • The selection is made by remote control and an LED indicates which input is selected
  • Supports IR and RS232 control
  • Dimensions: 160 x 51.5 x 20 mm; Black Colour
Description
Switch HDMI v.2.0 3x1, able to handle 3 different sources with ultra HD resolution up to 4Kx2K @ 60Hz with a 3D HDMI monitor.
And 'ideal for simultaneous connection of multiple HDMI devices, such as HDTV, set top box, DVD etc. It also comes with IR reception and RS232 port, thus making it easy and flexible control of the input signal. And 'perfect as a security system, media entertainment, exhibition and conference center of the digital control system.

Features
  • Switch HDMI 2.0 lets you share HDMI sources with a single HD monitor
  • Allows you to switch between 3 HDMI sources such as BlueRay player, DVD player and various game console to a TV with HDMI input with ease
  • It transmits both digital and audio signals through the HDMI connection
  • Supports resolutions up to Ultra HD 4Kx2K @ 60Hz
  • Supports maximum bandwidth of up to 18Gbps
  • Supports HDMI 3D
  • The selection is made by remote control and an LED indicates which input is selected
  • Supports RS232 control
  • Black Colour
Connection
  • 1 Input DDC Signal: 5V
  • Inputs 3 HDMI female
  • 1 output HDMI female
Applications
  • Source Device: PS3, top box, PC etc. with HDMI / SDI / DVI / VGA output interface
  • Video Device: TV, video projector etc. with HDMI / SDI / DVI / VGA input interface
Specifications
  • 1x LED power indicator
  • 3x LED signal indicator
  • Compatible with DVI 1.0, HDMI 1.4, HDMI 2.0, HDCP 1.4, HDCP 2.2
  • Video Format: full HD 12-bit, 3D and Ultra HD 4Kx2K @ 30 / 60Hz
  • Input and output signal TMDS 0.5 ~ 1.5VP-p (TMDS)
  • DDC 5Vp-p input and output (TTL)
  • Supports standard audio, DSD (Direct Stream Digital) and HD audio (HBR)
  • Resolution HDMI 480i / 480p / 756th / 756p / 720p / 1080i / 1080p / 4Kx2K @ 24/25/30 / 60Hz
  • Power supply DC5V / 1A
  • Power consumption < 5W
environmental features
  • Operating Temperature: 0 to +60 ° C
  • Operating Humidity: 10% to 80% RH (non-condensing)
  • Storage temperature: -10 to +80 ° C
  • Storage Humidity: 5% to 90% RH (non-condensing)
Size
  • Width: 160 mm
  • Depth: 51.5 mm
  • Height: 20 mm
  • Weight: 230 g
Certificates
  • CE
  • FCC
  • RoHS
  • WEEE
in the Box
  • HDMI Switch 3 In 1 Out
  • Remote control (battery included)
  • Power supply
  • User manual
Data sheet
general
Brand TECHLY Barcode 8054529025442
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 025442
input
Connector A Type HDMI format A connector female
Number A Connector 3 Altri Connettori Input 1 Ingresso segnale DDC: 5V
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Switch Max Video Resolution 1080i , 1080p, 480p , 720p , Ultra HD 4K 2160p
max bandwidth (MHz) - Deep Color -
HDMI 2.0 HDCP 2.2
3D compatible Yes Supported audio standards Yes
Transmission Distance -
power supply
Power supply Requested (included) Consumo energetico <5W
dimensions
Width 160 mm Height 20 mm
Depth 51.5 mm Weight 0.5280
The package includes • Switch HDMI 3 in 1 out • Telecomando (batteria inclusa) • Manuale d'uso
