Switch with Remote Control 3 input 1 output HDMI

Cod: IDATA HDMI-31U

Barcode: 8057685305427

Supplier Code: 305427

Weight: 0.158 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
IDATA HDMI-31U
Barcode
8057685305427
Supplier Code
305427
Weight
0.158 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Tipo connettore A: HDMI
Tipo connettore B: HDMI
Risoluzione Video Max: Ultra HD 4K 2160p
HDCP: 1.4
Compatibile 3D: Yes

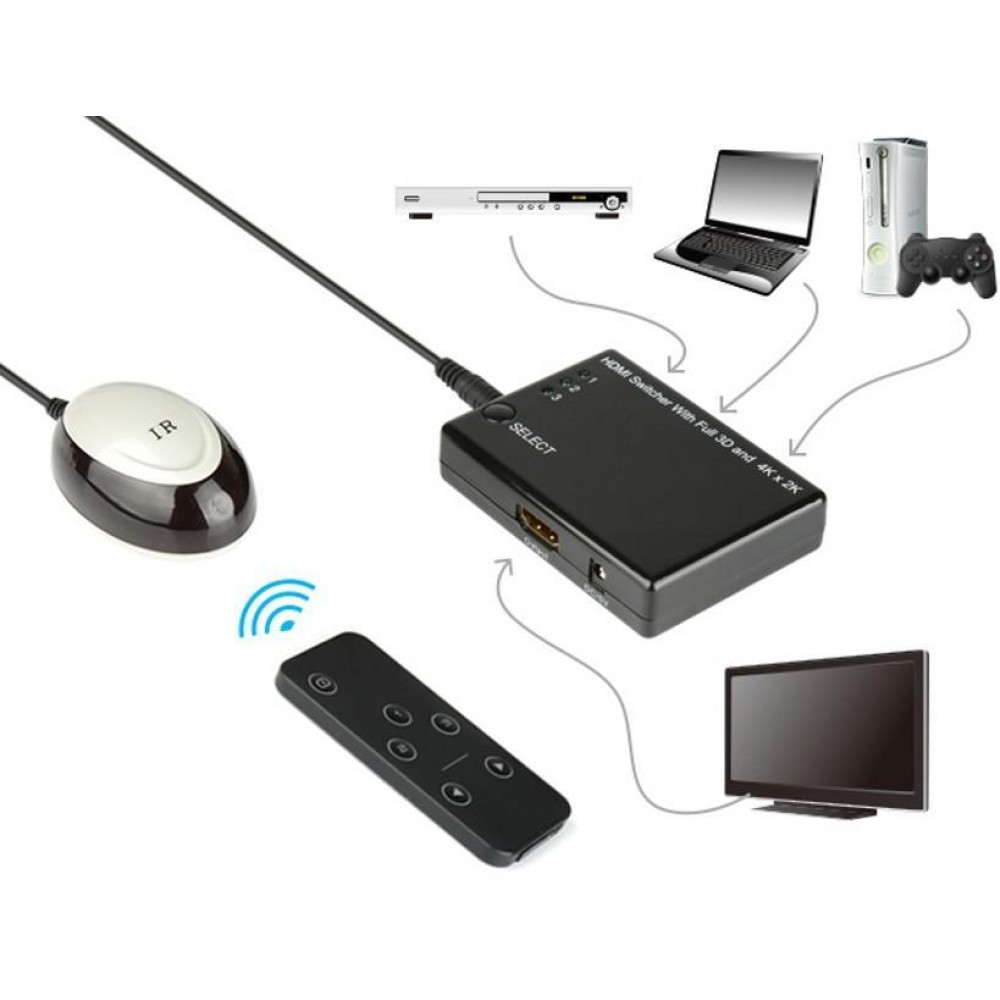

  • Mini HDMI Amplifier Switch 3 in 1 out
  • Allows you to move easily between three HDMI sources
  • Operates up to 3.4 Gbps per channel (10.2Gbps all channel).
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports 3D and 4K * 2K - Resolution 24Hz bandwidth up to 340MHz
  • Supports up to 48-bits per pixel Deep Color
  • HDCP pass-through
  • Includes remote control and IR extender receiver
Connections
  • 1 Input DDC Signal: 5 V
  • 3 HDMI Inputs female
  • 1 HDMI female
Operating Frequency
  • Frequency range: 24/30/50 / 60Hz
  • Video Amplifier Bandwidth: 3.4Gbps / 340MHz
Resolutions (HDTV)
  • Interlaced (50-60Hz): 480i, 576i, 1080i
  • Progressive (50-60Hz): 480p, 576p, 720p, 1080p, 2k * 4k
Environmental Characteristics
  • Operating temperature: 0 ℃ to + 70 ℃
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ℃ to + 80 ℃
  • Storage humidity: 5% to 90% RH (non-condensing)
Power Requirements
  • For standard products do not require an external power supply
  • Power Consumption (Max): 1W
Dimensions
  • Width 80 mm
  • Depth 58mm
  • Height 18 mm

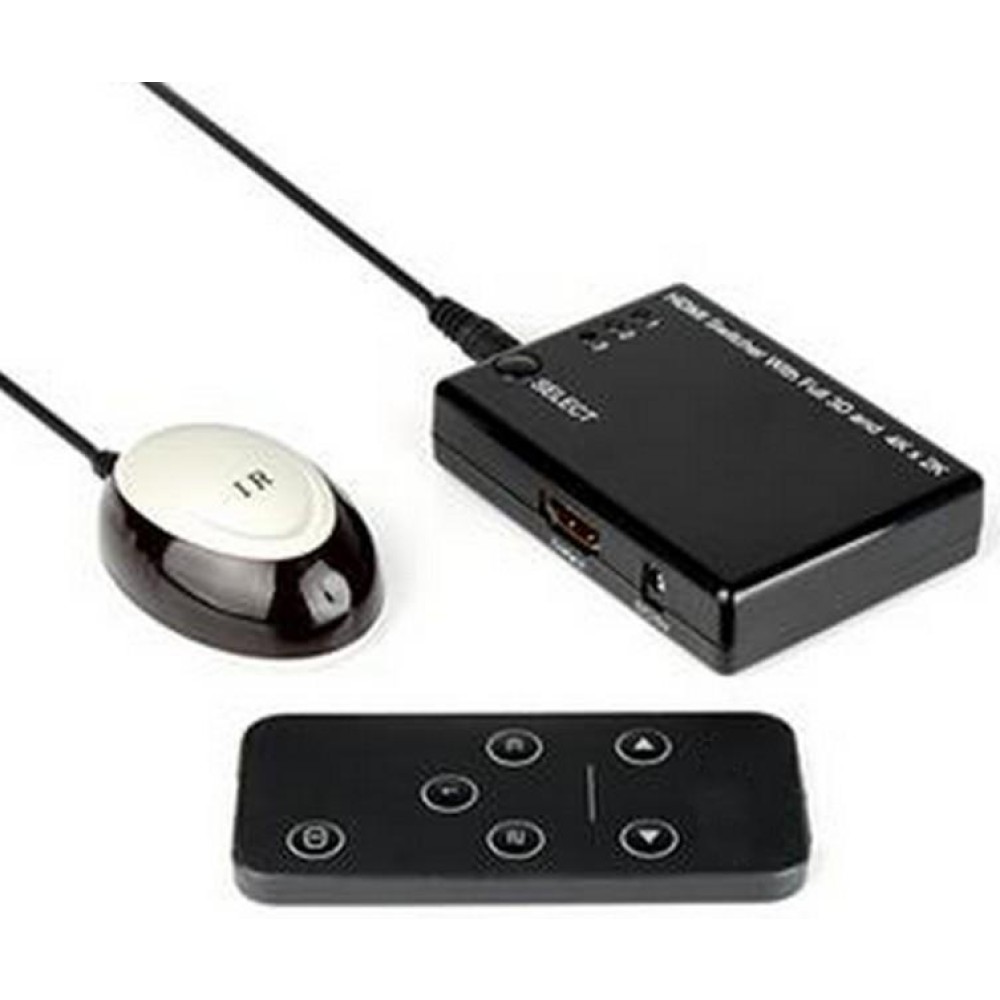

Package Contents
  • HDMI Switch 3 in 1 out
  • Receiver and Remote Control
  • Owner's Manual
Description
  • Mini HDMI Amplifier Switch 3 in 1 out
  • Allows you to move easily between three HDMI sources
  • Operates up to 3.4 Gbps per channel (10.2Gbps all channel).
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Supports 3D and 4K * 2K - Resolution 24Hz bandwidth up to 340MHz
  • Supports up to 48-bits per pixel Deep Color
  • HDCP pass-through
  • Includes remote control and IR extender receiver
Connections
  • 1 Input DDC Signal: 5 V
  • 3 HDMI Inputs female
  • 1 HDMI female
Operating Frequency
  • Frequency range: 24/30/50 / 60Hz
  • Video Amplifier Bandwidth: 3.4Gbps / 340MHz
Resolutions (HDTV)
  • Interlaced (50-60Hz): 480i, 576i, 1080i
  • Progressive (50-60Hz): 480p, 576p, 720p, 1080p, 2k * 4k
Environmental Characteristics
  • Operating temperature: 0 ℃ to + 70 ℃
  • Operating Humidity: 10% to 85% RH (non-condensing)
  • Storage temperature: -10 ℃ to + 80 ℃
  • Storage humidity: 5% to 90% RH (non-condensing)
Power Requirements
  • For standard products do not require an external power supply
  • Power Consumption (Max): 1W
Dimensions
  • Width 80 mm
  • Depth 58mm
  • Height 18 mm
Package Contents
  • HDMI Switch 3 in 1 out
  • Receiver and Remote Control
  • Owner's Manual
Data sheet
general
Brand Techly Np Barcode 8057685305427
Color Black Codice Fornitore 305427
input
Connector A Type HDMI format A connector female
Number A Connector 3 Altri Connettori Input 1 connettore 5V
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Switch Max Video Resolution Ultra HD 4K 2160p
max bandwidth (MHz) 340 MHz Deep Color 48 bit
HDMI 2.0 HDCP 1.4
3D compatible Yes Supported audio standards Compressed, not compressed
power supply
Power supply Not required Consumo energetico 1W
dimensions
Width 80 mm Height 18 mm
Depth 58 mm Weight 0.1580
