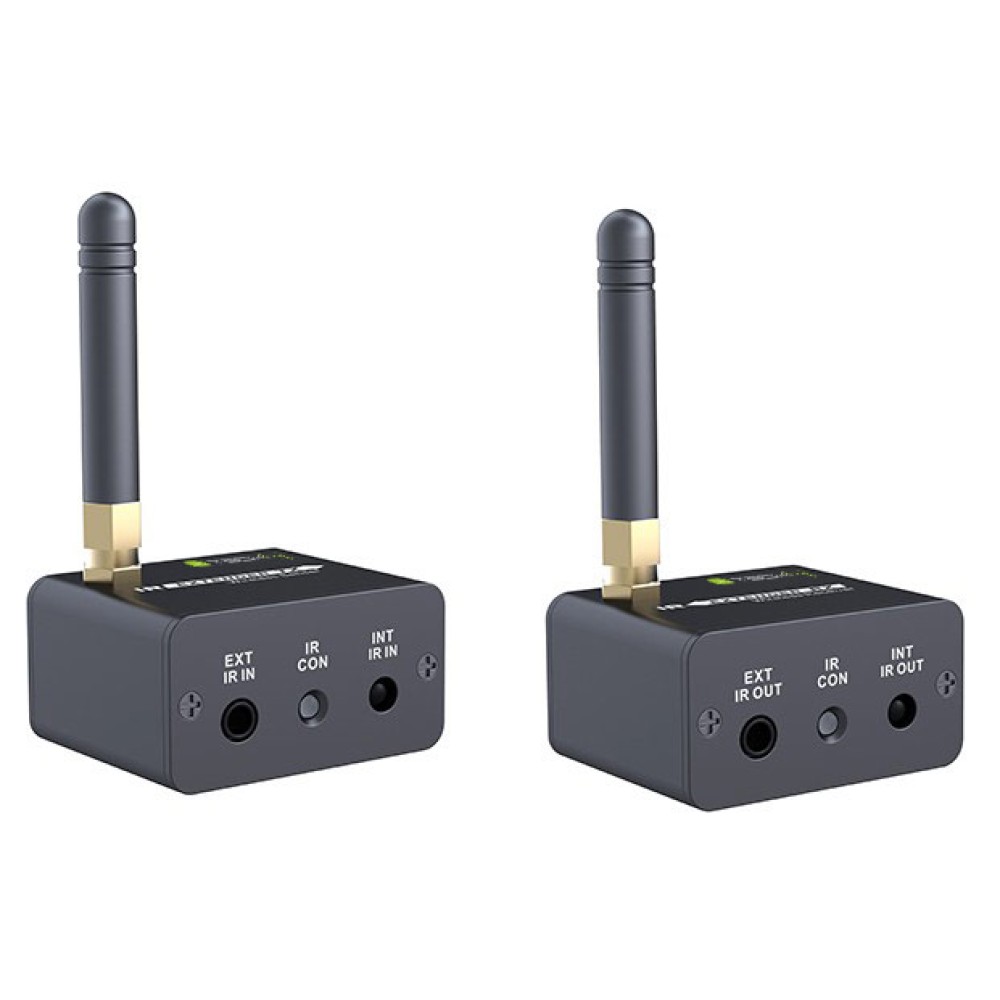

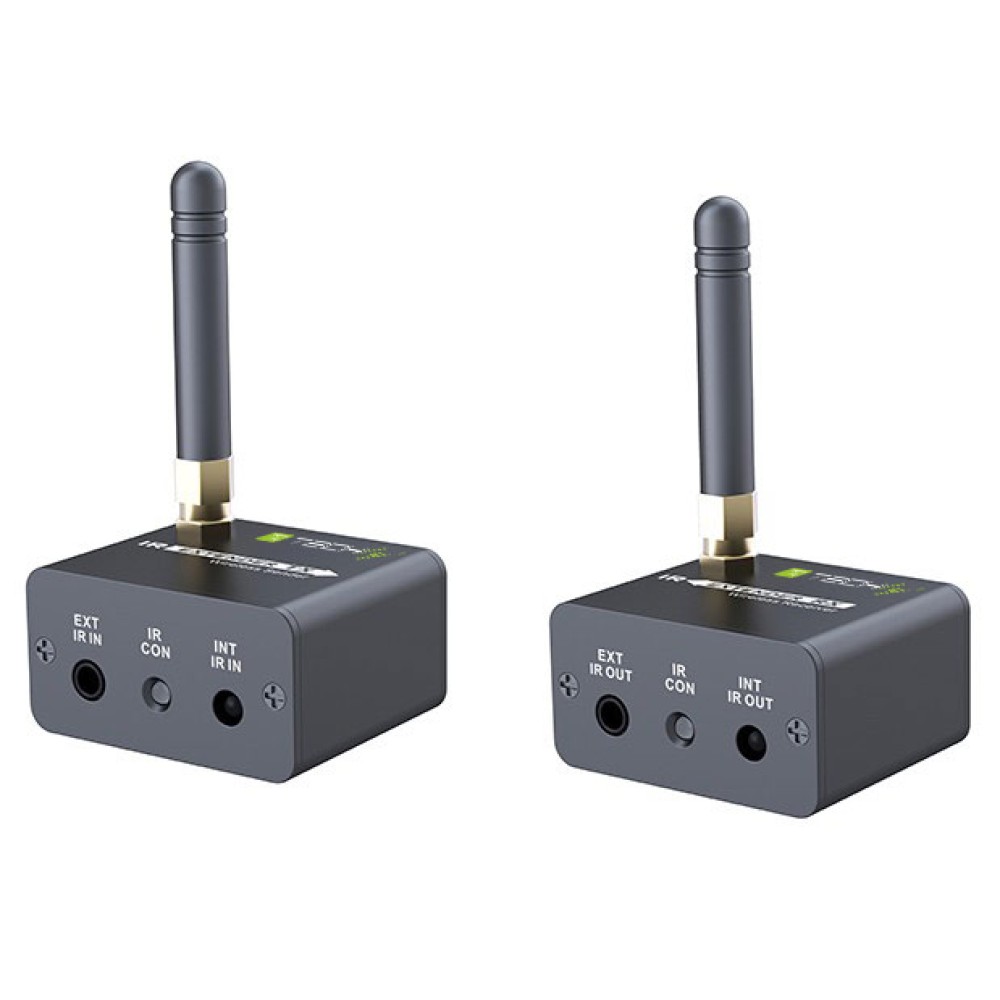

Ultra Compact Wireless IR Extender 200m

Cod: IDATA HDMI-WL88

Barcode: 8051128104356

Supplier Code: 104356

Weight: 0.264 Kg

Min. sale unit: 1 Pcs

Package pcs: 50 Pcs

Cod
IDATA HDMI-WL88
Barcode
8051128104356
Supplier Code
104356
Weight
0.264 Kg
Min. sale unit
1 Pcs
Package pcs
50 Pcs
Tipologia: WiFi
  • Ultra-compact IR wireless extender
  • Portable size design
  • Low energy consumption
  • Metal casing, stable and durable
  • Extend remote control signals wirelessly
  • Includes a transmitter and an IR receiver, working in pairs
  • Wide IR frequency from 20 to 60 KHz, compatible with any device equipped with IR
  • Supports 200m wireless coverage in open spaces
  • Dimensions: 95 x 120.58 x 20.1 mm
Description
  • Ultra-compact IR wireless extender
  • Portable size design
  • Low energy consumption
  • Metal casing, stable and durable
  • Extend remote control signals wirelessly
  • Includes an IR transmitter and an IR receiver, working in pairs
  • Wide IR frequency from 20 to 60 KHz, compatible with any device equipped with IR
  • Supports 200m wireless coverage in open spaces
Technical features
  • Material: aluminum
  • Transmission frequency: 915M
  • IR frequency: 20-60KHz
  • Power gain: 10dBm
  • Transmission distance: 200m
  • Power supply: no power supply connected, use a micro USB cable
  • Energy consumption: TX: < 300 MW; RX: < 300 MW
  • Power supply via supplied DC / USB cables
Size
  • Width: 95 mm
  • Depth: 120.58 mm
  • Height: 20.1 mm
  • Weight: TX: 40g, RX: 40g
Operating temperature
  • Storage temperature: 0 ~ 40°C
  • Storage temperature: -20 ~ 60°C
  • Operating humidity: 10 ~ 90% (without condensation)
Package Contents
  • 1 x Wireless Transmitter
  • 1 Wireless Receiver
  • 1 x IR Blaster cable for receiver
  • 1 x IR Sensor Cable for Transmitter
  • 2 x DC / USB power cable
  • 1 x Instruction Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128104356
Color Black Codice Fornitore 104356
input
Connector A Type IR format A connector female
Number A Connector 1
output
Connector B Type IR format B connector female
Number B Connector 1
technical specifications
Typology WiFi max bandwidth (MHz) -
Deep Color - HDMI -
HDCP - 3D compatible -
Supported audio standards - Transmission Distance 200 m
power supply
Power supply -
dimensions
Width 95 mm Height 20,1 mm
Depth 120,58 mm Weight 0.2640
The package includes • 1 x trasmettitore wireless • 1 ricevitore wireless • 1 x cavo IR Blaster per ricevitore • 1 x cavo sensore IR per trasmettitore • 2 x cavo di alimentazione CC/USB • 1 x Manuale di istruzioni
