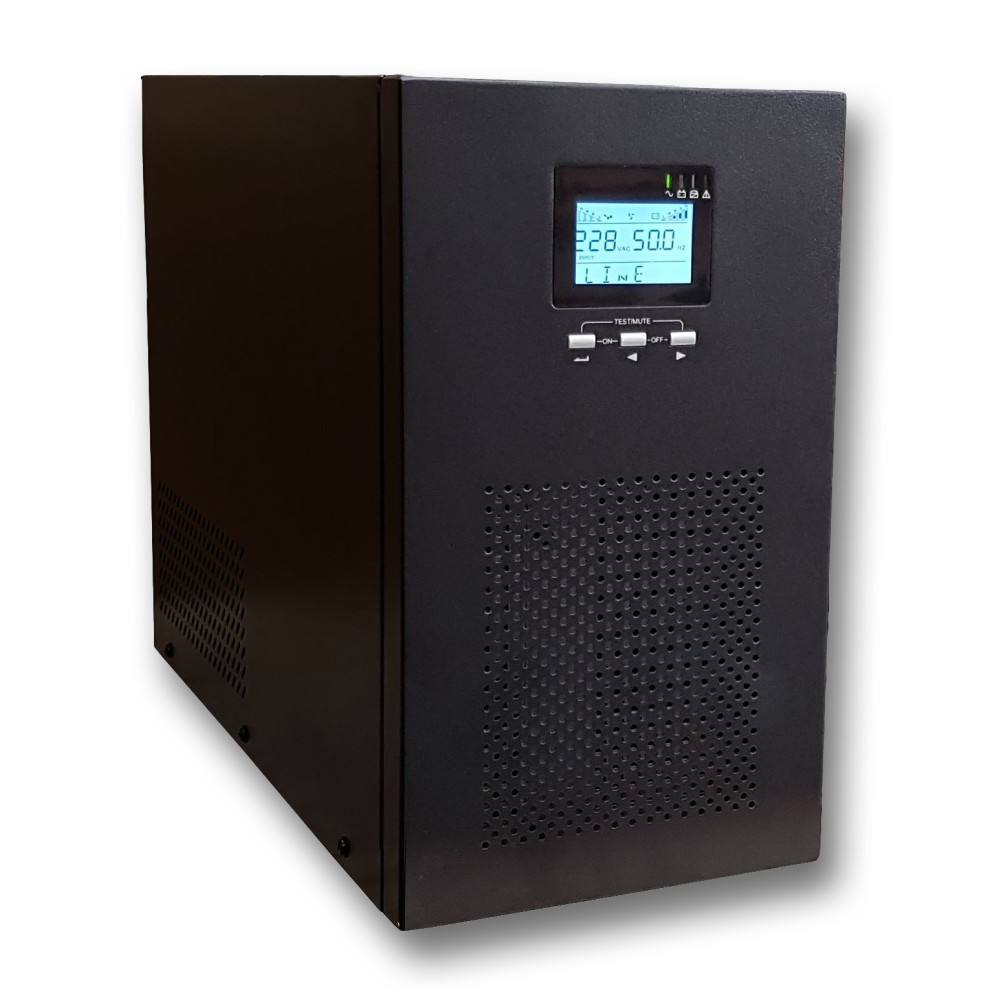

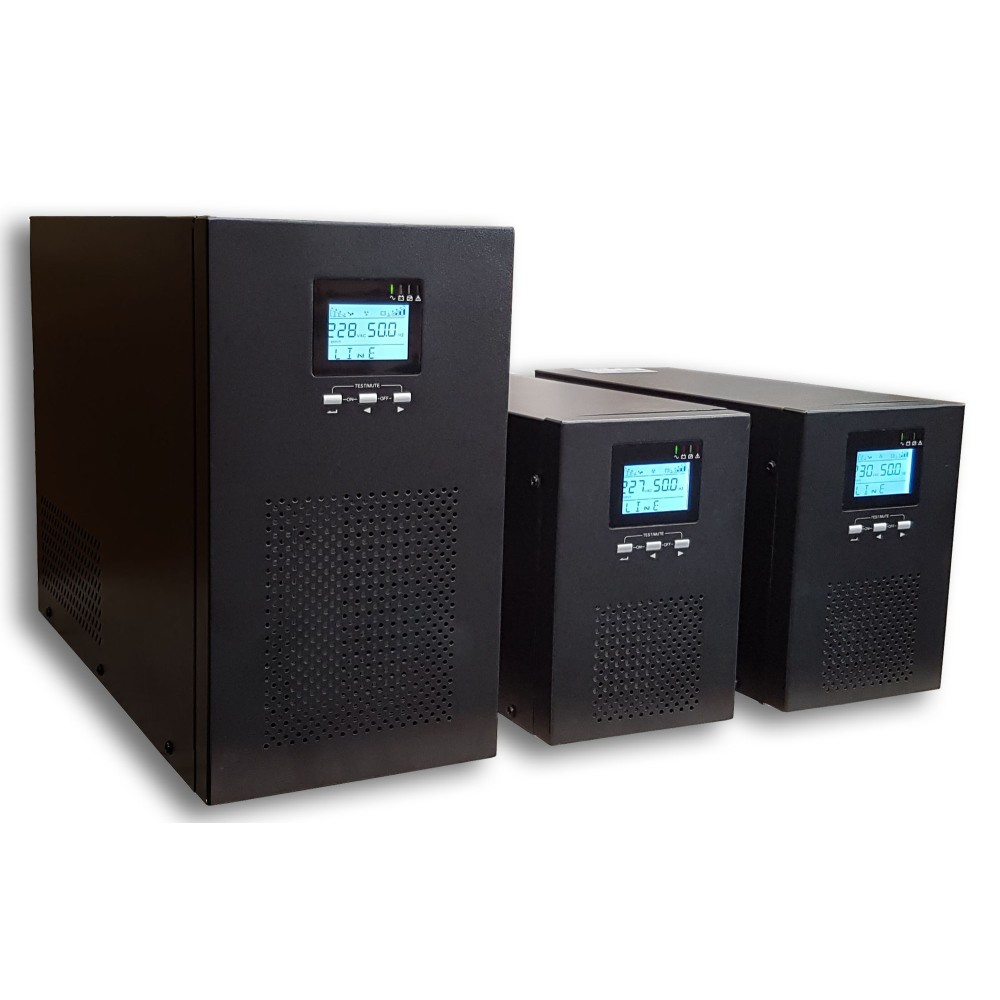

Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave - TECHLY PROFESSIONAL - IUPS-1000-S10-1
Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave - TECHLY PROFESSIONAL - IUPS-1000-S10-1
Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave - TECHLY PROFESSIONAL - IUPS-1000-S10-0
Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave - TECHLY PROFESSIONAL - IUPS-1000-S10-1
Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave - TECHLY PROFESSIONAL - IUPS-1000-S10-2
Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave - TECHLY PROFESSIONAL - IUPS-1000-S10-1
Techly Professional

Uninterruptible Power Supply UPS 1000VA 800W Line Interactive Sine Wave

Cod: IUPS-1000-S10

Barcode: 8051128101836

Supplier Code: 101836

Weight: 14.877 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
IUPS-1000-S10
Barcode
8051128101836
Supplier Code
101836
Weight
14.877 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Certificazioni: CE
Certificazioni: RoHS
Anni di Garanzia: 2
Protezioni: Overvoltage
Protezioni: Short circuit
Display LED: Yes
  • Uninterruptible power supply with rated power 1000VA - 800W Line Interactive UPS
  • 100% sinusoidal waveform
  • Equipped with LED and LCD display with information for input voltage / frequency, battery level voltage / percentage, output voltage / frequency, W / VA load measurements, temperature
  • Equipped with 2 7Ah batteries, they guarantee an autonomy of about 5 '
  • Overload, short circuit, under voltage / battery overload protection
  • Input plug: 1 x IEC 320 C14 10A
  • Output sockets: 3 x IEC 320 C13 10A
  • Telephone network protection through RJ45 connector
  • USB port and slot for SNMP or AS400 cards (optional)
  • Dimensions: 215 x 145 x 350 mm
Description
Compact, silent UPS, the ideal alternative for applications that do not require On Line technology. Suitable for powering computer equipment or to protect instruments, LED lamps, electric gates, telephone switchboards, security systems and video surveillance. Suitable for domestic users and pellet stoves.

Features
  • Uninterruptible power supply with rated power 1000VA - 800W Line Interactive with AVR
  • 100% sinusoidal waveform
  • Equipped with LED and LCD display with information for input voltage / frequency, battery level voltage / percentage, output voltage / frequency, W / VA load measurements, temperature
  • Equipped with 2x 7Ah batteries, they guarantee an autonomy of about 5 minutes
Specifications
  • Nominal input voltage: 175-290 Vac (mains operation), 0-300 Vac (By Pass operation)
  • Frequency: 50/60 Hz self-detection
  • VA / W power: 1000VA / 800W
  • Nominal output voltage: 199-254 Vac (mains operation), 0-300 Vac (By Pass operation), 230 Vac (battery operation)
  • Waveform: pure sine wave
  • Switching time: ≤8ms
  • DSP digital control
  • AVR voltage stabilizer
  • Wide Range Input function - wide input voltage tolerance without battery intervention
  • Automatic recognition of input frequency and selection of output frequency
  • Auto Switching function: automatic ignition in the presence of electricity
  • Auto Restart function: automatic reset when mains return
  • Cold Start function: possibility of starting from battery
  • Possibility of setting battery charge current and end-of-discharge voltage; battery discharge end voltage setting
  • Battery recharging even when the UPS is off
  • Energy saving function and load shutdown
  • Overload, short circuit, under voltage / battery overload protection
Links
  • Input plug: 1 x IEC 320 C14 10A
  • Output sockets: 3 x IEC 320 C13 10A
  • Equipped with LED and LCD display for input voltage / frequency, battery level voltage / percentage, output voltage / frequency, W / VA load measurements, temperature
  • Telephone network protection through RJ45 connector
  • USB port and slot for SNMP or AS400 cards (optional)
Physical characteristics
  • Dimensions: 215 x 145 x 350 mm
  • Operating temperature: 0-40 °C
  • Relative humidity: 10-90% RH non-condensing
  • Black colour
Package Contents:
  • 1000VA UPS
  • 1 10A input cable
  • 1 10A output cable
  • 1 USB cable and software
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128101836
Weight 14.8770 Certifications CE , RoHS
Years of Warranty 2 Codice Fornitore 101836
technical specifications
UPS technology Line Interactive Waveform Sinusoidale pura
VA power 1000 VA Tipologia Desktop - Tower
Power factor 0,8 Promotion Linea Tel./ADSL , Overcurrent, Overvoltage, Short circuit
Input Plugs 1 IEC 320 C14 Output Socket 3 prese IEC 320 C13 10A + RJ45
Communications DRY CONTACT, SLOT SNMP (on request), USB Display LED Yes
Color Black Other Features Funzione risparmio energetico
input
Input voltage 175-290Vac Voltage Range -
Input frequency 50/60 Hz (auto sensing)
output
Output voltage 199-254Vac Voltage Range -
Output frequency 50/60 Hz Auto-rilevamento
battery
Battery type 2x 12V/7AH Backup time 5 minutes
Charging time 8 ore Cold start Yes
dimensions
Height 215 mm Width 145 mm
Depth 350 mm
